WIKA · SF6 gas solutions · Family GFK

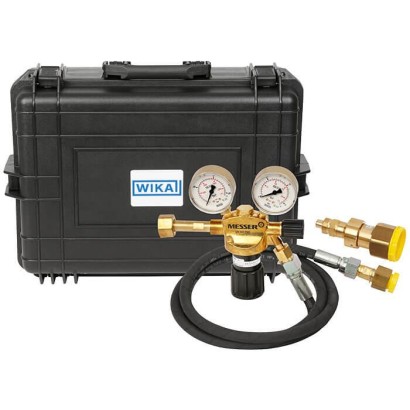

Filling set for SF 6 gas
For filling and refilling from a gas cylinder
Range
0…300 bar
Protection
IP67
Price
On request
Depends on configuration
Special features
- Compact and in a robust transport case
- 100% tested for leak tightness
- Working temperature -40 ... +80 °C
Identification
| Model | GFK-10 |
| Product family | GFK |
| Subcategory | Filling set |
Measuring range
| Pressure ranges | 0…60 bar · 0…250 bar · 0…300 bar · 0…10 bar |
Process conditions
| Process connection | 0.96" 15/16 CGA 590W21.8 x 1/14" per DIN 477 No. 61" per DIN 477 No. 8G 5/8" per BS 341 No. 6 |
Materials
| Wetted parts material | Rubber, Stainless steel, brass |
Operating environment
| Ambient temperature | −40…+80 °C |
| IP rating | IP67 |
| Weight | 10 kg |
Additional details
| Datasheet languages | EN |
Tables from datasheet
| Max. initial pressure | Pressure gauge initial pressure | ||
|---|---|---|---|
| Nominal size | Measuring range | ||
| Option 1 | 60 bar | 63mm | 0 ... 60 bar |
| Option 2 | 200 bar | 63mm | 0 ... 250 bar |
| Option 3 | 200 bar | 63mm | 0 ... 300 bar |
| Nominal size | Measuring range | |
|---|---|---|
| Standard | 63mm | 0 ... 10 bar |
| Option | 100mm | 0 ... 10 bar |
Thread
| Standard | W21.8 x 1/14" per DIN 477 No. 6 |
|---|---|
| Option 1 | 0.96" 15/16 CGA 590 |
| Option 2 | 1" per DIN 477 No. 8 |
| Option 3 | G5/8" per BS 341 No. 6 |
| Length | Material | |
|---|---|---|
| Standard | 2m | Rubber |
| Option 1 | 2m | Stainless steel |
| Option 2 | 3m | Rubber |
| Option 3 | 3m | Stainless steel |
View all (5)
Case
| Standard | With transport case |
|---|---|
| Option | Without transport case |
