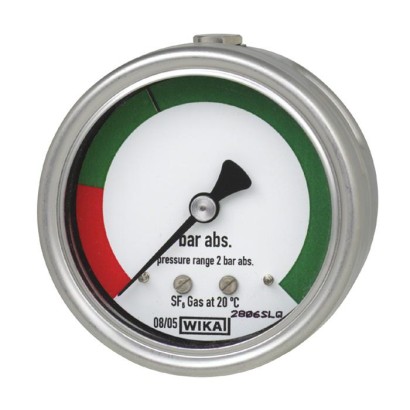

Gas density indicator

Name: Gas density indicator
Brand: WIKA

Gas density indicator with temperature compensation and hermetically sealed design for SF6 gas monitoring in medium-voltage equipment.

Range

0…1 bar

Accuracy

±1 % of full scale (20 mbar

Protection

IP65

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Gas density is a crucial operating parameter for mediumvoltage systems. If the required gas density is not present, safe operation of the plant cannot be guaranteed.

With WIKA gas density measuring instruments, changes of gas volumes can be determined reliably (e.g. leakages). Even under extreme environmental conditions.

Special features

Case and wetted parts from stainless steel
On-site display of the pressure standardised to 20 °C [68 °F]
Temperature-compensated and hermetically sealed, therefore no influence of temperature fluctuations, differences in level and atmospheric pressure fluctuations
Traceability by serial number

Identification

Model	GDI-063
Product family	GDI
Subcategory	Indicator

Measuring range

Pressure ranges	0…1 bar
Density reference temperature	20 °C

Accuracy

Accuracy class

±1 % of full scale (20 mbar, if measuring range < 2 bar) at 20 °C; ±2.5 % of full scale (50 mbar, if measuring range < 2 bar) at -20 ... +60 °C

Process conditions

Process connection

G ¼ B per EN 837, lower mount

Electrical characteristics

Switching contacts

Materials

Wetted parts material

Stainless steel

Operating environment

Ambient temperature	−20…+60 °C
IP rating	IP65
Weight	0.16 kg

Additional details

Temperature compensation	Yes
Datasheet languages	EN, DE

Tables from datasheet

Selectable versions

Option 1	Laminated safety glass
Option 2	Clear non-splintering plastic
