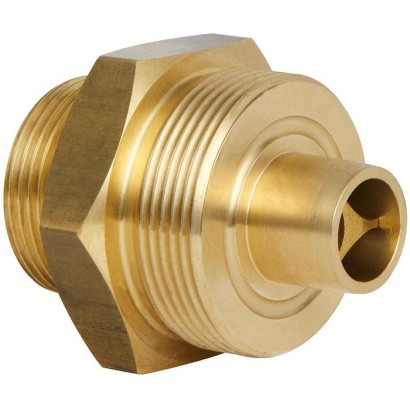

GCV-20 1
GCV-20
On order
WIKA · SF6 gas solutions · Family GCV

Connecting parts with nominal width DN 20

Valves, coupling valves, protection caps, fittings, adapters and connections for analytic instruments
Range
-1…64 bar
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

  • The valves can be isolated or coupled under pressure or vacuum
  • Vacuum and pressure-tight (-1 ... +64 bar)
  • Working temperature -40 ... +80 °C
  • Leak rate: GCV, GCA, measuring chambers: ≤ 1 · 10 -8 mbar · l/s GCG: ≤ 1 · 10 -5 mbar · l/s
  • GCV, GCA, measuring chambers: ≤ 1 · 10 -8 mbar · l/s
  • GCG: ≤ 1 · 10 -5 mbar · l/s
  • Tested helium tightness of 100 %
Identification
ModelGCV-20
Product familyGCV
SubcategoryValve
Measuring range
Pressure ranges-1…64 bar
Process conditions
Process connection
DN 20M33 x 2G1B
Materials
Wetted parts materialAluminium, Brass, Stainless steel
Operating environment
Ambient temperature−40…+80 °C
Additional details
Datasheet languagesEN
Tables from datasheet
Thread A1MaterialOrder no.
M33 x 2Aluminium13364830
M33 x 2Brass13364899
G1BAluminium13365186
G1BBrass14045888
MaterialOrder no.
Brass13363817
Aluminium13363833
Stainless steel13363841
Thread A1MaterialOrder no.
G½Brass13371037
G½Aluminium13371061
M20 x 1.5Brass14051770
MaterialOrder no.
Aluminium13384270
View all (10)
MaterialOrder no.
Brass14098363
Stainless steel14098362
MaterialOrder no.
Brass13375807
MaterialOrder no.
Brass14045655
MaterialOrder no.
Brass14045681
DescriptionMaterialOrder no.
Tongue partBrass13382684
Union nutBrass13378377
MaterialOrder no.
Brass14059683
Stainless steel14059691
