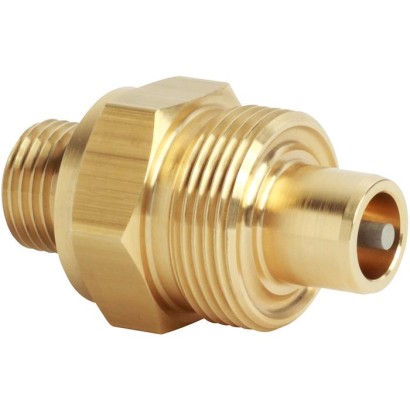

Connecting parts with nominal width DN 8

Name: Connecting parts with nominal width DN 8
Brand: WIKA

Valves, coupling valves, protection caps, fittings, adapters and connections for analytic instruments

Range

-1…64 bar

Price

On request

Depends on configuration

Special features

The valves can be isolated or coupled under pressure or vacuum
Vacuum and pressure-tight (-1 ... +64 bar)
Working temperature -40 ... +80 °C
Leak rate: GCV, GCA, measuring chambers: ≤ 1 · 10 -8 mbar · l/s GCG: ≤ 1 · 10 -5 mbar · l/s
GCV, GCA, measuring chambers: ≤ 1 · 10 -8 mbar · l/s
GCG: ≤ 1 · 10 -5 mbar · l/s
Tested helium tightness of 100 %

Identification

Measuring range

Pressure ranges

-1…64 bar

Process conditions

Process connection

DN 8M16 x 1.5G ¼G ½M20 x 1.5G ⅜M26 x 1.5DN 20

Materials

Wetted parts material

Stainless steel, Aluminium, Brass

Operating environment

Ambient temperature

−40…+80 °C

Additional details

Datasheet languages

Tables from datasheet

Material	Order no.
Brass	13376561
Stainless steel	14067240

Material	Order no.
Aluminium	13365771
Stainless steel	13449789

Material	Order no.
Aluminium	13365780

View all (11)

Material	Order no.
Aluminium	13376587
Stainless steel	13363680

Material	Order no.
Brass	13428625

Thread A	Length L	Material	Order no.
G¼	39.3	Brass	14009789
G½	44.3	Brass	13376668
G½	44.3	Stainless steel	13371126

Material	Order no.
Aluminium	13428820

Material	Order no.
Brass	14098363
Stainless steel	14098362

Material	Order no.
Brass	13428668
Stainless steel	14074445
