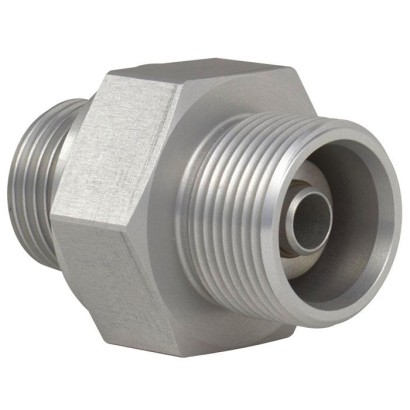

Connection parts with nominal width DN 6

Name: Connection parts with nominal width DN 6
Brand: WIKA

Valves, coupling valves, protection caps, fittings, adapters and connections for analytic instruments

Range

-1…64 bar

Price

On request

Depends on configuration

Special features

The valves can be disconnected or coupled underpressure or vacuum
Vacuum and pressure-tight (-1 ... +64 bar [-14.5 ... 928.2 psi])
Working temperature -40 ... +80 °C [-40 ... 176 °F]
Leak rate: GCV, GCA, measuring chambers: ≤ 1 · 10 -8 mbar · l/s GCG: ≤ 1 · 10 -5 mbar · l/s
GCV, GCA, measuring chambers: ≤ 1 · 10 -8 mbar · l/s
GCG: ≤ 1 · 10 -5 mbar · l/s
Tested helium tightness of 100 %

Identification

Measuring range

Pressure ranges

-1…64 bar

Process conditions

Process connection

M24 x 1.5M20 x 1.5DN 6G ½ BDN 6 to DN 8DN 6 to G ¼DN 8G ¼

Materials

Wetted parts material

aluminium, brass, stainless steel

Operating environment

Ambient temperature

−40…+80 °C

Additional details

Datasheet languages

Tables from datasheet
