FLM-Tx-FLEX

On order

WIKA · Level measurement · Family FLM

Magnetostrictive level transmitter

Name: Magnetostrictive level transmitter
Brand: WIKA

Magnetostrictive level transmitter with flexible probe tube for high-accuracy continuous level detection in liquids, suitable for large storage tanks and limited ceiling clearance installations.

Range

1.5…22 m

Output

4 ... 20 mA · HART®

Accuracy

±2 mm

Protection

IP68

CERoHSUKCAChina RoHSEMC EN 61326II 1G Ex ia IIB T6 ... T1 GaII 2G Ex ia IIB T6 ... T1 GbII 2D Ex ia IIIC TX °C DbII 2G Ex db ia IIB T6 ... T1 GbEx ia IIB T6 ... T1 GaEx ia IIB T6 ... T1 Ga/GbEx ia IIB T6 ... T1 GbEx ia IIIC TX °C DbEx ia/db IIB T6 ... T1 Ga/GbEx db ia IIB T6 ... T1 GbEx ia tb IIIC TX °C DbEx ia IIB T6...T1 GaEx ia IIB T6...T1 Ga/GbEx ia IIB T6...T1 GbEx ia IIICTX °C DbEx ia/db IIB T6...T1 Ga/GbEx db ia IIB T6...T1 GbEx ia tb IIICTX °C DbII1G Ex ia IIB T6 ...T1GaII1/2G Ex ia IIB T6 ...T1Ga/GbII2G Ex ia IIB T6 ...T1GbII2D Ex ia IIIC TX °C DbII2G Ex db ia IIB T6 ...T1GbExia IIB T6 ...T1GaExia IIB T6 ...T1Ga/GbExia IIB T6 ...T1GbExia IIIC TX °C DbExia/db IIB T6 ...T1Ga/GbEx db ia IIB T6 ...T1GbExia tb IIIC TX °C Db

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model FLM-Tx-FLEX magnetostrictive level transmitter is used for high-accuracy, continuous level detection of liquids, also with long insertion lengths.

The model FLM-Tx-FLEX is fitted with a flexible probe tube in the form of a stainless steel spiral armour.

For approvals, see page 4

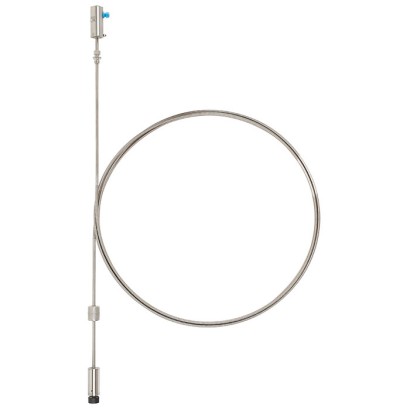

Level transmitter in flexible version, model FLM-TAI-FLEX

At the lower end of the sensor, there is a magnetic foot, which serves both to fix the stainless steel corrugated tube to the tank floor and as a ballast weight. Due to the flexible probe tube, the FLM-Tx-FLEX has an advantage in installation in applications with low ceiling clearances. Transport, due to the flexible design, is also easier than with a rigid probe. Interface measurements are also possible with the flexible version.

Special features

Probe length 1,500 mm … 22,000 mm [59.06 ... 866.14 in]
High accuracy of ± 2 mm [± 0.08 in] over a wide measuring range
Very high resolution of < 0.1 mm [0.004 in]
Explosion-protected versions possible

Identification

Model	FLM-Tx-FLEX
Product family	FLM
Subcategory	Flexible version

Measuring range

Level ranges

1.5…22 m

Accuracy

Safety integrity level (SIL)

SIL 2

Process conditions

Process connection	DIN EN DN 50 ... DN 200, PN 6 ... PN 100ANSI 2 ... 8", Class 150 ... 6001/2 NPT ... 2 NPTG 1/2 ... G 2"G1/2 ... G2Height-adjustable bite-type fittingG ½ ... G 2½ NPT ... 2 NPT
Process temperature	−40…+85 °C
Max process pressure	40 bar
Measurement technology	magnetostrictive

Electrical characteristics

Output signal	4 ... 20 mA · HART® · HART ® version 6 · 4...20 mA/HART® version 6
Power supply	8 ... 30 V DC
Electrical connection	Cable gland M16 x 1.5, Cable gland M20 x 1.5, M12 connector, 1/2 NPT thread for conduit wiring

Materials

Wetted parts material

Stainless steel 1.4305 (303), Stainless steel 1.4404 (316L), Stainless steel 1.4571 (316Ti)

Operating environment

Ambient temperature	−40…+85 °C
IP rating	IP68

Certifications and approvals

Certifications	CERoHSUKCAChina RoHSEMC EN 61326
Explosion protection	II 1G Ex ia IIB T6 ... T1 GaII 1/2G Ex ia IIB T6 ... T1 Ga/GbII 2G Ex ia IIB T6 ... T1 GbII 2D Ex ia IIIC TX °C DbII 1/2G Ex ia/db IIB T6 ... T1 Ga/GbII 2G Ex db ia IIB T6 ... T1 GbEx ia IIB T6 ... T1 GaEx ia IIB T6 ... T1 Ga/GbEx ia IIB T6 ... T1 GbEx ia IIIC TX °C DbEx ia/db IIB T6 ... T1 Ga/GbEx db ia IIB T6 ... T1 GbEx ia tb IIIC TX °C Db

Additional details

Datasheet languages

Tables from datasheet

Model	Display	Electrical connection	Ex version
FLM-TA-FLEX	Without	Cable gland	-
FLM-TAI-FLEX	Without	Cable gland	Ex ia
FLM-TM-FLEX	Without	M12 connector	-
FLM-TMI-FLEX	Without	M12 connector	Ex ia
FLM-TB-FLEX	LC display	Cable gland	-
FLM-TBI-FLEX	LC display	Cable gland	Ex ia
FLM-TBD-FLEX	LC display	Cable gland	Ex ia/db
FLM-TH-FLEX	LC display with integrated heating	Cable gland	-
FLM-THI-FLEX	LC display with integrated heating	Cable gland	Ex ia
FLM-THD-FLEX	LC display with integrated heating	Cable gland	Ex ia/db

Basic information
Connection housing
Material	Stainless steel 1.4305 (303)
Sensor tube
Material	Stainless steel 1.4571 (316Ti)
Diameter	12 mm[0.47 in]
Length from top to start of flexible corrugated tube	500 mm[19.69 in]
Length from bottom to start of flexible corrugated tube	500 mm[19.69 in]
Corrugated tube
Material	Stainless steel 1.4404 (316L)
Diameter	12 mm[0.47 in]
Insertion length	1,500 ... 22,000 mm[59.06 ... 866.14 in]
Accuracy specifications
Level	±2 mm[±0.08 in]
Resolution (HART ® )	0.1 mm[0.004 in]
Process connection
Thread size	Mounting thread	■ G1/2 ...G2 " ■ 1/2 NPT ... 2 NPT
	Mounting flange	■ DIN EN DN 50 ...DN 200, PN 6 ...PN 100 ■ ANSI 2 ... 8 " , Class 150 ... 600
	Height-adjustable bite-type fitting → Other thread sizes on request
Output signal	4 ... 20 mA/ HART ® version 6
IP ingress protection	IP68
Electrical connection
Connection type	2-wire
Cable diameter	5 ... 10 mm[0.2 ... 0.39 in]
Supply voltage	8 ...30V DC
Electrical output	■ Cable gland M16 x 1.5 ■ Cable gland M20 x 1.5 ■ M12 connector ■ 1/2 NPT thread for conduit wiring
Operating conditions
Ambient temperature range	-40 ...+85 °C [-40 ...+185 °F]
Storage temperature range	-40 ...+85 °C [-40 ...+185 °F]
Process temperature	-40 ...+85 °C [-40 ...+185 °F]
Other versions	■ Interface measurement, with two floats ■ Temperature sensors ■ Pharmaceutical design, FLM-H ... -FLEX,	up to 150 °C [302 °F]

Logo	Description Region
EU declaration of conformity	European Union
EMCdirective EN 61326 emission (group 1, class B) and immunity (industrial environments) RoHS directive UKCA	United Kingdom

Logo	Description	Region
	EU declaration of conformity	European Union
	- Ex i Zone 0 gas II 1G Ex ia IIB T6 ...T1 Ga Zone 0/1 gas II 1/2G Ex ia IIB T6 ...T1 Ga/Gb Zone 1 gas II 2G Ex ia IIB T6 ...T1 Gb Zone 1 dust II 2D Ex ia IIICTX °C Db (see thermal data on approval certificate) - Ex db Zone 0/1 gas II 1/2G Ex ia/db IIB T6 ...T1 Ga/Gb Zone 1 gas II 2G Ex db ia IIB T6 ...T1 Gb Zone 1 dust II 2D Ex ia tb IIICTX °C Db (see thermal data on approval certificate) IECEx	International

View all (8)

Logo	Description
SIL IEC 61508 / IEC 61511	SIL 2 Functional safety
-	China RoHS directive

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, material proof, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy, calibration certificate)

Material	Version	Suits guide tube Ø in mm[in]	Ø A inmm [in]	B inmm [in]	Ø C inmm [in]	Max. operating pressure in bar [psi]	Max. operating temp. in °C [°F]	Limit density 85 %in kg/m 3 [lb/ft 3 ]
Stainless steel 316Ti	V52A	14 [0.55]	52 [2.05]	52 [2.05]	15 [0.59]	40 [580.15]	250 [482]	720 [44.95]
V62A	14 [0.55]	62 [2.44]	61 [2.4]	15 [0.59]	32 [464.12]	250 [482]	597 [37.27]
V83A	14 [0.55]	83 [3.27]	81 [3.19]	15 [0.59]	25 [362.59]	250 [482]	430 [26.84]
V80A	18 [0.71]	80 [3.15]	76 [2.99]	23 [0.91]	25 [362.59]	250 [482]	660 [41.2]
V98A	18 [0.71]	98 [3.86]	96 [3.78]	23 [0.91]	25 [362.59]	250 [482]	597 [37.27]
V105A	18 [0.71]	105 [4.13]	103 [4.06]	23 [0.91]	25 [362.59]	250 [482]	533 [33.27]
V120A	18 [0.71]	120 [4.72]	117 [4.61]	23 [0.91]	25 [362.59]	250 [482]	389 [24.28]
V120/38A	18 [0.71]	120 [4.72]	116 [4.57]	38 [1.5]	25 [362.59]	250 [482]	537 [33.52]
Titanium 3.7035 (grade 2)	T52A	14 [0.55]	52 [2.05]	52 [2.05]	15 [0.59]	25 [362.59]	250 [482]	570 [35.58]
T62A	14 [0.55]	62 [2.44]	62 [2.44]	15 [0.59]	25 [362.59]	250 [482]	505 [31.53]
T83A	14 [0.55]	83 [3.27]	81 [3.19]	15 [0.59]	25 [362.59]	250 [482]	350 [21.85]
T80A	18 [0.71]	80 [3.15]	76 [3.0]	23 [0.91]	25 [362.59]	250 [482]	665 [41.51]
T98A	18 [0.71]	98 [3.86]	96 [3.78]	23 [0.91]	25 [362.59]	250 [482]	495 [30.9]
T105A	18 [0.71]	105 [4.13]	103 [4.06]	23 [0.91]	25 [362.59]	250 [482]	369 [23.04]
T120A	18 [0.71]	120 [4.72]	117 [4.61]	23 [0.91]	25 [362.59]	250 [482]	329 [20.54]

Material	Version	Suits guide tube Ø in mm[in]	Ø A inmm [in]	B inmm [in]	Ø C inmm [in]	Max. operat- ing pressure in bar [psi]	Max. operating temp. in °C [°F]	Limit density 85 %in kg/m 3 [lb/ft 3 ]
Stainless steel 316Ti	V44A	14 [0.55]	44 [1.73]	52 [2.05]	15 [0.59]	16 [232.06]	250 [482]	818 [51.07]
V44A	14 [0.55]	44 [1.73]	52 [2.05]	15 [0.59]	25 [362.59]	200 [392]	800 [49.94]
Titanium 3.7035 (grade 2)	T44A	14 [0.55]	44 [1.73]	52 [2.05]	15 [0.59]	16 [232.06]	250 [482]	550 [34.34]
PVC	P55A	16 [0.63]	55 [2.17]	54 [2.13]	22 [0.87]	3 [43.51]	60 [140]	798 [49.82]
P80A	20 [0.79]	80 [3.15]	79 [3.11]	25 [0.98]	3 [43.51]	60 [140]	573 [35.77]
Polypropylene	PP55A	16 [0.63]	55 [2.17]	54 [2.13]	22 [0.87]	3 [43.51]	80 [176]	595 [37.14]
PP80A	20 [0.79]	80 [3.15]	79 [3.11]	25 [0.98]	3 [43.51]	80 [176]	431 [26.91]
PVDF	PF55A	16 [0.63]	55 [2.17]	69 [2.72]	22 [0.87]	3 [43.51]	100 [212]	821 [51.25]
PF80A	20 [0.79]	80 [3.15]	79 [3.11]	25 [0.98]	3 [43.51]	100 [212]	681 [42.51]
