Meter run / meter tube

Name: Meter run / meter tube
Brand: WIKA

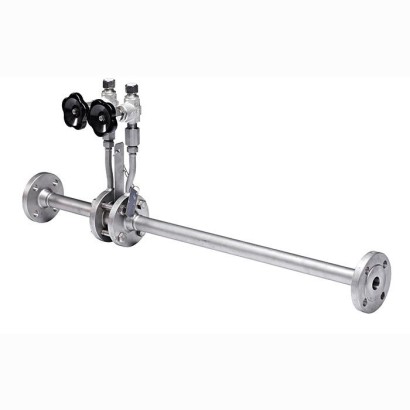

Meter run for differential pressure flow measurement with integral orifice, suitable for liquid, gas and steam, with high accuracy and repeatability.

Output

Corner taps

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Max. operating temperature and pressure limited by material and rating
Suitable for liquid, gas and steam flow measurement
Accuracy ≤ ±1.0 % of actual flow rate
Repeatability of measurement 0.1 %

Identification

Model	FLC-MR
Subcategory	Integral orifice

Measuring range

Pipe diameter

15 mm

Accuracy

1 %

Process conditions

Process connection	Slip-on flangeWelding neck flangeNPT connectionsButt weldSocket weld flangeFlange tapsCorner tapsOrifice flanges
Measurement technology	differential pressure

Electrical characteristics

Output signal

Corner taps · Two oval flanges for direct connection of differential pressure transmitter

Materials

Wetted parts material

Stainless steel 316/316L, Carbon steel ASTM A106 gr. B, Carbon steel ASTM A105, Stainless steel ASTM A 193 Gr. B8, Stainless steel ASTM A 194 Gr. 8, PTFE/Graphite, Stainless steel 316, Stainless steel ASTM A 194 Gr. B7, Stainless steel ASTM A 194 Gr. 2H, Graphite, Studs: Stainless steel ASTM A 193 Gr. B8, Nuts: Stainless steel ASTM A 194 Gr. 8, Plug: Stainless steel 316, Sealing: PTFE/Graphite, Orifice plate: Stainless steel 316/316L, Stainless steel 316, graphite, carbon steel, Carbon steel

Operating environment

Weight

5 kg

Additional details

Datasheet languages

Tables from datasheet

Nominal size	Dimensions inmm	Weight in kg
		L	L1	L2
½"	(DN 15)	550	380	170	5
¾"	(DN 20)	700	500	200	8
1"	(DN 25)	900	650	250	10
1 ½"	(DN 40)	1,300	1,000	300	22

Nominal size	Dimensions inmm	Weight in kg
		L	L1	L2
2"	(DN 50)	1,500	1,200	300	25
2 ½"	(DN 65)	1,600	1,250	350	38
3"	(DN 80)	1,800	1,400	400	51
4"	(DN 100)	2,200	1,700	500	82
