Mounting kit for shear or bending beams
Description
The model FA205 mounting kit is designed for the model F3831 shear beam as well as for models F3803 and F3833 bending beams. The model FA205 enables simple and easy installation of the shear or bending beams under platforms, silos or any type of vessel.
The mounting kit is designed to optimise force introduction into the shear or bending beam while, at the same time, enabling the greatest possible freedom of movement to compensate for temperature-related expansion, mechanical stresses and slight vibrations.
For stronger vibrations, such as those caused by an agitateur, we offer special accessories, see ' Accessories'.

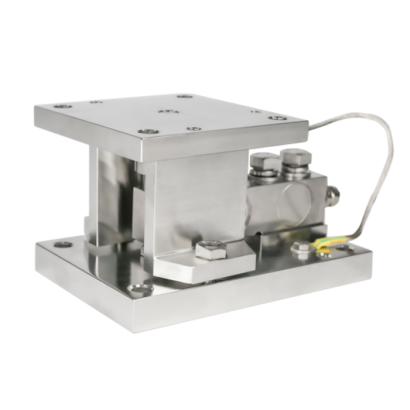

Mounting kit, model FA205, with bending beam (not included)
The model FA205 mounting kit can be used very flexibly. All modules of a set of scales are identical and can be freely aligned in any direction. Lift-off protection and a horizontal stop are integrated. The model FA205 features a compact design with a low profile.
The model F3831 shear beam and the models F3803 and F3833 bending beams (not included in the scope of delivery) are easy to install in and remove from the installed mounting kit.
Special features
- Rated loads of 250 ... 10,000 kg [551.2 ... 22,046 lb]
- Robust and industrial-strength stainless steel version
- Integrated lift-off protection and horizontal installation
- Low installation height, simple mounting
- Scope of delivery without shear or bending beam
| Model | FA205 |
| Product family | FA |
| Subcategory | Mounting kit |
| Force ranges | 5…10000 kg · 11…22046 lb · 150…200 kg · 250…2500 kg · 3000…5000 kg · 7500…10000 kg · 5…10 kg · 11…22 lb · 10…100 kg · 22…220 lb · 331…441 lb · 551…5512 lb · 750…2500 kg · 1653…5512 lb · 6614…11023 lb · 16535…22046 lb · 5…100 kg |
| Mounting type | Shear-beam, bending-beam |
| Cell material | Stainless steel |
| Weight | 3.6 kg |
| Datasheet languages | EN, DE |
| Overview of versions for shear and bending beams | |
|---|---|
| Rated load up to 200 kg [441 lb] | |
| 5; 10; 20; 30; 40; 50; 75; 100 kg [11; 22; 44; 66; 88; 110; 165; 220 lb] | F3803, F3833 |
| 150; 200 kg [331; 441 lb] | F3803, F3833 |
| Rated load up to 2,500 kg [5,512 lb] | |
| 250; 300; 500 kg [551; 661; 1,102 lb] | F3803, F3831, F3833 |
| 750; 1,000; 1,500; 2,000; 2,500 kg [1,653; 2,205; 3,307; 4,409; 5,512 lb] | F3831 |
| Rated load up to 5,000 kg [11,023 lb] | |
| 3,000; 5,000 kg [6,614; 11,023 lb] | F3831 |
| Rated load up to 10,000 kg [22,046 lb] | |
| 7,500; 10,000 kg [16,535; 22,046 lb] | F3831 |
| Basic information | |
|---|---|
| Material (in contact with the environment) | Stainless steel |
| Max. permissible horizontal deflection | |
| Rated load up to 200 kg [441 lb] | ±1.5 mm[±0.06 in] |
| Rated load up to 2,500 kg [5,512 lb] | ±3 mm[±0.12 in] |
| Rated load up to 5,000 kg [11,023 lb] | ±3 mm[±0.12 in] |
| Rated load up to 10,000 kg [22,046 lb] | ±3 mm[±0.12 in] |
| Max. permissible compression force (without shear or bending | beam) 1 ) |
| Rated load up to 200 kg [441 lb] | 12.5 kN [2,810 lbf] |
| Rated load up to 2,500 kg [5,512 lb] | 63 kN [14,163 lbf] |
| Rated load up to 5,000 kg [11,023 lb] | 125 kN [28,101 lbf] |
| Rated load up to 10,000 kg [22,046 lb] | 250 kN [56,202 lbf] |
| Max. permissible lifting force | |
| Rated load up to 200 kg [441 lb] | 11.5 kN [2,585 lbf] |
| Rated load up to 2,500 kg [5,512 lb] | 15.7 kN [3,530 lbf] |
| Rated load up to 5,000 kg [11,023 lb] | 54.3 kN [12,207 lbf] |
| Rated load up to 10,000 kg [22,046 lb] | 86.5 kN [19,446 lbf] |
| Max. permissible lateral forces | |
| Rated load up to 200 kg [441 lb] | 5.7 kN [1,281 lbf] |
| Rated load up to 2,500 kg [5,512 lb] | 7.9 kN [1,776 lbf] |
| Rated load up to 5,000 kg [11,023 lb] | 27 kN [6,070 lbf] |
| Rated load up to 10,000 kg [22,046 lb] | 43 kN [9,667 lbf] |
| Weight | |
| Rated load up to 200 kg [441 lb] | 3.6 kg [7.9 lb] |
| Rated load up to 2,500 kg [5,512 lb] | 7 kg [15.4 lb] |
| Rated load up to 5,000 kg [11,023 lb] | 7 kg [15.4 lb] |
| Rated load up to 10,000 kg [22,046 lb] | 7 kg [15.4 lb] |
| Version depending on rated load in kg | Dimensions inmm | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | |
| 200 | 102 | 8 | 83 | 12.7 | 10 | 145 | 165 | 102 | 10 | 82 | 10 | 82 |
| 2,500 | 114.4 | 12.7 | 105.6 | 19.1 | 12.7 | 152.4 | 177.9 | 114.4 | 12.7 | 89 | 12.7 | 89 |
| 5,000 | 152.4 | 19.1 | 136.6 | 25.4 | 25.4 | 184.2 | 235 | 152.4 | 25.4 | 101.6 | 25.4 | 101.6 |
| 10,000 | 203.2 | 25.4 | 180 | 34 | 25.4 | 304.8 | 355.6 | 203.2 | 25.4 | 152.4 | 25.4 | 152.4 |
| Version depending on rated load in lb | Dimensions in inch | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | L | |
| 441 | 4 | 0.3 | 3.3 | 0.5 | 0.4 | 5.7 | 6.5 | 4 | 0.4 | 3.2 | 0.4 | 3.2 |
| 5,512 | 4.5 | 0.5 | 4.2 | 0.75 | 0.5 | 6 | 7 | 4.5 | 0.5 | 3.5 | 0.5 | 3.5 |
| 11,023 | 6 | 0.75 | 5.4 | 1 | 1 | 7.3 | 9.3 | 6 | 1 | 4 | 1 | 4 |
| 22,046 | 8 | 1 | 7.1 | 1.3 | 1 | 12 | 14 | 8 | 1 | 6 | 1 | 6 |
View all (5)
| Model | Description | Item number |
|---|---|---|
| - | Anti-vibration clamp for 250 kg ... 2.5 t [551 lb ... 5,512 lb] | 64467554 |
| - | Anti-vibration clamp for 3 t ... 5 t [6,614 lb ... 11,023 lb] | 64471691 |
