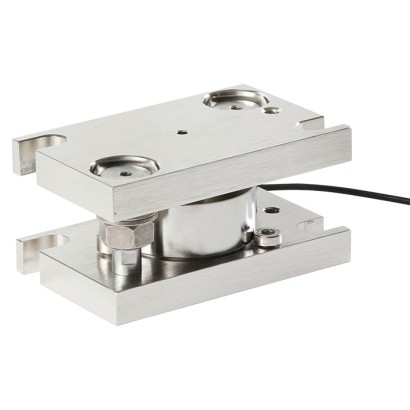

Mounting kit

Name: Mounting kit
Brand: WIKA

For compression force transducer model F1201, for rated loads up to 30 t

Range

2.5…30 t

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The mounting kit model FA201 for the force transducer model F1201 are designed in such a way that both optimum force introduction is applied to the load cell and the greatest possible freedom of movement is achieved in order to compensate for temperature-related expansion, mechanical stresses and slight vibrations.

The installation kit enables simple and easy implementation of the force transducer in a structure, offers integrated lift-off protection and a horizontal stop, combined with a very low overall height.

The force transducer (not included in the delivery) can be easily removed and installed in the final mounting kit. Assembly is carried out using screws.

Special features

Measuring ranges 2.5 t ... 30 t [5,511 lb ... 66,139 lb]
Robust and industrial-strength stainless steel version
Integrated lift-off protection and horizontal installation
Low overall height, easy installation

Identification

Model	FA201
Product family	FA
Subcategory	Mounting kit

Measuring range

Force ranges

2.5…30 t · 5511…66139 lb · 2.5…10 t · 20…30 t · 5511…22046 lb · 44093…66139 lb · 59…84.5 kN · 13488.5…18996 lbf

Process conditions

Mounting type

Compression

Materials

Cell material

Stainless steel

Additional details

Datasheet languages

DE, EN

Tables from datasheet

Model
	Compression force transducer Rated load up to 30 t [66,139 lb] → See data sheet FO 51.71

Basic informations

Standard	In accordance with directive VDI/VDE/DKD 2638
Maximum permissible lateral displacement	±3 mm[±0.118 in]
Maximum tension force
vertical	< 20 t [44,093 lb]	59 kN [13,488.5 lbf]
	≥ 20 t [44,093 lb]	84.5 kN [18,996 lbf]
Maximum force
horizontal direction	< 20 t [44,093 lb]	22 kN [4,946 lbf]
	≥ 20 t [44,093 lb]	32 kN [7,194 lbf]
Transport weight	< 20 t [44,093 lb]	5.3 kg [11.68 lb]
	≥ 20 t [44,093 lb]	13.5 kg [29.76 lb]
Material of the measuring body	Stainless steel

t	lb
2.5 ... 10	5,511 ... 22,046
20 ... 30	44,093 ... 66,139

Rated load in t	Dimensions inmm
	A	B	C	D	E	F	G	H	I	J	K	L
2.5 ... 10	160	160	20	20	80	115	128	17	55.5	68	100	62
20 ... 30	218	218	25	25	100	168	180	21	100	100	150	62

View all (5)

Rated load in lb	Dimensions in Inch
	A	B	C	D	E	F	G	H	I	J	K	L
5,511 ... 22,046	6.30	6.30	0.78	0.78	3.14	4.52	5.03	0.66	2.18	2.67	3.93	2.4
44,093 ... 66,139	8.58	8.58	0.98	0.98	3.93	6.61	7.08	0.82	3.93	3.93	5.90	2.4
