F6116 1
F6116
In stock at WIKA
WIKA · Force measurement · Family F6116

Hydraulic ring force transducer

Hydraulic ring force transducer Compact version to 120 kN
Range
320…120000 N
Accuracy
≤ ±1.0 % ... ≤ ±1.6 % Fnom
Protection
IP65
EACRoHSEMVEU declaration of conformityEMV-directiveRoHS-directiveCE
Price
From €801
Confirm at order time
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model F6116 compact hydraulic ring force transducer enables the simple and economical measurement and display of forces. Its measuring ranges from 320 N to 120 kN [0 ... 72 lbf to 0 ... 26.977 lbf]. Since it is independent of any power source, this type of measuring system offers ideal operating conditions for different fields of application.

Hydraulic force measurement makes use of a piston-case combination with different seals as a sensor unit. The force acting is the product of the area and the pressure. For the display of the pressure, either pressure gauges, pressure sensors or pressure measuring instruments with contact devices can be used. The scale of the display instrument can be defined in various units, e.g. in N, kN, kg, t.

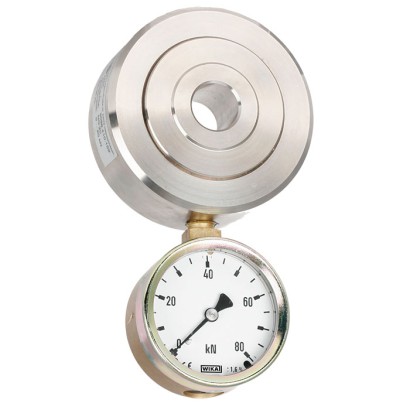

Hydraulic ring force transducer, model F6116

Special features

  • Measuring ranges 0 ... 320 N to 0 ... 120 kN [0 ... 72 lbf bis 0 ... 26,977 lbf]
  • Relative linearity error: ±1.0 ... ±1.6 % F nom with analogue pressure gauge ±0.5 % F nom with digital pressure gauge or pressure sensor
  • ±1.0 ... ±1.6 % F nom with analogue pressure gauge
  • ±0.5 % F nom with digital pressure gauge or pressure sensor
  • Piston stroke ≤ 0.5 mm [≤ 0.02 in]
  • Operates without supply voltage
  • 5-year leak-tightness warranty
Identification
ModelF6116
SubcategoryHydraulic ring force transducer
Measuring range
Force ranges320…120000 N · 72…26977 lbf · 0.32…120 kN
Accuracy
Accuracy class≤ ±1.0 % ... ≤ ±1.6 % Fnom
Process conditions
Process temperature−25…+50 °C
Mounting typeDirect mounting about adapter, Capillary, Measuring hose
Materials
Cell materialStainless steel
Operating environment
Ambient temperature−25…+50 °C
IP ratingIP65
Weight2.1 kg
Certifications and approvals
Certifications
EACRoHSEMVEU declaration of conformityEMV-directiveRoHS-directiveCE
Additional details
Overload protection100 %
Datasheet languagesEN
Tables from datasheet
Model F6116
Rated force F nom0 ... 320 N to 0 ... 120 kN [0 ... 72 lbf to 0 ... 26.977 lbf]
Nominal sizeNS 20 ring
Display■ Pressure gauge, model 213.40 (NS 63) ■ Pressure gauge, model PGS23 ■ Digital pressure gauge, model DG-10 ■ Pressure sensor (on request)
Relative linearity error d lin
Pressure gauge≤ ±1.6%F nom
Pressure sensor/digital pressure gauge≤ ±0.5%F nom
Limit force F L100%F nom
Breaking force F B> 130%F nom
Rated displacement s nom< 0.5 mm[< 0.02 in]
Rated temperature range B T, nom-25 …+50 °C [-13 ... 122 °F]
Ingress protection (per EN/IEC 60529)IP65
CaseStainless steel
PistonStainless steel
Mounting type■ Direct mounting about adapter ■ Capillary ■ Measuring hose for &#x27;separation without any loss less connection&#x27;
Fill fluidGlycerine 70 %/ water30%
Assembly aidThreaded holes on the bottom of the case
Weight
with pressure gauge, model 213.40 (NS 63)2.1 kg [4.63 lbs]
with digital pressure gauge, model DG-102.3 kg [5.1 lbs]
LogoDescriptionRegion
EU declaration of conformityEuropean Union
EMV-directive
RoHS-directive
EAC (option)Eurasian Economic Community
EMV-directive
VersionPressure gaugeDigital pressure gaugeOptions
Rated forceSystem pressureModel 213.40Model DG-10Measuring hose DN 2 [max. L]Capillary [max. L]
N/kN [lbf]barmm
320 [72]N [lbf]1.6 1)---
500 [112]2.5---
800 [180]4--1.0
1.2 [270]kN [lbf]6-0.51.0
2 [450]10-1.02.0
3.2 [719]16-1.02.0
4 [900]20 2)1.52.0
5 [1,124]25-1.52.0
8 [1,798.5]40-1.52.0
10 [2,248]502.02.0
12 [2,698]60-2.02.0
20 [4,496]1002.02.0
32 [7,194]1602.0Other lengths on request
50 [11,240]2503.2
60 [13,488]315-3.2
80 [17,984]4003.2
120 [26,977]6003.2
Other rated loads and versions on request
