WIKA · Force measurement · Family F2304_F23C4

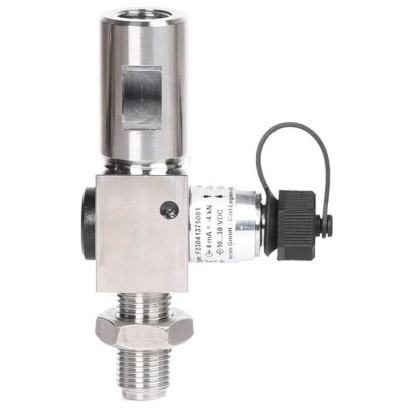

Tension/compression force transducer

With thin-film technology up to 200 kN
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The tension/compression force transducer is designed for static and dynamic measurement tasks in the direct flux of force. It determine the tension and compression forces in a wide scope of applications.

Force transducers of this model are used for measuring axial forces on electric spindle presses, for monitoring overload protection in lifting cylinders and for measuring force on punches, presses and welding guns.

Appropriate technical and regional approvals are available as an option.

Tension/compression force transducer, model F2304

This force transducer is made of high-strength, corrosion resistant stainless steel 1.4542, which is particularly suitable for their application areas.

As output signals, the common active current and voltage outputs are available (4 … 20 mA, 0 … 10 V). Also redundant output signals and CANopen ® protocols are

possible.

Special features

  • Measuring ranges 0 ... 1 kN to 0 ... 200 kN [0 ... 225 lbf to 0 ... 44,962 lbf]
  • Corrosion-resistant stainless steel design
  • Integrated amplifier
  • High long-term stability, high shock and vibration resistance
  • Good reproducibility, simple installation
Specifications are being prepared — full datasheet available on request.
Tables from datasheet
ModelF2304
Rated force F nom kN1; 2; 3; 5; 10; 20; 30; 50; 100; 200
Rated force F nom lbf225; 450; 674; 1,124; 2,248; 4,496; 6,744; 11,240; 22,481; 44,962
Relative linearity error d lin 1)0.5%F nom
Relative reversibility error< 0.1%F nom
Relative creep, 30 min. at F nom0.1%F nom
Temperature effect on
zero signalTK00.2%F nom / 10 K
characteristic valueTK C0.2%F nom / 10 K
Limit force F L150%F nom
Breaking force F B300%F nom
Permissible vibration loading F rb±50%F nom (in accordance with DIN 50100)
Rated displacement (typical) s nom< 0.1 mm[< 0.004 in]
Material of the measuring body■ Corrosion-resistant stainless steel 1.4542, ultrasound-tested 3,1 material ■ Version with 3,2 material available
Rated temperature range B T, nom-20 …+80 °C [-4 ...+176 °F]
Service temperature range B T, G-30 …+80 °C [-22 ...+176 °F]
Storage temperature range B T, S-40 …+85 °C [-40 ...+185 °F]
Electrical connectionCircular connector M12 x 1, 5-pin
Output signal (Rated characteristic value) C nom■ 4 …20mA2-wire ■ 4 …20mA3-wire ■ DC 0 …10V3-wire ■ Optional redundant signal ■ CANopen ® Protocol in accordance with CiA ® 301, device profile CiA ® 404, communication services LSS (CiA ® 305), configuration of the instrument address and baud rate Sync/Async, Node/Lifeguarding, heartbeat; zero and span ±10 %adjustable via entries in the object directory 2)
Current/power consumptionCurrent output: 4 …20mA, Signal current: 2-wire
Supply voltage UB■ DC 9 ...36V for current output ■ DC 13 ...36V for voltage output ■ DC 9 ...36V for CANopen ®
Load≤ (UB - 10 V) / 0.024 A for current output
Response time< 1 ms (within10%to90%F nom ) 3)
Ingress protection (per IEC/EN 60529)
Unplugged stateIP66, IP67
Plugged-in stateIP68, IP69, IP69K
Electrical protectionReverse polarity protection, overvoltage and short-circuit resistance
Vibration resistance20 g, 100 h, 50 ... 150 Hz (to DIN EN 60068-2-6)
Immunity■ Per DIN EN 61326-1/DIN EN 61326-2-3 ■ EMC-strengthened versions
Intended useIndoor and outdoor use, typically at altitudes of up to 2,500 m[8,202.5 ft] above sea level.
LogoDescriptionRegion
EU declaration of conformity EMCdirectiveEuropean Union
LogoDescriptionRegion
EAC EMCdirectiveEurasian Economic Community
Rated force in kNDimensions inmm
ABDFGHJK1K2L
1, 2, 3, 525.324244.31.5623567678
1025.324314.31.5623567685
2025.326353.8210345676113
302627403.82103456.576.5118
View all (20)
Rated force in kNDimensions inmmTightening MA displacement
MPRSWØN1ØN2 -0.1Sphere RRated
1, 2, 3, 5M1218131617.59.560< 0.515
10M1218131617.59.580< 0.515
20M20 x 1.53020263117100< 0.560
30M20 x 1.53020263117120< 0.560
Rated force in lbfDimensions in inch
ABDFGHJK1K2L
225; 450; 674; 1,1240.990.940.940.170.060.240.92.22.993.07
2,2480.990.941.220.170.060.240.92.22.993.35
4,4960.991.021.380.150.080.41.342.22.993.35
6,7441.021.061.570.150.080.41.342.223.014.64
Rated force in lbfDimensions in inchTightening torque MA (Nm)
MPRSWØN1ØN2 -0,004Sphere RRated displacement
225; 450; 674; 1,124M120.710.510.630.290.372.36< 0.0215
2,248M120.710.510.630.290.373.15< 0.0215
4,496M20 x 1.51.180.791.021.220.673.94< 0.0260
6,744M20 x 1.51.180.791.021.220.674.72< 0.0260
Rated force in kNDimensions inmm
ØADFGHJK1K2L
5038505212405878143
10046547.5319.57162.582.5209.5
20067677.5322.5827393243
Rated force in kNDimensions inmmTightening torque MA (Nm)
MPRSWØN1ØN2 -0,1Sphere RRated displacement
50M24 x 23630303520150< 0.5110
100M39 x 358.550505634200< 0.5390
200M45 x 367.556556540250< 0.5495
Rated force in lbfDimensions in inch
ØADFGHJK1K2L
11,2401.51.970.20.080.471.572.283.075.63
22,4811.812.160.30.120.762.82.463.258.25
44,9622.642.640.30.120.883.232.873.669.57
Rated force in lbfDimensions in inchTightening torque MA (Nm)
MPRSWØN1ØN2 -0,004Sphere RRated
11,240M24 x 21.421.181.181.380.795.9< 0.02110
22,481M39 x 32.31.971.972.21.347.87< 0.02390
44,962M45 x 32.662.22.162.561.579.84< 0.02495
SignalDescription
UBVoltage source for sensor
UB+Sensor- supply voltage (+)
UB-Sensor- supply voltage (-)
URVoltage source for den signal jump
UR+Signal jump-supply voltage (+)
UR-Signal jump-supply voltage (-)
S+Output signal (+)
S-Output signal (-)
0V0V-Potential
SignalDescription
AAmmeter
VVoltmeter
+ -Voltage source
Switch
Shield [grounding]
Signal4 ... 20 mA, 2-wireCable colour
UB+/S+1Brown
0V/S-3Black
ShieldCase / connector-
Signal4 ... 20 mA, 3-wireCable colour
UB+1Brown
S+4Black
0V/S-3Blue
ShieldCase / connector-
Signal0 ... 10 V, 3-wireCable colour
UB+1Brown
S+4Black
0V/S-3Blue
ShieldCase / connector-
Signal4 ... 20 mA, 2-wireCable colour
UB+/S+1Brown
0V/S-3Blue
UR+2White
UR-4Black
ShieldCase / connector-
Signal4 ... 20 mA, 3-wireCable colour
UB+1Brown
0V/S-3Blue
UR+2White
UR-3Blue
S+4Black
ShieldCase / connector-
Signal0 ... 10 V, 3-wireCable colour
UB+1Brown
0V/S-3Blue
UR+2White
UR-3Blue
S+4Black
ShieldCase / connector-
SignalDescription
UBVoltage source for the sensor
UB+Sensor voltage supply (+)
UB-Sensor voltage supply (-)
S+Output signal (+)
S-Output signal (-)
CH1Channel 1
CH2Channel 2
CH1+2Channel 1 and channel 2
0V0V potential
