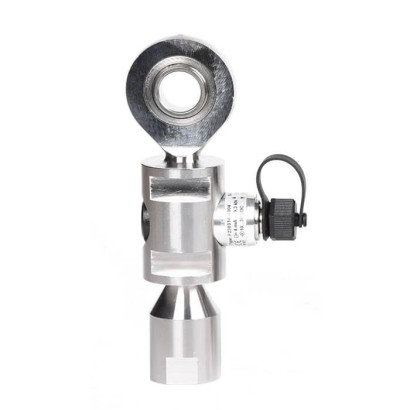

Tension/compression force transducer

Name: Tension/compression force transducer
Brand: WIKA

With thin film technology and swivel head up to 45 kN

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The tension/compression force transducer is designed for static and dynamic measurement tasks in the direct flux of force. It determine the tension and compression forces in a wide scope of applications.

Force transducers of this model are used for measuring axial forces on electric spindle presses, for monitoring overload protection in lifting cylinders and for measuring force on punches, presses and welding guns.

Appropriate technical and regional approvals are available as an option.

Special features

Measuring ranges 0 ... 10 kN to 0 ... 45 kN [0 ... 2,248 lbf to 0 ... 10,116 lbf]
Corrosion-resistant stainless steel design
Integrated amplifier
High long-term stability, high shock and vibration resistance
Good reproducibility, simple installation

Specifications are being prepared — full datasheet available on request.

Tables from datasheet

Model	F2303
Rated force F nom kN	10, 18, 20, 34, 45
Rated force F nom lbf	2,248; 4,047; 4,496; 7,644; 10,116
Relative linearity error d lin 1)	0.5%F nom
Relative reversibility error	< 0.1%F nom
Relative creep, 30 min. at F nom	0.1%F nom
Temperature effect on
Zero signalTK0	0.2%F nom / 10 K
Characteristic valueTK C	0.2%F nom / 10 K
Limit force F L	150%F nom
Breaking force F B	300%F nom
Permissible vibration loading F rb	50%F nom (in accordance with DIN 50100)
Rated displacement (typical) s nom	< 0.1 mm[< 0.004 in]
Material of the measuring body	■ Corrosion-resistant stainless steel 1.4542, ultrasound-tested 3,1 material ■ Version with 3,2 material available
Rated temperature range B T, nom	-20 …+80 °C [-4 ...+176 °F]
Service temperature range B T, G	-30 …+80 °C [-22 ...+176 °F]
Storage temperature range B T, S	-40 …+85 °C [-40 ...+185 °F]
Electrical connection	Circular connector M12 x 1, 5-pin
Output signal (Rated characteristic value) C nom	■ 4 …20mA2-wire ■ 4 …20mA3-wire ■ DC 0 …10V3-wire ■ Optional redundant signal ■ CANopen ® Protocol in accordance with CiA ® 301, device profile CiA ® 404, communication services LSS (CiA ® 305), configuration of the instrument address and baud rate Sync/Async, Node/Lifeguarding, heartbeat; zero and span ±10 %adjustable via entries in the object directory 2)
Current/power consumption	Current output: 4 …20mA, Signal current: 2-wire
Supply voltage UB	DC 10 ...30V for current output
Load	≤ (UB - 10 V) / 0.024 A for current output
Response time	< 1 ms (within10%to90%F nom ) 3)
Ingress protection (per EN/IEC 60529)
Unplugged state	IP66, IP67
Plugged-in state	IP68, IP69, IP69K
Electrical protection	Reverse polarity protection, overvoltage and short-circuit resistance
Vibration resistance)	20 g, 100 h, 50 ... 150 Hz (per DIN EN 60068-2-6)
Immunity	■ Per DIN EN 61326-1/DIN EN 61326-2-3 ■ EMC-strengthened versions
Intended use	Indoor and outdoor use, typically at altitudes of up to 2,500 m[8,202.5 ft] above sea level.

Logo	Description	Region
	EU declaration of conformity EMCdirective	European Union

Logo	Description	Region
	EAC EMCdirective	Eurasian Economic Community

Rated force in kN	Dimensions inmm
A	B	C	∅C	∅D1 -0.008	∅D2	E	F	G	GL	H	J1	J2	∅K
10	34	24	25.3	-	12-	14.9	10	35	M12	18	31	56	76	17.5
20	46	26	25.3	-	17	20.7	14	46	M20 x 1.5	30	35	56	76	31
30	46	27	26	-	17	20.7	14	46	M20 x 1.5	30	40	56.5	76.5	31
45	53	-	-	38	20	24.2	16	54	M24 x 2	36	50	58	78	35

View all (20)

Rated force in kN	Dimensions inmm	Tightening torque MA (Nm)
L1	L2	L3	M	U	SW	Rated displacement
10	105	88	31	8	13	19	< 0.02	15
20	133	110	44	11	20	19	< 0.2	60
30	138	115	44	11	20	19	< 0.2	60
45	166	139.5	53	13	30	19	< 0.2	110

Rated force in lbf	Dimensions in inch
A	B	C	∅C	∅D1 -0.0003	∅D2	E	F	G	GL	H	J1	J2	∅K
2,248	1.34	0.94	1	-	0.47	0.587	0.39	1.38	M12	0.71	1.22	2.20	2.99	0.69
4,496	1.81	1.02	1	-	0.67	0.81	0.55	1.81	M20 x 1.5	1.18	1.38	2.20	2.99	1.22
6,744	1.81	1.06	1.02	-	0.67	0.81	0.55	1.81	M20 x 1.5	1.18	1.57	2.22	3.01	1.22
10,116	2.09	-	-	1.5	0.79	0.95	0.63	2.13	M24 x 2	1.42	1.97	2.28	3.07	1.38

Rated force in lbf	Dimensions in inch	Tightening torque MA (Nm)
L1	L2	L3	M	U	SW	Rated displacement
2,248	4.13	3.46	1.22	0.31	0.51	0.75	< 0.0008	15
4,496	5.24	4.33	1.73	0.43	0.79	0.75	< 0.0079	60
6,744	5.43	4.53	1.73	0.43	0.79	0.75	< 0.0079	60
10,116	6.54	5.49	2.09	0.51	1.18	0.75	< 0.0079	110

Rated force in kN	Dimensions inmm
A	B	C	∅C	∅D1 -0.008	∅D2	E	F	G	H	J1	J2
10	34	24	25.3	-	14.9	12	10	35	M12	31	56	76
20	46	26	25.3	-	20.7	17	14	46	M20 x 1.5	35	56	76
30	46	27	26	-	20.7	17	14	46	M20 x 1.5	44	56.5	76.5
45	53	-	-	38	24.2	20	16	54	M24 x 2	50	58	78

Rated force in kN	Dimensions inmm	Tightening torque MA (Nm)
L1	L2	L3	M	N	Rated displacement
10	97	80	23	8	6	< 0.02	15
20	123	100	34	11	10	< 0.2	60
30	132	109	34	11	10	< 0.2	60
45	153	126.5	40	13	12	< 0.2	110

Rated force in lbf	Dimensions in inch
A	B	C	∅C	∅D1 -0.0003	∅D2	E	F	G	H	J1	J2
2,248	1.34	0.94	1	-	0.47	0.587	0.39	1.38	M12	1.22	2.20	2.99
4,496	1.81	1.02	1	-	0.67	0.81	0.55	1.81	M20 x 1.5	1.38	2.20	2.99
6,744	1.81	1.06	1.02	-	0.67	0.81	0.55	1.81	M20 x 1.5	1.73	2.22	3.01
10,116	2.09	-	-	1.5	0.79	0.95	0.63	2.13	M24 x 2	1.97	2.28	3.07

Rated force in lbf	Dimensions in inch	Tightening torque MA (Nm)
L1	L2	L3	M	N	Rated displacement
2,248	3.82	3.15	0.91	0.31	0.24	< 0.0008	15
4,496	4.84	3.94	1.34	0.43	0.39	< 0.0079	60
6,744	5.20	4.29	1.34	0.43	0.39	< 0.0079	60
10,116	6.02	4.98	1.57	0.51	0.47	< 0.0079	110

Signal	Description
UB	Voltage source for sensor
UB+	Sensor-supply voltage (+)
UB-	Sensor-supply voltage (-)
UR	Voltage source for den signal jump
UR+	Signal jump-supply voltage (+)
UR-	Signal jump-supply voltage (-)
S+	Output signal (+)
S-	Output signal (-)
0V	0V-Potential

Signal	Description
A	Ammeter
V	Voltmeter
+ -	Voltage source
	Switch
	Shield [grounding]

Signal	4 ... 20 mA, 2-wire	Cable colour
UB+/S+	1	Brown
0V/S-	3	Black
Shield	Case / connector	-

Signal	4 ... 20 mA, 3-wire	Cable colour
UB+	1	Brown
S+	4	Black
0V/S-	3	Blue
Shield	Case / connector	-

Signal	0 ... 10 V, 3-wire	Cable colour
UB+	1	Brown
S+	4	Black
0V/S-	3	Blue
Shield	Case / connector	-

Signal	4 ... 20 mA, 2-wire	Cable colour
UB+/S+	1	Brown
0V/S-	3	Blue
UR+	2	White
UR-	4	Black
Shield	Case / connector	-

Signal	4 ... 20 mA, 3-wire	Cable colour
UB+	1	Brown
0V/S-	3	Blue
UR+	2	White
UR-	3	Blue
S+	4	Black
Shield	Case / connector	-

Signal	0 ... 10 V, 3-wire	Cable colour
UB+	1	Brown
0V/S-	3	Blue
UR+	2	White
UR-	3	Blue
S+	4	Black
Shield	Case / connector	-

Signal	Description
UB	Voltage source for the sensor
UB+	Sensor voltage supply (+)
UB-	Sensor voltage supply (-)
S+	Output signal (+)
S-	Output signal (-)
CH1	Channel 1
CH2	Channel 2
CH1+2	Channel 1 and channel 2
0V	0V potential
