WIKA · Force measurement · Family F1818
Compression force transducer
Miniature compression force transducer suitable for measuring static and dynamic compression forces up to 5 kN with low installation height and IP65 protection.
Range
0…50 N
Output
1.5 ±0.15 mV/V
Accuracy
0.5 % F nom
Protection
IP65
CERoHSEAC
Price
On request
Depends on configuration
Description
The miniature model F1818 compression force transducer is suitable for measuring static and dynamic compression forces to 5 kN.
The low overall height and small external diameter enable simple installation in machinery or test instruments and they can therefore be used in the widest variety of industrial areas. With this, it is also ideally suited for the measurement of compression forces in areas where installation space is critical.
Fields of application include test rigs for a variety of purposes, monitoring and control of manufacturing processes, in test facilities and laboratories.

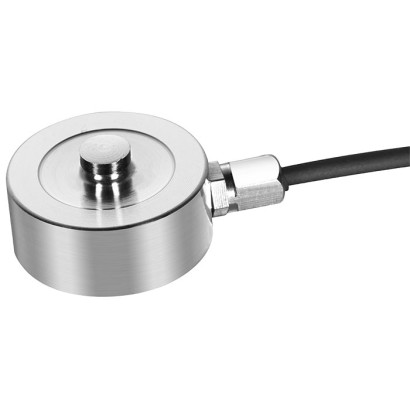

Miniature compression force transducer, model F1818
Special features
- Measuring ranges 0 ... 50 N to 0 ... 5 kN
- Relative linearity error 0.5 % F nom
- Material: Stainless steel
- Low installation height, easy to install
- Ingress protection IP65
Identification
| Model | F1818 |
| Subcategory | Compression force transducer |
Measuring range
| Force ranges | 0…50 N · 0…5 kN |
Accuracy
| Accuracy class | 0.5 % F nom |
Process conditions
| Process temperature | −20…+80 °C |
| Mounting type | compression |
Electrical characteristics
| Output signal | 1.5 ±0.15 mV/V |
Materials
| Cell material | Stainless steel |
Operating environment
| Ambient temperature | −20…+80 °C |
| IP rating | IP65 |
| Weight | 0.1 kg |
Certifications and approvals
| Certifications | CERoHSEAC |
Additional details
| Overload protection | 150 % |
| Cable length | 3 m |
| Datasheet languages | EN, DE |
Tables from datasheet
| Model F1818 | |||||||
|---|---|---|---|---|---|---|---|
| Rated force F nom kN | 0.05 | 0.1 | 0.2 | 0.5 | 1 | 2 | 5 |
| Rated force F nom lbf | 11.24 | 22.5 | 45 | 112 | 225 | 450 | 1,124 |
| Relative linearity error d lin | 0.5%F nom | ||||||
| Relative reversibility error v | 0.5%F nom | ||||||
| Relative span in unchanged mounting situation b rg | 0.1%F nom | ||||||
| Relative deviation of zero signal d S, 0 | ±2%F nom | ||||||
| Limit force F L | 150%F nom | ||||||
| Breaking force F B | 200%F nom | ||||||
| Material of the measuring body | Stainless steel | ||||||
| Service temperature range B T, G | -20 …+80 °C [-68 …+176 °F] | ||||||
| Input resistance R e | 350 ±10Ω | ||||||
| Output resistance R a | 350 ±5Ω | ||||||
| Insulation resistance Ris | ≥ 5,000 MΩ/DC 100V | ||||||
| Output signal (rated characteristic value) C nom | 1.5 ±0.15 mV/V | ||||||
| Electrical connection | Cable Ø2×3,000 mm[Ø0.1 in x 118 in] | ||||||
| Voltage supply | DC 5V (max. 10 V) | ||||||
| Ingress protection (per IEC/EN 60529) | IP65 | ||||||
| Weight | 0.1 kg [0.22 lbs] |
| Logo | Description | Country |
|---|---|---|
| EU Declaration of Conformity | European Union | |
| EMCDirective | ||
| RoHS Directive | ||
| EAC (Option) | Eurasian Economic Community | |
| EMV-Directive |
| Rated force in kN [lbf] | Dimensions in mm[in] | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ØA | ØB | ØC | SR D | E | F | G | H | L | M | |
| 0.05 [11.24] / 0.1 [22.5] / 0.2 [45] / 0.5 [112] / 1 [225] / 2 [450] / 5 [1,124] | 16.5 | 5 | 20 | 20 | 11 | 8.5 | 5 | 7.5 | 3.000 | M2.5 |
| [0.65] | [0.19] | [0.79] | [0.79] | [0.43] | [0.33] | [0.19] | [0.26] | [118] |
Electrical connection
| Excitation voltage (+) | Red |
|---|---|
| Excitation voltage (-) | Black |
| Signal (+) | Green |
| Signal (-) | White |
| Shield | Shield |
Industry
Machinery
Equipment manufacturing, production lines · Materials testing machinery
