WIKA · Force measurement · Family EZE

Pre-assembled cable

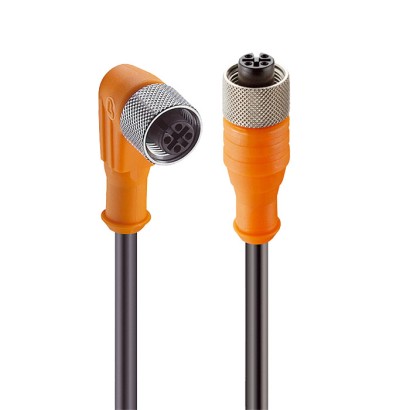

Pre-assembled cable with M12 x 1 mating connector for electrical connection of transmitters, available with straight or angled connectors, 4-pin or 5-pin design, shielded for high electromagnetic immunity, IP67 rated when plugged in.
Protection
IP67
Price
From €23
Confirm at order time
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model EZE53 pre-assembled cable is specially suited for the electrical connection of all transmitters.

The pre-assembled cable is available in a variety of variants. With straight or angled mating connectors in 4-pin or 5-pin design on the sensor side. The output side of the cable is cut to length. On request, the model EZE53 is available with a straight or angled M12 x 1 connector on the output side.

The shield of the pre-assembled cable ensures a high resistance against electromagnetic interference. When plugged in, the cable achieves IP67 ingress protection and is thus suitable for use in harsh environments.

WIKA-data sheet AC 50.08

Pre-assembled cable, model EZE53

The pre-assembled cable can be ordered with knurled nut in stainless steel for permanent use in demanding outdoor application (e.g. maritime environment).

Special features

  • Reliable electrical connection
  • Pre-assembled
  • Shielded for high electromagnetic immunity
  • Ready for immediate use
  • Optional: with knurled nut made from stainless steel
Identification
ModelEZE53
Product familyEZE
SubcategoryPre-assembled cable
Process conditions
Process temperature−40…+90 °C
Materials
Cell materialStainless steel, CuZn, nickel-plated, PUR CuZn, nickel-plated, PUR
Operating environment
Ambient temperature−40…+80 °C
IP ratingIP67
Additional details
Cable length20 m
Datasheet languagesEN
Tables from datasheet
Model EZE53Basic versionStainless steel version
Connection type
Sensor sideStraight or angled M12 x 1 mating connector,A-coding
Output sideCut to lengthCut to length
Number of pins4, 54
ShieldYes
Contact resistance≤10mΩ≤5mΩ
Insulation resistance≥ 10 9 Ω≥ 10 9 Ω
Current-carrying capacity≤ 4 A
Nominal voltageDC 60V / AC 50V
Wire colours1: Brown / 2:White / 3: Blue / 4: Black / 5: Grey
Material
Cable sheathPUR
Knurled nutCuZn, nickel-platedStainless steel
Temperature range
Fixed in place-40 …+80 °C-40 …+90 °C
Moveable-25 …+80 °C-30 …+90 °C
Bending radius
Fixed in place> 5 x cable diameter
Moveable> 10 x cable diameter> 12 x cable diameter
Mating cycles≤ 100> 100
Cable length2, 5, 10m5, 10, 15, 20m Others on request
Cable diameter4-pin:5.50mm 5-pin:5.85mm5.10mm
Wire cross-section0.34 mm²
Mating connector M12 x 1, 4-pin
1Brown
2White
3Blue
4Black
Knurled nutShield
Mating connector M12 x 1, 5-pin
1Brown
2White
3Blue
4Black
5Grey
Knurled nutShield
DescriptionDimensions in mm/ [in]
ABCD
Straight coupling - standard14.5 [0.57]43 [1.69]-See cable diameter
Angled coupling - standard14.5 [0.57]31 [1.22]28.35 [1.12]See cable diameter
Straight coupling - V4A15 [0.59]45.7 [1.79]-See cable diameter
Angled coupling - V4A15 [0.59]37.5 [1.47]28.7 [1.13]See cable diameter
View all (5)
DesignationOrder number
With 2 mcableWith 5 mcableWith 10 mcableWith 15 mcableWith 20 mcable
4-pin mating connector M12 x 1 - basic version
Straight142594511425945314259454--
Angled142594521429348114259455--
5-pin mating connector M12 x 1 - basic version
Straight142594587910067214259472--
Angled7910149379100686---
4-pin mating connector M12 x 1 - stainless steel version
Straight-79101522791015237910152479101525
Angled-79101520791015217910151879101519
