Neck tube with quick-change function
Description
With the quick-changeable EasyCon neck tube, thermometers can be mounted and dismounted easily and without tools.
The well thought-out base part with integrated push button enables the head part to be loosened quickly and conveniently from the thermowell / protection tube. For maximum flexibility, the connection head can be precisely aligned in 60° steps. An integrated anti-rotation lock ensures a strong and secure fit.
The base part is simply mounted on the thread of the thermowell / protection tube, while the head part is screwed into the thread of the connection head. Integrated seals reliably protect against moisture and dust, even under demanding operating conditions.

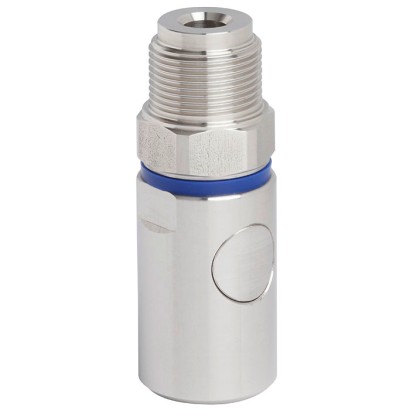

Neck tube with quick-change function, model EasyCon
Thanks to the quick removal and installation, the calibration process can be designed significantly more efficiently - this saves valuable time during operation. In addition, the wear on the thread of the thermowell / protection tube is considerably minimised, since repeated screwing in and out is not necessary.
Ideal for applications that require frequent calibrations, especially for critical measuring locations that are subject to GMP-compliant documentation or also measuring locations in accordance with the HACCP concept.
Special features
- Simple and tool-free mounting and dismounting of the thermometer
- Time saving during calibration through fast removal and installation
- Thread wear minimised at the thermowell / protection tube
- Integrated anti-rotation loc
| Model | EasyCon |
| Subcategory | Neck tube |
| Process connection | M24 x 1.5 (female thread) |
| Electrical connection | M24x1.5 (male thread) |
| Probe material | 1.4404 (316L) |
| Ambient temperature | −40…+85 °C |
| IP rating | IP65 |
| Weight | 0.3 kg |
| Datasheet languages | DE, EN |
| Additional insertion length N 1 | 65 mm [2.56 in] |
|---|---|
| The additional insertion length N 1 must be observed when selecting the measuring insert when using the neck tube with the EasyCon quick-change function. The sensor length l 5 is calculated as follows: Insertion length U1 + neck tube length M + additional insertion length N1 + 10 mm, see dimensions | |
| Measuring insert | 3 ... 8 mm [0.12 ... 0.32 in] |
| Connection to head | M24 x 1.5 (male thread) |
| Connection to thermowell / protection tube | M24 x 1.5 (female thread 1) ) |
| Material (in contact with the environment) | 1.4404 (316L) |
| Sealing material | Polyurethane |
| Measuring instruments | TR22-A, TR22-B |
| → Other models on request | |
| Weight in g | Approx. 300 |
| Ambient temperature range | -40 ... +85 °C [-40 ... +185 °F] |
|---|---|
| Ingress protection per IEC/EN 60529 | IP65 |
| Ingress protection of the complete instrument 2 3 | Depending on thermometer version 4 |
| Model | Description | Order number |
|---|---|---|
| Seal | Insert seal for EasyCon neck tube | 11429038 |
| Model | Description | Order number |
|---|---|---|
| EasyCon | Neck tube with quick-change function | 14785146 |
