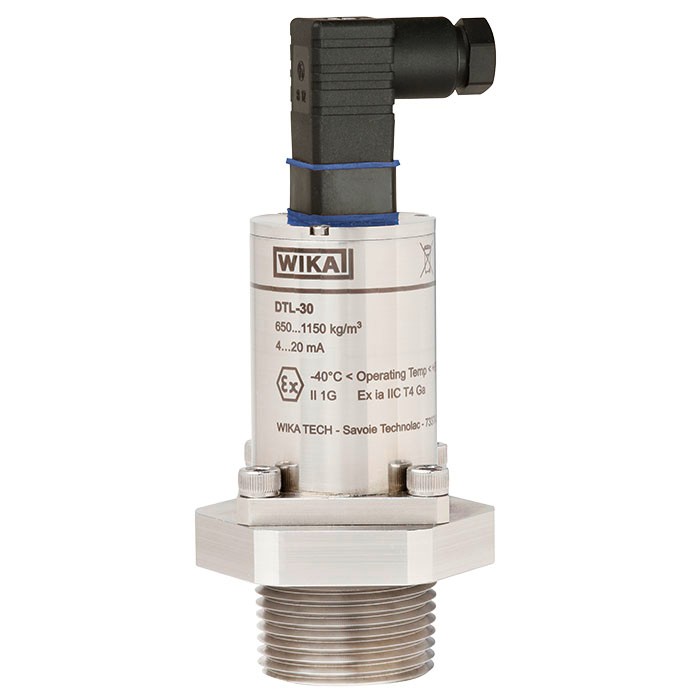

DTL-30
Configurable WIKA product with 3 configuration variants.
Discontinued by WIKA — supplied on request
WIKA has withdrawn this model from its current range. We keep the datasheet and specifications here. Write to us and we will check availability and propose a current replacement.
Output
4 ... 20 mA
Price
On request
Depends on configuration
Configurator · Step by step
Build a DTL-30 for your task
The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.
Step 1 of 1
Your configuration
- Electrical connectioncircular connector, M12 x 1, 5-pin
- Output signal4 ... 20 mA
- SettingsFuel
- Measuring range density650 ... 1150 kg/m3
- Measuring Range Temperature-20 … 65°C
- Accuracy Density+/- 4.75 kg/m3
- SealingFPM/FKM
- Ex-ApprovalsATEX + IECEx
- Process connection—
AI suggestion by parameters
Finish your configuration
Select every option to submit the request.
Identification
| Model | DTL-30 |
Electrical characteristics
| Output signal | 4 ... 20 mA |
Application areas not described yet
Describe your operating conditions — our engineer will suggest a model and use case.
Documentation not published yet
Drop us a line — we'll send the current datasheet and help with selection.
Couldn't find the answer in the documentation? An engineer will reply within a business day.
Ask an engineer →All variants · Article table
3 standard articles of family DTL-30
If you know the code — pick directly. If not — use the configurator in mode “01”.
Stock:
SKUConfigurationPriceStockAction
DTL-30-1A-30-425-2013-L-A-OOOElectrical connection: 30 · Output signal: 42 · Settings: 5+ 6 moreOn requestOn orderRequest →
DTL-30-1A-30-425-2013-L-A-SSSElectrical connection: 30 · Output signal: 42 · Settings: 5+ 6 moreOn requestOn orderRequest →
DTL-30-1A-30-425-2013-L-A-TTTElectrical connection: 30 · Output signal: 42 · Settings: 5+ 6 moreOn requestOn orderRequest →
Showing 3 of 3. Price on request — an engineer will quote your configuration.
