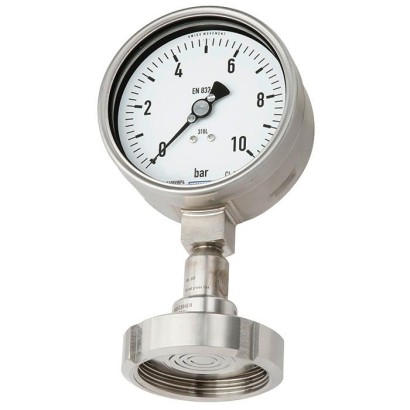

DSS18F 1
DSS18F
In stock at WIKA
WIKA · Pressure measurement · Family DSS

Pressure gauge per EN 837-1 with mounted diaphragm seal

Pressure gauge per EN 837-1 with mounted diaphragm seal and milk thread fitting for hygienic applications in food and beverage industry
Range
-1…25 bar
Accuracy
1.0
Protection
IP65
EHEDG
Price
From €637
Confirm at order time
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Diaphragm seal systems are used to protect the pressure measuring instrument from aggressive, adhesive, crystallising, corrosive, highly viscous, environmentally hazardous or toxic media. The diaphragm made of stainless steel provides for the separation from the medium. The pressure is transmitted to the measuring instrument via the system fill fluid which is inside the Diaphragm seal system.

The DSS18F complies with all requirements of the food industry. The milk thread fitting enables a hygienic process connection. The requirements of COP (Cleaning out of Place) are fulfilled.

Special features

  • Quick cleaning, without residue
  • Milk thread fitting per DIN 11851
  • Suitable for cleaning out of place (COP)
Identification
ModelDSS18F
Product familyDSS
SubcategoryDiaphragm seal system with pressure gauge
Measuring range
Pressure ranges0…1 bar · 0…1.6 bar · 0…2.5 bar · 0…4 bar · 0…6 bar · 0…10 bar · 0…16 bar · 0…25 bar · -1…5 bar · -1…9 bar · -1…10 bar
Accuracy
Accuracy class1.0
Accuracy standardEN 837-1
Process conditions
Process connectionMilk thread fitting per DIN 11851
Process temperature+10…+130 °C
Materials
Case materialStainless steel 1.4301 [304]
Wetted parts materialStainless steel 1.4435 [316L], Stainless steel, Aluminium, Laminated safety glass
Sealing materialMedicinal white mineral oil KN 92
Operating environment
Ambient temperature+10…+40 °C
IP ratingIP65
Certifications and approvals
CertificationsEHEDG
Additional details
Dial size100 mm
Datasheet languagesEN
Tables from datasheet
Model DSS18F
DesignPressure gauge with Bourdon tube per EN 837-1, welded to diaphragm seal
Nominal size (NS)100
Accuracy class1.0
Scale range0 ... 1 to 0 ... 25 bar [0 ... 15 to 0 ... 360 psi] or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitationSteady: Full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature range Medium Ambient Storage10 ... 80 °C [50 ... 176 °F] for CIP and SIP max. 130 °C [266 °F] 10 ... 40 °C [50 ... 104 °F] 10 ... 60 °C [50 ... 140 °F]
Ingress protectionIP65 per IEC/EN 60529
Material wetted non-wettedDiaphragm: Stainless steel 1.4435 [316L] Diaphragm seal: Stainless steel Dial, pointer: Aluminium Case: Stainless steel 1.4301 [304] Window: Laminated safety glass
Surface roughness wetted non-wettedRa ≤ 0.76 µm [30 µin] per ASME BPE SF3 (except for weld seam) Case:Ra ≤ 0.76 µm [30 µin] (except for weld seam)
Level of cleanliness of wetted partsOil and grease free per ASTM G93-03 level F (WIKA standard) (< 1,000 mg/m 2 )
System fill fluidMedicinal white mineral oil KN 92 (FDA 21 CFR 172.878, 21 CFR 178.3620(a); USP, EP, JP)
DNFor pipe Outer Ø x wall thick- nessPNDimensions in mm[in]
NSGHDd₆Mb
2529 x 1.5 [1.142 x 0.059]40100 [3.937]RD 52 x 1/6 [2.047 x 1/6]123 [4.843]63 [2.48]44 [1.732]26 [1.024]
4041 x 1.5 [1.614 x 0.059]40100 [3.937]RD 65 x 1/6 [2.559 x 1/6]125 [4.921]78 [3.071]56 [2.205]35 [1.378]
5053 x 1.5 [2.087 x 0.059]25100 [3.937]RD 78 x 1/6 [3.071 x 1/6]125 [4.921]92 [3.622]68.5 [2.697]52 [2.047]
