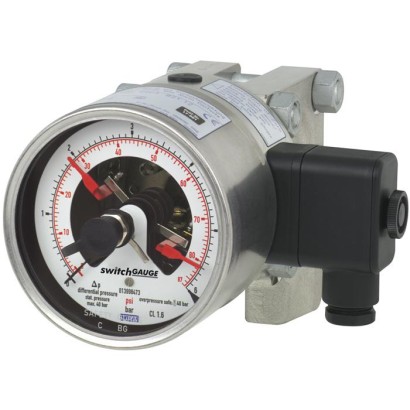

WIKA · Pressure measurement · Family DPGS43HP
Differential pressure gauge with switch contacts
For the process industry, high overload safety up to 40, 100, 250 or 400 bar
Range
-1…4000 bar
Output
Magnetic snap-action contact
Accuracy
1.6
Protection
IP65
CERoHSNACE MR0175/ISO 15156NACE MR0103/ISO 17945NACE MR0175 / ISO 15156NACE MR0103 / ISO 17945EACREACHATEXIECExII 2G Ex ia IIC T6/T5/T4 GbII 2D Ex ia IIIB T135°C DbEx ia IIC T6/T5/T4 GbEx ia IIIB T135°C Db
Price
On request
Depends on configuration
Special features
- High operating pressure (static pressure) and high overload safety, selectable up to 40, 100, 250, 400 or 650 bar [580, 1,450, 3,625, 5,800 or 9,425 psi]
- Hydraulic cushioning protection against rapid pressure changes
- Instruments with inductive contacts for use in hazardous areas
- Instruments with switch contact for PLC applications
- QR code on dial links to instrument-specific information
