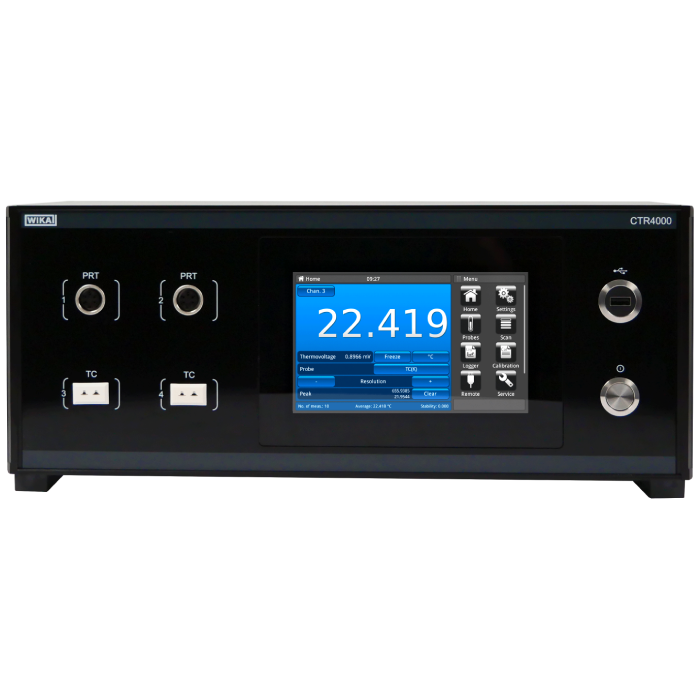

Multi-functional precision thermometer

Multi-functional precision thermometer with high accuracy for laboratory and industrial temperature measurements and calibration applications, supporting resistance thermometers, thermocouples, and thermistors.

Range

-270…1820 °C

Protection

IP20

EU declaration of conformityCERoHS

Price

On request

Depends on configuration

Request a quote

Description

The model CTS3000 multiplexer is a component of the modular system of our precision thermometer series. It is used to switch between several thermometers in order to make the measured value registration easier or even to automate it. This saves time and with that, also money.

Our multiplexer can only be used with one of our model CTR precision thermometers. These feed and communicate completely autonomously with the multiplexer.

Multiplexer model CTS3000 in desktop case

Multiplexer model CTS3000 in built-in case for 19" rack

The multiplexer is operated reliably by solid-state relays, so that high-precision switching from channel to channel is possible. Due to the use of high-quality materials, no loss of accuracy is to be expected, either.

All settings for the thermometer on a specific channel, such as the measuring range, characteristic curves or measuring current, are made directly on the measuring instrument. In addition, these settings can be comfortably managed from a PC and also via the interface of the measuring instrument.

Basic information

Instrument

Instrument version

■ Desktop case ■ 19" rack-mounting kit

Weight

4.8 kg [10.58 lb]

Warm-up time

Approx. 60 min

Input

Input channels

Channel 1 + 2 Resistance thermometers with 5-pin DIN connector Channel 3 + 4 Thermocouple with standard miniature 2-pin thermocouple plug

Scanner box

Up to 4 modules Max. 44 channels (in total) Each module has 10 channels

Input connections

5-pin DIN connector or bare cable ends (resistance thermometer or thermistor) Standard miniature 2-pin thermocouple plug or bare cable ends (thermocouple)

Data entry format

ITS-90 and CvD for calibrated resistance thermometers; or EN 60751 standard conversion for uncalibrated resistance thermometers TC polynomial for calibrated thermocouples; or EN 60584 standard conversion for uncalibrated thermocouple

Measuring range

PRT/SPRT

Measuring range 0 ... 500 Ω -200 … +962 °C [-328 ... +1,764 °F] 3- and 4-wire measurement

Thermocouple per EN 60584

Measuring range -9.8 ... +76.4 mV corresponding to the range of the thermocouple E -270 ... +1,820 °C [-454 ... +3,308 °F] ■ Type B ■ Type C ■ Type D ■ Type K ■ Type N ■ Type R

Thermistor

0 ... 500 kΩ

Digital display

Display

Colour TFT display including projective capacitive touchscreen with a resolution of 800 x 480 pixels

Resolution

■ 0.0001 K ■ 0.00001 Ω ■ 0.00001 mV

Display units

■ °C ■ °F ■ K ■ mV ■ Ω

Display update rate

500 ms

Functions

Real-time clock

Integrated clock with date

Accuracies 1)

Resistance thermometers

Temperature accuracy

4-wire

■ CTR4000-A: 3.75 mK ■ CTR4000-S: 5 mK

3-wire

■ CTR4000-A: 0.03 K ■ CTR4000-S: 0.03 K

Temperature conversions

■ Standard EN 60751 ■ CvD ■ ITS-90

Sensor currents

CTR4000-A

■ 0.5 mA ■ 1 mA ■ 2 mA ■ √2

CTR4000-S

Pt25 ■ 2 mA ■ √2

Pt100 ■ 1 mA

Standby currents

R 0 < 50 Ω

0 ... 125 Ω 2 mA

R 0 ≥ 50 Ω

0 ... 500 Ω 1 mA

Measuring time

3 seconds refresh rate

Thermocouple

Base measurement 2)

±% of reading + µV

Temperature accuracy

±0.004 % + 2 µV Type B Type C

±0.09 °C + ±0.025 % of reading ±0.57 °C + ±0.057 % of reading

Type D

±0.60 °C + ±0.059 % of reading

Type E

±0.05 °C + ±0.031 % of reading

Type J

±0.07 °C + ±0.030 % of reading

Type K

±0.09 °C + ±0.035 % of reading

Type N

±0.08 °C + ±0.035 % of reading

Type R

±0.27 °C + ±0.020 % of reading

Type S

±0.27 °C + ±0.020 % of reading

Temperature conversions

Standard EN 60584, polynomial

Measuring time

3 seconds refresh rate

Cold junction compensation

■ Internal ■ External ■ Channel Accuracy internal cold junction compensation ±0.15 K

Thermistor Accuracies

0 ... 400 Ω

50 ... 500 kΩ

±0.02 % of reading

Temperature conversions

400 Ω ... 50 kΩ 0 ... 450 Ω

±0.006 Ω ±0.01 % of reading

Sensor currents

Steinhart-Hart, polynomial

1 mA

400 Ω ... 45 kΩ

10 μA

40 ... 500 kΩ

3 μA

Measuring time

3 seconds refresh rate

Types

Operating range 'Temperature'

Operating range 'Voltage'

[°C]

[°F]

[mV]

250 ... 1,820

482 ... 3,308

0.291 ... 13.820

0 ... 2,320

32 ... 4,208

0 ... 37.107

0 ... 2,400

32 ... 4,352

0 ... 40.792

-200 ... +1,000

-328 ... +1,832

-8.825 ... +76.373

-210 ... +1,200

-346 ... +2,192

-8.095 ... +69.553

-200 ... +1,372

-328 ... +2,502

-5.891 ... +54.886

-200 ... +1,300

-328 ... +2,372

-3.990 ... +47.513

-50 ... +1,768

-58 ... +3,214

-0.226 ... +21.103

-50 ... +1,768

-58 ... +3,214

-0.235 ... +18.693

-200 ... +400

-328 ... +752

-5.603 ... +20.872

Interface

■ Ethernet ■ USB

Baud rate

9600

Command sets

■ IP ■ Netmask ■ Gateway ■ Port ■ DHCP ■ Others on request

Auxiliary power

DC 6 V, 3 A

Power supply unit

Model FOX30-X from Mensor

Operating voltage

AC 100 ... 120 V / 200 ... 240 V; 50/60 Hz; 0.6 A

Mains supply voltage fluctuations

±10 % (AC 90 ... 132 V / 180 ... 264 V)

Operating altitude

≤ 2,000 m [≤ 6,561 ft] above sea level

Place of use

Indoor Not for wet locations

Operating temperature

0 ... 50 °C [32 ... 122 °F]

Maximum achievable accuracy within 17 ... 23 °C [63 ... 73 °F]

Storage temperature range

-20 ... +50 °C [-4 ... +122 °F]

Humidity

0 ... 70 % relative humidity

Condensation

Non-condensing

EMC (HF field)

EN 61326-1 emission (group 1, class B) and immunity (industrial application)

Overvoltage category

Pollution degree

Degree 2

Ingress protection of the complete instrument

IP20

Logo

Description

Country

EU declaration of conformity

European Union

Certificates

■ Test report for electrical inputs ■ 3.1 inspection certificate per EN 10204 (only system calibration) 1)

Calibration

■ A2LA calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate for electrical inputs (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate - only system calibration (traceable and accredited in accord - ance with ISO/IEC 17025) 1)

Recommended calibration interval

1 year (dependent on conditions of use)

Description 1)

Order code

CTX-A-A1

Case Transport case, robust

-T1-

Multiplexer model CTS3000 10-channel multiplexer as desktop case For resistance thermometers and thermocouples (maximum of 4 multiplexers per CTR4000)

-CD-

Multiplexer model CTS3000 10-channel multiplexer with built-in case for 19" rack For resistance thermometers and thermocouples (maximum of 4 multiplexers per CTR4000)

-CR-

Adapter cable CTS3000 5 x 4 mm banana plugs to 5-pin DIN socket

Adapter cable CTR4000 5 x 4 mm banana sockets to 5-pin DIN connector

15-pin interface cable For resistance thermometers Length: 0.75 m [2.5 ft]

TC interface cable For thermocouples Length: 0.75 m [2.5 ft]

Ordering information for your enquiry:

1. Order 2. Option:

code: CTX-A-A1

⇓ [ ]

Description 1)

Order code

Temperature probe model CTP5000 CTP5000

Temperature probe model CTP6000 Immersion probe

CTP6000

Thermocouple model CTP9000 Immersion probe type S With or without cold junction

CTP9000

Multiplexer

Number of channels

Channel indication

LED

Probe connection

4 mm banana jacks and TC mini connectors

Case type

■ Desktop case ■ Built-in case for 19" rack

Connection to measuring instrument

Max. number per measuring instrument

Selectable probe types

Pt100 - 3-wire



Pt100 - 4-wire



Thermistors



Thermocouples



Measuring instrument assignment

CTR3000



Permissible ambient conditions

Operating temperature

0 ... 50 °C [32 ... 122 °F]

Relative humidity

0 … 60 % r. h. (non-condensing)

Storage temperature

-20 ... +50 °C [-4 ... +122 °F]

Case

Dimensions (W x H x D)

see technical drawings

Weight

4 kg [8.8 lbs]

Logo

Description

Country

EU declaration of conformity ■ EMC directive ■ RoHS directive

European Union

Order code

Temperature probe model CTP5000 Immersion probe

CTP5000

Thermocouple model CTP9000 Immersion probe type S With or without cold junction

CTP9000
