WIKA · Calibration technology · Family CTP
Digital thermometer
Digital thermometer with display in the handle for calibration, temperature measurement, and service applications.
Range
-50…250 °C
RoHSCE
Price
From €500
Confirm at order time
Description
The all-purpose CTP1500 digital thermometer, for superior mobile temperature measurement, is notable for its precision, flexibility and ease of handling. Through its high accuracy of ±0.05 °C in the range of -20 ... +180 °C [-4 ... +356 °F], this instrument can also be used as a reference instrument in the biotechnology, pharmaceutical and food industries. The CTP1500 is thus ideally suited for all service and maintenance tasks.
Thanks to its handy design, the instrument can easily be taken anywhere in order to carry out quick tests in the system. The paperwhite display leads to a battery life of approx. 500 hours in continuous operation.

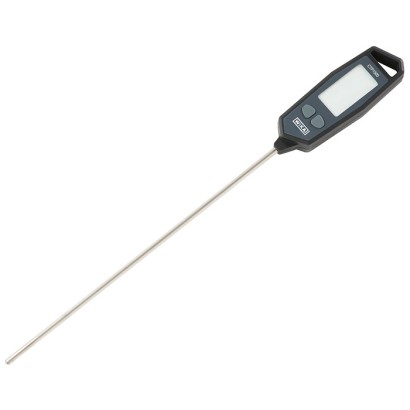

Digital thermometer, model CTP1500
Special features
- Temperature range -50 ... +250 °C [-58 ... +482 °F]
- Automatic alignment of the display (lengthwise or widthwise), depending on the position of the probe tube
- High accuracy of ±0.05 °C at -20 ... +180 °C [-4 ... +356 °F]
- Various lengths and diameters available
Configurator · Step by step
Build a CTP1500 for your task
The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.
Step 1 of 4
Your configuration
- Sensor typeImmersion sensor
- Probe diameter3 mm
- Sensor length—
- Calibration—
- Test point for the calibration certificate0 ºC / 50 ºC / 100 ºC
- Number of test points—
- Transport case—
- Further approvalswithout
- Additional ordering informationWithout
AI suggestion by parameters
Finish your configuration
Select every option to submit the request.
Identification
| Model | CTP1500 |
| Product family | CTP |
| Subcategory | Digital thermometer |
Measuring range
| Temperature ranges | −50…+250 °C |
Accuracy
| Uncertainty | ±0.05 °C at -20 ... +180 °C, ±0.15 K in remainder of range |
Process conditions
| Medium | liquids and gases compatible with 316 stainless steel |
| Calibration type | temperature_bath |
Operating environment
| Ambient temperature | +0…+50 °C |
| Weight | 0.3 kg |
Certifications and approvals
| Certifications | RoHSCE |
| Traceability | DAkkS |
Additional details
| Portable | Yes |
Tables from datasheet
Basic information
| Probe type | ■ Immersion probe ■ Penetration probe |
|---|---|
| Measuring ranges | -50 ...+250 °C [-58 ...+482 °F] |
| Accuracies | ±0.05 K at -20 ...+180 °C [-4 ...+356 °F] ±0.15 K in remainder of range |
| Dimensions (L xWxH) | Depending on the total length of the thermometer For details, see technical drawing |
| Weight | 150 ... 300 g [0.33 ... 0.66 lbs] (incl. battery) Depending on the total length of the thermometers |
Digital display instrument
| Display | ■ Paperwhite (E-ink display) ■ High contrast ■ 50 x 26 mm[1.97 x 1.03 in] |
|---|---|
| Resolution | Adjustable via menu ■ 0.01 °C / 0.01 °F ■ 0.1°C / 0.1 °F |
| Measuring rate | Clocked every 0.5 seconds |
| Functions | |
| Trend symbol | Signals a rising, falling or constant temperature |
| Unit | Adjustable via menu |
| Automatic switch-off | Adjustable via menu |
| Min./Max. and average display | Adjustable via menu Simultaneous indication of mean value, minimum and maximum measured temperature values |
| Case | Impact-resistant ABS plastic |
| Material | |
| Dimensions (LxWxH) | 40 x 110 x 60 mm[1.58 x 4.33 x 2.36 in] |
Temperature probe
| Measuring element | Pt100 | |
|---|---|---|
| Probe tube d x l | ||
| Immersion probe | d = 3 mm[d = 0.12 in] | ■ l = 170 mm[l = 6.69 in] ■ l = 300 mm[l = 6.69 in] |
| d = 6 mm[d = 0.24 in] | ■ l = 170 mm[l = 6.69 in] ■ l = 300 mm[l = 11.81 in] ■ l = 500 mm[l = 19.69 in] | |
| Penetration probe | d = 4.5 mm[d = 0.18 in] | l = 150 mm[l = 5.91 in] |
| Other probe tube lengths on request | ||
| Immersion depth | Depending on the probe tube length and temperature to be measured → See table 'Working temperature' | |
| Material | Stainless steel |
| Working temperature | Probe tube length | Maximum immersion depth | Minimum distance to handle |
|---|---|---|---|
| < 140 °C [284 °F] | 150 mm[5.91 in] | 90 mm[3.54 in] | 60 mm[2.36 in] |
| 170 mm[6.69 in] | 110 mm[4.33 in] | ||
| 300 mm[11.81 in] | 240 mm[9.45 in] | ||
| 500 mm[19.69 in] | 440 mm[17.32 in] | ||
| > 140 °C [284 °F] | 150 mm[5.91 in] | 50 mm[1.97 in] | 100 mm[3.94 in] |
| 170 mm[6.69 in] | 70 mm[2.76 in] | ||
| 300 mm[11.81 in] | 200 mm[7.87 in] | ||
| 500 mm[19.69 in] | 400 mm[15.75 in] |
View all (9)
Voltage supply and performance data
| Battery | 2 x 1.5V AA (LR6) |
|---|---|
| Battery status display | Icon display with 4 bars indicates the battery status in 20 %steps. |
| Battery life | Typically 500 hours for continuous operation |
Operating conditions
| Medium temperature range | -50 ...+250 °C [-58 ...+482 °F] |
|---|---|
| Ambient temperature range | 0 ... 50 °C [32 ... 122 °F] |
| Storage temperature range | -10 ...+50 °C [14 ... 122 °F] |
| Relative humidity, condensation | < 95 %r.h. (non-condensing) |
| Permissible media | All liquids and gases which are compatible with 316 stainless steel |
| Logo | Description | Region |
|---|---|---|
| EU declaration of conformity | European Union | |
| RoHS directive |
Certificates
| Calibration | ■ 3.1 inspection certificate per EN 10204 ■ DAkkS calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) |
|---|---|
| Recommended calibration interval | 1 year (dependent on conditions of use) |
| Accessories for CTP1500 | Order code |
|---|---|
| Description | CTX-A-R4- |
| Alkaline batteries 2 x 1.5V AA battery (LR6) | -M- |
| Transport bag Suitable for digital thermometer with probe tube lengths of150…300mm [5.91 …11.81 in] | -N- |
| Ordering information for your enquiry: | |
| 1. Order code: CTX-A-R4- 2. Option: | ⇓ [ ] |
Application areas not described yet
Describe your operating conditions — our engineer will suggest a model and use case.
Couldn't find the answer in the documentation? An engineer will reply within a business day.
Ask an engineer →All variants · Article table
73 standard articles of family CTP
If you know the code — pick directly. If not — use the configurator in mode “01”.
Stock:
SKUConfigurationPriceStockAction
CTP1500-TA150W01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W01AX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##AX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##BZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##BX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##CZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##CX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##DZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W##DX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W###Z-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150W###X-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D01AX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##AX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##BZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##BX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##CZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##CX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##DZ-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D##DX-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D###Z-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA150D###X-ZZSensor type: T · Probe diameter: A · Sensor length: 150+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W01AX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##AX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##BZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##BX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##CZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##CX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##DZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W##DX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W###Z-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170W###X-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D01AX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##AX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##BZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##BX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##CZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##CX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##DZ-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D##DX-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D###Z-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA170D###X-ZZSensor type: T · Probe diameter: A · Sensor length: 170+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W01AX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##AX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##BZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##BX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##CZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##CX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##DZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W##DX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W###Z-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300W###X-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D01AX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##AX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##BZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##BX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##CZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##CX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##DZ-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D##DX-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D###Z-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA300D###X-ZZSensor type: T · Probe diameter: A · Sensor length: 300+ 6 moreOn requestOn orderRequest →
CTP1500-TA500W01AZ-ZZSensor type: T · Probe diameter: A · Sensor length: 500+ 6 moreOn requestOn orderRequest →
Showing 73 of 73. Price on request — an engineer will quote your configuration.
