Hand-held thermometer
Hand-held thermometer for mobile temperature measurement with Pt100 and thermocouple inputs, suitable for calibration and service applications.
Range
-200…1500 °C
Output
Pt100 · thermocouple
RoHSCEEACGOSTMTSCHSKazInMetrUkrSEPROEx ib IIB T4 Gb
Price
On request
Depends on configuration
Description
The all-purpose model CTH6300 hand-held thermometer, for superior mobile temperature measurement, is notable for its flexibility and ease of handling.
In addition to Pt100 resistance thermometers, it can also process signals from typical thermocouples. Thus temperatures from -200 ... +1,500 °C [-328 ... +2,732 °F] can be measured.
The explosion-protected version is only available for Pt100 resistance thermometers.
Its design makes it especially suitable for the commissioning, maintenance and service/calibration of temperature instruments and equipment.
Low-drift measuring amplifiers ensure small measurement errors, while easy-to-use adjustment features considerably simplify adjustments and calibrations:
- ■ Calibration by code for fast setting of standard probes via key data - ■ Physical calibration of probe and display at one, two or three different temperatures
for further approvals see page 3

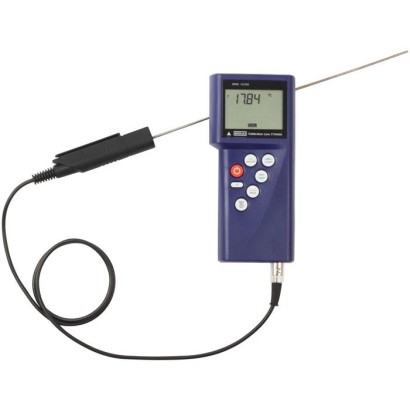

Hand-held thermometer model CTH6300
In this way it is possible to reduce measuring errors to a minimum and ensure a high indication accuracy.
Special features
- Accuracy up to 0.1 K (complete measuring chain)
- One- and two-channel versions
- Connection possibilities for various probe types
- Intrinsically safe version Ex ib IIB T4 Gb
Configurator · Step by step
Build a CTH63I0 for your task
The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.
Step 1 of 5
Your configuration
- Versionwith 1 input
- Probe at input 1—
- Probe at input 2without
- Case set—
- Calibration—
- Test point for the calibration certificate—
- Number of test points—
- Additional ordering informationWithout
AI suggestion by parameters
Finish your configuration
Select every option to submit the request.
Identification
| Model | CTH6300 |
| Product family | CTH |
| Subcategory | hand-held thermometer |
Measuring range
| Temperature ranges | −200…+600 °C · −200…+1500 °C |
Accuracy
| Uncertainty | 0.1 K of -100 ... +200 °C, otherwise 0.1 % of reading (Pt100); 0.3 K of 0 ... 200 °C, 1 K of 200 ... 1000 °C, 1.5 K above 1000 °C (thermocouples) |
Process conditions
| Calibration type | signal |
Electrical characteristics
| Output signal | Pt100 · thermocouple · RTD simulation · TC simulation |
Operating environment
| Ambient temperature | +0…+40 °C |
| Weight | 0.3 kg |
Certifications and approvals
| Certifications | RoHSCEEACGOSTMTSCHSKazInMetrUkrSEPRO |
| Explosion protection | Ex ib IIB T4 GbATEX directive - Ex i Zone 1 gas II 2G Ex ib IIB T4 Gb |
| Traceability | DKD · DAkkS · NIST |
Additional details
| Portable | Yes |
| Datasheet languages | EN, DE |
Tables from datasheet
| Hand-held thermometer | Model CTH6300 | Model CTH63I0 |
|---|---|---|
| Probe types | Pt100, thermocouples | Pt100 |
| Measuring inputs | 1 or 2 | 1 or 2 |
| Measuring ranges | ||
| Pt100 | -200 ...+600 °C [-328 ... +1,112 °F] | -200 ...+600 °C [-328 ... +1,112 °F] |
| Thermocouples | -200 ... +1,500 °C [-328 ...+ 2,732 °F] | - |
| Accuracies | ||
| Resistance thermometer type Pt100 | 0.1 K of -100 ...+200 °C [-148 ...+392 °F] otherwise 0.1 %of reading | 0.1 K of -100 ...+200 °C [-148 ...+392 °F] otherwise 0.1 %of reading |
| Thermocouple types K, J, L, N andT | 0.3 K of 0 ... 200 °C [32 ... 392 °F] 1 K of 200 ... 1,000 °C [392 ... 1,832 °F] 1.5 K above 1,000 °C [1,832 °F] | - |
| Thermocouple types R and S | 1 K + 0.1 %of reading | - |
| Digital indicator | |
|---|---|
| Indication | |
| Display | Large 4 1/2-digit LC display with backlighting, for the display of two temperature values and additional information |
| Resolution | 0.1 K |
| Indication range | -19999 ... 19999 |
| Functions | |
| Measuring rate | Measuring rate (can be set via menu) ■ 1/s ('slow' - slow measurement) ■ 4/s ('fast' - fast measurement) |
| Real-time clock | integrated clock with date |
| Min./Max.memory | Minimum or maximum measured value (can be accessed via function key) |
| Hold | Holding the last measured value (can be accessed via function key) |
| Zero point adjustment | Tare or zero point adjustment can be accessed via function key |
| Voltage supply | |
| Supply voltage | ■ 9V battery ■ 9V rechargeable battery or mains supply (not permissible for CTH63I0) |
| Battery life | approx. 20 hours of operation with battery |
| Permissible ambient conditions | |
| Ambient temperature | 0 ... 40 °C [32 ... 104 °F] |
| Storage temperature | -10 ...+50 °C [14 ... 122 °F] |
| Relative humidity | 0 ... 95 %r.h. (non-condensing) |
| Communication | |
| Serial interface | USB via interface cable |
| Case | |
| Material | impact-resistant ABS plastic, transparent screen |
| Dimensions (LxWxH) | 200 x 93 x 44 mm[7.87 x 3.66 x 1.73 in] |
| Weight | 300 g [0.66 lbs.] (incl. battery) |
Temperature probe (immersion probe)
| Measuring element | Temperature range |
|---|---|
| Pt100 | ■ -200 ...+450 °C [-328 ...+842 °F] ■ -40 ...+500 °C [-40 ...+932 °F] |
| Type K | -100 ... +1,100 °C [-148 ... +2,012 °F] |
| Sensor dimensions | |
| Pt100 | ■ d = 3 mm, l = 150 mm[d = 0.12 in, l = 5.91 in] ■ d = 3 mm, l = 300 mm[d = 0.12 in, l = 11.81 in] ■ d = 3 mm, l = 1,000 mm[d = 0.16 in, l = 39.37 in] ■ d = 4 mm, l = 300 mm[d = 0.16 in, l = 11.81 in] ■ d = 6 mm, l = 300 mm[d = 0.24 in, l = 11.81 in] |
| TC K | ■ d = 3 mm, l = 300 mm[d = 0.12 in, l = 11.81 in] ■ d = 3 mm, l = 500 mm[d = 0.12 in, l = 19.69 in] |
| Sensor cable | |
| Cable length | 1,000mm |
| Cable material | PVC |
| Connection to CTH63x0 | 8-pin, DIN circular connector |
| Dimensions (L xWxH) | see technical drawing |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity for the CTH6300 ■ EMCdirective EN 61326 emission (group 1, class B) and immunity (portable test and measuring equipment) ■ RoHS directive | European Union | |
| EU declaration of conformity for the CTH63I0 ■ EMCdirective EN 61326 emission (group 1, class B) and immunity (portable test and measuring equipment) ■ RoHS directive ■ ATEX directive - Ex i Zone 1 gas II 2G Ex ib IIB T4 Gb | European Union | |
| EAC (option) EMCdirective | Eurasian Economic Community | |
| GOST (option) Metrology, measurement technology | Russia | |
| - | MTSCHS (option) Permission for commissioning | Kazakhstan |
| KazInMetr (option) Metrology, measurement technology | Kazakhstan | |
| UkrSEPRO (option) Metrology, measurement technology | Ukraine |
View all (10)
Certificate
| Calibration | Standard: 3.1 calibration certificate per DIN EN 10204 Option:DKD/DAkkS calibration certificate |
|---|---|
| Recommended recalibration interval | 1 year (dependent on conditions of use) |
| Accessories for CTH6300 | Order code | |
|---|---|---|
| Description | CTX-A-H2 | |
| Immersion probe Type Pt100 Dimensions: d = 3 mm, l = 150 mm[d = 0.12 in, l = 5.91 in] Temperature range: -200 ...+450 °C [-328 ...+842 °F] | -10- | |
| Type Pt100 Dimensions: d = 3 mm, l = 300 mm[d = 0.12 in, l = 11.81 in] Temperature range: -200 ...+450 °C [-328 ...+842 °F] | -20- | |
| Type Pt100 Dimensions: d = 4 mm, l = 300 mm[d = 0.16 in, l = 11.81 in] Temperature range: -40 ...+500 °C [-40 ...+932 °F] | -40- | |
| Type Pt100 Dimensions: d = 6 mm, l = 300 mm[d = 0.24 in, l = 11.81 in] Temperature range: -200 ...+450 °C [-328 ...+842 °F] | -45- | |
| Type K Dimensions: d = 3 mm, l = 300 mm[d = 0.12 in, l = 11.81 in] Temperature range: -100 ... +1,100 °C [-148 ... +2,012 °F] | -50- | |
| Type K Dimensions: d = 3 mm, l = 500 mm[d = 0.12 in, l = 19.69 in] Temperature range: -100 ... +1,100 °C [-148 ... +2,012 °F] | -60- | |
| Adapters for thermocouples DIN toTC miniature connector | -AD- | |
| Spare DIN connector for the probe | -CN- |
| Accessories for CTH6300 | Order code | |
|---|---|---|
| Description | CTX-A-H2 | |
| Case set Consisting of: ■ Transport case, robust ■ 9V battery ■ Interface cable | -CR- | |
| Case set Consisting of: ■ Transport case, robust ■ 9V rechargeable battery and charger ■ Power supply unit ■ Interface cable ■ Software | -CS- | |
| Case set Consisting of: ■ Transport case, robust ■ Power supply unit AC 100 ...260V ■ Interface cable ■ Software | -CU- | |
| Service case with foam insert Material: Plastic | -SC- | |
| Protective bag against dirt and humidity Material: Plastic | -PS- | |
| 9 V battery | -DB- | |
| 9 V rechargeable battery | -RB- | |
| Battery charger for 9V rechargeable batteries | -AC- | |
| AC adapter AC 100 ... 260 V, 50/60 Hz | -P1- | |
| AC adapter AC 230 V, 50/60 Hz | -P2- | |
| USB interface cable | -UB- |
| Accessories for CTH6300 | Order code | |
|---|---|---|
| Description | CTX-A-H2 | |
| Calibration software DE-Graph software for Windows | -SG- | |
| Ordering information for your enquiry: | ||
| 1. Order code: 2. Option: | ⇓ [ ] |
| Accessories for CTH63I0, explosion-protected version | Order code | |
|---|---|---|
| Description | CTX-A-H3 | |
| Immersion probe Type Pt100 Dimensions: d = 3 mm, l = 150 mm[d = 0.12 in, l = 5.91 in] Temperature range: -200 ...+450 °C [-328 ...+842 °F] | -10- | |
| Type Pt100 Dimensions: d = 3 mm, l = 300 mm[d = 0.12 in, l = 11.81 in] Temperature range: -200 ...+450 °C [-328 ...+842 °F] | -20- | |
| Type Pt100 Dimensions: d = 4 mm, l = 300 mm[d = 0.16 in, l = 11.81 in] Temperature range: -40 ...+500 °C [-40 ...+932 °F] | -40- | |
| Type Pt100 Dimensions: d = 6 mm, l = 300 mm[d = 0.24 in, l = 11.81 in] Temperature range: -200 ...+450 °C [-328 ...+842 °F] Suitable for hazardous areas. | -45- | |
| Spare DIN connector for the probe | -CN- | |
| Case set Consisting of: ■ Transport case, robust ■ 9V battery ■ Interface cable ■ Software May not be used in Ex areas! | -CR- | |
| Service case with foam insert Material: Plastic | -SC- | |
| Protective bag against dirt and humidity Material: Plastic | -PS- | |
| 9 V battery | -DB- |
| Accessories for CTH63I0, explosion-protected version | Order code | |
|---|---|---|
| Description | CTX-A-H3 | |
| USB interface cable | -UB- | |
| Calibration software DE-Graph software for Windows | -SG- | |
