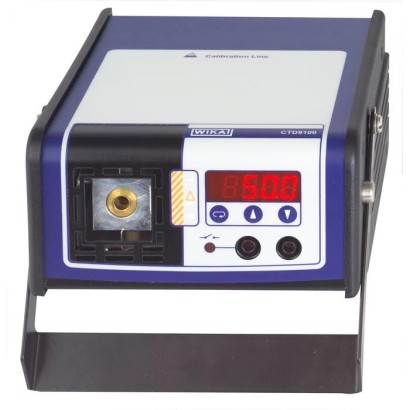

Temperature dry-well calibrator

Name: Temperature dry-well calibrator
Brand: WIKA

Portable temperature dry-well calibrator with high accuracy and stability, suitable for on-site calibration of temperature measuring instruments.

Range

0…375 °C

Protection

None

RoHSCEEMC Directive EN 61326Low Voltage Directive

Price

On request

Depends on configuration

Special features

Identification

Measuring range

Temperature ranges

+0…+375 °C

Accuracy

Uncertainty

0.2 % of reading; min. 0.5 K

Process conditions

Calibration type

dry_block

Operating environment

Ambient temperature	+0…+50 °C
Weight	1.7 kg

Certifications and approvals

Certifications	RoHSCEEMC Directive EN 61326Low Voltage Directive
Traceability	DAkkS

Additional details

Portable	Yes
Datasheet languages	EN

Tables from datasheet

Operating conditions

Place of use	For indoor and outdoor use
Altitude	To 2,000 m[6,562 ft] above sea level
Operating temperature	0 ... 50 °C [32 ... 122 °F] The ambient temperature influences the heating/cooling behaviour
Storage and transport temperature range	-10 ...+60 °C [14 ... 140 °F]
Humidity	< 80 %relative humidity to 31 °C [88 °F] Decreasing linearly to 50 %relative humidity at 40 °C [104 °F]
Condensation	Non-condensing

Logo	Description	Region
	EU declaration of conformity	European Union

Logo	Description	Region
-	MChS Permission for commissioning	Kazakhstan

Certificates

Calibration 1)	■ 3.1 inspection certificate per EN 10204 ■ DAkkS calibration certificate (traceable and accredited in accordance with ISO/IEC 17025)
Recommended calibration interval	1 year (dependent on conditions of use)

View all (7)

Accessories		Order code
Description 1)		CTX-A-K3
-	Insert replacement tool	-RT-
	Transport case	-TB-
	Power cord for EU	-EU-
	Netzkabel for Switzerland	-CH-
	Netzkabel for UK	-UK-
	Netzkabel for USA/Canada	-US-
Ordering information for your enquiry:
1. Order code: CTX-A-K3 ⇓
2. Option: [ ]

Inserts	Order code
Description 1)	CTA9I-1N
Undrilled insert Dimensions:Ø13 x 150 mm[Ø0.51 x 3.94 in] Material: Brass 2.0375	-N-
Drilled insert Dimensions:Ø13 x 150 mm[Ø0.51 x 3.94 in] Drilling depth: 95 mm[3.74 in] Material: Brass 2.0375	-
For thermometers with diameters up to 2.7 mm[0.11 in] Bore diameter: 1 x 3 mm[1 x 0.12 in]	-3-

Inserts		Order code
Description 1)	CTA9I-1N
	For thermometers with diameters up to 3.2 mm[0.13 in] Bore diameter: 1 x 3.5 mm[1 x 0.14 in]	-4-
	For thermometers with diameters up to 4.7 mm[0.19 in] Bore diameter: 1 x 5 mm[1 x 0.20 in]	-5-
	For thermometers with diameters up to 6.3 mm[0.25 in] Bore diameter: 1 x 6.5 mm[1 x 0.26 in]	-6-
	For thermometers with diameters up to 7.2 mm[0.28 in] Bore diameter: 1 x 7.5 mm[1 x 0.30 in]	-7-
	For thermometers with diameters up to 8.2 mm[0.32 in] Bore diameter: 1 x 8.5 mm[1 x 0.33 in]	-8-
	For thermometers with different diameters Bore diameter: 1 x 5.0 mmand 1 x 3.5mm [1 x 0.20 in and 1 x 0.14 in]	-I-
	Bore diameter: 1 x 5.0 mmand 1 x 6.5mm [1 x 0.20 in and 1 x 0.26 in]	-X-
	Bore diameter: 1 x 3.5 mmand 1 x 4.5mm [1 x 0.14 in and 1 x 0.18 in]	-K-
	Bore diameter: 2 x 4.5 [2 x 0.18 in]	-L-
-	Customer-specific, special probes are possible on request.	-?-
Ordering information for your enquiry:
1. Order code: CTA9I-1N 2. Option:	⇓ [ ]
