CTB9400 1

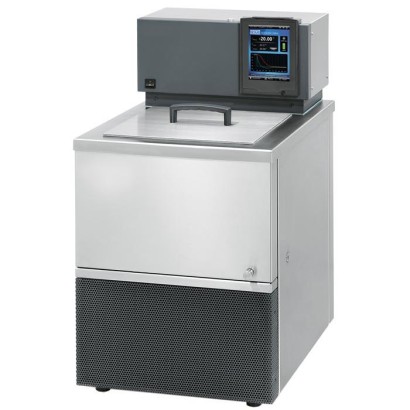

CTB9400
On order
WIKA · Calibration technology · Family CTB

Calibration bath

Heating calibration bath for laboratory and workshop use, temperature range 28 to 300 °C
Range
-45…300 °C
Protection
IP20
CE
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

  • Controller with 5.7" colour touchscreen and menu navigation in 11 languages
  • 2 x USB (host, device), Ethernet and RS-232 interface
  • High-accuracy, reliable temperature control
  • 5-point calibration for control sensors (optional)
Identification
ModelCTB9400
Product familyCTB
Subcategoryheating bath
Measuring range
Temperature ranges+28…+300 °C · −45…+200 °C
Accuracy
Uncertainty±0.02 K stability
Process conditions
Mediumsilicone oil
Calibration typetemperature_bath
Operating environment
Ambient temperature+5…+40 °C
IP ratingIP20
Weight22 kg
Certifications and approvals
CertificationsCE
Additional details
PortableNo
Datasheet languagesEN, DE, FR, IT, ES, RU, CN, PT, JP, CZ, PL
Tables from datasheet
Model CTB9400Model CTB9500
Temperature range28 …300 °C-45 …+200 °C
Stability0.02 K
Display resolution0.1 °C, (0.01 °C only on exclusive version)
Display units°C/°F - selectable
Voltage supply
Power supplyAC 230 V, 50/60 Hz AC 400 V, 50 Hz, 3~ AC 208 V, 60 Hz, 2~AC 230 V, 50/60 Hz AC 208V 60 Hz, 2~
Power consumption
Current supplymax. 14 A
Current supply with 3-phase supplymax. 11 A
Fuse16 A
Fuses with 3-phase3 x 16 A
Heating power
at 230V AC3,000W
Cooling power
at 20 °C---800W
at 0 °C---800W
at -20 °C---500W
Communication
InterfaceUSB, Ethernet, RS-232
Selectable user languagesEN, DE, FR, IT, ES, RU, CN, PT, JP, CZ, PL
Bad dimensions
Minimum filling volume11.5 litresapprox. 22 litres
Bath opening,WxD270 x 145mm280 x 280mm
Bath depth200mm200mm
Dimensions,WxDxH335 x 382 x 433mm420 x 565 x 719mm
Weight (empty)22 kg72 kg
AccessoriesModel CTB9400Model CTB9500
Silicone oil DC 200.05 -40 ...+130 °C, FP = 133 °CNot recommendedFrom -40 …+130 °C usable
Silicone oil DC 200.10 -35 ...+160 °C, FP = 163 °CNot recommendedFrom -35 …+160 °C usable
Silicone oil DC 200.20 10 ... 220 °C, FP = 232 °CFrom 40 …220 °C usableFrom 10 …200 °C usable
Silicone oil DC 200.50 25 ... 250 °C, FP = 280 °CFrom 40 …250 °C usableFrom 25 …200 °C usable
Mounting fixturesXX
USB interface cableXX
CE conformity
EMCdirective2004/108/EC, EN 61326 Emission (group 1, class A) and interference immunity (controlled electromagnetic environment)
Low voltage directive2006/95/EC, EN 61010-1, EN 61010-2-010
Machinery directive2006/42/EC, EN 378-2
FunctionStandardExclusive
Temperature control
Temperature control mode (Internal, Process)X●
ProgrammerX3 programmes with a maximum of 15 steps
Ramp functionXlinear
Controller parameter tuningpredefined 1)TAC (True Adaptive Control)
Calibration programme for control sensor (Internal, Process)1 point5 point
Monitoring (Level protection, Overtemperature protection 2) )●●
Adjustable alarm limits●●
VPC (Variable Pressure Control) 3)●●
Venting program●●
Compressor automatic control●●
Set point limit●●
Display and Operation
Temperature display5.7" Colour touchscreen5.7" Colour touchscreen
Display modegraphic, numericgraphic, numeric
Display resolution0.1 °C0.1 °C / 0.01 °C
Graphic display for temperature curvesWindowWindow, full screen, scalable
Calendar, date, time●●
Languages: EN, DE, FR, IT, ES, RU, CN, PT, JP, CZ, PL●●
Temperature format, switchable (°C/°F)●●
Gesture control●●
Favourites menuX●
2nd set point●●
Connections
Digital interface RS-232●●
USB interfaces (Host and Device)●●
Ethernet RJ45 interface●●
External control signal/ECS STANDBY 4)●●
Pt100 external sensor connection●●
Various
Alarm signal optical/acoustic●●
Autostart (Mains failure automatic)●●
Plug-and-play●●
Technical glossary●●
Remote control via software●●
Saving/loading of temperature control programmesX●
