CPT6100

On order

WIKA · Calibration technology · Family CPT

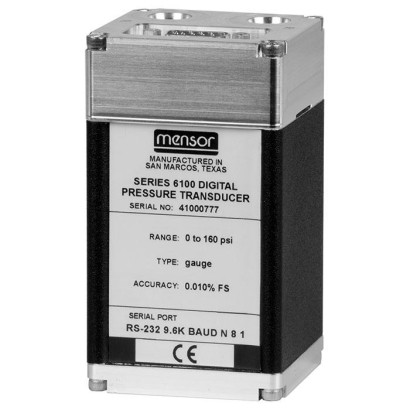

Precision pressure transducer

Name: Precision pressure transducer
Brand: WIKA

Precision pressure transducer with high accuracy and serial interface for OEM integration in calibration and testing applications.

Range

-1…401 bar

Output

RS-232 · RS-485

Protection

None

RoHSUKCACE

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The models CPT6180 and CPT6100 precision pressure transducers are compact, robust sensors with a serial interface and a measuring range which is freely selectable between -1 ... 400 bar [-15 ... 6,000 psi]. The high accuracy of up to 0.01 % IS-50 makes the transducer one of the most accurate transducers in precision measurement technology. The standard output mode provides the pressure values via a query-response process.

Special features

Accuracy down to 0.01 % IS-50 (IntelliScale)
Precision down to 0.004 % FS
Measuring range from -1 ... 400 bar [-15 ... 6,000 psi]
RS-232 or RS-485 interface
Compact design

Identification

Model	CPT6100
Product family	CPT
Subcategory	precision pressure transducer

Measuring range

Pressure ranges	-1…400 bar · 0…400 bar · 0…0.5 bar · 0…401 bar · 0…25 mbar · -12.5…12.5 mbar · 0…0.025 bar · -15…6000 psi
Temperature ranges	+0…+50 °C · +15…+45 °C · −20…+70 °C

Accuracy

Uncertainty

0.01 % FS

Process conditions

Medium	clean, dry, non-corrosive gases; media compatible with wetted parts
Calibration type	electronic

Electrical characteristics

Output signal

RS-232 · RS-485 · 0...1 V · 0...5 V · 0...10 V · DC 0...1V · DC 0...5V · DC 0...10V

Operating environment

Ambient temperature	+0…+50 °C
Weight	0.505 kg

Certifications and approvals

Certifications	RoHSUKCACE
Traceability	A2LA · DAkkS

Additional details

Portable	No
Datasheet languages	EN, DE, ES, FR, IT, NL, PL, PT, RO, SV, RU, EL, JA, ZH

Tables from datasheet

Measuring range precision pressure transducer

Model	CPT6100	CPT6180
Accuracy 1)	0.01%FS 2)	0.01 %IS-50 3)
Measuring ranges 4)
Gauge pressure	0 ... 25 mbar to 0 ... 400 bar [0 ... 0.36 to 0 ... 6,000 psi]	0 ... 1 to 0 ... 400 bar [0 ... 15 to 0 ... 6,000 psi]
Bidirectional pressure	-12.5 ... 12.5 mbar to -1 ... 400 bar [-0.18 ... 0.18 to -14.5 ... 6,000 psi]	-1 ... 10 to 0 ... 400 bar [-15 ... 145 psi to 0 ... 6,000 psi]
Absolute pressure 5)	0 ... 0.5 to 0 ... 401 bar abs. [0 ... 7.5 to 0 ... 6,015 psi abs.]	0 ... 1 to 0 ... 401 bar abs. [0 ... 15 to 0 ... 6,015 psi abs.]
Precision 6)	0.004%FS	0.004%FS
Calibration interval	180 days	365 days

CPT6100 as barometric reference

Measuring range	■ 552 ... 1,172 mbar abs. ■ 8 ... 17 psi abs.
Accuracy 1)	0.01 %of reading
Precision 2)	0.004%FS
Calibration interval	180 days

Basic information precision pressure transducer

Resolution	■ CPT6100: 6 significant figures ■ CPT6180: 7 significant figures
Filter	Adjustable exponential filter from 0 ...99% The filter is only active within a defined range of 0.010 %FS.
Warm-up time	Approx. 15 min up to the specified accuracy
Pressure units	36
Voltage supply
Power supply	DC 12V ± 10 %, 55 mAmax.
Analogue output (Only CPT6100)	■ DC 0 ...1V ■ DC 0 ...5V ■ DC 0 ...10V

Basic information precision pressure transducer

Mechanical shock	Max. 3g
Case
Mounting position	< 1 bar [< 15 psi] negligible Can be adjusted through zero point adjustment (linear shift of the characteristic curve)
Dimensions	→ See technical drawings
Weight	505 g [1.11 lb]

View all (13)

Communication

Interface	■ RS-232 ■ RS-485
Baud rate (User-selectable)	■ 9600 ■ 19200 ■ 38400 ■ 57600 baud
Multi-drop capability	The maximum number of RS-485 transducers which can be connected to a single host computer is 31.
Signal output	Query and response
Command sets	■ Mensor default command set ■ Mensor legacy command set
Response time	■ 100 ms for a FS pressure pulse ■ 20 ms for a FS pressure pulse
Noise	■ Filter set to 90 %(factory default): 20 ppm peak-to-peak and 6.5 ppm rms. ■ Filter set to 0 %: 53 ppm peak to peak and 12.5 ppm rms. ■ Filter set to 99 %: 13 ppm peak to peak and 4.2 ppm rms
Measuring rate	■ 50 Hz / 20 ms ■ 10 Hz / 100 ms

Pressure connection

Connection	7/16-20 SAE, tube fitting For pressure and reference port The reference port is sealed for absolute pressure transducers
Pressure adapters	■ 6 mmtube fitting ■ ¼" tube fitting ■ ¼NPT, female thread ■ ⅛NPT, female thread ■ ⅛BSP, female thread ■ ¼NPT, female thread incl. safety relief valve for pressure range ≤ 70 bar [≤ 1,000 psi] ■ ⅛NPT, female thread incl. safety relief valve for pressure range < 70 bar [< 1,000 psi]
Wetted parts	■ Aluminium ■ Brass ■ Stainless steel 316 ■ Buna-N ■ Viton ® ■ Silicone grease	■ Silicone rubber ■ Nylon ■ Ceramic ■ Glass ■ Silicon
Permissible pressure media	Pressure ranges ≤ 1 bar [≤ 15 psi]	Clean, dry, non-corrosive gases
	Pressure ranges > 1 bar [> 15 psi]	Media compatible with the listed wetted parts All other ranges compatible with aluminum, 316SS, brass, Buna-N, Viton ® , sealant, and silicone grease.
	Not designed for oxygen use
Overpressure limit	150 %FSor greater, depending on range

Operating conditions

Altitude	< 3,048 m[< 10,000 ft]
Place of use	Indoor
Operating temperature	0 ... 50 °C [2 ... 122 °F]
Compensated temperature range	15 ... 45 °C [59 ... 113 °F]
Storage temperature range	-20 ...+70 °C [-4 ... 158 °F]
Relative humidity, condensation	0 ... 95 %r.h. (non-condensing)
Mounting position	■ Horizontal ■ Vertical ■ Customised

Logo	Description	Region
EU declaration of conformity	European Union
EMCdirective EN 61326-1 emission (group 1, class B) and immunity (industrial application)
Pressure Equipment Directive PS > 200 bar; module A, pressure accessory
UKCA	United Kingdom
Electromagnetic compatibility regulations
Pressure equipment (safety) regulations
Restriction of hazardous substances (RoHS) regulations

Logo	Description	Country
-	MTSCHS Permission for commissioning	Kazakhstan

Certificate

Calibration 1)
CPT6100 and CPT6180	■ A2LA calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate - absolute pressure (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate - gauge pressure (traceable and accredited in accordance with ISO/IEC 17025)
Analogue output only for CPT6100	■ Without ■ A2LA calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) ■ DAkkS calibration certificate - analogue output (traceable and accredited in accordance with ISO/IEC 17025)
Recommended calibration interval	6 months (dependent on conditions of use)

Cal-Template (demo version)	Cal-Template (light version)	Cal-Template (full version)	Log-Template (full version)
Fully automatic calibration	Semi-automatic calibration	Fully automatic calibration	■ Live measured value recording for a certain period of time with selectable interval, duration and start time ■ Creation of logger protocols with graphic and/or tabular representation of the measuring results in PDF format ■ Possibility of exporting measuring results as CSV file
Limitation to two measuring points	No limitation of the measuring points approached
■ Creation of 3.1 inspection certificates per DIN EN 10204 ■ Calibration data can be exported to Excel ® template or XML file ■ Calibration of pressure measuring instruments
Ordering information for a single licence
Is available for a cost-free download	WIKA-CAL-LZ-Z-Z	WIKA-CAL-CZ-Z-Z	WIKA-CAL-ZZ-L-Z
Ordering information for a pair licence
Cal-Template (light version) together with Log-Template (full version)	WIKA-CAL-LZ-L-Z
Cal-Template (full version) together with Log-Template (full version)	WIKA-CAL-CZ-L-Z

Accessories for model CPT6100	Order code
Description 1)	CPX-A-T1
-	Power supply With RS-232 interface cable	-1-
	Power supply With RS-485 interface cable	-2-
-	Adapter cable RS-232 to USB	-5-
	Adapter cable RS-485 to USB	-6-
	Adapter set 6 mmSwagelok ® male thread (2 adapters) max. 137 bar [2,000 psi] Material: brass	-M-
	Adapter set 6 mmSwagelok ® male thread (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-C-
	Adapter set ¼" tube fitting (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-I-
	Adapter set ¼" tube fitting (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-E-
	Adapter set ⅛BSPGfemale thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-B-
	Adapter set ¼NPTfemale thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-N-
	Adapter set ¼NPTfemale thread (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-A-
	Adapter set ⅛NPTfemale thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-S-
	Adapter set ⅛NPTfemale thread (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-F-
-	Transport case	-T-
Ordering information for your enquiry:
1. Order code: CPX-A-T1 2. Option:	⇓ [ ]

Accessories for model CPT6180	Order code
Description 1)	CPX-A-T2
-	Power supply With RS-232 interface cable	-1-
	Power supply With RS-485 interface cable	-2-
-	Adapter cable RS-232 to USB	-5-
	Adapter cable RS-485 to USB	-6-
-	Adapter set ⅛NPTfemale thread incl. safety relief valve For pressure ranges ≤ 70 bar [≤ 1,000 psi]	-3-
-	Adapter set ⅛NPTfemale thread incl. safety relief valve For pressure ranges > 70 bar [> 1,000 psi]	-4-
	Adapter set 6 mmSwagelok ® male thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-M-
	Adapter set 6 mmSwagelok ® male thread (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-C-
	Adapter set ¼" tube fitting (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-I-
	Adapter set ¼" tube fitting (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-E-
	Adapter set ⅛BSPGfemale thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-B-
	Adapter set ¼NPTfemale thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-N-
	Adapter set ¼NPTfemale thread (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-A-
	Adapter set ⅛NPTfemale thread (2 adapters) P max. 137 bar [2,000 psi] Material: brass	-S-
	Adapter set ⅛NPTfemale thread (2 adapters) P max. 400 bar [6,000 psi] Material: stainless steel	-F-
-	Transport case	-T-
Ordering information for
1. Order code: CPX-A-T2 2. Option:	⇓ [ ]
