WIKA · Calibration technology · Family CPH

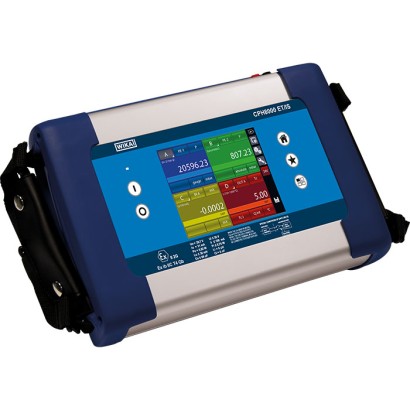

Portable multi-function calibrator

Name: Portable multi-function calibrator
Brand: WIKA
SKU: CPH8000

Portable multi-function calibrator for pressure, electrical signals, temperature, frequency and pulse measurement and simulation, with optional HART® module and intrinsically safe versions.

Range

-1…700 bar

Output

mA · V

Protection

IP54

CERoHSEACREACH

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Measurement and simulation of the following parameters: pressure, electrical signals (mA, mV, V, Ω), temperature (TC, RTD), frequency and pulse
Large colour touchscreen display with new intuitive and user-friendly interface
Internal pressure/vacuum generation
Option: intrinsically safe version, II 2G Ex ib IIC T4 Gb - Tamb: -10 ... +50 °C
Option: integrated HART ® module for communication with HART ® instruments

Identification

Model	CPH8000
Product family	CPH
Subcategory	multifunction calibrator

Measuring range

Pressure ranges

0…100 bar · -25…25 mbar · -100…100 mbar · -250…250 mbar · -400…400 mbar · -600…600 mbar · -900…1500 mbar · -1…7 bar · -1…10 bar · -1…21 bar · -1…40 bar · 0…60 bar · 0…1500 mbar · 0…2500 mbar · 0…7 bar · 0…11 bar · 0…21 bar · 0…81 bar · -0.9…21 bar · 0…250 bar · 0…400 bar · 0…700 bar

Temperature ranges

+0…+400 °C · +160…+1760 °C · +170…+1760 °C · +920…+1820 °C · +0…+1300 °C · +0…+2000 °C · −190…+1200 °C · −160…+1260 °C · −130…+400 °C · −160…+400 °C · −200…+760 °C · −200…+1000 °C · −10…+50 °C · −200…+0 °C · −200…+850 °C · −70…+150 °C · −180…+150 °C · −60…+180 °C · +0…+150 °C · −160…+0 °C · −130…+0 °C · −190…+0 °C · +0…+760 °C · +0…+1000 °C · +0…+1200 °C · +0…+1260 °C · +0…+1760 °C

Accuracy

Uncertainty

0.01 % of reading ±0.003 % FS

Process conditions

Medium	clean, dry, non-corrosive gases; media compatible with wetted parts
Calibration type	multifunction

Electrical characteristics

Output signal

mA · V · RTD simulation · TC simulation · frequency · pulses · resistance · mV · Ω · pulse · HART

Operating environment

Ambient temperature	−10…+50 °C
IP rating	IP54
Weight	6 kg

Certifications and approvals

Certifications	CERoHSEACREACH
Explosion protection	II 2G Ex ib IIC T4 Gb-Tamb: -10 ... +50 °CIECEx Ex ib IIC T4 Gb-Tamb: -10 ... +50 °C
Traceability	ACCREDIA · DIN EN 10204 3.1 · NIST

Additional details

Portable	Yes
Datasheet languages	EN, DE

Tables from datasheet

Base instrument

Indication
Display	Touchscreen + 5 keys
Dimensions	640 x 480 Dots Dot size: 0.06 x 0.06 mm(0.002 x 0.002 in)
Backlighting	LED
Electrical input and output
Number and type	DIN-plug inputs for electrical parameters, resistance thermometers and thermocouples
Resistance thermometer (RTD)	Pt100 (385, 3616, 3906, 3926, 3923), Pt200, Pt500, Pt1000 (385, 3916), Ni100, Ni120, Cu10, Cu100
Thermocouples	Types J, K, T, F, R, S, B, U, L, N, E, C
Voltage signal	Input:DC ±100 mV, ±2 V, ±80V Output:DC 20V
Current signal	Input:DC ±100mA Output:DC 20mA
Frequency signal	0 ... 50,000 Hz
Pulses signal	1 ... 999,999
Resistance	0 ...10,000Ω
Voltage supply	DC 24V
HART ® communication
HART ® module	Based on HART ® universal and common practice commands
Resistance	HART ® resistance 250 Ω(activatable)
Loop current	max.DC 24mA
Voltage supply	DC 24V

Base instrument

Connections
Pressure connection	1/8 BSP (female)
Overpressure safety	2 x pressure range; static pressure < 3.5 bar [< 50 psi]
Wetted parts	Ranges ≤ 0.350 bar [≤ 5 psi] - Silicon, 316 SS, glass-filled resins, epoxy Ranges > 0.350 ... 100 bar [> 5 ... 1,500 psi] - 316 SS Ranges > 100 bar [> 1,500 psi] - 316 SS, fluorocarbon rubber
Permissible media	Ranges ≤ 0.350 bar [≤ 5 psi] - clean, dry, non-corrosive gases Ranges > 0.350 bar [> 5 psi] - media compatible with the listed wetted parts
Compensated temperature range	-10 ...+50 °C [14 ... 122 °F]
Measuring rate	10 values/second, (not adjustable)
Units	bar, mbar, psi, psf, Pa, hPa, kPa, MPa, torr, atm, kg/cm², kg/m², mmHg (0 °C), cmHg (0 °C), mHg (0 °C), inHg (0 °C),mmH 2 O(4 °C), cmH₂O (4 °C), mH₂O (4 °C), inH₂O (4 °C), ftH₂O (4 °C)
Voltage supply
Operating voltage	AC 100 ... 240 V, 50/60 Hz
Battery type	Rechargeable battery NiMH
Battery life (fully charged)	6 ... 8 hours for typical usage
Permissible ambient conditions
Operating temperature	-10 ...+50 °C [14 ... 122 °F]
Storage temperature	-30 ...+80 °C [-22 ...+176 °F]
Relative humidity	Operating humidity: 10 ... 90 %r.h. (non-condensing) Storage humidity: 0 ... 90 %r.h. (non-condensing)

Case

Material	Front panel aluminium
Ingress protection	IP54
Dimensions	330 x 270 x 170 mm[13 x 10.6 x 7 in]
Weight	approx. 3 kg [6 lbs 6 oz] (ET version) approx. 6 kg [13 lbs 2 oz] (P1 version)

Safety-related characteristic values

ATEX directive	II 2G Ex ib IIC T4 Gb -T amb : -10 ...+50 °C
Connection values
Max. voltage	U 0 = 29.7V
Max. current	I 0 = 31mA
Max. power	P 0 = 0.92W
Max. effective internal capacitance	C 0 = 69 nF
Max. effective internal inductance	L 0 = 30mH
Power supply circuit
Max. voltage	U i = 30V
Max. current	I i = 100mA
Max. power	P i = 0.75W
Max. effective internal capacitance	C i = negligible
Max. effective internal inductance	L i = negligible

View all (18)

Logo	Description	Country
	EU declaration of conformity	European Union

Logo	Description	Country
	ATEX directive Hazardous areas II 2G Ex ib IIC T4 Gb - Tamb: -10 ...+50 °C	European Union
	IECEx Hazardous areas Ex ib IIC T4 Gb - Tamb: -10 ...+50 °C	International
	EAC ■ Electromagnetic compatibility ■ Low voltage directive	Eurasian Economic Community
	DNOP-MakNII Hazardous areas	Ukraine
	BelGIM Metrology, measurement technology	Belarus
-	MTSCHS Permission for commissioning	Kazakhstan

Certificate

Calibration	■ 3.1 calibration certificate per DIN EN 10204 ■ ACCREDIA calibration certificate
Recommended recalibration interval	1 year (dependent on conditions of use)

Measuring range		Precision 1) (% FS)	Accuracy 2) 3) (% FS)	Resolution
Gauge pressure
-25...+25 mbar 4)	[-10 ...+10 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-100 ...+100 mbar	[-40 ...+40 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-250 ...+250 mbar	[-100 ...+100 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-400 ...+400 mbar	[-150 ...+150 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-600 ...+600 mbar	[-8 ...+8 psi]	0.015	0.025	0.001 mbar	[0.00001 psi]
-900 ... +1,500 mbar	[-14.5 ... 20 psi]	0.015	0.025	0.01 mbar	[0.0001 psi]
-1 ... 7 bar	[-14.5 ... 100 psi]	0.015	0.025	0.01 mbar	[0.0001 psi]
-1 ... 10 bar	[-14.5 ... 150 psi]	0.015	0.025	0.1 mbar	[0.001 psi]
-1 ... 21 bar	[-14.5 ... 300 psi]	0.015	0.025	0.1 mbar	[0.001 psi]
-1 ... 40 bar 4)	[-14.5 ... 500 psi] 4)	0.015 4)	0.025 4)	0.1 mbar 4)	[0.001 psi] 4)
0 ... 60 bar 4)	[0 ... 900 psi] 4)	0.015 4)	0.025 4)	0.1 mbar 4)	[0.001 psi] 4)
0 ... 100 bar 4)	[0 ... 1,500 psi] 4)	0.015 4)	0.025 4)	1 mbar 4)	[0.015 psi] 4)
Absolute pressure
552 ... 1.172 mbar abs.	[8 ... 17 psi abs.]	0.015	0.025	0.01 mbar	[0.0001 psi]
0 ... 1,500 mbar abs.	[0 ... 20 psi abs.]	0.015	0.025	0.01 mbar	[0.0001 psi]
0 ... 2,500 mbar abs.	[0 ... 30 psi abs.]	0.015	0.025	0.01 mbar	[0.0001 psi]
0 ... 7 bar abs.	[0 ... 100 psi abs.]	0.015	0.025	0.1 mbar	[0.0001 psi]
0 ... 11 bar abs.	[0 ... 165 psi abs.]	0.015	0.025	0.1 mbar	[0.001 psi]
0 ... 21 bar abs.	[0 ... 355 psi abs.]	0.015	0.025	0.1 mbar	[0.001 psi]
0 ... 81 bar abs. 4)	[0 ... 1,015 psi abs.] 4)	0.015 4)	0.025 4)	1 mbar 4)	[0.015 psi] 4)
0 ... 100 bar abs. 4)	[0 ... 1,515 psi abs.] 4)	0.015 4)	0.025 4)	1 mbar 4)	[0.015 psi] 4)

Measuring range	Precision 1) (% FS)	Accuracy 2) 3) (% FS)	Resolution
Gauge pressure
-25...+25 mbar	[-10 ...+10 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-100 ...+100 mbar	[-40 ...+40 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-250 ...+250 mbar	[-100 ...+100 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-400 ...+400 mbar	[-150 ...+150 inH 2 O(4 °C)]	0.015	0.025	0.001 mbar	[0.00001 psi]
-600 ...+600 mbar	[-8 ...+8 psi]	0.015	0.025	0.001 mbar	[0.00001 psi]
-900 ... +1,500 mbar	[-14.5 ... 20 psi]	0.015	0.025	0.01 mbar	[0.0001 psi]
-1 ... 7 bar	[-14.5 ... 100 psi]	0.015	0.025	0.1 mbar	[0.001 psi]
-1 ... 10 bar	[-14.5 ... 150 psi]	0.015	0.025	0.1 mbar	[0.001 psi]
-1 ... 21 bar	[-14.5 ... 300 psi]	0.015	0.025	0.1 mbar	[0.001 psi]
-1 ... 40 bar	[-14.5 ... 500 psi]	0.015	0.025	1 mbar	[0.015 psi]
0 ... 60 bar	[0 ... 900 psi]	0.015	0.025	1 mbar	[0.015 psi]
0 ... 100 bar	[0 ... 1,500 psi]	0.015	0.025	1 mbar	[0.015 psi]
0 ... 250 bar	[0 ... 3,000 psi]	0.015	0.025	1 mbar	[0.015 psi]
0 ... 400 bar	[0 ... 5,000 psi]	0.015	0.025	1 mbar	[0.015 psi]
0 ... 700 bar	[0 ... 10,000 psi]	0.015	0.025	1 mbar	[0.015 psi]
Absolute pressure
552 ... 1.172 mbar abs.	[8 ... 17 psi abs.]	0.015	0.025	0.01 mbar	[0.0001 psi]
0 ... 1,500 mbar abs.	[0 ... 20 psi abs.]	0.015	0.025	0.01 mbar	[0.0001 psi]
0 ... 2,500 mbar abs.	[0 ... 30 psi abs.]	0.015	0.025	0.01 mbar	[0.0001 psi]
0 ... 7 bar abs.	[0 ... 100 psi abs.]	0.015	0.025	0.1 mbar	[0.001 psi]
0 ... 11 bar abs.	[0 ... 165 psi abs.]	0.015	0.025	0.1 mbar	[0.001 psi]
0 ... 21 bar abs.	[0 ... 355 psi abs.]	0.015	0.025	0.1 mbar	[0.001 psi]
0 ... 81 bar abs.	[0 ... 1,015 psi abs.]	0.015	0.025	1 mbar	[0.015 psi]
0 ... 100 bar abs.	[0 ... 1,515 psi abs.]	0.015	0.025	1 mbar	[0.015 psi]

Electrical signal	Measuring range	Full scale	Precision %of rdg ±% FS	Accuracy %of rdg ±% FS	Max. resolution
DC voltage 1) 2)	±100mV 3)	100mV	0.008 %±0.002%FS	0.01 %±0.003%FS	0.0001mV
±2V 3)	2V	0.008 %±0.002%FS	0.01 %±0.003%FS	0.000001V
±80V 4)	80V	0.008 %±0.002%FS	0.01 %±0.003%FS	0.00001V
DC current 1) 5)	±100mA	100mA	0.008 %±0.003%FS	0.01 %±0.003%FS	0.0001mA
Resistance 1) 6)	0 ...400Ω	400Ω	0.008 %±0.002%FS	0.01 %±0.003%FS	0.001Ω
	0 ...10,000Ω	10,000Ω	0.008 %±0.002%FS	0.01 %±0.003%FS	0.01Ω

Electrical signal	Measuring range	Full scale	Precision %of rdg ±% FS	Accuracy %of rdg ±% FS	Max. resolution
Frequency 7)	0.5 ... 10,000 Hz 8)	50,000 Hz	0.01 Hz	0.01 Hz	0.001 Hz
	10,000 ... 20,000 Hz 8)	50,000 Hz	0.1 Hz	0.1 Hz	0.001 Hz
	20,000 ... 30,000 Hz 9)	50,000 Hz	1 Hz	1 Hz	0.001 Hz
	30,000 ... 50,000 Hz 9)	50,000 Hz	20 Hz	20 Hz	0.001 Hz
Pulses 10)	1 ... 999,999	999,999	N/A	N/A	1

Electrical signal	Measuring range	Full scale	Precision %of rdg ±% FS	Accuracy %of rdg ±% FS	Max. resolution
DC voltage 1)	0 ...100mV 2)	100mV	0.01 %±0.003%FS	0.015 %±0.003%FS	0.0001mV
0 ...2V 3)	2V	0.01 %±0.003%FS	0.015 %±0.003%FS	0.000001V
0 ...20V 3)	20V	0.015 %±0.003%FS	0.02 %±0.003%FS	0.00001V
DC current 4)	0 ...20mA 5)	20mA	0.02 %±0.003%FS	0.025 %±0.003%FS	0.0001mA
Resistance 4)	0 ...400Ω	400Ω	0.008 %±0.003%FS	0.01 %±0.003%FS	0.001Ω
0 ...10,000Ω	10,000Ω	0.008 %±0.002%FS	0.01 %±0.002%FS	0.01Ω
Frequency	0.5 ... 20,000 Hz	20,000 Hz	0.1 Hz	0.1 Hz	0.001 Hz
Pulses 6)	1 ... 999,999	999,999	N/A	N/A	1

Output signals	Measuring range	Precision	Accuracy	Resolution
Pt100 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3916) 2)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3902) 3)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3926) 4)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3923) 5)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1.562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt200 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Pt500 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Pt1000 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Pt1000 (3916) 2)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Cu10 (42) 6)	-70 ... 0 °C	[-94 ...+32 °F]	0.23 °C	[0.41 °F]	0.28 °C	[0.5 °F]	0.1 °C [0.18 °F]
0 ... 40 °C	[32 ... 104 °F]	0.24 °C	[0.43 °F]	0.29 °C	[0.52 °F]
40 ... 150 °C	[104 ... 302 °F]	0.27 °C	[0.49 °F]	0.3 °C	[0.54 °F]
Cu100 7)	-180 ... 0 °C	[-295 ...+32 °F]	0.06 °C	[0.11 °F]	0.07 °C	[0.13 °F]	0.01 °C [0.02 °F]
0 ... 80 °C	[32 ... 176 °F]	0.07 °C	[0.13 °F]	0.08 °C	[0.14 °F]
80 ... 150 °C	[176 ... 302 °F]	0.08 °C	[0.14 °F]	0.09 °C	[0.16 °F]
Ni100 (617) 8)	-60 ... 0 °C	[-76 ... 32 °F]	0.04 °C	[0.07 °F]	0.05 °C	[0.09 °F]	0.01 °C [0.02 °F]
0 ... 100 °C	[32 ... 212 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]
Ni120 (672) 9)	0 ... 100 °C	[32 ... 212 °F]	0.04 °C	[0.07 °F)	0.05 °C	[0.09 °F]	0.01 °C [0.02 °F]
100 ... 150 °C	[212 ... 302 °F]	0.05 °C	[0.09 °F]

Output signals	Measuring range	Precision	Accuracy	Resolution
Pt100 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3916) 2)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3902) 3)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3926) 4)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt100 (3923) 5)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.07 °C	[0.13 °F]	0.09 °C	[0.16 °F]
300 ... 850 °C	[572 ... 1.562 °F]	0.15 °C	[0.27 °F]	0.17 °C	[0.31 °F]
Pt200 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Pt500 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Pt1000 (385) 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Pt1000 (3916) 2)	-200 ... 0 °C	[-328 ...+32 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]
0 ... 300 °C	[32 ... 572 °F]	0.09 °C	[0.16 °F]	0.1 °C	[0.18 °F]
300 ... 850 °C	[572 ... 1,562 °F]	0.18 °C	[0.32 °F]	0.21 °C	[0.38 °F]
Cu10 (42) 6)	-70 ... 0 °C	[-94 ...+32 °F]	0.23 °C	[0.41 °F]	0.28 °C	[0.5 °F]	0.1 °C [0.18 °F]
0 ... 40 °C	[32 ... 104 °F]	0.24 °C	[0.43 °F]	0.29 °C	[0.52 °F]
40 ... 150 °C	[104 ... 302 °F]	0.27 °C	[0.49 °F]	0.3 °C	[0.54 °F]
Cu100 7)	-180 ... 0 °C	[-295 ...+32 °F]	0.06 °C	[0.11 °F]	0.07 °C	[0.13 °F]	0.01 °C [0.02 °F]
0 ... 80 °C	[32 ... 176 °F]	0.07 °C	[0.13 °F]	0.08 °C	[0.14 °F]
80 ... 150 °C	[176 ... 302 °F]	0.08 °C	[0.14 °F]	0.09 °C	[0.16 °F]
Ni100 (617) 8)	-60 ... 0 °C	[-76 ... 32 °F]	0.04 °C	[0.07 °F]	0.05 °C	[0.09 °F]	0.01 °C [0.02 °F]
0 ... 100 °C	[32 ... 212 °F]	0.05 °C	[0.09 °F]	0.06 °C	[0.11 °F]
Ni120 (672) 9)	0 ... 100 °C	[32 ... 212 °F]	0.04 °C	[0.07 °F)	0.05 °C	[0.09 °F]	0.01 °C [0.02 °F]
100 ... 150 °C	[212 ... 302 °F]	0.05 °C	[0.09 °F]

Input signals	Measuring range	Linearity error	Resolution	Precision %of rdg ±% FS	Accuracy %of rdg ±% FS
Type J 1)	-190 ... 0 °C	[-310 ...+32 °F]	0.05 °C	[0.09 °F]	0.01 °C [0.02 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
0 ... 1,200 °C	[32 ... 2,192 °F]	0.04 °C	[0.07 °F]
Type K 1)	-160 ... 0 °C	[-256 ...+32 °F]	0.06 °C	[0.11 °F]	0.01 °C [0.02 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
0 ... 1,260 °C	[32 ... 2,300 °F]	0.04 °C	[0.07 °F]
Type T 1)	-130 ... 0 °C	[-202 ...+32 °F]	0.05 °C	[0.09 °F]	0.01 °C [0.02 °F]	0.01 %±0.003%FS	0.01 %±0.003%FS
0 ... 400 °C	[32 ... 752 °F]	0.04 °C	[0.07 °F]
Type F 1)	0 ... 400 °C	[32 ... 752 °F]	0.05 °C	[0.09 °F]	0.1 °C [0.18 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
Type R	160 ... 1,760 °C	[320 ... 3,200 °F]	0.04 °C	[0.07 °F]	0.1 °C [0.18 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
Type S	170 ... 1,760 °C	[338 ... 3,200 °F]	0.04 °C	[0.07 °F]	0.1 °C [0.18 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
Type B 1)	920 ... 1,820 °C	[1,688 ... 3,308 °F]	0.1 °C	[0.18 °F]	0.1 °C [0.18 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
Type U 1)	-160 ... 0 °C	[-256 ...+32 °F]	0.04 °C	[0.07 °F]	0.01 °C [0.02 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
0 ... 400 °C	[32 ... 752 °F]
Type L 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.03 °C	[0.05 °F]	0.01 °C [0.02 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
0 ... 760 °C	[32 ... 1,400 °F]	0.04 °C	[0.07 °F]
Type N	0 ... 1,300 °C	[32 ... 2,372 °F]	0.04 °C	[0.07 °F]	0.01 °C [0.02 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
Type E	-200 ... 0 °C	[-328 ...+32 °F]	0.03 °C	[0.05 °F]	0.01 °C [0.02 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS
0 ... 1,000 °C	[32 ... 1,832 °F]	0.04 °C	[0.07 °F]
Type C 1)	0 ... 2,000 °C	[32 ... 3,632 °F]	0.05 °C	[0.09 °F]	0.1 °C [0.18 °F]	0.008 %±0.002%FS	0.01 %±0.003%FS

Output signals	Measuring range	Linearity error	Resolution	Precision %of rdg ±% FS	Accuracy %of rdg ±% FS
Type J 1)	-190 ... 0 °C	[-310 ...+32 °F]	0.05 °C	[0.09 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
0 ... 1,200 °C	[32 ... 2,192 °F]	0.04 °C	[0.07 °F]
Type K 1)	-160 ... 0 °C	[-256 ...+32 °F]	0.06 °C	[0.11 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
0 ... 1,260 °C	[32 ... 2,300 °F]	0.04 °C	[0.07 °F]
Type T 1)	-130 ... 0 °C	[-202 ...+32 °F]	0.05 °C	[0.09 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
0 ... 400 °C	[32 ... 752 °F]	0.04 °C	[0.07 °F]
Type F 1)	0 ... 400 °C	[32 ... 752 °F]	0.05 °C	[0.09 °F]	0.1 °C	[0.18 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
Type R	160 ... 1,760 °C	[320 ... 3,200 °F]	0.04 °C	[0.07 °F]	0.1 °C	[0.18 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
Type S	170 ... 1,760 °C	[338 ... 3,200 °F]	0.04 °C	[0.07 °F]	0.1 °C	[0.18 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
Type B 1)	920 ... 1,820 °C	[1,688 ... 3,308 °F]	0.1 °C	[0.18 °F]	0.1 °C	[0.18 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
Type U 1)	-160 ... 0 °C	[-256 ...+32 °F]	0.04 °C	[0.07 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
0 ... 400 °C	[32 ... 752 °F]
Type L 1)	-200 ... 0 °C	[-328 ...+32 °F]	0.03 °C	[0.05 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
0 ... 760 °C	[32 ... 1,400 °F]	0.04 °C	[0.07 °F]
Type N	0 ... 1,300 °C	[32 ... 2,372 °F]	0.04 °C	[0.07 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS

Output signals	Measuring range	Linearity error	Resolution	Precision %of rdg ±% FS	Accuracy %of rdg ±% FS
Type E	-200 ... 0 °C	[-328 ...+32 °F]	0.03 °C	[0.05 °F]	0.01 °C	[0.02 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS
	0 ... 1,000 °C	[32 ... 1,832 °F]	0.04 °C	[0.07 °F]
Type C 1)	0 ... 2,000 °C	[32 ... 3,632 °F]	0.05 °C	[0.09 °F]	0.1 °C	[0.18 °F]	0.01 %±0.003%FS	0.015 %±0.003%FS

Parameter	Measuring range	Precision	Accuracy	Max. resolution
Temperature	-10 ...+50 °C	[14 ... 122 °F]	2.7 °C	[4.86 °F]	3.0 °C	[5.4 °F]	0.1 °C	[0.18 °F]
Barometric pressure	650 ... 1,150 mbar	[9.43 ...16.68 psi]	4%FS		5%FS		1 mbar	[0.015 psi]
Relative humidity	10 ... 90 %r.h.		12%		15%		1%

Portable multi-function calibrator

Special features

1 standard articles of family CPH
