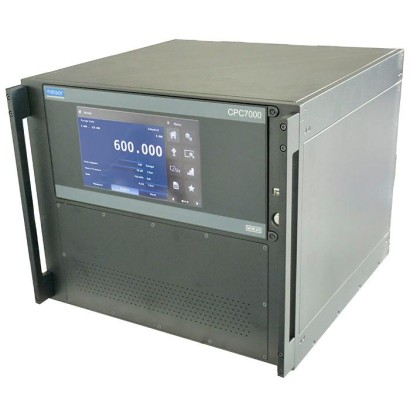

Pressure controller

Name: Pressure controller
Brand: WIKA

Pneumatic high-pressure version

Range

100…701 bar

Output

pressure

Protection

None

CERoHSEACGOSTBelGIM

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Special features

Pressure ranges: 0 ... 700 bar [0 ... 10,000 psi]
Control speed 30 s
Control stability 0.008 % FS
Accuracy down to 0.01 % IS (IntelliScale)

Identification

Model	CPC7000
Product family	CPC
Subcategory	high-pressure controller

Measuring range

Pressure ranges	100…400 bar · 400…700 bar · 101…401 bar · 401…701 bar
Temperature ranges	+0…+70 °C

Accuracy

Uncertainty

0.01 % FS or 0.01 % IS-50 (depending on option)

Process conditions

Medium	nitrogen
Calibration type	electronic

Electrical characteristics

Output signal

pressure

Operating environment

Ambient temperature	+15…+45 °C
Weight	40 kg

Certifications and approvals

Certifications	CERoHSEACGOSTBelGIM
Traceability	A2LA · DKD · DAkkS

Additional details

Portable	No
Datasheet languages	EN, DE, ES, FR, IT, NL, PL, PT, RO, SV, RU, EL, JA, ZH

Tables from datasheet

Reference pressure sensors

Pressure range	CPR8000	CPR8050
Accuracy 1)	Standard:0.01%FS 2) Optional: 0.01 %IS-50 3)	0.01%FS 2)
Gauge pressure	100 ... 400 bar 4) 1,500 ... 6,000 psi 4)	400 ... 700 bar 6,000 ... 10,000 psi
Absolute pressure	101 ... 401 bar 4) 1,515 ... 6,015 psi 4)	401 ... 701 bar 6,015 ... 10,015 psi
Calibration interval	365 days	365 days
Optional barometric reference
Function	The barometric reference can be used to switch pressure types 5) , absolute <=> gauge.With gauge pressure sensors, the measuring range of the sensors must begin with -1 bar (-15 psi) in order to carry out an absolute pressure emulation.
Measuring range	552 ... 1,172 mbar abs. (8 ... 17 psi abs.)
Accuracy 1)	0.01 %of reading
Pressure units	38 and two freely programmable

Basic instrument
Instrument
Instrument version	Standard: desktop case Option: 19" rack-mounting kit
Dimensions	see technical drawings
Weight	approx. 40 kg (88.2 lbs) incl. all internal options
Warm-up time	approx. 15 min
Display
Screen	8.9" colour LC display with resistive touchscreen
Resolution	4 ... 6 digits depending on range and units
Connections
Pressure connection	Standard: 5 ports with M16 x 1.5 female with sealing cone Optional: 2 ports with 9/16-18 UNF female Optional barometer:M12 x 1 female
Filter elements	All pressure ports have 20-µm filters.
Permissible pressure media	Nitrogen class 2.8 or better
Overpressure protection	Burst disc up to 1,000 bar (14,500 psi)

Basic instrument

Permissible pressure
Supply port	107 …110 %FSat least 30 …50bar (435 ... 725 psi) over nominal pressure, whichever is greater
Measure/Control port	max.105%FS
Voltage supply
Power supply	AC 100 ... 120 / 200 ... 240 V, 50/60 Hz
Power consumption	max.140VA
Permissible ambient conditions
Storage temperature	0 ... 70 °C (32 ... 158 °F)
Humidity	5 …95%r.h.(non-condensing)
Compensated temperature range	15 ... 45 °C (59 ... 113 °F)
Mounting position	horizontal
Control parameters
Control stability	0.008 %FSin a 25 ml test volume
Control time	30 s 6)
Control range	0 ...100%FS
Minimum control pressure	1 bar (14.5 psi)
Test volume	0 ... 50 ccm
Communication
Interface	Ethernet, IEEE-488, USB, RS-232
Command sets	Mensor,WIKA SCPI
Response time	approx. 100 ms
Internal program	up to 24 sequences with up to 99 steps each

Logo	Description	Country
	EU declaration of conformity ■ EMCdirective 7) EN 61326-1 emission (group 1, class A) and immunity (industrial application) ■ Low voltage directive ■ RoHS directive	European Union
	EAC (option) ■ Pressure equipment directive ■ Low voltage directive	Eurasian Economic Community
	GOST (option) Metrology, measurement technology	Russia
	BelGIM (option) Metrology, measurement technology	Belarus

View all (8)

Certificate

Calibration 8)	Standard:A2LA calibration certificate Option:DKD/DAkkS calibration certificate
Recommended recalibration interval	1 year (dependent on conditions of use)

Cal-Template (light version)	Cal-Template (full version)	Log-Template (full version)
■ Semi-automatic calibration	■ Fully automatic calibration	■ Live measurement recording for a certain period of time with selectable interval, duration and start time
■ Calibration certificate creation 3.1 per DIN EN 10204 ■ Calibration reports can be exported to Excel ® template or XML file ■ Calibration of gauge pressure measuring instruments with absolute pressure references and vice versa ■ Generation of calibration certificates with no limitations on measuring points

Ordering information for your enquiry for a single license

WIKA-CAL-LZ-Z-Z	WIKA-CAL-CZ-Z-Z	WIKA-CAL-ZZ-L-Z
Ordering information for your enquiry for a pair license:
Cal-Template (light version) together with Log-Template (full version)	WIKA-CAL-LZ-L-Z
Cal-Template (full version) together with Log-Template (full version)	WIKA-CAL-CZ-L-Z

Accessories for CPC7000		Order code
	Description	CPX-A-C7
	19" rack-mounting kit	-2-
	Barometric reference Measuring range 552 ... 1.172 mbar abs. (8 ... 17 psi abs.) Accuracy to 0.01 %of reading	-3-
	for barometric reference, voltage supply and software	-5-
	Calibration adapter and voltage supply with interface cable RS-232	-6-
	Adapterset M12 on 9/16-18 UNF female	-1-
Ordering information for your enquiry:
1. Order code: CPX-A-C5 2. Option:	⇓ [ ]
