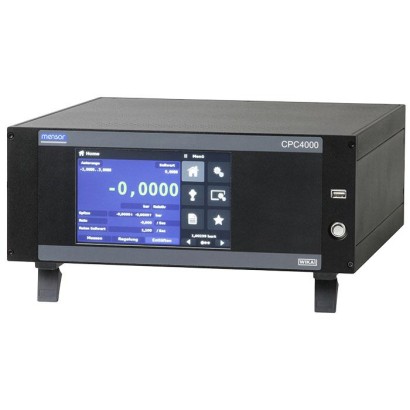

WIKA · Calibration technology · Family CPC
Pressure controller
Industrial pressure controller with high accuracy and control stability for use in production, calibration, and maintenance of pressure measuring instruments.
Range
-1…211 bar
Protection
None
RoHSCEEACGOSTMTSCHSKazInMetrUzstandardBelGIM
Price
On request
Depends on configuration
Special features
- Pressure ranges: -1 ... 210 bar [-15 ... 3,045 psi]
- Control speed 10 s
- Control stability < 0.005 % FS
- Accuracy to 0.02 % IS (IntelliScale)
- Precision 0.008 % FS
Identification
| Model | CPC4000 |
| Product family | CPC |
| Subcategory | Industrial pressure controller |
Measuring range
| Pressure ranges | -1…210 bar · 0…211 bar · 0…0.35 bar · 0…210 bar · -0.17…0.17 bar · 0…1 bar · -1…10 bar |
| Temperature ranges | +15…+45 °C · −20…+70 °C |
Accuracy
| Uncertainty | 0.02 % IS-50 |
Process conditions
| Medium | air |
| Calibration type | electronic |
Operating environment
| Ambient temperature | −20…+70 °C |
| Weight | 12.7 kg |
Certifications and approvals
| Certifications | RoHSCEEACGOSTMTSCHSKazInMetrUzstandardBelGIM |
| Traceability | A2LA · DKD · DAkkS |
Additional details
| Portable | No |
| Datasheet languages | EN, DE, IT |
Tables from datasheet
Reference pressure sensors model CPR4000
| Pressure range | Standard | Optional |
|---|---|---|
| Accuracy 1) | 0.02%FS 2) | 0.02 %IS-50 3) |
| Gauge pressure 4) | 0 ... 0.35 to 0 ... 210 bar (0 ... 5 to 0 ... 3,045 psi) | 0 ... 1 to 0 ... 210 bar (0 ... 15 to 0 ... 3,045 psi) |
| Bi-directional 4) | -0.17 ... 0.17 to -1 ... 210 bar (-2.5 ... 2.5 to -15 ... 3,045 psi) | -1 ... 10 to -1 ... 210 bar (-15 ... 145 to -15 ... 3,045 psi) |
| Absolute pressure 5) | 0 ... 1 to 0 ... 211 bar abs. (0 ... 15 to 0 ... 3,060 psi abs.) | 0 ... 1 to 0 ... 211 bar abs. (0 ... 15 to 0 ... 3,060 psi abs.) |
| Precision 6) | 0.008%FS | 0.008%FS |
| Calibration interval | 365 days | 365 days |
| Optional barometric reference | ||
| Function | The barometric reference can be used to switch pressure types 7) , absolute <=> gauge.With gauge pressure sensors, the measuring range of the sensors must begin with -1 bar (-15 psi) in order to carry out a complete absolute pressure emulation. | |
| Measuring range | 552 ... 1,172 mbar abs. (8 ... 17 psi abs.) | |
| Accuracy 1) | 0.02 %of reading | |
| Pressure units | 39 and two freely programmable |
Base instrument
| Instrument | |
|---|---|
| Instrument version | Standard: desktop case Option: 19" rack-mounting kit |
| Dimensions | See technical drawings |
| Weight | approx. 12.7 kg (28 lbs) incl. all internal options |
| Warm-up time | approx. 15 min |
| Display | |
| Screen | 7.0" colour LC display with resistive touchscreen |
| Resolution | 4 ... 6 digits depending on range and units |
| Base instrument | |
|---|---|
| Connections | |
| Pressure connections | 4 ports with 7/16"- 20 F SAE, 1 port with 1/8" F NPT and 1 port with 10-32 UNF female |
| Filter elements | The instrument has a 40-micron filters on all pressure ports. |
| Pressure port adapters | Standard: without Option: 6 mmtube fitting, 1/4" tube fitting, 1/4" female NPT fittings, 1/8" female NPT fittings or 1/8" female BSP fittings |
| Barometer port adapters | Standard: barb fitting Option: 6 mmtube fitting, 1/4" tube fitting |
| Permissible pressure media | Dry, clean air or nitrogen (ISO 8573-1:2010 class 5.5.4 or better) |
| Wetted parts | Aluminium, brass, 316 and 316L stainless steel, Buna N, FKM/FPM, PCTFE, PEEK, PTFE, PPS, glass-filled epoxy, RTV, ceramic, silicone, silicone grease, Urethane |
| Overpressure protection | Safety relief valve fixed to reference pressure sensor and adjusted to specific customised measuring range |
| Permissible pressure | |
| Supply port | 110 %FSor 0.69 bar (10 psi), whichever is greater |
| Measure/Control port | max.105%FS |
| Voltage supply | |
| Power supply | AC 100 ... 120 V, 50/60 Hz;AC 220 ... 240 V, 50/60 Hz |
| Power consumption | max.150VA |
| Permissible ambient conditions | |
| Storage temperature | -20 ...+70 °C (-4 ...+158 °F) |
| Humidity | 5 …95%r.h.(relative humidity non-condensing) |
| Compensated temperature range | 15 ... 45 °C (59 ... 113 °F) |
| Mounting position | horizontal |
| Control parameter | |
| Control stability | < 0.005 %FSof the primary range in precision mode |
| Control mode | precision, high speed and customised |
| Control time | 10 s (regarding a 10 %FSpressure increase above atmosphere in a 50 ml test volume) |
| Control range | 0 ...100%FS |
| Min. control pressure | 0.0017 bar (0.025 psi) over exhaust pressure or 0.05 %FSwhichever is greater |
| Overshoots | < 1 %FSin high-speed control mode (typical < 0.1 %FSin precision control mode) |
| Test volume | 50 ... 1,000 ccm |
| Communication | |
| Interface | Ethernet, IEEE-488, USB, RS-232 |
| Command sets | Mensor,WIKA SCPI, others optional |
| Response time | approx. 100 ms |
| Internal program | up to 24 sequences with up to 99 steps each |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity ■ EMCdirective 8) EN 61326-1 emission (group 1, class A) and interference immunity (industrial application) ■ Low voltage directive ■ RoHS directive | European Union | |
| EAC (option) ■ EMCdirective ■ Low voltage directive | Eurasian Economic Community |
View all (8)
| Logo | Description | Country |
|---|---|---|
| GOST (option) Metrology, measurement technology | Russia | |
| KazInMetr (option) Metrology, measurement technology | Kazakhstan | |
| - | MTSCHS (option) Permission for commissioning | Kazakhstan |
| Uzstandard (option) Metrology, measurement technology | Uzbekistan | |
| BelGIM (option) Metrology, measurement technology | Belarus |
Certificate
| Calibration 1) | Standard:A2LA calibration certificate (standard on factory) Option:DKD/DAkkS calibration certificate |
|---|---|
| Recommended recalibration interval | 1 year (dependent on conditions of use) |
Base instrument
| Operating conditions | |
|---|---|
| Maximum operating pressure | 211 bar (3,065 psi) |
| Maximum operating temperature | 80 °C (176 °F) |
| Voltage supply | |
| Power supply | DC 12V |
| Power consumption | 13VA |
| Pressure connection | |
| To the M/C port of CPC4000 | 1 port with 1/4" tube adapted to 7/16"- 20 F SAE |
| To the test item | 2 ports Standard: 7/16" - 20 F SAE Option: 6 mmtube fitting, 1/4" tube fitting, 1/4" female NPT fittings, 1/8" female NPT fittings or 1/8" female BSP fittings |
| Dimensions | |
| Dimensions (W x H x D) | 139.7 x 266.7 x 139.7 mm(5.5 x 10.5 x 5.5 in) |
| Weight | 3.9 kg (8.8 lbs.) |
| Accessories for CPC4000 | Order code | |
|---|---|---|
| CPX-A-C4 | ||
| 19" rack mounting kit with | -R- | |
| side panels Barometric reference Measuring range 552 ... 1.172 mbar abs. (8 ... 17 psi Accuracy to 0.02 %of reading | -6- | |
| Measuring range 552 ... 1.172 mbar abs. (8 ... Accuracy to 0.01 %of reading | -3- | |
| Calibration adapter for reference pressure sensors, voltage supply and | -4- | |
| for barometric reference, voltage supply and | -5- | |
| Transport case | -7- | |
| Adapter set 1/8" BSPG female thread (4 adapter) | -B- | |
| 1/4" tube fitting | -I- | |
| 6 mmSwagelok ® male thread | -M- | |
| 1/4" NPT female thread (4 adapter) | -N- | |
| 1/8" NPT female thread | -S- | |
| Block and bleed valve, ≤ 400 bar | -8- | |
| Coalescing filter ≤ 240 bar | -9- | |
| Replacement filters for automatic CPS | ||
| -2- | ||
| Ordering information for | ||
| 1. Order code: CPX-A-C4 2. Option: | ⇓ [ ] |
