WIKA · Pressure measurement · Family APW

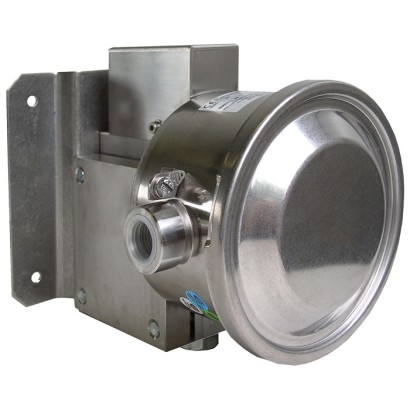

Absolute pressure switch

Absolute pressure switch with stainless steel enclosure, suitable for safety-critical applications in chemical, petrochemical, oil and gas industries.
Range
0…1.5 bar
Accuracy
≤ 1 % of span
Protection
IP66
CERoHSCCCKOSHAEACEx-UkraineATEXIECExEACExEx ia I MaEx ia IIIC T85°C/T135°C Da IP66Ex ia IIC T6/T4 GaEx ia IIC T6/T4
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

These high-quality pressure switches have been developed especially for safety-critical applications. The high quality of the products and manufacturing in accordance with ISO 9001 ensure reliable monitoring of your plant. In production, the switches are traced by quality assurance software at every step and subsequently are 100 % tested.

In order to ensure as flexible operation as possible, the absolute pressure switches are fitted with micro switches, which enable the switching of an electrical load of up to AC 250 V, 20 A directly.

Special features

  • No power supply needed for switching of electrical loads
  • Robust switch enclosure from stainless steel 316L, IP66, NEMA 4X
  • Setting ranges from 0 ... 25 mbar abs. up to 0 ... 1.5 bar abs.
  • Intrinsic safety Ex ia available
  • 1 or 2 independent set points, SPDT or DPDT, high switching power up to AC 250 V, 20 A
Identification
ModelAPW
SubcategoryAbsolute pressure switch
Measuring range
Pressure ranges0…0.16 bar · 0…0.25 bar · 0…0.4 bar · 0…0.6 bar · 0…1 bar · 0…1.5 bar · 0…25 mbar · 0…40 mbar · 0…60 mbar · 0…25 mbar abs. · 0…40 mbar abs. · 0…60 mbar abs.
Accuracy
Accuracy class≤ 1 % of span
Accuracy standardIEC 61298-2:2008
Safety integrity level (SIL)SIL 3-capable
Process conditions
Process connection
¼ NPT femaleG ¼ female½ NPT maleG ½ A maleG ¼ A male½ NPT femaleM20 x 1.5 male½ NPTG ½ AG ¼ AM20 x 1.5
Process temperature−30…+85 °C
Electrical characteristics
Electrical connection½ NPT female
Switching functionSPDT or DPDT
Switching contacts2
Materials
Case materialstainless steel 316L
Wetted parts materialAISI 316, AISI 316L
Sealing materialNBR
Operating environment
Ambient temperature−30…+85 °C
IP ratingIP66
Weight5.5 kg
Certifications and approvals
Certifications
CERoHSCCCKOSHAEACEx-UkraineATEXIECExEACEx
Explosion protection
Ex ia I MaEx ia IIIC T85°C/T135°C Da IP66Ex ia IIC T6/T4 GaEx ia IIC T6/T4
Additional details
Datasheet languagesEN
Tables from datasheet
AmbientT6/T85°CT a -30 ...+60 °C
T6/T135°CT a -30 ...+85 °C
Other versionsT a -30 ...+85 °C
Maximum values
Voltage U iDC 30V
Current l i100mA
Power P i0.75W
Internal capacitance C i0 μF
Internal inductance L i0mH
Contact versionElectrical rating (resistive load)Suitable for Ex ia option
ACDC
UN1 x SPDT, silver250 V, 15 A24 V, 2 A, 125 V, 0.5 A, 220 V, 0.25 ANo
US1 x SPDT, silver, hermetically sealed, argon gas filling 2)250 V, 15 A24 V, 2 A, 220 V, 0.5 AYes
UO1 x SPDT, gold-plated, hermetically sealed, argon gas filling 2)125 V, 1 A24 V, 0.5 AYes
UG1 x SPDT, gold-plated125 V, 1 A24 V, 0.5 ANo
UR1 x SPDT, silver, adjustable dead band250 V, 20 A24 V, 2 A, 220 V, 0.5 AYes 3)
DN2 x SPDT or 1 x DPDT, silver250 V, 15 A24 V, 2 A, 125 V, 0.5 A, 220 V, 0.25 ANo
DS2 x SPDT or 1 x DPDT, silver, hermetically sealed, argon gas filling 2)250 V, 15 A24 V, 2 A, 220 V, 0.5 AYes
DO2 x SPDT or 1 x DPDT gold-plated, hermetically sealed, argon gas filling 2)125 V, 1 A24 V, 0.5 AYes
DG2 x SPDT or 1 x DPDT, gold-plated125 V, 1 A24 V, 0.5 ANo
Measuring cellSetting rangeWorking rangeProof pressureFixed dead band for contact versionAdjustable dead band for contact version
in bar abs.in bar abs.in bar abs.1 contact UN, US, UO, UG in mbar abs.2 contacts DN, DS, DO, DG in mbar abs.1 contact UR in mbar abs.
L0 ... 0.160 ... 1.511≤ 5≤ 520 ... 60
0 ...0.25≤ 8≤ 830 ... 90
H0 ... 0.4≤ 20≤ 2030 ... 90
0 ... 0.6≤ 25≤ 2540 ... 125
0 ... 1≤ 30≤ 30100 ... 270
0 ... 1.5≤ 65≤ 65110 ... 320
View all (6)
Measuring cellSetting rangeWorking rangeProof pressureFixed dead band for contact versionAdjustable dead band for contact version
in mbar abs.in bar abs.in bar abs.1 contact UN, US, UO, UG in mbar abs.2 contacts DN, DS, DO, DG in mbar abs.1 contact UR in mbar abs.
100 ... 250 ... 12≤ 1.2≤ 1.63 ... 8
0 ... 40≤ 1.6≤ 2.24 ... 11
0 ... 60≤ 2.0≤ 2.55 ... 14
LogoDescriptionCountry
EU declaration of conformity ■ Pressure equipment directive ■ Low voltage directive ■ RoHS directive ■ ATEX directive 2) IM1 II1GDEuropean Community
IECEx 2) Ex ia I Ma Ex ia IIC T6/T4 3) Ga Ex ia IIIC T85°C/T135°C 3) Da IP66International
EAC (option) Hazardous areas 2)Eurasian Economic Community
Ex-Ukraine (option) Hazardous areas 2)Ukraine
CCC (option) Hazardous areas 2)China
KOSHA (option) Hazardous areas 2)South Korea
