WIKA · SF6 gas solutions · Family ACS

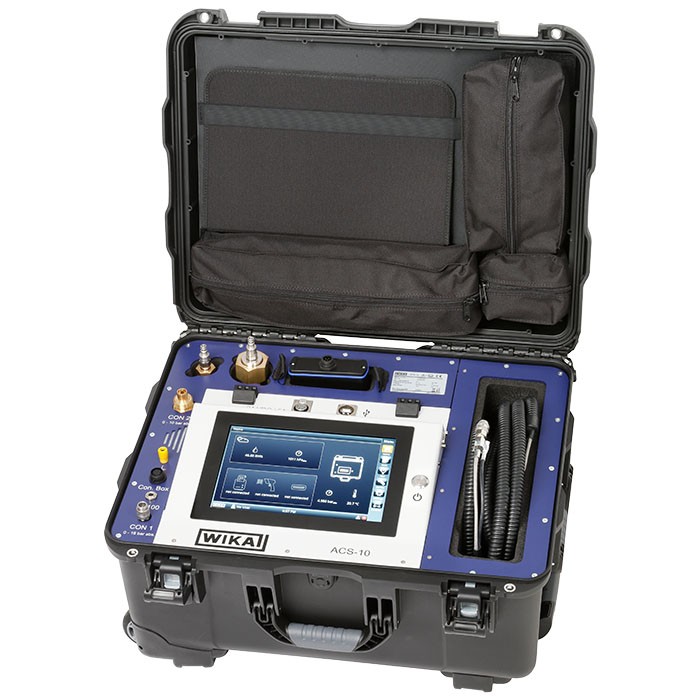

Calibration system for gas density instrumentation
Fully automatic calibration system for SF6 gas density and pressure measuring instruments with integrated compressor and touch display.
Protection
IP65/IP40
RoHSEMC directive EN 61326Machinery directiveRoHS directiveEMCCE
Price
On request
Depends on configuration
Special features
- Fully automatic testing of leakage detection systems
- Pressure generation via an integrated compressor
- Highly accurate pressure reference sensors with an accuracy of 0.06 %
- Variable connection concept of the test items
- Suitable for a wide range of leakage detection systems
Configurator · Step by step
Build a ACS-10 for your task
The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.
Step 1 of 9
Your configuration
- Type descriptionACS-10
- Measuring range of the reference pressure sensor0...16 bar
- Length of the connecting hose to the test sample4m (inner diameter 2.5mm)
- Accessories case—
- Hand scannerWith
- Printer—
- Altimeter—
- Pressure reducer—
- Adapter G 1/2 female to quick coupling—
- Adapter M26x1.5 to quick coupling ( for recalibration valve/GLTC-CV)—
- Adapter M30*2 male to quick coupling—
- Adapter G 3/4 female to quick coupling—
- Adapter G1/4 female to quick coupling—
- Certificatemeasured value report
- External batteryWithout
- Additional ordering informationWithout
AI suggestion by parameters
Finish your configuration
Select every option to submit the request.
Identification
| Model | ACS-10 |
| Product family | ACS |
| Subcategory | Calibration system |
Operating environment
| Ambient temperature | +5…+40 °C |
| IP rating | IP65/IP40 |
| Weight | 29.4 kg |
Certifications and approvals
| Certifications | RoHSEMC directive EN 61326Machinery directiveRoHS directiveEMCCE |
Additional details
| Datasheet languages | EN |
Tables from datasheet
Components
| Internal gas tank | ||
|---|---|---|
| Maximum residual pressure after the instrument has been pumped out | < 20 mbar abs. [< 0.29 psi abs.] | |
| Maximum residual pressure after evacuation of the instrument | ■ < 500 mbar abs. [< 7.25 psi abs.] (in external gas cylinder with 5 bar abs. [72.51 psi abs.]) ■ < 200 mbar abs. [< 2.90 psi abs.] (in external empty gas bag) | |
| Max. permissible filling pressure in the internal tank | 9 bar abs. [130.53 psi abs.] | |
| Touch display | ||
| Size | 25,7 cm [10.1 in] | |
| Format | 16:9 | |
| Hose (pneumatic connection) | ||
| Length | 4 m[157.48 in] | |
| Diameter | 2,5 mm[0.09 in] | |
| Internal compressor | Average rate of pressure change when testing switch points with a test item volume of min.50 ml (with hose) | 20 mbar/s [0.29 psi/s] |
| Maximum overshoot when approaching a target pressure | 1 %of target pressure | |
| Maximum connection pressure CON1 (test item) | 16 bar abs.[232.06 psi abs.] | |
| Maximum connection pressure CON2 (filling and emptying) | 10 bar abs.[145.03 psi abs.] |
Operating conditions
| Medium temperature | 5 ... 40 °C [41 ... 104 °F] |
|---|---|
| Ambient temperature | 5 ... 40 °C [41 ... 104 °F] |
| Storage temperature | -10 ...+60 °C [14 ... 140 °F] |
| Relative humidity | 10…90% |
| Ambient pressure | 600 …1,060 hPa |
| Vibration resistance | EN 30786-2, annex A.2.7 |
| Shock resistance | EN 60068-2-31, chapter 5.1.3.3 (overturning) and chapter 5.2 (free fall) |
| Ingress protection | |
| Closed case, transport | IP65 |
| Open case, operation | IP40 |
| Transport | The instrument may only be transported in transport mode (pressure in the instrument < 2 bar abs. [29.00 psi abs.]). |
| Maintenance | Recommended calibration of the reference sensor in aWIKA service hub after two years or 7,000 measurements |
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity | European Union | |
| EMCdirective EN 61326 emission (test basis:EN 55011, group 1, class B) and immunity (test basis:EN 61000-4-3, industrial application, evaluation criteria B/C) | ||
| Machinery directive | ||
| RoHS directive |
| Description | Order number |
|---|---|
| Printer incl. spare castors | 14329621 and 14436616 |
| Malmquist adapter (M30 x 2, male) for quick coupling | 14037946 |
| Adapter G 3/4 female to quick coupling | 14037987 |
| Adapter M26 x 1.5 for model GDM-100 with recalibration valve and model GLTC-CV to quick coupling | 14146937 |
| Adapter G 1/4 female to quick coupling | 14321474 |
| Adapter G 1/2 female to quick coupling | 14037984 |
| Pressure reducer for the connection for filling and emptying (Gas cylinder connection W21.8 x 1/14", max. initial pressure 200 bar [2900.75 psi], output pressure to 10 bar [145.03 psi]) | 13497678 |
| Altimeter | 14436753 |
| Hand scanner | 14382587 |
