WIKA · Pressure measurement · Family 910

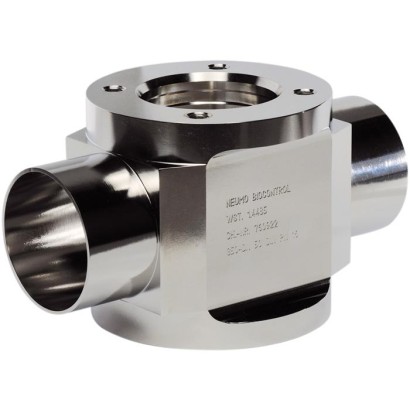

NEUMO BioControl ®

Name: NEUMO BioControl ®
Brand: WIKA

Pharmaceutical grade BioControl® System for adapting pressure and temperature measuring instruments to pipelines and vessels, designed for sterile process engineering with hygienic, dead-space-free connections.

Discontinued by WIKA — supplied on request

WIKA has withdrawn this model from its current range. We keep the datasheet and specifications here. Write to us and we will check availability and propose a current replacement.

Range

0…16 bar

FDA

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The pharmaceutical grade BioControl ® System is used to adapt pressure and temperature measuring instruments to pipelines and vessels. It has been specifically developed for applications in sterile process engineering.

For the sophisticated requirements within the sterile process industries, various different designs of the BioControl ® system are available, with type-test approval.

WIKA Data Sheet AC 09.14 ∙ 06/2010

WIKA Data Sheet AC 09.14

Housing (G)

Housing, angled variant (U)

Mounting flange (B)

Special features

NEUMO BioControl ® connection
No dead space
Hygienic design
Materials and surface-finish quality in accordance with the guidelines and standards of the pharmaceutical industry

Identification

Model	910.60
Product family	910
Subcategory	Diaphragm seal accessory

Measuring range

Pressure ranges

0…16 bar · 0…10 bar

Process conditions

Process connection	Orbital welding endsBioControl® connectionNEUMO BioControl® connectionwelding ends per DIN 11866 Series A, B, C
Process temperature	−10…+150 °C

Materials

Case material	Stainless steel 1.4435
Wetted parts material	Stainless steel 1.4435, Borosilicate glass, Stainless steel 1.4404/1.4435 (316L)
Sealing material	EPDM, FPM/FKM with FEP covering, Flat gasket, O-Ring Ø23.5x3, O-Ring Ø42x3, O-Ring Ø60x3, O-Ring Ø78x3, Sealing ring Ø32/26x1.5, Sealing ring Ø52/40x1.5, Sealing ring Ø70/58x1.5, Sealing ring Ø87.5/78x1.5

Operating environment

Ambient temperature

−10…+150 °C

Certifications and approvals

Certifications

FDA

Tables from datasheet

DN	Dimensions inmm
inmm	d1	d2	s	h	B
6	8	6	1	28	70
8	10	8	1	30	71
10	13	10	1.5	32	71.5
15	19	16	1.5	38	74.5
20	23	20	1.5	42	76.5

DN	Dimensions inmm
inmm	d1	d2	s	h	B
13.5	13.5	10.3	1.6	32.3	72
17.2	17.2	14	1.6	36	73.5
21.3	21.3	18.1	1.6	40.1	75.5
26.9	26.9	23.7	1.6	45.7	78.5

DN	Dimensions inmm
inmm	d1	d2	s	h	B
½ "	12.7	9.4	1.65	31.4	71.5
¾ "	19.05	15.75	1.65	37.75	74.5
1 "	25.4	22.1	1.65	44.1	78

BioControl ®	DN	Dimensions inmm
connection	inmm	d1	d2	s	h	l	D	K	U	M
Size 50	25	29	26	1.5	60	150	90	70	50.1	M8
	32	35	32	1.5	66	150	90	70	50.1	M8
	40	41	38	1.5	72	150	90	70	50.1	M8
	50	53	50	1.5	84	150	90	70	50.1	M8
	65	70	66	2	100	170	90	70	50.1	M8
	80	85	81	2	115	170	90	70	50.1	M8
	100	104	100	2	134	170	90	70	50.1	M8
Size 65	40	41	38	1.5	72	180	120	95	68.1	M10
	50	53	50	1.5	84	180	120	95	68.1	M10
	65	70	66	2	100	200	120	95	68.1	M10
	80	85	81	2	115	200	120	95	68.1	M10
	100	104	100	2	134	200	120	95	68.1	M10

View all (12)

BioControl ®	DN	Dimensions inmm
connection	inmm	d1	d2	s	h	l	D	K	U	M
Size 50	33.7	33.7	29.7	2	63.7	150	90	70	50.1	M8
	42.4	42.4	38.4	2	76.4	150	90	70	50.1	M8
	48.3	48.3	44.3	2	78.3	150	90	70	50.1	M8
	60.3	60.3	56.3	2	90.3	150	90	70	50.1	M8
	76.1	76.1	72.1	2	106.7	170	90	70	50.1	M8
	88.9	88.9	84.3	2.3	118.3	170	90	70	50.1	M8
	114.3	114.3	109.7	2.3	144.3	170	90	70	50.1	M8
Size 65	48.3	48.3	44.3	2	78.3	180	120	95	68.1	M10
	60.3	60.3	56.3	2	90.3	180	120	95	68.1	M10
	76.1	76.1	72.1	2	106.7	200	120	95	68.1	M10
	88.9	88.9	84.3	2.3	118.3	200	120	95	68.1	M10
	114.3	114.3	109.7	2.3	144.3	200	120	95	68.1	M10

DN	Dimensions inmm
inmm	d1	d2	s	h	B	H
6	8	6	1	34	70	48
8	10	8	1	35	70	50
10	13	10	1.5	35	70	51
15	19	16	1.5	41	72	60
20	23	20	1.5	41	73	65

BioControl ® connection	DN	Dimensions inmm
inmm	d1	d2	s	h	l	D	K	U	M
Size 50	25	29	26	1.5	90	75	90	70	50.1	M8
	32	35	32	1.5	90	75	90	70	50.1	M8
	40	41	38	1.5	95	75	90	70	50.1	M8
	50	53	50	1.5	105	75	90	70	50.1	M8
	65	70	66	2	130	85	90	70	50.1	M8
	80	85	81	2	145	90	90	70	50.1	M8
	100	104	100	2	165	100	90	70	50.1	M8
Size 65	40	41	38	1.5	105	90	120	95	68.1	M10
	50	53	50	1.5	112	90	120	95	68.1	M10
	65	70	66	2	130	100	120	95	68.1	M10
	80	85	81	2	145	100	120	95	68.1	M10
	100	104	100	2	165	100	120	95	68.1	M10

BioControl ® connection	DN	Dimensions inmm
inmm	d1	d2	s	h	l	D	K	U	M
Size 50	33.7	33.7	29.7	2	95	75	90	70	50.1	M8
	42.4	42.4	38.4	2	95	75	90	70	50.1	M8
	48.3	48.3	44.3	2	100	75	90	70	50.1	M8
	60.3	60.3	56.3	2	110	75	90	70	50.1	M8
	76.1	76.1	72.1	2	135	85	90	70	50.1	M8
	88.9	88.9	84.3	2.3	150	90	90	70	50.1	M8
	114.3	114.3	109.7	2.3	175	100	90	70	50.1	M8
Size 65	48.3	48.3	44.3	2	107	90	120	95	68.1	M10
	60.3	60.3	56.3	2	115	90	120	95	68.1	M10
	76.1	76.1	72.1	2	135	100	120	95	68.1	M10
	88.9	88.9	84.3	2.3	155	100	120	95	68.1	M10
	114.3	114.3	109.7	2.3	175	100	120	95	68.1	M10

BioControl ®	Dimensions inmm
connection	d	D	K	H	t	M
Size 25	30.5	64	50	11	6.5	M6
Size 50	50	90	70	17	10	M8
Size 65	68	120	95	17	10	M10
Size 80	87.5	140	115	25	12	M10

BioControl ®	Dimensions inmm
connection	d	D	K	H	t	M
Size 25 h	30.5	64	50	25	7	M6
Size 50 h	50	90	70	40	10	M8
Size 65 h	68	120	95	50	12	M10

BioControl ® connection	Dimensions inmm
d1	d2	D	K	H	h	O-Ring	Sealing ring
Size 25	30.5	25	64	50	20	11	Ø23.5 x 3	Ø32/26 x 1.5
Size 50	50	40.5	90	70	27	17	Ø42 x 3	Ø52/40 x 1.5
Size 65	68	58.5	120	95	27	17	Ø60 x 3	Ø70/58 x 1.5
Size 80	87.5	78	140	115	37	25	Ø78 x 3	Ø87.5/78 x 1.5

BioControl ® connection	Dimensions inmm
d	D	K	H	h	M
Size 25	30.5	64	50	20	11	7
Size 50	50	90	70	27	17	9
Size 65	68	120	95	27	17	11
Size 80	87.5	140	115	37	25	11
