WIKA · Pressure measurement · Family 611

Capsule pressure gauge, copper alloy

Name: Capsule pressure gauge, copper alloy
Brand: WIKA

Plastic case, NS 50 [2"], 63 [2 ½"]

Range

-1000…1000 mbar

Accuracy

2.5

Protection

IP53

RoHSUKCAPED

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model 611.13 capsule pressure gauge is based upon the proven capsule measuring system. One half of the capsule element forms the plastic case and the other half is made of a copper-beryllium alloy (CuBe).

The capsule element measurement principle is suitable for very low pressures. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.

For further approvals, see page 6

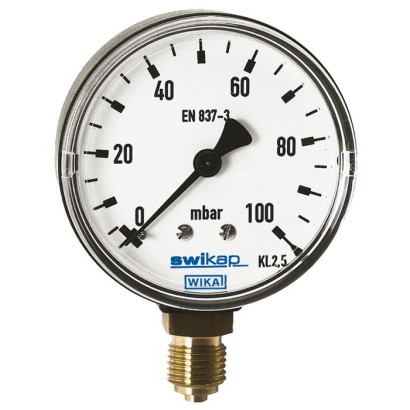

Capsule pressure gauge model 611.13

The modular design enables a multitude of customer-specific applications. The model 611.13 instrument is used with great success, particularly in medical engineering applications.

The scale ranges of 0 ... 60 mbar to 0 ... 1,000 mbar or 0 ... 24 inH2O to 0 ... 400 inH2O and the vacuum and +/- scale ranges ensure the measuring ranges required for a wide variety of applications.

Special features

Compact design and ingress protection IP53
Case from plastic
Special connection location on request
Low scale ranges from 0 ... 60 mbar to 0 ... 1,000 mbar or 0 ... 24 inH 2 O to 0 ... 400 inH 2 O

Identification

Model	611.13
Product family	611
Subcategory	Capsule pressure gauge

Measuring range

Pressure ranges

0…60 mbar · 0…100 mbar · 0…160 mbar · 0…200 mbar · 0…250 mbar · 0…400 mbar · 0…600 mbar · 0…1000 mbar · -60…0 mbar · -100…0 mbar · -160…0 mbar · -250…0 mbar · -400…0 mbar · -600…0 mbar · -1000…0 mbar · -30…30 mbar · -50…50 mbar · -80…80 mbar · -125…125 mbar · -200…200 mbar · -300…300 mbar · -500…500 mbar

Accuracy

Accuracy class	2.5
Accuracy standard	EN 837-3

Process conditions

Process connection	G ⅛ BG ¼ B⅛ NPT¼ NPT
Process temperature	−20…+60 °C

Materials

Case material	Plastic
Wetted parts material	CuBe alloy, Copper alloy
Sealing material	NBR, Silicone

Operating environment

Ambient temperature	−20…+60 °C
IP rating	IP53
Weight	0.075 kg

Certifications and approvals

Certifications

RoHSUKCAPED

Additional details

Dial size

50 mm

Tables from datasheet

mbar
0 ... 60	0 ... 250
0 ... 100	0 ... 400
0 ... 160	0 ... 600
0 ... 200	0 ... 1,000

kPa

0 ... 6	0 ... 25
0 ... 10	0 ... 40
0 ... 16	0 ... 60
0 ... 20	0 ... 100

psi

0 ... 1	0 ... 3.6
0 ... 1.5	0 ... 6
0 ... 2.5	0 ... 10
0 ... 3	0 ... 15

inH 2 O

0…24	0 …100
0…40	0 …160
0…60	0 …240
0…80	0 …400

View all (20)

kg/cm 2

0 …0.06	0 …0.25
0 …0.1	0 …0.4
0 …0.16	0 …0.6
0 …0.2	0…1

0 ... 6,000	0 ... 25,000
0 ... 10,000	0 ... 40,000
0 ... 16,000	0 ... 60,000
0 ... 20,000	0 ... 100,000

mmH 2 O

0 ... 600	0 ... 2,500
0 ... 1,000	0 ... 4,000
0 ... 1,600	0 ... 6,000
0 ... 2,000	0 ... 10,000

oz/in 2

0…15	0…60
0…25	0 …100
0…40	0 …150
0…50	0 …240

mbar
-60…0	-30 ...+30
-100…0	-50 ...+50
-160…0	-80 ...+80
-250…0	-125 ...+125
-400…0	-200 ...+200
-600 ... 0	-300 ...+300
-1,000 ... 0	-500 ...+500

kPa
-6…0	-3 ...+3
-10…0	-5 ...+5
-16…0	-8 ...+8
-25…0	-12.5 ... +12.5
-40…0	-20 ...+20
-60 ... 0	-30 ...+30
-100 ... 0	-50 ...+50

psi
-1 ... 0	-0.5 ... +0.5
-1.5 ... 0	-0.75 ... +0.75
-2.5 ... 0	-1.25 ... +1.25
-3.6 ... 0	-1.8 ... +1.8
-6 ... 0	-3 ...+3
-10 ... 0	-5 ...+5
-15 ... 0	-7.5 ... +7.5

inH 2 O
-24 ... 0	-12 …+12
-40 ... 0	-20 ...+20
-60 ... 0	-30 ...+30
-100 ... 0	-50 ...+50
-160 ... 0	-80 ...+80
-240 ... 0	-120 ...+120
-240 ... 0	-120 ...+120

kg/cm 2
-0.06…0	-0.03 ... +0.03
-0.1…0	-0.05 ... +0.05
-0.16…0	-0.08 ... +0.08
-0.25…0	-0.125 ... +0.125
-0.4…0	-0.2 ... +0.2
-0.6 ... 0	-0.3 ... +0.3
-1 ... 0	-0.5 ... +0.5

Pa
-6,000…0	-3,000 ... +3,000
-10,000…0	-5,000 ... +5,000
-16,000…0	-8,000 ... +8,000
-25,000…0	-12,500 ... +12,500
-40,000…0	-20,000 ... +20,000
-60,000 ... 0	-30,000 ... +30,000
-100,000 ... 0	-50,000 ... +50,000

mmH 2 O
-600 ... 0	-300 ...+300
-1,600 ... 0	-800 ...+800
-2,500 ... 0	-1,250 ... +1,250
-6,000 ... 0	-3,000 ... +3,000
-10,000 ... 0	-5,000 ... +5,000

oz/in 2
-15…0	-7.5 ... +7.5
-25…0	-12.5 ... +12.5
-40…0	-20 ...+20
-60…0	-30 ...+30
-100…0	-50 ...+50
-150…0	-75 ...+75
-240…0	-120 ...+120

Description	Region
EU declaration of conformity	European Union
Pressure Equipment Directive PS > 200 bar, module A, pressure accessory RoHS directive UKCA	United Kingdom
Pressure equipment (safety) regulations Restriction of hazardous substances (RoHS) regulations

Logo	Description	Region
	PAC Kazakhstan Metrology, measurement technology	Kazakhstan
-	MChS Permission for commissioning	Kazakhstan
-	PAC Ukraine Metrology, measurement technology	Ukraine
	PAC Uzbekistan Metrology, measurement technology	Uzbekistan
-	CPA Metrology, measurement technology	China

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy)
Recommended calibration interval	1 year (dependent on conditions of use)

NS	G	Dimensions in mm[in]
		h ±1 [0.04]	a	b	D	SW
50 [2 " ]	G⅛B	45 [1.77]	9 [0.37]	35 [1.38]	49 [1.93]	14 [0.55]
	G¼B	48 [1.89]	9 [0.37]	35 [1.38]	49 [1.93]	14 [0.55]
63 [2 ½"]	G⅛B	51.5 [2.03]	9.5 [0.37]	35 [1.38]	62 [2.44]	14 [0.55]
	G¼B	54.5 [2.15]	9.5 [0.37]	35 [1.38]	62 [2.44]	14 [0.55]
