WIKA · Pressure measurement · Family 610

Test gauge, copper alloy or stainless steel

Name: Test gauge, copper alloy or stainless steel
Brand: WIKA

For low pressure ranges up to 600 mbar, class 0.6, NS 160 [6"]

Range

-600…600 mbar

Accuracy

0.6

Protection

IP54

RoHS

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

As class 0.6 test gauge series, the model 610.20 and 630.20 capsule pressure gauges are suitable for precision measurements in laboratories. They are based upon the proven capsule measuring system. On pressurisation, the expansion of the capsule element, proportional to the incident pressure, is transmitted to the movement and indicated.

The modular structure enables a multitude of combinations of case materials, process connections, nominal sizes and scale ranges. Due to this high variance, the instrument is suitable for use in a wide range of applications within industry.

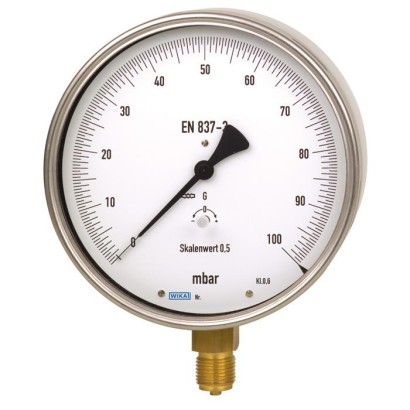

Test gauge model 610.20

For mounting in control panels, the capsule pressure gauges can, depending on the process connection, be fitted with a mounting flange or with a triangular profile ring and mounting bracket.

The scale ranges of 0 ... 10 mbar to 0 ... 600 mbar or 0 ... 4 inH2O to 0 ... 240 inH2O and the vacuum and +/- scale ranges ensure the measuring ranges required for a wide variety of applications.

Special features

Zero point setting in front
Special connection location on request
Low scale ranges from 0 ... 10 mbar or 0 ... 4 inH 2 O

Identification

Model	610.20
Product family	610
Subcategory	Test gauge

Measuring range

Pressure ranges

0…10 mbar · 0…16 mbar · 0…25 mbar · 0…40 mbar · 0…60 mbar · 0…100 mbar · 0…160 mbar · 0…250 mbar · 0…400 mbar · 0…600 mbar · -10…0 mbar · -16…0 mbar · -25…0 mbar · -40…0 mbar · -60…0 mbar · -100…0 mbar · -160…0 mbar · -250…0 mbar · -400…0 mbar · -600…0 mbar · -5…5 mbar · -8…8 mbar · -12.5…12.5 mbar · -20…20 mbar · -30…30 mbar · -50…50 mbar · -80…80 mbar · -125…125 mbar · -200…200 mbar · -300…300 mbar

Accuracy

Accuracy class	0.6
Accuracy standard	EN 837-3

Process conditions

Process connection	G ½ BM12 x 1.5M20 x 1.5½ NPT
Process temperature	−20…+60 °C

Materials

Case material	Stainless steel 1.4301 (304)
Wetted parts material	Copper alloy, NBR
Sealing material	NBR

Operating environment

Ambient temperature	−20…+60 °C
IP rating	IP54
Weight	1.2 kg

Certifications and approvals

Certifications

RoHS

Additional details

Dial size	160 mm
Datasheet languages	EN

Tables from datasheet

Accuracy specifications

Accuracy class
EN 837-3	Class 0.6
ASME B40.100	Grade 2A
Zero point setting with adjustment screw	In front, through the opening in the window 1)
Temperature error	On deviation from the reference conditions at the measuring system: ≤ ±0.6 %per 10 °C [≤ ±0.6 %per 18 °F] of full scale value
Reference conditions
Ambient temperature	+20 °C [+68 °F]

kg/cm 2

0 ... 0.01	0 ... 0.1
0 ... 0.016	0 ... 0.16
0 ... 0.025	0 ... 0.25
0 ... 0.04	0 ... 0.4
0 ... 0.06	0 ... 0.6

mbar
-10…0	-5 ...+5
-16…0	-8 ...+8
-25…0	-12.5 ... +12.5
-40…0	-20 ...+20
-60…0	-30 ...+30
-100…0	-50 ...+50
-160…0	-80 ...+80
-250…0	-125 ...+125
-400…0	-200 ...+200
-600 ... 0	-300 ...+300

kPa

-1…0	-0.5 ... +0.5
-1.6…0	-0.8 ... +0.8
-2.5…0	-1.25 ... +1.25
-4…0	-2 ...+2
-6…0	-3 ...+3
-10…0	-5 ...+5
-16…0	-8 ...+8
-25…0	-12.5 ... +12.5
-40…0	-20 ...+20
-60 ... 0	-30 ...+30

View all (19)

psi
-0.15 ... 0	-0.075 ... +0.075
-0.25 ... 0	-0.125 ... +0.125
-0.36 ... 0	-0.18 ... +0.18
-0.6 ... 0	-0.3 ... +0.3
-1 ... 0	-0.5 ... +0.5
-1.5 ... 0	-0.75 ... +0.75
-2.5 ... 0	-1.25 ... +1.25
-3.6 ... 0	-1.8 ... +1.8
-6 ... 0	-3 ...+3
-10 ... 0	-5 ...+5

inH 2 O

-4 ... 0	-2 ...+2
-6 ... 0	-3 ...+3
-10 ... 0	-5 ...+5
-16 ... 0	-8 ...+8
-24 ... 0	-12 …+12
-40 ... 0	-20 ...+20
-60 ... 0	-30 ...+30
-100 ... 0	-50 ...+50
-160 ... 0	-80 ...+80
-240 ... 0	-120 ...+120

kg/cm 2
-0.01…0	-0.005 ... +0.005
-0.016…0	-0.008 ... +0.008
-0.025…0	-0.0125 ... +0.0125
-0.04…0	-0.02 ... +0.02
-0.06…0	-0.03 ... +0.03
-0.1…0	-0.05 ... +0.05
-0.16…0	-0.08 ... +0.08
-0.25…0	-0.125 ... +0.125
-0.4…0	-0.2 ... +0.2
-0.6 ... 0	-0.3 ... +0.3

Pa
-1,000…0	-500 ...+500
-1,600…0	-800 ...+800
-2,500…0	-1,250 ... +1,250
-4,000…0	-2,000 ... +2,000
-6,000…0	-3,000 ... +3,000
-10,000…0	-5,000 ... +5,000
-16,000…0	-8,000 ... +8,000
-25,000…0	-12,500 ... +12,500
-40,000…0	-20,000 ... +20,000
-60,000 ... 0	-30,000 ... +30,000

mmH 2 O
-100 ... 0	-50 ...+50
-160 ... 0	-80 ...+80
-250...0	-125 ...+125
-400 ... 0	-200 ...+200
-600 ... 0	-300 ...+300
-1,000 ... 0	-500 ...+500
-1,600 ... 0	-800 ...+800
-2,500 ... 0	-1,250 ... +1,250
-4,000 ... 0	-2,000 ... +2,000
-6,000 ... 0	-3,000 ...+3000

oz/in 2
-2.5…0	-1.25 ... +1.25
-4…0	-2 ...+2
-6…0	-3 ...+3
-10…0	-5 ...+5
-15…0	-7.5 ... +7.5
-25…0	-12.5 ... +12.5
-40…0	-20 ...+20
-60…0	-30 ...+30
-100…0	-50 ...+50
-150…0	-75 ...+75

Operating conditions

Medium temperature	-20 ...+60 °C [-4 ...+140 °F]
Ambient temperature	-20 ...+60 °C [-4 ...+140 °F]
Pressure limitation
Steady	Full scale value
Fluctuating	0.9 x full scale value
Short time	1.3 x full scale value
Ingress protection per IEC/EN 60529	IP54

Logo	Description	Region
	EU declaration of conformity	European Union

Logo	Description	Region
	PAC Kazakhstan Metrology, measurement technology	Kazakhstan
-	MChS Permission for commissioning	Kazakhstan
-	PAC Ukraine Metrology, measurement technology	Ukraine
	PAC Uzbekistan Metrology, measurement technology	Uzbekistan

Certificates

Certificates	■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy)
Calibration	■ Factory calibration certificate ■ SCS calibration certificate (traceable and accredited in accordance with ISO/IEC 17025) ■ Calibration certificate by a national accreditation body, traceable and accredited per ISO/IEC 17025 on request
Recommended calibration interval	1 year (dependent on conditions of use)

NS	G	Dimensions in mm[in]
		h ±1 [0.04]	a	b	D1	D2	e	SW
160 [6"]	G½B	118 [4.65]	15.5 [0.61]	65.5 [2.58]	161 [6.34]	159 [6.26]	17.5 [0.69]	22 [0.87]
	M12 x 1.5	111 [4.37]	15.5 [0.61]	65.5 [2.58]	161 [6.34]	159 [6.26]	17.5 [0.69]	22 [0.87]
	M20 x 1.5	118 [4.65]	15.5 [0.61]	65.5 [2.58]	161 [6.34]	159 [6.26]	17.5 [0.69]	22 [0.87]

NS	G	Dimensions in mm[in]
		h ±1 [0.04] a	b	D1	D2	e	SW
160 [6"]	½NPT	117 [4.61]	15.5 [0.61]	65.5 [2.58]	161 [6.34]	159 [6.26]	17.5 [0.69]	22 [0.87]

NS	G	Dimensions in mm[in]
		b1	b2	D1	D2	e	f	SW
160 [6"]	G½B	65.5 [2.58]	99 [3.9]	161 [6.34]	159 [6.26]	17.5 [0.69]	50 [1.97]	22 [0.87]
	M12 x 1.5	65.5 [2.58]	92 [3.62]	161 [6.34]	159 [6.26]	17.5 [0.69]	50 [1.97]	22 [0.87]
	M20 x 1.5	65.5 [2.58]	99 [3.9]	161 [6.34]	159 [6.26]	17.5 [0.69]	50 [1.97]	22 [0.87]

NS	G	Dimensions in mm[in]
		b1	b2	D1	D2	e	f	SW
160 [6"]	½NPT	65.5 [2.58]	98 [3.86]	161 [6.34]	159 [6.26]	17.5 [0.69]	50 [1.97]	22 [0.87]

NS	Weight
160 [6 " ]	Approx. 1.2 kg [2.65 lb]
