WIKA · Pressure measurement · Family 432

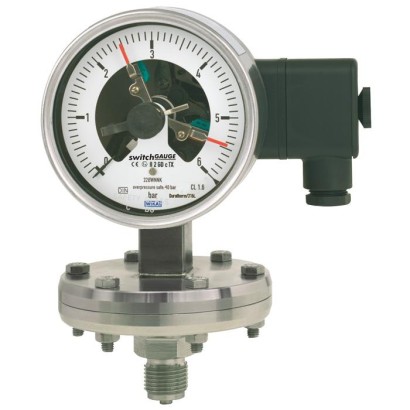

Diaphragm pressure gauge with switch contacts

Name: Diaphragm pressure gauge with switch contacts
Brand: WIKA

For the process industry, high overload safety up to 40, 100 or 400 bar

Range

0…400 mbar

Accuracy

1.6

Protection

IP54

CEEACGOSTKazInMetrMTSCHSBelGIMUkrSEPROUzstandardKCsCPACRNRoHSREACHNACEEMC directivePressure equipment directiveLow voltage directive[II 2G Ex ia IIC T6/T5/T4 Gb][II 2D Ex ia IIIB T135°C Db][II 2G Ex ia IIB T6/T5/T4 Gb][Ex ia IIC T6/T5/T4 Gb][Ex ia IIIB T135°C Db][Ex ia IIB T6/T5/T4 Gb]Dust [II 2D Ex ia IIIB T135℃ Db]Dust [Ex ia IIIB T135℃ Db]

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model 432.56 or 432.36 switchGAUGE finds its use. Switch contacts (electrical alarm contacts) make or break circuits dependent upon the pointer position of the indicating measuring instruments. The switch contacts are adjustable over the full extent of the scale range (see DIN 16085), and are mounted predominantly below the dial, though also partly on top of the dial. The instrument pointer (actual value pointer) moves freely across the entire scale range, independent of the setting.

The set pointer can be adjusted using a removable adjustment key in the window.

Special features

High overload safety, optionally up to 40, 100 or 400 bar, due to the metallic pressure element limit stop, without liquid-filled measuring cell
Wide choice of special materials
Also available with liquid-filled case for high dynamic pressure loads or vibrations
Instruments with inductive contacts for use in hazardous areas
Instruments with switch contact for PLC applications

Identification

Model	432.56
Product family	432
Subcategory	Diaphragm pressure gauge with switch contacts

Measuring range

Pressure ranges

0…25 mbar · 0…400 mbar · 0…40 bar · 0…250 mbar

Accuracy

Accuracy class	1.6
Accuracy standard	EN 837-3

Process conditions

Process connection	Open connecting flange 1" class 300, RF per ASME B16.5Open connecting flange 2" class 300, RF per ASME B16.5Open connecting flange DN 25 PN 40 per EN 1092-1, form BOpen connecting flange DN 50 PN 40 per EN 1092-1, form BG ½ B½ NPT½ NPT femaleG1/2B1/2NPT1/2NPT female
Process temperature	+10…+200 °C

Electrical characteristics

Power supply	DC 10 ... 30 V
Electrical connection	Cable socket PA 6, black Per VDE 0110 insulation group C/250 V, cable gland M20 x 1.5, strain relief 6 screw terminals + PE for conductor cross-section 2.5 mm²
Switching function	Normally open (clockwise pointer motion), Normally closed (clockwise pointer motion), Change-over
Switching contacts	4

Materials

Case material	Stainless steel
Wetted parts material	Stainless steel 316L, NiCr alloy (Inconel), PTFE, Hastelloy, Monel, nickel, tantalum, titanium, silver
Sealing material	FPM/FKM

Operating environment

Ambient temperature	−20…+60 °C
IP rating	IP54

Certifications and approvals

Certifications	CEEACGOSTKazInMetrMTSCHSBelGIMUkrSEPROUzstandardKCsCPACRNRoHSREACHNACEEMC directivePressure equipment directiveLow voltage directive
Explosion protection	[II 2G Ex ia IIC T6/T5/T4 Gb][II 2D Ex ia IIIB T135°C Db][II 2G Ex ia IIB T6/T5/T4 Gb][Ex ia IIC T6/T5/T4 Gb][Ex ia IIIB T135°C Db][Ex ia IIB T6/T5/T4 Gb]Ex ia Gas [II 2G Ex ia IIC T6/T5/T4 Gb]Dust [II 2D Ex ia IIIB T135℃ Db]Ex ia Gas [II 2G Ex ia IIB T6/T5/T4 Gb]Ex ia Gas [Ex ia IIC T6/T5/T4 Gb]Dust [Ex ia IIIB T135℃ Db]Ex ia Gas [Ex ia IIB T6/T5/T4 Gb]

Additional details

Dial size	100 mm
Datasheet languages	EN, DE, ES, FR

Tables from datasheet

Model 432.56 and model 432.36

Nominal size inmm	■ 100 ■ 160
Accuracy class	1.6 1) Option: 1.0 2)
Scale ranges 3)	0 ... 25 mbar to 0 ... 250 mbar (flange Ø160 mm) 0 ... 400 mbar to 0 ... 40 bar (flange Ø100 mm) other units (e.g. psi, kPa) available or all other equivalent vacuum or combined pressure and vacuum ranges
Scale	Single scale Option: Dual scale
Pressure limitation
Steady	Full scale value
Fluctuating	0.9 x full scale value
Overload safety ³⁾	■ 40 bar ■ 100 bar ■ 400 bar (only for scale ranges ≥ 0 ... 400 mbar 4) ) Option: Vacuum safety to -1 bar
Process connection with lower measuring flange	■ G½B ■ ½NPT ■ ½NPTfemale ■ Open connecting flange DN 25 PN 40 per EN 1092-1, form B ■ Open connecting flange DN 50 PN 40 per EN 1092-1, form B ■ Open connecting flange 1" class 300, RF per ASME B16.5 ■ Open connecting flange 2" class 300, RF per ASME B16.5 and other threaded connections and open connecting flanges per EN/ASME from DN 15 to DN 80 (see data sheet IN 00.10)
Permissible temperature 5)
Medium	+100 °C [+212 °F] maximum Option: +200 °C [+392 °F] maximum
Ambient	-20 ...+60 °C [-4 ...+140 °F]
Temperature effect	When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.8 %/10 K of full scale value
Case	■ Model 432.56:Version S1 per EN 837:With blow-out device in case back ■ Model 432.36: Safety version S3 per EN 837:With solid baffle wall (Solidfront) and blow-out back Instruments with liquid filling with compensating valve to vent case
Case filling	Without Option: With silicone oil M50 case filling, ingress protection IP65 (models 433.56, 433.36)

Model 432.56 and model 432.36

Wetted materials
Diaphragm element (pressure element)	≤ 0.25 bar: Stainless steel 316L > 0.25 bar: NiCr alloy (Inconel) Option: Coated with special materials such as PTFE, Hastelloy, Monel, nickel, tantalum, titanium, silver (instruments with accuracy class 2.5)
Process connection with lower measuring flange	Stainless steel 316L Option: Lined/coated with special materials such as PTFE, Hastelloy, Monel, nickel, tantalum, titanium, silver
Pressure chamber sealing	FPM/FKM
Non-wetted materials
Case with upper measuring flange and flange connecting screws, movement, bayonet ring	Stainless steel
Dial	Aluminium, white, black lettering
Instrument pointer	Aluminium, black
Set pointer	Aluminium, red
Window	Laminated safety glass
Ingress protection per IEC/EN 60529	IP54 Option: IP65
Electrical connection	Cable socket PA 6, black PerVDE 0110 insulation group C/250V Cable gland M20 x 1.5 Strain relief 6 screw terminals + PE for conductor cross-section 2.5 mm² For dimensions see page 10 others on request

Measuring span 1)	Max. number of con- tacts	Switching current range I	Switch version ²⁾
≥ 25 mbar	2	0.02 ... 0.3 A	L
≥ 40 mbar	4	0.02 ... 0.3 A	L

Characteristics	Unfilled instruments Resistive load	Filled instruments
Rated operating voltage U eff	≤ 250V	≤ 250V
Rated operating current
Switch-on current	≤ 0.5 A	≤ 0.5 A
Switch-off current	≤ 0.5 A	≤ 0.5 A
Continuous current	≤ 0.3 A	≤ 0.3 A
Switching power	≤ 30W/ ≤ 50VA	≤ 20W/ ≤ 20VA

View all (20)

Operating voltage	Unfilled instruments	Filled instruments
	Resistive load	Inductive load	Resistive load	Inductive load
	Direct current	Alter- nating current	cos ϕ>0.7	Direct current	Alter- nating current	cos ϕ>0.7
DC 220 V / AC 230 V	100mA	120mA	65mA	65mA	90mA	40mA
DC 110 V / AC 110 V	200mA	240mA	130mA	130mA	180mA	85mA
DC 48 V / AC 48 V	300mA	450mA	200mA	190mA	330mA	130mA
DC 24 V / AC 24 V	400mA	600mA	250mA	250mA	450mA	150mA

Measuring span 1)	Max. number of contacts
≥ 25 mbar	3

Model	Version	Ex version
904.28 KFA6 - SR2 - Ex1.W	1 contact	yes
904.29 KFA6 - SR2 - Ex2.W	2 contacts	yes
904.30 KHA6 - SH - Ex1	1 contact	yes - safety equipment
904.33 KFD2 - SH - Ex1	1 contact	yes - safety equipment
904.25 MSR 010-I	1 contact	no
904.26 MSR 020-I	2 contacts	no
904.27 MSR 011-I	Two-point control	no

Measuring span	Max. number of contacts
≥ 25 mbar	3

Characteristics

Contact version	Normally open, normally closed
Type of output	PNP transistor
Operating voltage	DC 10 ...30V
Residual ripple	max.10%
No-load current	≤ 10mA
Switching current	≤ 100mA
Residual current	≤ 100 µA
Voltage drop (with I max. )	≤ 0.7V
Reverse polarity protection	Conditional U B (the switched output 3 or 4 must never be set directly to minus)
Anti-inductive protection	1 kV, 0.1 ms, 1 kΩ
Oscillator frequency	approx. 1,000 kHz
EMC	per EN 60947-5-2

Measuring span 1)	Case version	Max. number of contacts
≥ 25 mbar	S1, S3 2)	2

Characteristics
Contact version	Change-over contact
Type of contact	Bistable
Max. switching voltage	AC/DC 250V
Min. switching voltage	Not required
Switching current	AC/DC 1 A
Min. switching current	Not required
Transport current	AC/DC 2 A
cosϕ	1
Switching power	60W/VA
Contact resistance (static)	100mΩ
Insulation resistance	10 9 Ω
Breakdown voltage	DC 1,000V
Switching time incl. contact chatter	4.5 ms
Contact material	Rhodium
Switch hysteresis	3 ...5%

Logo	Description	Country
	EU declaration of conformity ■ EMCdirective ■ Pressure equipment directive ■ ATEX directive (option) 1) Hazardous areas - Ex ia Gas [II 2G Ex ia IIC T6/T5/T4 Gb] Dust [II 2D Ex ia IIIB T135°C Db] Hazardous areas for instruments with PTFE lining - Ex ia Gas [II 2G Ex ia IIB T6/T5/T4 Gb]	European Union
	IECEx (option) 1) Hazardous areas - Ex ia Gas [Ex ia IIC T6/T5/T4 Gb] Dust [Ex ia IIIB T135°C Db] Hazardous areas for instruments with PTFE lining - Ex ia Gas [Ex ia IIB T6/T5/T4 Gb]	International
	EAC (option) ■ Low voltage directive ■ Hazardous areas 1)	Eurasian Economic Community
	GOST (option) Metrology, measurement technology	Russia
	KazInMetr (option) Metrology, measurement technology	Kazakhstan
-	MTSCHS (option) Permission for commissioning	Kazakhstan
	BelGIM (option) Metrology, measurement technology	Belarus
	UkrSEPRO (option) Metrology, measurement technology	Ukraine
	Uzstandard (option) Metrology, measurement technology	Uzbekistan
-	CPA Metrology, measurement technology	China
	KCs (KOSHA) (option) Hazardous areas 1)	South Korea
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

Type of contact	Dimensions inmm
	X	Y
Single or double contact	88	55
Double (change-over) contact	113	80
Triple contact	96	63
Quadruple contact	113	80

Scale ranges	Overload safety	Dimensions inmm
in bar	in bar	d	h ±2	SW
≤ 0.25	40	160	135	27
	100	160	143	22
> 0.25	40	100	135	27
	100	100	135	27
	400	128	169	22

Type of contact	Dimensions inmm X
Single or double contact	102
Double (change-over) contact	116
Triple contact	102
Quadruple contact	116

Scale ranges	Overload safety	Dimensions inmm
in bar	in bar	d	h ±2	SW
≤ 0.25	40	160	165	27
	100	160	173	22
> 0.25	40	100	165	27
	100	100	165	27
	400	128	199	22

Type of contact	Dimensions inmm
X	Y
Single or double contact	97	55
Double (change-over) contact	122	80
Triple contact	105	63
Quadruple contact	122	80

Scale ranges	Overload safety	Dimensions inmm
in bar	in bar	d	h ±2	SW
≤ 0.25	40	160	135	27
	100	160	143	22
> 0.25	40	100	135	27
	100	100	135	27
	400	128	169	22

Type of contact	Dimensions inmm
	X	Y
Single or double contact	141	48
Triple contact	153.5	60.5

Scale ranges	Overload safety	Dimensions inmm
in bar	in bar	d	h ±2	SW
≤ 0.25	40	160	165	27
	100	160	173	22
> 0.25	40	100	165	27
	100	100	165	27
	400	128	199	22
