Machine glass thermometer

Name: Machine glass thermometer
Brand: WIKA

Machine glass thermometer with V shape, used in industrial applications including machine building, heating, air-conditioning and refrigeration technology.

Range

-30…200 °C

DNVCRN

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The model 32 machine glass thermometer is mainly used in industrial applications such as machine building and also in the field of heating, air-conditioning and refrigeration technology. It features a high accuracy and a very long service life, since no mechanical wear.

Fig. left: straight design

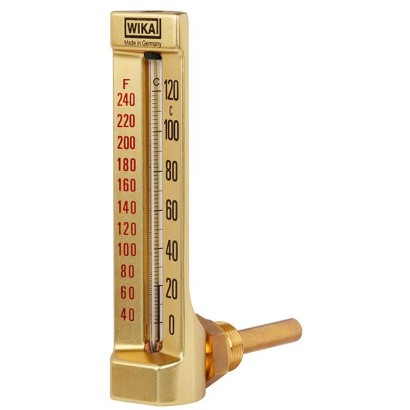

Fig. right: 90° angle design

Special features

Insensitive to vibrations
Non-toxic thermometric liquid
Measuring ranges from -30 ... +200 °C [-22 ... +392 °F]

Identification

Model	32
Subcategory	Glass thermometer

Measuring range

Temperature ranges

−30…+50 °C · +0…+60 °C · +0…+100 °C · +0…+120 °C · +0…+160 °C · +0…+200 °C · −30…+200 °C

Process conditions

Process connection	M24 x 1.5G ½ BM20 x 1.5G ⅜ BM16 x 1.5G ¾ BM27 x 2G ½ B, M20 x 1.5G ⅜ B, M16 x 1.5G ¾ B, M27 x 2G1/2B, M20x1.5G3/8B, M16x1.5G3/4B, M27x2
Process temperature	−30…+200 °C

Materials

Probe material

copper alloy

Operating environment

Weight

0.25 kg

Certifications and approvals

Certifications

DNVCRN

Additional details

Sensor type	liquid expansion
Probe length	30 mm
Probe diameter	10 mm
Thermowell	No
Datasheet languages	EN

Tables from datasheet

Overview of versions

Nominal size in mm[ in ]	Model	Design	DIN
110 [4.33]	G3200	Straight	DIN 16181
	W3201	90° angle	DIN 16182
150 [5.91]	G3210	Straight	DIN 16185
	W3211	90° angle	DIN 16186
200 [7.87]	G3220	Straight	DIN 16189
	W3221	90° angle	DIN 16190

Basic information

Nominal size	■ 110 mm[4.33 in] ■ 150 mm[5.91 in] ■ 200 mm[7.87 in]
Case	Aluminium, brass-coloured, anodised
Material (wetted)	Copper alloy
Thermometer glass insert	Rod shape, prismatic capillary
Error limit	DIN 16195
Measurement principle	Liquid expansion
Thermometric liquid	Blue, wetting
Permissible operating pressure at the stem	Max. 6 bar [87.02 psi]
Stem
Diameter	■ 10 mm[0.39 in] ■ 6.5 mm[0.26 in] with NS 200 x 36 with union nut M24 x 1.5
Scaling	Printed with special ink, protected by anodised finish
Unit	■ °C ■ °C/°F (dual scale)

Scale range

Nominal size in mm[in]	Scale range in °C	Scale interval in °C	Error limit in °C
110 [4.33]	-30 ...+50	1	2
0 ... 60	1	1.5
0 ... 100	2	2
0 ... 120	2	2
0 ... 160	4	4
0 ... 200	5	5
150 [5.91]	-30 ...+50	1	2
0 ... 60	1	1.5
0 ... 100	2	2
0 ... 120	2	2
0 ... 160	2	4
0 ... 200	2	4
200 [7.87]	-30 ...+50	1	2
0 ... 60	1	1.5
0 ... 100	1	2
0 ... 120	1	2
0 ... 160	2	4
0 ... 200	2	4

Logo	Description	Region
	DNV 1) Ships, shipbuilding (e.g. offshore)	Germany
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

View all (5)

	Dimensions in mm[in]	Weight in kg [lb]
	a 1	a 2	B	Ø d	Ø d 1	G	G 1	H	H 1	SW
110 [4.33]	44 [1.73]	20 [0.79]	30 [1.18]	10 [0.39]	22 [0.87]	G⅜B	-	110 [4.33]	130 [5.12]	22 [0.87]	0.25 [0.6]
44 [1.73]	20 [0.79]	30 [1.18]	10 [0.39]	21 [0.83]	M16 x 1.5	-	110 [4.33]	130 [5.12]	22 [0.87]	0.25 [0.6]
44 [1.73]	20 [0.79]	30 [1.18]	10 [0.39]	26 [1.02]	G½B	-	110 [4.33]	130 [5.12]	27 [1.06]	0.25 [0.6]
44 [1.73]	20 [0.79]	30 [1.18]	10 [0.39]	25 [0.98]	M20 x 1.5	-	110 [4.33]	130 [5.12]	27 [1.06]	0.25 [0.6]
150 [5.91]	46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	26 [1.02]	G½B	-	150 [5.91]	170 [6.69]	27 [1.06]	0.30 [0.7]
46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	25 [0.98]	M20 x 1.5	-	150 [5.91]	170 [6.69]	27 [1.06]	0.30 [0.7]
46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	32 [1.26]	G¾B	-	150 [5.91]	170 [6.69]	32 [1.26]	0.30 [0.7]
46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	32 [1.26]	M27 x 2	-	150 [5.91]	170 [6.69]	32 [1.26]	0.30 [0.7]
200 [7.87]	46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	26 [1.02]	G½B	G½	200 [7.87]	220 [8.66]	27 [1.06]	0.35 [0.8]
46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	25 [0.98]	M20 x 1.5	M20 x 1.5	200 [7.87]	220 [8.66]	27 [1.06]	0.35 [0.8]
46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	32 [1.26]	G¾B	G¾	200 [7.87]	220 [8.66]	32 [1.26]	0.35 [0.8]
46 [1.81]	21 [0.83]	36 [1.42]	10 [0.39]	32 [1.26]	M27 x 2	M27 x 2	200 [7.87]	220 [8.66]	32 [1.26]	0.35 [0.8]
46 [1.81]	21 [0.83]	36 [1.42]	6.5 [0.26]	-	-	M24 x 1.5	200 [7.87]	220 [8.66]	32 [1.26]	0.35 [0.8]
