WIKA · Pressure measurement · Family 232

Bourdon tube pressure gauge, stainless steel

Name: Bourdon tube pressure gauge, stainless steel
Brand: WIKA

XSEL ® process pressure gauge, NS 4 ½" and 6"

Range

-1…2000 bar

Accuracy

±0.5 % of measuring span

Protection

IP54

CEUKCACRN

Price

On request

Depends on configuration

Request a quote

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.

The use of high-quality materials and the robust design are geared to applications in the chemical and process engineering industries.

Scale ranges of 0 … 10 to 0 … 30,000 psi [0 ... 0.6 to 0 ... 2,000 bar] ensure the measuring ranges required for a wide variety of applications.

WIKA manufactures and qualifies the pressure gauge in accordance with the standard ASME B40.100. As a safety function, this instrument has a solid baffle wall with blow-out back.

For further approvals, see page 5

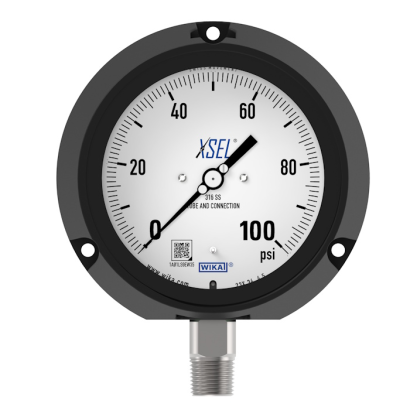

Bourdon tube pressure gauge, model 232.34, NS 4 ½ "

In the event of a failure, the operator is protected at the front side, as media or components can only be ejected via the back of the case. The glass-fibre reinforced PBT case offers the necessary stability for reproducible measurements, even under aggressive ambient conditions.

With the model 233.34, the case filling in combination with a screwed-in restrictor enables use in applications with highly dynamic pressure loads and vibrations.

The QR code on the dial allows instrument-specific information such as the serial number, the order number, certificates and other product data to be retrieved from the internet easily and in the long term.

Special features

Excellent load-cycle stability and shock resistance
Safety version with solid baffle wall designed in compliance with the requirements and test conditions of ASME B 40.100
With case filling (model 233.34) for applications with high dynamic pressure loads and vibrations
Scale ranges from 0 … 10 to 0 … 30,000 psi [0 ... 0.6 to 0 ... 2,000 bar]
QR code on dial links to instrument-specific information

Identification

Model	232.34
Product family	232
Subcategory	Bourdon tube pressure gauge

Measuring range

Pressure ranges

0…10 psi · 0…1000 psi · 0…0.6 bar · 0…60 bar · 0…60 kPa · 0…6000 kPa · 0…0.06 MPa · 0…6 MPa · -30…0 inHg · -30…100 inHg · -1…0 bar · -1…5 bar · -100…0 kPa · -100…500 kPa · -0.1…0 MPa · -0.1…0.5 MPa · 0…15 psi · 0…1500 psi · 0…1 bar · 0…100 bar · 0…30 psi · 0…2000 psi · 0…1.6 bar · 0…160 bar · 0…60 psi · 0…3000 psi · 0…2.5 bar · 0…250 bar · 0…100 psi · 0…5000 psi · 0…4 bar · 0…400 bar · 0…160 psi · 0…10000 psi · 0…6 bar · 0…600 bar · 0…200 psi · 0…15000 psi · 0…10 bar · 0…1000 bar · 0…300 psi · 0…20000 psi · 0…16 bar · 0…1600 bar · 0…400 psi · 0…30000 psi · 0…25 bar · 0…2000 bar · 0…600 psi · 0…40 bar · 0…100 kPa · 0…10000 kPa · 0…0.1 MPa · 0…10 MPa · 0…160 kPa · 0…16000 kPa · 0…0.16 MPa · 0…16 MPa · 0…250 kPa · 0…25000 kPa · 0…0.25 MPa · 0…25 MPa · 0…400 kPa · 0…40000 kPa · 0…0.4 MPa · 0…40 MPa · 0…600 kPa · 0…60000 kPa · 0…0.6 MPa · 0…60 MPa · 0…1000 kPa · 0…100000 kPa · 0…1 MPa · 0…100 MPa · 0…1600 kPa · 0…160000 kPa · 0…1.6 MPa · 0…160 MPa · 0…2500 kPa · 0…200000 kPa · 0…2.5 MPa · 0…200 MPa · 0…4000 kPa · 0…4 MPa · -30…15 inHg · -30…160 inHg · -1…0.6 bar · -1…9 bar · -30…30 inHg · -30…200 inHg · -1…1.5 bar · -1…15 bar · -30…60 inHg · -30…300 inHg · -1…3 bar · -1…24 bar · -100…60 kPa · -100…900 kPa · -0.1…0.06 MPa · -0.1…0.9 MPa · -100…150 kPa · -100…1500 kPa · -0.1…0.15 MPa · -0.1…1.5 MPa · -100…300 kPa · -100…2400 kPa · -0.1…0.3 MPa · -0.1…2.4 MPa

Accuracy

Accuracy class	±0.5 % of measuring span
Accuracy standard	ASME B40.100

Process conditions

Process connection	¼ NPT, male thread½ NPT, male threadG ¼ B, male threadG ½ B, male thread1/4 NPT1/2 NPTG 1/4 BG 1/2 B
Process temperature	−40…+100 °C

Materials

Case material	PBT thermoplastic, glass-fibre reinforced, black
Wetted parts material	Stainless steel 316L
Sealing material	NBR

Operating environment

Ambient temperature	−40…+60 °C
IP rating	IP54
Weight	0.9 kg

Certifications and approvals

Certifications

CEUKCACRN

Additional details

Dial size	115 mm
Datasheet languages	EN

Tables from datasheet

psi

0 ... 10	0 ... 1,000
0 ... 15	0 ... 1,500
0 ... 30	0 ... 2,000
0 ... 60	0 ... 3,000
0 ... 100	0 ... 5,000
0 ... 160	0 ... 10,000
0 ... 200	0 ... 15,000
0 ... 300	0 ... 20,000
0 ... 400	0 ... 30,000 1)
0 ... 600	-

kPa

0 ... 60	0 ... 6,000
0 ... 100	0 ... 10,000
0 ... 160	0 ... 16,000
0 ... 250	0 ... 25,000
0 ... 400	0 ... 40,000
0 ... 600	0 ... 60,000
0 ... 1,000	0 ... 100,000
0 ... 1,600	0 ... 160,000
0 ... 2,500	0 ... 200,000 1)
0 ... 4,000	-

psi

-30 inHg ... 0	-30 inHg ...+100
-30 inHg ...+15	-30 inHg ...+160
-30 inHg ...+30	-30 inHg ...+200
-30 inHg ...+60	-30 inHg ...+300

kPa

-100 ... 0	-100 ...+500
-100 ...+60	-100 ...+900
-100 ...+150	-100 ... +1,500
-100 ...+300	-100 ... +2,400

View all (19)

Further details on: Scale ranges

Unit	■ psi
	■ bar
	■ kg/cm²
	■ kPa
	■ MPa

bar
0 ... 0,6	0 ... 60
0 ... 1	0 ... 100
0 ... 1.6	0 ... 160
0 ... 2.5	0 ... 250
0 ... 4	0 ... 400
0 ... 6	0 ... 600
0 ... 10	0 ... 1,000
0 ... 16	0 ... 1,600
0 ... 25	0 ... 2,000 1)
0 ... 40	-

MPa

0 ... 0.06	0 ... 6
0 ... 0.1	0 ... 10
0 ... 0.16	0 ... 16
0 ... 0.25	0 ... 25
0 ... 0.4	0 ... 40
0 ... 0.6	0 ... 60
0 ... 1.0	0 ... 100
0 ... 1.6	0 ... 160
0 ... 2.5	0 ... 200 1)
0 ... 4	-

bar
-1 ... 0	-1 ...+5
-1 ... +0.6	-1 ...+9
-1 ... +1.5	-1 ...+15
-1 ...+3	-1 ...+24

MPa

-0.1 ... 0	-0.1 ... +0.5
-0.1 ... +0.06	-0.1 ... +0.9
-0.1 ... +0.15	-0.1 ... +1.5
-0.1 ... +0.3	-0.1 ... +2.4

Further details on: Scale ranges

Increased overload safety	■ Without ■ 2-fold ■ 3-fold ■ 4-fold ■ 5-fold
	The possibility of selection depends on the scale range
Vacuum resistance	■ Without ■ Vacuum-resistant to -1 bar
Dial
Scale colour	Black
Material	Aluminium
Customer-specific version	■ Without ■ Reflecting dial background with InSight TM printing (e.g. white, yellow/green or glow- in-the-dark dial)
Pointer
Instrument pointer	Adjustable pointer, aluminium, black
Mark pointer/drag pointer	■ Without ■ Red drag pointer on window, resetting with fixed adjustment key ■ Red drag pointer on window, resetting with removable adjustment key
Pointer stop pin	At 6 o'clock

Process connection
Standard	■ ANSI/ASME B1.20.1 ■ EN 837-1
Size
ANSI/ASME B1.20.1	■ ¼NPT, male thread ■ ½NPT, male thread
EN 837-1	■ G¼B,male thread ■ G½B,male thread
Restrictor	■ ∅0.6 mm[0.024"], stainless steel ■ ∅0.3 mm[0.012"], stainless steel
Material (wetted)
Process connection	Stainless steel 316L
Bourdon tube	Stainless steel 316L

Operating conditions

Medium temperature
With glycerine filling	-4 ...+212 °F [-20 ...+100 °C]
Unfilled instruments or with silicone oil filling	-40 ...+212 °F [-40 ...+100 °C]
Ambient temperature
With glycerine filling	-4 ...+140 °F [-20 ...+60 °C]
Unfilled instruments or with silicone oil filling	-40 ...+140 °F [-40 ...+60 °C]
Pressure limitation	Steady	Full scale value
	Fluctuating	0.9 x full scale value
	Short time	1.5 x full scale value 1)
Ingress protection 2)	■ IP54 per EN/IEC 60529

Logo	Description	Region
	EU declaration of conformity Pressure equipment directive PS > 200 bar, module A, pressure accessory	European Union
	UKCA Pressure equipment (safety) regulations	United Kingdom
-	CRN Safety (e.g. electr. safety, overpressure, ...) For scale ranges ≤ 1,000 bar	Canada

Logo	Description	Region
	PAC Kazakhstan Metrology, measurement technology	Kazakhstan
-	MChS Permission for commissioning	Kazakhstan
-	PAC Ukraine Metrology, measurement technology	Ukraine
	PAC Uzbekistan Metrology, measurement technology	Uzbekistan
-	PAC China Metrology, measurement technology	China

Certificates

■ 2.2 test report per EN 10204 (e.g. state-of-the-art manufacturing, indication accuracy) ■ 3.1 inspection certificate per EN 10204 (e.g. material proof for wetted metal parts, indication accuracy) ■ A2LA calibration certificate, traceable and accredited in accordance with ISO/IEC 17025 ■ Calibration certificate by a national accreditation body, traceable and accredited in accordance with ISO/IEC 17025 on request

Recommended calibration interval

1 year (dependent on conditions of use)

NS	G	Dimensions in inch [mm]
		a	b 1	b 2	D	d 1	d 2	d 3	f	h	s 1	s 2	SW
4 ½" [115]	¼NPT	1.57 [40]	3.31 [84]	4.49 [114]	5 [128]	5.37 [136.5]	5.83 [148]	0.248 [6.3]	1.12 [28.5]	3.91 [99]	0.49 [12.5]	0.99 [25]	0.87 [22]
	½NPT	1.57 [40]	3.31 [84]	4.74 [120]	5 [128]	5.37 [136.5]	5.83 [148]	0.248 [6.3]	1.12 [28.5]	4.06 [103]	0.49 [12.5]	0.99 [25]	0.87 [22]
6" [160]	¼NPT	1.58 [40.2]	3.46 [88]	4.62 [117.4]	6.46 [164]	7 [177.8]	7.5 [190]	0.28 [7.1]	1.12 [28.5]	4.58 [116.5]	0.5 [12.7]	1 [25.4]	0.87 [22]
	½NPT	1.58 [40.2]	3.46 [88]	4.86 [123.4]	6.46 [164]	7 [177.8]	7.5 [190]	0.28 [7.1]	1.12 [28.5]	4.82 [122.5]	0.5 [12.7]	1 [25.4]	0.87 [22]

NS	G	Dimensions in inch [mm]
		a	b 1	b 2	D	d 1	d 2	d 3	f	h	s 1	s 2	SW
4 ½" [115]	G¼B	1.57 [40]	3.31 [84]	4.49 [114]	5 [128]	5.37 [136.5]	5.83 [148]	0.248 [6.3]	1.12 [28.5]	3.82 [97]	0.49 [12.5]	0.99 [25]	0.87 [22]
	G½B	1.57 [40]	3.31 [84]	4.76 [121]	5 [128]	5.37 [136.5]	5.83 [148]	0.248 [6.3]	1.12 [28.5]	4.09 [104]	0.49 [12.5]	0.99 [25]	0.87 [22]
6" [160]	G¼B	1.58 [40.2]	3.46 [88]	4.62 [117.4]	6.46 [164]	7 [177.8]	7.5 [190]	0.28 [7.1]	1.12 [28.5]	4.58 [116.5]	0.5 [12.7]	1 [25.4]	0.87 [22]
	G½B	1.58 [40.2]	3.46 [88]	4.89 [124.4]	6.46 [164]	7 [177.8]	7.5 [190]	0.28 [7.1]	1.12 [28.5]	4.86 [123.5]	0.5 [12.7]	1 [25.4]	0.87 [22]

NS	Weight
	Model 232.34	Model 233.34
4 ½" [115]	approx. 2 lbs [0.9 kg]	approx. 3 lbs [1.4 kg]
6" [160]	approx. 3 lbs [1.4 kg]	approx. 4 lbs [1.8 kg]

Model		Description
	910.17	Seals → See data sheet AC 09.08
	910.15	Syphons → See data sheet AC 09.06
	910.13	Overpressure protector → See data sheet AC 09.04
	IV1	Needle valve and multiport valve → See data sheet AC 09.22
	IV2	Block-and-bleed valve → See data sheet AC 09.19
	IVM	Monoflange, process and instrument version → See data sheet AC 09.17
	BV	Ball valve, process and instrument version → See data sheet AC 09.28
	IBF2, IBF3	Monoblock with flange connection → See data sheet AC 09.25
