213.40.100 1
213.40.100
On order

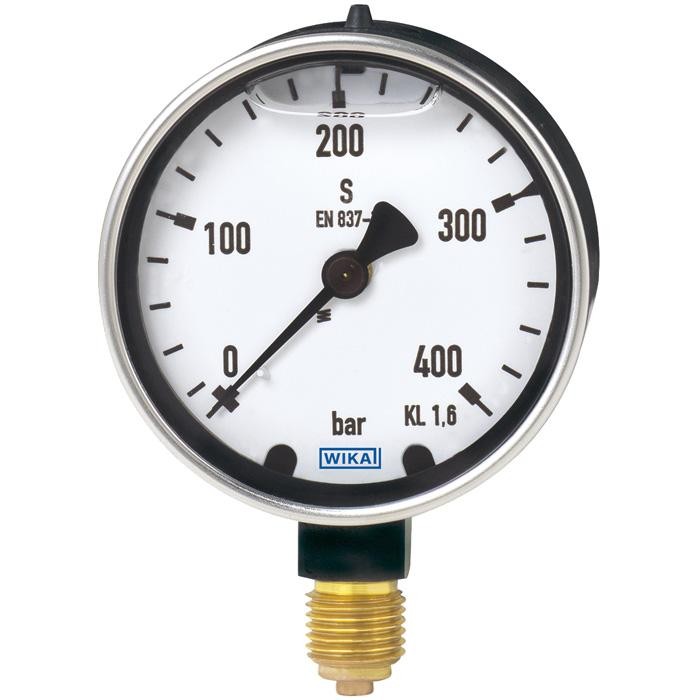

WIKA · Pressure measurement · Family 213.40.100

213.40.100

gauge pressure range — configurable WIKA product with 197 configuration variants. Variants: 213.40.
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram
Configurator · Step by step

Build a 213.40.100 for your task

The article number is assembled automatically. If unsure — ask an engineer; we'll match the line's parameters.

Step 1 of 2
Configuration structure· click a highlighted segment to jump to that parameter

A process connection is the connection point between the measuring instrument and the measuring location. The medium enters the respective measuring instrument via the process connection. The process connection is therefore a wetted part. The most-common process connections for pressure gauges are threaded connections defined in accordance with particular standards. Common process connections are shown below as examples in stainless steel.

Process Connector Options

Depending on the medium, some of the process connections are also available with special coatings or special materials. It must always be ensured that the material of the process connection is compatible with the medium or is corrosion-resistant.

Your configuration
  • Nominal size100 mm
  • Unit of outer Scalebar
  • Measuring rangegauge pressure range
  • Scale range0...0.6 bar
  • 2nd Scale or Special Scalewithout
  • Process connection—
  • Connector location—
  • Caseblack forged brass with pressure vent
  • Mounting flange/bracketwithout
  • Restrictorwithout
  • Accuracy classclass 1.0
  • Set / drag pointerwithout
  • Case fillingglycerine-water mixture
  • Certificateswithout
