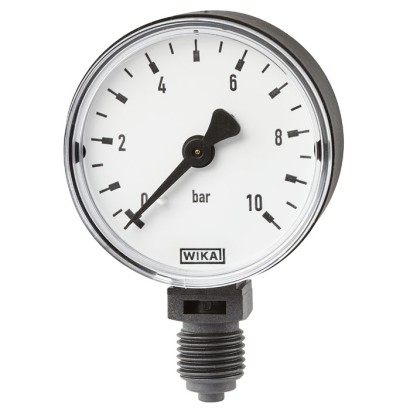

Bourdon tube pressure gauge

Bourdon tube pressure gauge OEM version with one-piece construction from glass-fibre reinforced polyamide, suitable for gaseous and liquid media not highly viscous or crystallising.
Protection
IP44
EN 837-1ASME B40.100
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

The modular design of this pressure gauge is cost-effective and specifically aimed at OEM customers. The one-piece construction of case and process connection makes the instrument resistant to mechanical damage and ensures a low weight.

The modular measuring system guarantees low temperature influence and high measuring stability.

This proven design concept of pressure gauges is ideal for customers who require customised, light-weight but robust pressure gauges.

Special features

  • One-piece construction of case and process connection from glass-fibre reinforced polyamide (PA)
  • Cost-effective, modular design with low weight
  • Nominal size 40 [1 ½"], 50 [2"] and 63 [2 ½"]
  • Scale ranges from 0 ... 2.5 to 0 ... 25 bar [0 ... 30 to 0 ... 300 psi]
Identification
Model151.10, 151.12
Product family151
SubcategoryPressure Gauge
Operating environment
Ambient temperature−20…+60 °C
IP ratingIP44
Weight0.03 kg
Certifications and approvals
Certifications
EN 837-1ASME B40.100
Additional details
Datasheet languagesEN, DE
Tables from datasheet
bar
0 ... 2.50 ... 16
0 ... 40 ... 20
0 ... 60 ... 25
0 ... 10
kPa
0 ... 2500 ... 1,600
0 ... 4000 ... 2,000
0 ... 6000 ... 2,500
0 ... 1,000
psi
0 ... 300 ... 160
0 ... 600 ... 200
0 ... 1000 ... 300
0 ... 150
kg/cm 2
0 ... 2.50 ... 16
0 ... 40 ... 20
0 ... 60 ... 25
0 ... 10
View all (9)
MPa
0 ... 0.250 ... 1.6
0 ... 0.40 ... 2.0
0 ... 0.60 ... 2.5
0 ... 1
NSG 1)31086624.02 Dimensions in mm[in]
Dh ±0.1 [0.04]S3ab1 ±0.5 [0.02]eSW
40 [1 ½"]G⅛B49 [1,92]36 [1.42]10 [0.39]9.6 [0.38]26.4 [1.04]3.4 [0.13]14 [0.55]
G¼B49 [1,92]45 [1.77]13 [0.51]9.6 [0.38]26.4 [1.04]3.4 [0.13]14 [0.55]
50 [2"]G⅛B55 [2.17]36 [1.42]10 [0.39]9.6 [0.38]26.4 [1.04]3.4 [0.13]14 [0.55]
G¼B55 [2.17]45 [1.77]13 [0.51]9.6 [0.38]26.4 [1.04]3.4 [0.13]14 [0.55]
63 [2 ½"]G⅛Bh ± 68 [2.68]36 [1.42]10 [0.39]9.6 [0.38]26.4 [1.04]3.4 [0.13]14 [0.55]
G¼Bh [ ± 68 [2.68]S3 45 [1.77]13 [0.51]9.6 [0.38]26.4 [1.04]3.4 [0.13]14 [0.55]
14 NS36 10 [0.39] Weight in kg [lb]
40 [1 ½"][1.42] 0.03 [0.07]
50 [2"]45 [1.77] 13 [0.51] 0.04 [0.09]
63 [2 ½"]0.05 [0.1]
NSG 1)Dimensions in mm[in]
DS3b ±0.5 [0.02]b2 ±0.5 [0.02]eSW
40 [1 ½"]G⅛B49 [1,92]10 [0.39]26.4 [1.04]42.4 [1.67]3.4 [0.13]14 [0.55]
G¼B49 [1,92]13 [0.51]26.4 [1.04]47.4 [1.87]3.4 [0.13]31086616.02 14 [0.55]
50 [2"]G⅛B55 [2.17]10 [0.39]26.4 [1.04]42.4 [1.67]3.4 [0.13]14 [0.55]
G¼B55 [2.17]13 [0.51]26.4 [1.04]47.4 [1.87]3.4 [0.13]14 [0.55]
63 [2 ½"]G⅛B68 [2.68]10 [0.39]26.4 [1.04]42.4 [1.67]3.4 [0.13]14 [0.55]
G¼B68 [2.68]13 [0.51]26.4 [1.04]47.4 [1.87]3.4 [0.13]14 [0.55]
0.02] NS[1.67] Weight in kg [lb]
40 [1 ½"]G 1/4 B 47,4 [1.87] 0.03 [0.07]
3,4 50 [2"]1/8 NPT 42,4 0.04 [0.09]
[0.14] 63 [2 ½"]R1/2 ISO7 [1.67] 0.05 [0.1]
