WIKA · Pressure measurement · Family 100

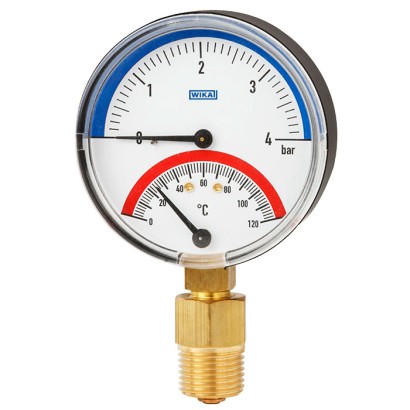

Bimetal thermomanometer

For pressure and temperature measurement, NS 63 [2 ½"] and NS 80 [3"]
Range
0…16 bar
Accuracy
2.5
Protection
IP31
Price
On request
Depends on configuration
Request a quote
+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

Description

Thermomanometers combine the measurement of pressure and temperature in one instrument. This enables the control of both measurands at one single measuring location. The built-in measuring elements - Bourdon tube and bimetal coil guarantee reliable measuring results.

By using the self-sealing shut-off valve, the measuring instrument can be dismounted at any time and without having to empty the heating circuit first. The bimetal thermomanometer is delivered with a shut-off valve as standard. WIKA manufactures and qualifies this instrument in accordance with the standard EN 837-1.

Special features

  • Model 100.01: Pressure scale at the top Temperature scale at the bottom Scale orientation from left to right
  • Pressure scale at the top
  • Temperature scale at the bottom
  • Scale orientation from left to right
  • Model 100.02: Pressure scale at the top Temperature scale at the bottom Pressure scale from left to right Temperature scale from right to left
  • Pressure scale from left to right
  • Temperature scale from right to left
  • Model 100.10: Temperature scale at the top Pressure scale at the bottom Scale orientation from left to right
  • Temperature scale at the top
  • Pressure scale at the bottom
  • Model 100.12: Temperature scale at the top Pressure scale at the bottom pressure scale from left to right Temperature scale from right to left
  • Pressure scale at the bottom pressure scale from left to right
  • Scale ranges to 0 ... 16 bar [0 ... 230 psi] and 0 ... 150 °C [32 ... 302 °F]
Identification
Model100.0x, 100.1x
Product family100
SubcategoryThermomanometer
Measuring range
Pressure ranges0…4 bar · 0…6 bar · 0…10 bar · 0…16 bar · 0…0.4 MPa · 0…0.6 MPa · 0…1 MPa · 0…1.6 MPa · 0…60 psi · 0…100 psi · 0…150 psi · 0…200 psi · 0…0.4 bar · 0…1 bar · 0…0.04 MPa · 0…0.1 MPa · 0…230 psi
Accuracy
Accuracy class2.5
Accuracy standardEN 837-1
Process conditions
Process connection
G ¼ BR ¼¼ NPTG ½ BR ½½ NPTM20 x 1.5G 1/4 BR 1/41/4 NPTG 1/2 BR 1/21/2 NPT
Process temperature−20…+150 °C
Materials
Case materialPlastic, black, Steel, black painted
Wetted parts materialCopper alloy
Operating environment
Ambient temperature−20…+60 °C
IP ratingIP31
Weight0.75 kg
Additional details
Dial size63 mm
Datasheet languagesEN
Tables from datasheet
bar
0 ... 40 ... 10
0 ... 60 ... 16
psi
0 ... 600 ... 150
0 ... 1000 ... 200
Scale range in °CScale interval in °C
0 ... 1002
0 ... 1502
MPa
0 ... 0.40 ... 1
0 ... 0.60 ... 1.6
View all (8)
Scale range in °FScale interval in °F
32 ... 2124
32 ... 3024
NSGDimensions in mm[in]Weight in g [oz]
b2 ±1 [0.04]L1b ±0.5 [0.02]DSW31045537.03
63 [2 ½"]G½B,½NPT, R ½, M20 x 1.577 [3.03]32 [1.26]29 [1.14]62 [2.44]22 [0.87]Approx. 450 [15.9]
80 [3"]G½B,½NPT, R ½, M20 x 1.5 Dimensions in mm [inch]78 [3.07]32 [1.26]32 [1.26]79 [3.11]22 [0.87]Approx. 480 [16.9]
NSGDimensions in mm[in]Weight in g [oz]
b2 ±1 [0.04]L1b ±0.5 [0.02]DdSW31045448.03
63 [2 ½"]G½B,½NPT, R ¼, M20 x 1.574 [2.91]31 [1.22]30 [1.18]63 [2.48]12 [0.47]22 [0.87]Approx. 340 [12]
80 [3"]Dimensions in mm [inch] b ± 0,5 G½B,½NPT, R ¼, M20 x 1.5b2 ± 1 74 [2.91]31 [1.22]30 [1.18]80 [3.15]12 [0.47]22 [0.87]Approx. 439 [15.5]
ModelDescriptionOrder number
Seals →See data sheet AC 09.08-
