IS-3

متوفر في مخزون WIKA

WIKA · قياس الضغط · العائلة IS

حساس ضغط

Name: حساس ضغط
Brand: WIKA
SKU: IS-3
Price: 463.11 EUR
Availability: BackOrder

مرسل ضغط آمن جوهريًا للمناطق الخطرة مع EPL Ga وDa وMa واعتمادات تشمل ATEX وIECEx وFM وCSA.

النطاق

0…87000 psi

الخرج

4 ... 20 mA · 4-20mA

الدقة

0.25 % BFSL

الحماية

IP65

CERoHSATEXIECExFMCSAEACExNEPSIDNV GLCRNKCs (KOSHA)EACREACHNACEPAC KazakhstanPAC UkrainePAC UzbekistanKS (KOSHA)Ex ic IIC T4/T5/T6 Gc XEx ec IIC T4/T5/T6 Gc XEx tc IIIC T90 °C Dc XEx ia IIA T4/T5/T6 GaEx ia IIC T4/T5/T6 GaEx ia IIC T4/T5/T6 Ga/GbEx ia IIIB T200 135 °C DaEx ia IIIC T135 °C DaEx ia IIIB T200 135 °C Da/DbEx ia IIIC T135 °C Da/DbEx ia I MaEx iIA T4/T5/T6 GaEx iIA T4/T5/T6 Gc/GbEx iIA T200 135 °C DaEx iIA T135 °C DaEx iIA T200 135 °C Da/DbEx i Ma

السعر

ابتداءً من ‏463 €

يُحدَّد عند الطلب

طلب عرض سعر

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

الوصف

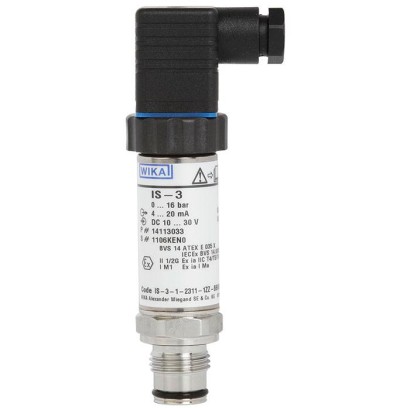

مرسل الضغط طراز IS-3 ذو السلامة الجوهرية (intrinsically safe) تم تصميمه للمناطق التي تشكل فيها الغازات خطراً (EPL Ga)، ويمكن أيضاً استخدامه مع الغبار القابل للاشتعال (EPL Da) وفي المناجم المعرضة لغازات الاشتعال (firedamp) (EPL Ma). ويُعد طراز IS-3 مناسباً لنطاقات الضغط حتى 6,000 bar [87,000 psi] ودرجات حرارة الوسط حتى 200 °C [392 °F]. ويتميز بعدة اعتمادات، مثل ATEX وIECEx وFM وCSA. وبفضل خيار التصميم المدمج (flush design)، فإن IS-3 مناسب أيضاً للسوائل البلورية واللزوجة، وكذلك للتطبيقات التي يلزم فيها تنظيف خالٍ من البقايا (residuefree).

المزايا

نوع الحماية من الاشتعال: آمن جوهرياً (Ex ia) بمستوى حماية المعدات (EPL) Ga وDa وMa
تشكيلة واسعة من الموافقات الشائعة للاستخدام في المناطق الخطرة، مثل ATEX أو IECEx أو FM أو CSA أو EACEx أو NEPSI
تشكيلة واسعة بشكل استثنائي تغطي جميع التطبيقات تقريبًا – حتى في ظروف التشغيل القاسية
جودة ممتازة وتقنية مجرّبة

الأسئلة والأجوبة

ما هو نطاق قياس الضغط لطراز IS-3؟

يتوفر الطراز بنطاقات نسبية من 0 … 0.25 bar وحتى 0 … 6,000 bar [87,000 psi]، ونطاقات فراغية مثل −1 … 0 bar، بالإضافة إلى نطاقات بوحدات psi وinHg.

ما هي دقة القياس؟

الدقة 0.25 % BFSL وفق المعيار IEC 61298-2.

ما هي وصلات العملية المتاحة؟

تشمل الخيارات 1/4 NPT و1/2 NPT وM20 x 1.5 وM16 x 1.5 وG 1/4 B وG 1/2 B وG 1 B وG 1 hygienic و9/16-18 UNF وغيرها، مع خيارات تصميم مدمج (flush) للسوائل اللزجة أو البلورية.

هل يناسب الطراز المناطق الخطرة؟

نعم، فهو ذو سلامة جوهرية (Ex ia) بمستوى حماية المعدات EPL Ga للغازات وEPL Da للغبار القابل للاشتعال وEPL Ma للمناجم، مع اعتمادات ATEX وIECEx وFM وCSA وEACEx وNEPSI.

ما هي درجات الحرارة المسموح بها؟

درجة حرارة البيئة المحيطة من −40 إلى +80 °C، ودرجة حرارة الوسط من −40 إلى +200 °C.

ما هي درجة الحماية من الغبار والماء؟

الطراز مصنّف بدرجة حماية IP65.

ما هي مواد الأجزاء الملامسة للوسط؟

متوفرة بمواد 316Ti و316L وS13800 وElgiloy، مع إحكامات من NBR أو FKM/FPM أو FFKM أو EPDM.

ما الذي يميز IS-3 عن غيره من حساسات الضغط؟

يجمع بين السلامة الجوهرية بثلاثة مستويات EPL (Ga/Da/Ma)، ونطاق ضغط واسع جدًا يصل إلى 6,000 bar، وخيار التصميم المدمج (flush design) المناسب للتنظيف الخالٍ من البقايا — كل ذلك بوزن لا يتجاوز 0.2 kg.

التعريف

الطراز	IS-3
السلسلة	IS
النوع الفرعي	Pressure transmitter

نطاق القياس

نطاق الضغط

0…0.25 bar · 0…0.4 bar · 0…0.6 bar · 0…1 bar · 0…1.6 bar · 0…2.5 bar · 0…0.1 bar · 0…0.16 bar · 0…4 bar · 0…6 bar · 0…10 bar · 0…16 bar · 0…25 bar · 0…40 bar · 0…60 bar · -1…0 bar · -1…0.6 bar · -1…1.5 bar · -1…3 bar · -1…5 bar · -1…9 bar · -1…15 bar · -1…24 bar · 0…6000 bar · 0…100 psi · 0…160 psi · 0…250 psi · 0…400 psi · 0…600 psi · 0…1000 psi · 0…4000 psi · 0…5000 psi · 0…6000 psi · 0…7500 psi · 0…8000 psi · 0…10000 psi · 0…15000 psi · 0…87000 psi · -30…0 inHg · -30…100 inHg · -30…15 inHg · -30…30 inHg · -30…60 inHg · 0…0.1 psi · 0…1050 psi · 0…1600 psi · 0…2500 psi · 0…20000 psi · 0…30000 psi · 0…40000 psi · 0…50000 psi · 0…60000 psi · 0…70000 psi · 0…80000 psi · 0…0.25 psi · 0…0.4 psi · 0…0.6 psi · 0…1 psi · 0…1.6 psi · 0…2.5 psi · 0…400 bar · 0…600 bar · 0…1000 bar · 0…2500 bar · 0…3 psi · 0…5 psi · 0…10 psi · 0…15 psi · 0…20 psi · 0…25 psi · 0…30 psi · 0…50 psi · 0…60 psi · 0…150 psi · 0…200 psi · 0…300 psi · 0…500 psi · 0…750 psi · 0…800 psi · 0…1500 psi · 0…2000 psi · 0…3000 psi · -15…0 inHg · -30…160 inHg · -30…200 inHg · -30…300 inHg

دقة القياس

فئة الدقة	0.25 % BFSL
معيار الدقة	IEC 61298-2

ظروف العملية

وصلة العملية	1/4 NPT1/2 NPTM20 x 1.5M16 x 1.5R 1/4G 1/4 BG 1/2 BG 1/4 AG 1/2 A9/16-18 UNFR 3/8G 1/2 male/G 1/4 femaleG 1 BG 1 hygienic9/16-18 UNF/female F250-CR 3%G1/2B flushG1B flushG1B hygienic
درجة حرارة العملية	−40…+200 °C

الخصائص الكهربائية

إشارة الخرج	4 ... 20 mA
التغذية	DC 10 ... 30 V
وصلة كهربائية	Angular connector DIN EN 175301-803-A, Circular connector IEC 61076-2-106, Circular connector IEC 61076-2-101 A-COD, Bayonet connector MIL-DTL-26482, Cable outlet, Field case

المواد

مادة العلبة	Stainless steel
مادة الأجزاء الملامسة	316Ti, 316L, S13800, Elgiloy
مادة الإحكام	NBR, FKM/FPM, FFKM, EPDM

بيئة التشغيل

حرارة المحيط	−40…+80 °C
تصنيف IP	IP65
الوزن	0.2 kg

الشهادات والموافقات

الشهادات	CERoHSATEXIECExFMCSAEACExNEPSIDNV GLCRNKCs (KOSHA)EACREACHNACEPAC KazakhstanPAC UkrainePAC UzbekistanKS (KOSHA)
حماية الانفجار	Ex ic IIC T4/T5/T6 Gc XEx ec IIC T4/T5/T6 Gc XEx tc IIIC T90 °C Dc XEx ia IIA T4/T5/T6 GaEx ia IIC T4/T5/T6 GaEx ia IIC T4/T5/T6 Ga/GbEx ia IIIB T200 135 °C DaEx ia IIIC T135 °C DaEx ia IIIB T200 135 °C Da/DbEx ia IIIC T135 °C Da/DbEx ia I MaATEXIECExFMCSAEACExNEPSIEx iIA T4/T5/T6 GaEx iIA T4/T5/T6 Gc/GbEx iIA T200 135 °C DaEx iIA T135 °C DaEx iIA T200 135 °C Da/DbEx i Ma

تفاصيل إضافية

لغات ورقة البيانات

EN, DE

جداول من ورقة البيانات

Accuracy specifications

Non-linearity per BFSL per IEC 61298-2	≤ ±0.2 %of span
Accuracy	→ See 'Max. measured error per IEC 61298-2'
Max. measured error per IEC 61298-2	■ ≤ ±0.5 %of span ■ ≤ ±0.25 %of span 1)
Zero point setting	±5% → Through potentiometer within the instrument
Adjustability of span	±5% → Through potentiometer within the instrument
Non-repeatability per IEC 61298-2	< 0.1 %of span
Mean temperature coefficient at 0 ... 80 °C [32 ... 176 °F]
Zero point	Measuring range ≤ 0.25 bar [≤ 5 psi]	≤ ±0.4 %of span/10 K
Measuring range > 0.25 bar [> 5 psi]	≤ ±0.2 %of span/10 K
Span	≤ ±0.2 %of span/10 K
Long-term stability per IEC 61298-2	≤ ±0.2 %of span/year
Reference conditions	Per IEC 61298-1

bar
0 ... 0.1	0 ... 60
0 ... 0.16	0 ... 100
0 ... 0.25	0 ...160
0 ... 0.4	0 ... 250
0 ... 0.6	0 ... 400
0 ... 1	0 ... 600
0 ... 1.6	0 ... 1,000 1)
0 ... 2.5	0 ... 1,050 1) 2)
0 ... 4	0 ... 1,600 1) 2)
0 ... 6	0 ... 2,500 1) 2)
0 ... 10	0 ... 4,000 1) 2)
0 ... 16	0 ... 5,000 1) 2)
0 ... 25	0 ... 6,000 1) 2)
0 ... 40	-

psi
0 ... 3	0 ... 500
0 ... 5	0 ... 600
0 ... 10	0 ... 750
0 ... 15	0 ... 800
0 ... 20	0 ... 1,000
0 ... 25	0 ... 1,500
0 ... 30	0 ... 2,000
0 ... 50	0 ... 3,000
0 ... 60	0 ... 4,000
0 ... 100	0 ... 5,000
0 ... 150	0 ... 6,000
0 ... 160	0 ... 7,500
0 ... 200	0 ... 8,000
0 ... 250	0 ... 10,000 1)
0 ... 300	0 ... 15,000 1)
0 ... 400	-

bar
0 ... 0.25	0 ... 4
0 ... 0.4	0 ... 6
0 ... 0.6	0 ... 10
0 ... 1	0 ... 16
0 ... 1.6	0 ... 25
0 ... 2.5	-

عرض الكل (20)

psi

0 ... 5	0 ... 100
0 ... 10	0 ... 160
0 ... 15	0 ... 200
0 ... 30	0 ... 300
0 ... 60	-

Further details on: Measuring range

Units	■ bar ■ psi ■ mbar ■ inWC ■ MPa ■ kg/cm 2
Maximum working pressure	→ Corresponds to the upper measuring range value / measuring range full scale value → Any permanent operation above the maximum working pressure is not permissible
Overpressure limit	The overpressure limit is based on the measuring range. Depending on the selected pro - cess connection and the seal, restrictions in overpressure limit can result.
Measuring ranges ≤ 25 bar [≤ 400 psi]	3 times
Measuring ranges from 0 ... 40 to 0 ... 600 bar [0 ... 500 to 0 ... 8,000 psi]	2 times → 1.7 times the overpressure limit at 1,000 psi, 1,500 psi, 4,000 psi and 6,000 psi
Measuring ranges from 0 ... 1,000 to 0 ... 2,500 bar [0 ... 10,000 to 0 ... 15,000 psi]	1.4 times
Measuring ranges > 2,500 bar	1.15 times
Vacuum resistance	Yes

bar
-1 ... 0	-1 ...+5
-1 ... +0.6	-1 ...+9
-1 ... +1.5	-1 ...+15
-1 ...+3	-1 ...+24

psi

-15 inHg ... 0	-30 inHg ... 100
-30 inHg ... 0	-30 inHg ... 160
-30 inHg ... 15	-30 inHg ... 200
-30 inHg ... 30	-30 inHg ... 300
-30 inHg ... 60	-

Process connection

Thread	Max. measuring range in bar [psi]	Overpressure limit in bar [psi]	Permissible tempera - ture ranges in °C [°F] for ignition protection type Ex ia	Seal
EN 837
G1/4 B	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
400 [5,000]	800 [11,600]	-40 ...+150 [-40 ... +302]	-
400 [5,000]	800 [11,600]	-40 ...+200 [-40 ... +392]	-
G1/2 B	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
400 [5,000]	800 [11,600]	-40 ...+150 [-40 ... +302]	-
400 [5,000]	800 [11,600]	-40 ...+200 [-40 ... +392]	-
DIN EN ISO 1179-2
G1/4 A	600 [8,000]	858 [12,500]	-20 ...+80 [-4 ... +176]	NBR
		-15 ...+80 [+5 ... +176]	FKM/FPM
400 [5,000]	600 [8,700]	■ -15 ...+150 [+5 ... +302] ■ -15 ...+200 [+5 ... +392]	FKM/FPM
G1/2 A	600 [8,000]	858 [12,500]	-20 ...+80 [-4 ... +176]	NBR
ANSI/ASME B1.20.1
1/4 NPT	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
1/2 NPT	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
400 [5,000]	800 [11,600]	■ -40 ...+150 [-40 ... +302] ■ -40 ...+200 [-40 ... +392]	-
DIN 16288
M20 x 1.5	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
Female thread with sealing cone
M16 x 1.5	6,000	7,000 [101.500]	-20 ...+80 [-4 ... +176]	-
→ Not available for psi measuring ranges
M20 x 1.5	6,000	7,000 [101.500]	-20 ...+80 [-4 ... +176]	-
→ Not available for psi measuring ranges
9/16-18 UNF/ female F250-C	6,000 [87,000]	7,000 [101.500]	-20 ...+80 [-4 ... +176]	-
ISO 7
R 3/8	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
R 1/4	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-
400 [5,000]	800 [11,600]	-40 ...+150 [-40 ... +302]	-
400 [5,000]	800 [11,600]	-40 ...+200 [-40 ... +392]	-
-
G1/2 male/G 1/4 female	1,000 [15,000]	1,480 [21,500]	-20 ...+80 [-4 ... +176]	-

Process connection

Thread	Max. measuring range in bar [psi]	Overpressure limit in bar [psi]	Permissible tempera - ture ranges in °C [°F] for ignition protection type Ex ia	Seal
Flush
G1/2 B	600 [8,000]	1,200 [17,500]	-20 ...+80 [-4 ... +176]	NBR
-15 ...+80 [+5 ... +176]	FKM/FPM
600 [8,700]	-15 ...+150 [+5 ... +302]	FKM/FPM
1,200 [17,500]	-20 ...+80 [-4 ... +176]	FFKM
-20 ...+150 [-4 ... +302]	FFKM
800 [11,600]	-20 ...+80 [-4 ... +176]	EPDM
400 [5,800]	-20 ...+150 [-4 ... +302]	EPDM
G1B	1,6 [30]	4.8 [69]	-20 ...+80 [-4 ... +176]	NBR
-15 ...+80 [+5 ... +176]	FKM/FPM
-20 ...+80 [-4 ... +176]	EPDM
-15 ...+150 [+5 ... +302]	FKM/FPM
-20 ...+150 [-4 ... +302]	EPDM
G1hygienic	25 [300]	50 [720]	-20 ...+150 [-4 ... +302]	EPDM

Output signal

Signal type	4 ...20mA
Load
Model IS-3	≤ (auxiliary power - 10 V) / 0.02 A - (cable length in mx0.14 Ω)
Model IS-3 with field case	≤ (auxiliary power - 11 V) / 0.02 A
	With test signal ≤ 15Ω
Voltage supply
Model IS-3	DC 10 ...30V
Model IS-3 with field case	DC 11 ...30V
Power consumption
Model IS-3	Pmax ≤ 800mW
Dynamic behaviour
Settling time per IEC 61298-2	≤ 2 ms
Settling time per IEC 61298-2 for medium temperatures below -30 °C [-22 °F]	≤ 10 ms

Electrical connection

Connection type	IP code 1) 2) IEC 60529	Ignition protec- tion type	Materials	Wire cross-sec- tion in mm²	Cable diameter in mm[in]
Angular connector DIN EN 175301-803-A
PG9	IP65	Ex ia	PA6	Max. 1.5	6 ... 8 [0.24 ... 0.31]
1/2 NPT	IP65	Ex ia	PA6	Max. 1.5	6 ... 8 [0.24 ... 0.31]
PG13.5 (GL)	IP65	Ex ia	PA6	Max. 1.5	10 ... 14 [0.39 ... 0.55]
Circular connector IEC 61076-2-106
M16 x 0.75, 5-pin	IP67	■ Ex ia ■ Ex ec	PA6, nickel-plated Zn	-	-
Circular connector IEC 61076-2-101 A-COD
M12 x 1	IP67	Ex ia	PA6, stainless steel	-	-
Bayonet connector MIL-DTL-26482
4-pin	IP67	Ex ia	PA6, stainless steel, nickel-plated AI	-	-
6-pin	IP67	Ex ia	PA6, stainless steel, nickel-plated AI	-	-
Cable outlet
Cable outlet	IP67	Ex ia	PA6, stainless steel, nickel-plated brass, PUR	0.5	6.8 [0.27]
Cable outlet with protective cap	IP67 3)	■ Ex ec ■ Ex tc	PA66/6-FR, stain- less steel, PUR	0.34	5.5 [0.22]
Cable outlet with cable gland	IP68	Ex ia	Stainless steel, nickel-plated brass, PUR	0.5	6.8 [0.27]
→ Condition: max. 72 h at 300 mbar [4.35 psi]
Cable outlet with cable gland conduit 1/2 NPT	IP68	Ex ia	Stainless steel, nickel-plated brass, PUR	0.5	6.8 [0.27]
→ Condition: max. 72 h at 300 mbar [4.35 psi]
Cable outlet, per - manent use in the medium	IP68	■ Ex ia ■ Ex ec ■ Ex tc	Stainless steel ■ PUR ■ FEP	0.5	7.5 [0.3]
→ Restriction: max. 2 bar [29 psi] ambient pressure
Field case
Nickel-plated brass cable gland	IP69K	Ex ia	Stainless steel, nickel-plated brass	Max. 1.5	7 …13[0.28 ... 0.51]
Stainless steel cable gland	IP69K	Ex ia	Stainless steel	Max. 1.5	8 ... 15 [0.31 ... 0.59]
Plastic cable gland	IP69K	Ex ia	Stainless steel, plastic	Max. 1.5	6.5 …12[0.26 ... 0.47]
Cable gland conduit ½NPT	IP69K	Ex ia	Stainless steel, plastic	Max. 1.5	6.5 …12[0.26 ... 0.47]
Cable gland conduit M20 x 1.5	IP69K	Ex ia	Stainless steel, plastic	Max. 1.5	6.5 …12[0.26 ... 0.47]

Material

Material (wetted)
Flush process connections	Measuring ranges ≤ 25 bar [≤ 400 psi]	G1Bflush	316Ti
G1Bhygienic	316L
Measuring ranges ≤ 600 bar [≤ 8.700 psi]	G½Bflush	316Ti
Process connections with pressure port	Measuring ranges ≤ 25 bar [≤ 400 psi]	Permissible temperatu - re range ≥ -20 °C ...≤ 80°C [≥ -4 ...≤ 176 °F]	316Ti
Measuring ranges ≤ 25 bar [≤ 400 psi]	Permissible temperatu - re range < -20 °C ...> 80°C [< -4 ...> 176 °F]	316L and 316Ti
Measuring ranges ≥ 40 bar [≥ 500 psi]	Permissible temperatu - re range < -20 °C ...> 80°C [< -4 ...> 176 °F]	316L and 316Ti and S13800
Measuring ranges ≥ 40 und ≤ 1.050 bar [≥ 500 und ≤ 15.000 psi]	-	316Ti and S13800
Measuring ranges > 1.050 bar [> 15.000 psi]	-	S13800
Seal	→ See table 'Process connection'
Material (in contact with the environment)
Case	Stainless steel
Electrical connection	→ See table 'Electrical connection'
Pressure transmission medium
< 25 bar [400 psi]	Synthetic oil
≥ 25 bar [400 psi]	Dry measuring cell
≤ 25 bar abs. [400 psi abs.]	Synthetic oil

Version for special media

Food	Food-compatible pressure transmission medium
Oil- and grease-free	Residual hydrocarbon	< 1,000 mg/m 2
Oxygen	Measuring ranges	≥ 40 bar [500 psi] ...≤ 400 bar [5,000 psi]
	Material (wetted parts)	316L und Elgiloy  (2.4711)
	Max. permissible temperature range	-20 ...+60 °C [-4 ...+140 °F]
Hydrogen	Measuring ranges	≥ 25 bar [400 psi] ...≤ 1.050 bar [15.000 psi]
	Material (wetted)	316Ti and Elgiloy  (2.4711)

Operating conditions

Permissible temperature limits for ignition protection type Ex ia
Medium temperature limit / Ambient tempera- ture limit	Permissible temperature ranges depend on the option selected above, the EPL, the temperature class, the selected electrical connection and the selected seal.
Storage temperature limit	-15 ...+70 °C [5 ... 158 °F]
Permissible temperature limits for ignition protection type Ex ec and Ex tc
Medium temperature limit	T6: -15 ...+55 °C [5 ...+131 °F]
T4/T5: -15 ...+70 °C [5 ...+158 °F]
Ambient temperature limit	T6: -15 ...+55 °C [5 ...+131 °F]
T4/T5: -15 ...+70 °C [5 ...+158 °F]

Operating conditions

Storage temperature limit	-15 ...+70 °C [5 ...+158 °F]
Ingress protection (IP code) per IEC 60529	→ See table 'Electrical connection'
Vibration resistance per IEC 60068-2-6
-	20g
Field case and cable outlet IP67 with protec - tive cap	10g
Measuring range > 1,000 bar	5g
Medium temperature ranges / Medium temper- atures < -20 °C and > 80 °C [< -4 and > 176 °F]	5g
Medium temperature ranges / Medium temper- atures < -20 °C and > 80 °C [< -4 and > 176 °F] with field case	2g
Shock resistance per IEC 60068-2-27
-	1,000g
Field case	600g
Measuring range > 1,000 bar	100g
Cable outlet IP67 with protective cap	100g
Medium temperature ranges / Medi- um temperatures < -20 °C and > 80 °C [< -4 °F and > 176 °F]	100g
Medium temperature ranges / Medi- um temperatures < -20 °C and > 80 °C [< -4 °F and > 176 °F] with field case	50g

Packaging and instrument labelling

Packaging	Individual packaging
Instrument labelling	WIKA product label, glued

Logo	Description	Country
	EU declaration of conformity EMCdirective EN 61326 emission (group 1, class B) and immunity (industrial environments) Pressure Equipment Directive	European Union
	RoHS directive ATEX directive Hazardous areas Ex i Zone 0 gas [II 1G Ex ia IIA T4/T5/T6 Ga]
	IECEx Hazardous areas Ex i Zone 0 gas [Ex ia IIA T4/T5/T6 Ga] [Ex ia IIC T4/T5/T6 Ga] Zone 1 mounting to zone 0 gas [Ex ia IIC T4/T5/T6 Ga/Gb] Zone 2 gas [Ex ic IIC T4/T5/T6 Gc X] Zone 20 dust [Ex ia IIIBT 200 135 °C Da] [Ex ia IIIC T135 °C Da] Zone 21 mounting to zone 20 dust [Ex ia IIIBT 200 135 °C Da/Db] [Ex ia IIIC T135 °C Da/Db] Mining [Ex ia I Ma]	International
	FM Hazardous areas (see approval)	USA
	CSA	USA and Canada
	PAC Kazakhstan Metrology, measurement technology	Kazakhstan
-	MTSCHS Permission for commissioning	Kazakhstan
-	PAC Ukraine Metrology, measurement technology	Ukraine
	PAC Uzbekistan Metrology, measurement technology	Uzbekistan
	NEPSI Hazardous areas (see approval)	China
	KCs (KOSHA) Hazardous areas (see approval)	South Korea
	DNV GL Ships, shipbuilding (e.g. offshore)	International
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

Logo	Description
MTTF	> 100 years
-	China RoHS directive

Safety-related characteristic values (Ex)

Supply and signal circuit
For ATEX/IECEx ignition protection type Ex ia	See product label
Voltage	Ui = DC 30V
Current	Ii = 100mA
Power	Group I (mines susceptible to firedamp):P i = 800mW
	Group II (explosive gas atmosphere other than mines): P i = 800mW
	Group IIIB (explosive gas atmosphere other than mines): P i = 800/650mW
	Group IIIC (explosive gas atmosphere other than mines): P i = 750/650/550mW
Effective internal ca- pacitance (version with non-detachable cable connection)	■ Ci ≤ 16.5 nF ■ Ci ≤ 16.5 nF + 0.2 nF/m
Effective internal inductance (version with non-detachable cable connection)	■ Li = 0 μH ■ Li = 0 μH + 2 μH/m
Supply and signal circuit for CSA and FM	See product label
Entity/non-incendive parameters	V max /Ui = 30V I max /Ii = 100 mAat ambient temperature ≤ 85 °C [185 °F] I max /Ii = 87 mAat ambient temperature > 85 °C [185 °F] P max /Pi = 0.8W Ci = 16.5 nF (flying leads: + 0.2 nF/m) Li = 0 μH (flying leads: + 2 μH/m)

حساس ضغط

الوصف

المزايا

الأسئلة والأجوبة

22 مادة قياسية من عائلة IS
