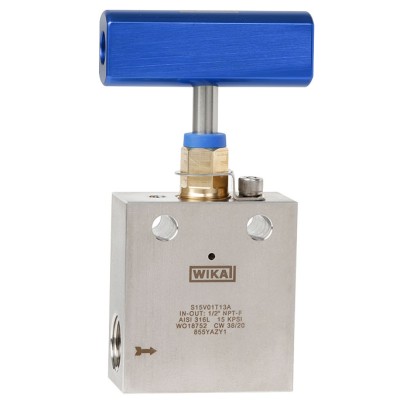

صمام إبرة عالي الضغط

Name: صمام إبرة عالي الضغط
Brand: WIKA
SKU: HPNV

الضغط الاسمي 15,000 ... 60,000 psi [1,034 ... 4,136 bar]

النطاق

1034…4136 bar

الحماية

None

API 598ISO 5208MSS SP-61DIN EN 12266-1EN 10204NACE MR0175 / ISO 15156EN 10204 3.1BS6755MSS SP-99NACE MR0175ISO 15156MSS SP-25

السعر

حسب الطلب

يعتمد على التكوين

طلب عرض سعر

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

الوصف

تم تطوير صمامات الإبرة عالية الضغط طراز HPNV لتطبيقات الضغط العالي من 15,000 ... 60,000 psi [1,034 ... 4,136 bar]. ويُعد الصمام مناسبًا بشكل خاص لوحات التحكم، حيث تكون المساحة محدودة، أو لأحواض الاختبار.

إن عمود الصمام غير القابل للدوران يمنع التعليق والخدش، حتى إذا كان الصمام يُفتح نادرًا أو يُغلق جزئيًا فقط.

وبفضل التصميم المقاوم للانفجار (blow-out proof) للصمام، يتم ضمان سلامة التشغيل، لا سيما في التطبيقات التي تتعرض فيها الأحمال لضغط عالٍ ودورات ضغط متكررة.

يمكن فتح/إغلاق الصمام بالكامل بحد أقصى 5 دورات فقط.

المزايا

تصميم منخفض التآكل بفضل طرف عمود دوّار غير دوار في الغطاء
عزم دوران منخفض وحركة سلسة لمقبض الصمام حتى عند الضغوط العالية
إحكام مختبر للتسرب وفقًا لـ BS6755 / ISO 5208 معدل تسرب A
تشكيلة واسعة من المواد والتجهيزات المتاحة
تركيبة خاصة بالعميل من الصمامات وأجهزة القياس (instrument hook-up) عند الطلب

الأسئلة والأجوبة

ما هو نطاق الضغط الاسمي لطراز HPNV؟

يعمل الصمام بضغط اسمي من 15,000 ... 60,000 psi [1,034 ... 4,136 bar]، مع درجات ضغط متاحة تبلغ 1,034 bar و1,379 bar و2,068 bar و4,136 bar.

ما هي وصلات العملية المتوفرة؟

لولب NPT بحجم ¼ و½ و¾ و3/8 و1 وفق ANSI / ASME B1.20.1 (أنثوي/أنثوي أو ذكري/أنثوي)، بالإضافة إلى وصلات مخروطية/ملولبة بأحجام ¼" و3/8" و9/16" و¾" و1".

ما هي المواد المتاحة للأجزاء الملامسة للوسط؟

ستانلس ستيل 316 (1.4401)، ستانلس ستيل XM-19 (S20910)، ستانلس ستيل 17-4PH (1.4542) وفق ASTM A564، ودوبلكس F51 (1.4462) وفق ASTM A479.

ما هي مواد الإحكام المستخدمة؟

PTFE معبأ بألياف زجاجية أو PTFE مدعّم بألياف كربونية.

ما نطاق درجة حرارة التشغيل؟

يناسب الصمام درجة حرارات وسط محيط وعملية من ‎-55 °C‎ حتى +210 °C.

هل تم اختبار إحكام الصمام ضد التسرب؟

نعم، تم اختباره وفقًا لـ BS6755 / ISO 5208 بمعدل تسرب A، كما تتوفر شهادات API 598 وMSS SP-61 وDIN EN 12266-1 وEN 10204 3.1.

هل يناسب الصمام البيئات الحاوية على كبريتيد الهيدروجين؟

نعم، يتوافق الصمام مع المعيار NACE MR0175 / ISO 15156 للمواد المقاومة للتشقق الكبريتيدي.

ما الذي يميز HPNV عن صمامات أخرى؟

العمود غير القابل للدوران يمنع التعليق والخدش، والتصميم المقاوم للانفجار (blow-out proof) يضمن سلامة التشغيل تحت الأحمال عالية الضغط ودورات الضغط المتكررة، مع إمكانية فتح/إغلاق كامل بحد أقصى 5 دورات فقط.

التعريف

الطراز	HPNV
النوع الفرعي	Needle valve

نطاق القياس

نطاق الضغط

1034…1034 bar · 1379…1379 bar · 2068…2068 bar · 4136…4136 bar

ظروف العملية

وصلة العملية	3/8 NPT1 NPT¼" cone/threaded screw connection3/8" cone/threaded screw connection9/16" cone/threaded screw connection¾" cone/threaded screw connection1" cone/threaded screw connection¼ NPT½ NPT¾ NPTFemale thread/female thread per ANSI / ASME B1.20.1, code NPTMale thread/female thread per ANSI / ASME B1.20.1, code NPTCone/threaded fitting
درجة حرارة العملية	−55…+210 °C

المواد

مادة الأجزاء الملامسة	Stainless steel 316 (1.4401), Stainless steel XM-19 (S20910), Stainless steel 17-4PH (1.4542), Duplex F51 (1.4462), Stainless steel 17-4PH (1.4542) per ASTM A564, Duplex F51 (1.4462) per ASTM A479
مادة الإحكام	PTFE, glass-fibre filled, PTFE, carbon-fibre reinforced

بيئة التشغيل

حرارة المحيط

−55…+210 °C

الشهادات والموافقات

الشهادات

API 598ISO 5208MSS SP-61DIN EN 12266-1EN 10204NACE MR0175 / ISO 15156EN 10204 3.1BS6755MSS SP-99NACE MR0175ISO 15156MSS SP-25

تفاصيل إضافية

لغات ورقة البيانات

جداول من ورقة البيانات

Model HPNV
Standards used
Design	■ ASME B1.20.1, pipe threads, general purpose (inch) ■ ASME B31.3, process piping
Tests	■ MSS SP-99, valves for measuring instruments ■ API 598, valve inspection and testing ■ ISO 5208, pressure testing of metallic valves with leakage rate A ■ MSS SP-61, pressure testing of valves ■ DIN EN 12266-1, pressure tests, test procedures and acceptance criteria for industrial valves
Material requirements	NACE MR0175 / ISO 15156, use in H₂S-containing environments in oil and gas production
Marking	MSS SP-25, markings on valves
Nominal pressure	■ 15,000 psi [1,034 bar] ■ 20,000 psi [1,379 bar] ■ 30,000 psi [2,068 bar] ■ 60,000 psi [4,136 bar]
Permissible temperature range	-55 …+210 °C [-67 …+410 °F]
Version	■ 2-way valve, straight bore ■ 2-way valve, angled bore ■ 3-way valve, two pressure connections ■ 3-way valve, one pressure connection
Connection type	■ Female thread/female thread per ANSI / ASME B1.20.1, code NPT ■ Male thread/female thread per ANSI / ASME B1.20.1, code NPT ■ Cone/threaded fitting
Connection size	■ ¼NPT ■ 3/8 NPT ■ ½NPT ■ ¾NPT 1) ■ 1 NPT 1) ■ ¼" cone/threaded screw connection ■ 3/8" cone/threaded screw connection ■ 9/16" cone/threaded screw connection ■ ¾" cone/threaded screw connection 2) 2)
Valve bore size	■ 2 mm[0.079 in] ■ 4 mm[0.197 in] ■ 6 mm[0.236 in] ■ 8 mm[0.394 in]
Pressure-temperature limits (for diagram, see page 6)	The limits for operating pressure and temperature depend on the version and the sealing material.
Mounting	Suitable for mounting bracket, with mounting holes
Features	■ Sealing through self-centring piston ■ Bubble-tight shut-off ■ Flow direction marked on valve body ■ Hydrostatically tested ■ 100 %material traceability for wetted parts
Special bonnet feature	■ Without ■ Suitable for low-temperature applications (to -196 °C [-321 °F]) ■ Mounting holes and valve stem for actuators
Special design feature	■ Without ■ For oxygen, oil and grease free ■ For sour gas applications (NACE) 3)

Materials

Wetted parts
Valve body	■ Stainless steel 316 (1.4401) ■ Other materials on request
Spindle tip	■ Stainless steel 17-4PH (1.4542) per ASTM A564 ■ Duplex F51 (1.4462) per ASTM A479 1) ■ Stainless steel XM-19 (S20910) 1)
Sealing	■ PTFE, glass-fibre filled ■ PTFE, carbon-fibre reinforced
Non-wetted parts
Handle	■ Handle from anodised aluminium (EN AW-6060-T6) ■ T-bar handle from stainless steel 316L ■ Without (suitable for actuators)

Nominal pressure	Max. permissible operating pressure in bar at temperature in °C	Max. permissible operating pressure in psi at temperature in °F
15,000 psi [1,034 bar]	1,034 bar at 38 °C	15,000 psi at 100 °F
20,000 psi [1,379 bar]	1,379 bar at 38 °C	20,000 psi at 100 °F
30,000 psi [2,068 bar]	2,068 bar at 38 °C	30,000 psi at 100 °F
60,000 psi [4,136 bar]	4,136 bar at 38 °C	60,000 psi at 100 °F

Thread	Dimensions in mm[in]
A	B	C	D	E	F	H	I	L	M	SP	Orifice
¼ NPT	50.8 [2.00]	25.4 [1.00]	50.8 [2.00]	41.3 [1.63]	30.2 [1.19]	115.9 [4.6]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 NPT	50.8 [2.00]	25.4 [1.00]	53.98 [2.13]	41.3 [1.63]	30.2 [1.19]	119.1 [4.7]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	25.4 [1.00]	5.5 [0.22]
½ NPT	63.5 [2.50]	31.75 [1.25]	70 [2.76]	54 [2.13]	38.1 [1.5]	139.7 [5.5]	9 [0.35]	76.2 [3]	9.4 [0.37]	17.5 [0.69]	31.75 [1.25]	8 [0.31]
3/4 NPT 1)	76.2 [3.00]	38.1 [1.50]	95.25 [3.75]	73 [2.87]	57 [2.24]	184.8 [7.3]	11.5 [0.45]	232.7 [9.2]	16 [0.63]	22.35 [0.88]	44.45 [1.75]	11.1 [0.44]
1 NPT 1)	104.78 [4.13]	52.39 [2.06]	117.2 [2.8]	95 [3.74]	71.2 [2.8]	228.9 [9]	14 [0.55]	232.7 [9.2]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

عرض الكل (20)

Thread	Dimensions in mm[in]
A	B	C	D	E	F	H	I	L	M	SP	Orifice
¼ NPT	50.8 [2.00]	25.4 [1.00]	53.98 [2.13]	41.3 [1.63]	30.2 [1.19]	119.1 [4.7]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 NPT	50.8 [2.00]	25.4 [1.00]	54.77 [2.16]	41.3 [1.63]	30.2 [1.19]	119.1 [4.7]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	25.4 [1.00]	5.5 [0.22]
½NPT	63.5 [2.50]	31.75 [1.25]	70 [2.76]	54 [2.13]	38.13 [1.5]	139.7 [5.5]	9 [0.35]	76.2 [3]	9.4 [0.37]	17.5 [0.69]	31.75 [1.25]	8 [0.31]
3/4 NPT 1)	76.2 [3.00]	38.1 [1.50]	95.25 [3.75]	73 [2.87]	57 [2.24]	184.8 [7.3]	11.5 [0.45]	232.7 [9.2]	16 [0.63]	22.35 [0.88]	44.45 [1.75]	11.1 [0.44]
1 NPT 1)	104.78 [4.13]	52.39 [2.06]	117.2 [4.61]	95 [3.74]	71.2 [2.8]	228.9 [9]	14 [0.55]	232.7 [9.2]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

Thread	Dimensions in mm[in]
A	B	C	D	E	F	H	I	L	M	SP	Orifice
¼ NPT	50.8 [2.00]	25.4 [1.00]	65.09 [2.56]	41.3 [1.63]	30.2 [1.19]	30.2 [1.19]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 NPT	50.8 [2.00]	25.4 [1.00]	65.88 [2.59]	41.3 [1.63]	30.2 [1.19]	30.2 [1.19]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	25.4 [1.00]	5.5 [0.22]
½NPT	63.5 [2.50]	31.75 [1.25]	85.73 [3.38]	54 [2.13]	38.1 [1.5]	38.1 [1.5]	9 [0.35]	76.2 [3]	9.4 [0.37]	17.5 [0.69]	31.75 [1.25]	8 [0.31]
3/4 NPT 1)	76.2 [3.00]	38.1 [1.50]	111.12 [4.37]	73 [2.87]	57 [2.24]	57 [2.24]	11.5 [0.45]	232.7 [9.2]	16 [0.63]	22.35 [0.88]	44.45 [1.75]	11.1 [0.44]
1 NPT 1)	104.78 [4.13]	52.39 [2.06]	141.29 [5.56]	95 [3.74]	71.2 [2.8]	71.2 [2.8]	14 [0.55]	232.7 [9.2]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

Thread	Dimensions in mm[in]
A	B	C	D	F	H	I	L	M	SP	Orifice
¼ NPT	50.8 [2.00]	25.4 [1.00]	53.98 [2.13]	30.2 [1.19]	119.1 [4.7]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 NPT	50.8 [2.00]	25.4 [1.00]	54.77 [2.16]	30.2 [1.19]	119.1 [4.7]	6 [0.24]	76.2 [3]	9.4 [0.37]	16 [0.63]	25.4 [1.00]	5.5 [0.22]
½NPT	63.5 [2.50]	31.75 [1.25]	70 [2.76]	38.13 [1.5]	139.7 [5.5]	9 [0.35]	76.2 [3]	9.4 [0.37]	17.5 [0.69]	31.75 [1.25]	8 [0.31]
3/4 NPT 1)	76.2 [3.00]	38.1 [1.50]	95.25 [3.75]	57 [2.24]	184.8 [7.3]	11.5 [0.45]	232.7 [9.2]	16 [0.63]	22.35 [0.88]	44.45 [1.75]	11.1 [0.44]
1 NPT 1)	104.78 [4.13]	52.39 [2.06]	117.2 [4.61]	71.2 [2.8]	228.9 [9]	14 [0.55]	232.7 [9.2]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

Thread	Dimensions in mm[in]
A	B	C	D	E	F	H	I	J	L	M	SP	Orifice
¼ NPT	50.8 [2.00]	25.4 [1.00]	50.8 [2]	41.3 [1.63]	30.2 [1.19]	115.9 [4.6]	6 [0.24]	76.2 [3]	15 [0.6]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 NPT	50.8 [2.00]	25.4 [1.00]	53.98 [2.13]	41.3 [1.63]	30.2 [1.19]	119.1 [4.7]	6 [0.24]	76.2 [3]	19 [0.7]	9.4 [0.37]	16 [0.63]	25.4 [1.00]	5.5 [0.22]
½NPT	63.5 [2.50]	31.75 [1.25]	69.85 [2.75]	57 [2.24]	38.1 [1.5]	139.5 [5.5]	9 [0.35]	76.2 [3]	25 [1]	9.4 [0.37]	17.5 [0.69]	31.75 [1.25]	8 [0.31]
3/4 NPT 1)	76.2 [3.00]	38.1 [1.50]	95.25 [3.75]	76 [2.99]	57 [2.24]	184.8 [7.3]	11.5 [0.45]	232.7 [9.2]	25 [1]	16 [0.63]	22.35 [0.88]	44.45 [1.75]	11.1 [0.44]
1 NPT 1)	104.78 [4.13]	52.39 [2.06]	117.48 [4.63]	95 [3.74]	71.2 [2.8]	229.1 [9]	14 [0.55]	232.7 [9.2]	29 [1.1]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

For outer Ø	Dimensions in mm[in]
A	B	C	D	E	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	50.8 [2.00]	41.3 [1.63]	30.2 [1.19]	115.9 [4.6]	6 [0.24]	76.2 [3]	12.2 [0.5]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 "	50.8 [2.00]	25.4 [1.00]	53.98 [2.13]	41.3 [1.63]	30.2 [1.19]	115.9 [4.6]	6 [0.24]	76.2 [3]	14.3 [0.6]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
9/16 "	63.5 [2.50]	31.75 [1.25]	70 [2.76]	57.3 [2.26]	41.4 [1.63]	139.7 [5.5]	9 [0.35]	76.2 [3]	18.6 [0.7]	9.4 [0.37]	17.5 [0.69]	25.4 [1]	8 [0.31]
3/4 "	76.2 [3.00]	38.1 [1.50]	95.25 [3.75]	76.2 [3]	57.2 [2.25]	184.8 [7.3]	11.5 [0.45]	232.7 [9.2]	18.8 [0.7]	16 [0.63]	22.35 [0.88]	34.90 [1.37]	11.1 [0.44]
1 "	104.78 [4.13]	52.39 [2.06]	117.2 [2.8]	95 [3.74]	71.2 [2.8]	228.9 [9]	14 [0.55]	232.7 [9.2]	21.3 [0.8]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

For outer Ø	Dimensions in mm[in]
A	B	C	D	E	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	53 [2.09]	39.5 [1.56]	30 [1.18]	126.3 [5.0]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
3/8 "	50.8 [2.00]	25.4 [1.00]	53 [2.09]	39.5 [1.56]	30 [1.18]	126.3 [5.0]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
9/16 "	66.68 [2.63]	33.34 [1.31]	60 [2.36]	40 [1.57]	29 [1.14]	133.3 [5.2]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	3.2 [0.13]

For outer Ø	Dimensions in mm[in]
A	B	C	D	E	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	53 [2.09]	42 [1.65]	32.4 [1.28]	126 [5.0]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	2 [0.06]
3/8 "	50.8 [2.00]	25.4 [1.00]	57 [2.24]	42.9 [1.69]	33.3 [1.31]	130 [5.1]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	2 [0.06]
9/16 "	66.68 [2.63]	33.34 [1.31]	63.5 [2.50]	45.5 [1.79]	33.3 [1.31]	136.5 [5.4]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	2 [0.06]

For outer Ø	Dimensions in mm[in]
A	B	C	D	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	61.9 [2.44]	30.2 [1.19]	127 [5]	6 [0.24]	76.2 [3]	12.2 [0.5]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 "	50.8 [2.00]	25.4 [1.00]	61.9 [2.44]	30.2 [1.19]	127 [5]	6 [0.24]	76.2 [3]	14.3 [0.6]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
9/16 "	63.5 [2.50]	31.75 [1.25]	85.73 [3.38]	41.43 [1.63]	155.4 [6.1]	9 [0.35]	76.2 [3]	18.6 [0.7]	9.4 [0.37]	17.5 [0.69]	25.4 [1]	8 [0.31]
3/4 "	76.2 [3.00]	38.1 [1.50]	107.95 [4.25]	57.15 [2.25]	197.5 [7.8]	11.5 [0.45]	232.7 [9.2]	18.8 [0.7]	16 [0.63]	22.35 [0.88]	34.90 [1.37]	11.1 [0.44]
1 "	104.78 [4.13]	52.39 [2.06]	130.18 [5.13]	71.19 [2.80]	241.8 [9.5]	14 [0.55]	232.7 [9.2]	21.3 [0.8]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

For outer Ø	Dimensions in mm[in]
A	B	C	D	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	53 [2.09]	30 [1.18]	126.3 [5.0]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
3/8 "	50.8 [2.00]	25.4 [1.00]	57 [2.24]	30 [1.18]	130.3 [5.1]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
9/16 "	66.68 [2.63]	33.34 [1.31]	62 [2.44]	29 [1.14]	135.3 [5.3]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	3.2 [0.13]

For outer Ø	Dimensions in mm[in]
A	B	C	D	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	60 [2.36]	32.4 [1.28]	133 [5.2]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	2 [0.06]
3/8 "	50.8 [2.00]	25.4 [1.00]	66 [2.6]	33.3 [1.31]	139 [5.5]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	2 [0.06]
9/16 "	66.68 [2.63]	33.34 [1.31]	71 [2.8]	33.3 [1.31]	144 [5.7]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	2 [0.06]

DN	Dimensions in mm[in]
A	B	C	D	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	61.9 [2.44]	41.43 [1.63]	127 [5]	6 [0.24]	76.2 [3]	12.2 [0.5]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 "	50.8 [2.00]	25.4 [1.00]	61.9 [2.44]	41.43 [1.63]	131.8 [5.2]	6 [0.24]	76.2 [3]	14.3 [0.6]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
9/16 "	63.5 [2.50]	31.75 [1.25]	85.73 [3.38]	57.3 [2.26]	158.6 [6.2]	9 [0.35]	76.2 [3]	18.6 [0.7]	9.4 [0.37]	17.5 [0.69]	25.4 [1]	8 [0.31]
3/4 "	76.2 [3.00]	38.1 [1.50]	107.95 [4.25]	76.2 [3]	207 [8.1]	11.5 [0.45]	232.7 [9.2]	18.8 [0.7]	16 [0.63]	22.35 [0.88]	34.90 [1.37]	11.1 [0.44]
1 "	104.78 [4.13]	52.39 [2.06]	130.18 [5.13]	71.2 [2.8]	264.1 [10.4]	14 [0.55]	232.7 [9.2]	21.3 [0.8]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

DN	Dimensions in mm[in]
	A	B	C	D	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	57.5 [2.26]	39.5 [1.56]	130.8 [5.1]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
3/8 "	50.8 [2.00]	25.4 [1.00]	69.6 [2.74]	39.5 [1.56]	142.9 [5.6]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
9/16 "	66.68 [2.63]	33.34 [1.31]	77.5 [3.05]	40 [1.57]	150.8 [5.9]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	3.2 [0.13]

DN	Dimensions in mm[in]
	A	B	C	D	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	60 [2.36]	42 [1.65]	133 [5.2]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	2 [0.06]
3/8 "	50.8 [2.00]	25.4 [1.00]	73 [2.87]	42.9 [1.69]	146 [5.7]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	2 [0.06]
9/16 "	66.68 [2.63]	33.34 [1.31]	83 [3.27]	45.5 [1.79]	156 [6.1]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	2 [0.06]

For outer Ø	Dimensions in mm[in]
A	B	C	D	E	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	61.9 [2.44]	41.3 [1.63]	30.2 [1.19]	127 [5]	6 [0.24]	76.2 [3]	12.2 [0.5]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
3/8 "	50.8 [2.00]	25.4 [1.00]	61.9 [2.44]	41.3 [1.63]	30.2 [1.19]	127 [5]	6 [0.24]	76.2 [3]	14.3 [0.6]	9.4 [0.37]	16 [0.63]	19.05 [0.75]	5.5 [0.22]
9/16 "	63.5 [2.50]	31.75 [1.25]	85.73 [3.38]	57.3 [2.26]	41.4 [1.63]	155.4 [6]	9 [0.35]	76.2 [3]	18.6 [0.7]	9.4 [0.37]	17.5 [0.69]	25.4 [1]	8 [0.31]
3/4 "	76.2 [3.00]	38.1 [1.50]	107.95 [4.25]	76.2 [3]	57.2 [2.25]	197.5 [7.8]	11.5 [0.45]	232.7 [9.2]	18.8 [0.7]	16 [0.63]	22.35 [0.88]	34.90 [1.37]	11.1 [0.44]
1 "	104.78 [4.13]	52.39 [2.06]	130.18 [5.13]	95 [3.74]	71.2 [2.8]	241.8 [9.5]	14 [0.55]	232.7 [9.2]	21.3 [0.8]	17.4 [0.69]	35 [1.38]	44.45 [1.75]	14.3 [0.56]

For outer Ø	Dimensions in mm[in]
A	B	C	D	E	F	H	I	J	L	M	SP	Orifice
¼ "	50.8 [2.00]	25.4 [1.00]	53 [2.09]	39.5 [1.56]	30 [1.18]	126.3 [5.0]	7 [0.28]	76.2 [3]	14.6 [0.6]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
3/8 "	50.8 [2.00]	25.4 [1.00]	57 [2.24]	39.5 [1.56]	30 [1.18]	130.3 [5.1]	7 [0.28]	76.2 [3]	18.7 [0.7]	10 [0.39]	17.5 [0.69]	25.4 [1]	3.2 [0.13]
9/16 "	66.68 [2.63]	33.34 [1.31]	62 [2.44]	40 [1.57]	29 [1.14]	135.3 [5.3]	7 [0.28]	76.2 [3]	26.9 [1.1]	10 [0.39]	17.5 [0.69]	38.1 [1.5]	3.2 [0.13]

Logo	Description
-	PMI 1) test certificate (option) All wetted parts

صمام إبرة عالي الضغط

الوصف

المزايا

الأسئلة والأجوبة

1 مادة قياسية من عائلة HPNV
