WIKA · قياس الضغط · العائلة HPAC

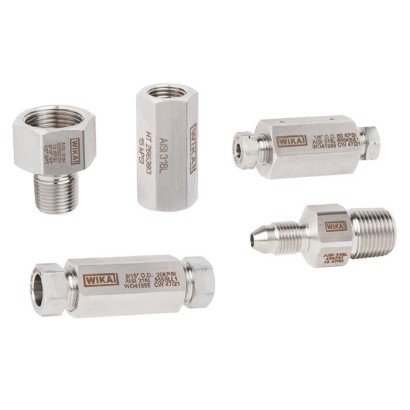

محولات ووصلات توصيل للضغط العالي

Name: محولات ووصلات توصيل للضغط العالي
Brand: WIKA
SKU: HPAC

الضغط الاسمي 15,000 ... 60,000 psi [1,034 ... 4,136 bar]

النطاق

1034…4136 bar

EN 10204 3.1

السعر

حسب الطلب

يعتمد على التكوين

طلب عرض سعر

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

الوصف

تم تطوير محولات التوصيل ووصلات الضغط العالي طراز HPAC لتطبيقات الضغط العالي من 15,000 ... 60,000 psi [1,034 ... 4,136 bar]. وتُعد محولات التوصيل والوصلات مناسبة بشكل خاص لإجراء توصيل آمن مع صمامات الضغط العالي والسرات (nipples) والوصلات/التركيبات، حتى في لوحات التحكم حيث تكون المساحة محدودة، أو في منصات الاختبار.

يتوفر نطاق واسع من محولات التوصيل والوصلات، بما في ذلك توصيلات ذكر-أنثى أو ذكر-ذكر أو أنثى-أنثى، مع خيوط NPT أو كنسخة مخروط/خيط (C&T).

يضمن التصميم واستخدام مواد عالية الجودة أزمنة تشغيل طويلة ودرجة إحكام تسرب مرتفعة.

المزايا

تصميم من قطعة واحدة
وسم بالليزر للتعريف
تشكيلة واسعة من المواد والتجهيزات المتاحة
تركيبة خاصة بالعميل من المحولات والتجهيزات والصمامات وأجهزة القياس (instrument hook-up) عند الطلب

الأسئلة والأجوبة

ما نطاق الضغط الاسمي لطراز HPAC؟

الضغط الاسمي من 15,000 إلى 60,000 psi [1,034 إلى 4,136 bar]، مع مستويات اسمية عند 15,000 psi و20,000 psi و60,000 psi.

ما هي وصلات العملية المتوفرة؟

خيوط NPT بأحجام ¼ و3/8 و½، أو نسخة مخروط/خيط (C&T) بأحجام ¼" و3/8" و9/16".

ما هي مواد الأجزاء الملامسة للوسط؟

فولاذ مقاوم للصدأ Stainless steel 316 (1.4401) أو Stainless steel 316L (1.4404).

ما الشهادات المتاحة؟

شهادة EN 10204 3.1 كمعيار، مع إمكانية الحصول على شهادة فحص 3.1 وفق EN 10204 كخيار.

ما تكوينات التوصيل المتاحة؟

توصيلات ذكر-أنثى أو ذكر-ذكر أو أنثى-أنثى، بخيوط NPT أو كنسخة مخروط/خيط (C&T).

هل يمكن الحصول على تركيبة مخصصة مع أجهزة القياس؟

نعم، يتوفر عند الطلب تركيب خاص بالعميل يجمع المحولات والتركيبات والصمامات وأجهزة القياس (instrument hook-up).

لماذا يُختار طراز HPAC في لوحات التحكم ومنصات الاختبار؟

لأنه يتيح توصيلاً آمناً مع صمامات الضغط العالي والسرات والوصلات حتى في المساحات المحدودة، بتصميم من قطعة واحدة ودرجة إحكام تسرب مرتفعة.

المُهيِّئ · خطوة بخطوة

اجمع HPAC لمهمتك

يُبنى رقم المادة تلقائيًا. عند الشك — تواصل مع مهندس؛ سنساعدك حسب معطيات الخط.

الخطوة 1 من 1

بنية التكوين· اضغطوا على مقطع مميّز للانتقال إلى المعامل المقابل

1/4" NPT - 15000 PSI3/8" NPT - 15000 PSI1/2" NPT - 15000 PSI1/4" coned and threaded - 20000 PSI3/8" coned and threaded - 20000 PSI9/16" coned and threaded - 20000 PSI

تهيئتك

نمط الجسمFemale-Male Connection Adapter
الحجم والوصلات1/4" NPT - 15000 PSI
الحجم والوصلات—
مادة الجسمStainless steel 316/316L - 1.4401/1.4404 - S31600/S31603
ميزة تصميم خاصةWithout
تعريف الوصلةWithout
الشهادات3.1 standard certificate as per EN 10204, all wetted parts material

اقتراح الذكاء الاصطناعي حسب المعايير

أكمل التهيئة

اختر جميع الخيارات لإرسال الطلب.

إرسال الطلب

التعريف

الطراز	HPAC
النوع الفرعي	Connection adapters and couplings

نطاق القياس

نطاق الضغط

1034…1034 bar · 1379…1379 bar · 4136…4136 bar · 15000…15000 psi · 20000…20000 psi · 60000…60000 psi · 15000…60000 psi · 1034…4136 bar

ظروف العملية

وصلة العملية

3/8 NPT¼ NPT½ NPT¼" cone/thread (C&T)3/8" cone/thread (C&T)9/16" cone/thread (C&T)¼" C&T3/8" C&T9/16" C&T1/4 NPT1/2 NPT1/4 C&T3/8 C&T9/16 C&T

المواد

مادة الأجزاء الملامسة

Stainless steel 316 (1.4401), Stainless steel 316L (1.4404)

الشهادات والموافقات

الشهادات

EN 10204 3.13.1 inspection certificate per EN 10204 (option)

تفاصيل إضافية

لغات ورقة البيانات

جداول من ورقة البيانات

Model HPAC
Adapter type	■ Female-male connection adapter ■ Male-male connection adapter ■ Female-female connection coupling
Nominal pressure	■ 15,000 psi [1,034 bar] ■ 20,000 psi [1,379 bar] ■ 60,000 psi [4,136 bar]
Connection type	■ Thread per ANSI / ASME B1.20.1, code NPT ■ Cone/thread (C&T) 1)
Connection size
15,000 psi [1,034 bar]	■ ¼NPT ■ 3/8 NPT ■ ½NPT
20,000 psi [1,379 bar]	■ ¼" cone/thread (C&T) ■ 3/8" cone/thread (C&T) ■ 9/16" cone/thread (C&T)
60,000 psi [4,136 bar]	■ ¼" cone/thread (C&T) ■ 3/8" cone/thread (C&T) ■ 9/16" cone/thread (C&T)
Features	■ 100 %traceability of the parts

Side 1 15,000 psi [1,034 bar]	Side 2 15,000 psi [1,034 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼ NPT	19.05 [0.75]	33 [1.3]
¼ NPT	3/8 NPT	19.05 [0.75]	37 [1.46]
¼ NPT	½NPT	23.8 [0.94]	40 [1.58]
3/8 NPT	¼ NPT	25.4 [1]	35 [1.38]
3/8 NPT	3/8 NPT	25.4 [1]	37 [1.46]
3/8 NPT	½NPT	25.4 [1]	40 [1.58]
½NPT	¼ NPT	30.16 [1.19]	41 [1.61]
½NPT	3/8 NPT	30.16 [1.19]	45 [1.77]
½NPT	½NPT	30.16 [1.19]	48 [1.89]

Side 1 15,000 psi [1,034 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼" C&T	19.05 [0.75]	36 [1.42]
¼ NPT	3/8" C&T	20.6 [0.81]	41.5 [1.63]
¼ NPT	9/16" C&T	30.16 [1.19]	44.4 [1.75]
3/8 NPT	¼" C&T	35.4 [1.39]	38 [1.50]
3/8 NPT	3/8" C&T	25.4 [1]	41.5 [1.63]
3/8 NPT	9/16" C&T	30.16 [1.19]	44.4 [1.75]
½NPT	¼" C&T	30.16 [1.19]	44 [1.73]
½NPT	3/8" C&T	30.16 [1.19]	49.5 [1.95]
½NPT	9/16" C&T	30.16 [1.19]	49.4 [1.94]

Side 1 15,000 psi [1,034 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼" C&T	19.05 [0.75]	37.5 [1.48]
¼ NPT	3/8" C&T	19.05 [0.75]	41.5 [1.63]
¼ NPT	9/16" C&T	22.22 [0.88]	45 [1.77]
3/8 NPT	¼" C&T	25.4 [1]	39.5 [1.56]
3/8 NPT	3/8" C&T	25.4 [1]	43.5 [1.71]
3/8 NPT	9/16" C&T	25.4 [1]	45 [1.77]
½NPT	¼" C&T	30.16 [1.19]	45.5 [1.79]
½NPT	3/8" C&T	30.16 [1.19]	49.5 [1.95]
½NPT	9/16" C&T	30.16 [1.19]	53 [2.09]

عرض الكل (20)

Side 1 20.000 psi [1,379 bar]	Side 2 15.000 psi [1,034 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼ NPT	15.9 [0.62]	30 [1.18]
¼" C&T	3/8 NPT	19.05 [0.75]	34 [1.34]
¼" C&T	½NPT	23.8 [0.94]	37 [1.46]
3/8" C&T	¼ NPT	19.05 [0.75]	38 [1.50]
3/8" C&T	3/8 NPT	19.05 [0.75]	37 [1.46]
3/8" C&T	½NPT	23.8 [0.94]	40 [1.58]
9/16" C&T	¼ NPT	25.4 [1]	45 [1.77]
9/16" C&T	3/8 NPT	25.4 [1]	49 [1.93]
9/16" C&T	½NPT	25.4 [1]	46 [1.81]

Side 1 60,000 psi [1,379 bar]	Side 2 15,000 psi [1,034 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼ NPT	19.05 [0.75]	29 [1.14]
¼" C&T	3/8 NPT	19.05 [0.75]	33 [1.3]
¼" C&T	½NPT	23.8 [0.94]	37 [1.46]
3/8" C&T	¼ NPT	25.4 [1]	35 [1.38]
3/8" C&T	3/8 NPT	25.4 [1]	37 [1.46]
3/8" C&T	½NPT	25.4 [1]	40 [1.57]
9/16" C&T	¼ NPT	34.93 [1.38]	41 [1.61]
9/16" C&T	3/8 NPT	34.93 [1.38]	44 [1.73]
9/16" C&T	½NPT	34.93 [1.38]	46 [1.81]

Side 1 20,000 psi [1,379 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	15.9 [0.62]	33 [1.3]
¼" C&T	3/8" C&T	20.6 [0.81]	38.5 [1.52]
¼" C&T	9/16" C&T	30.16 [1.19]	42.4 [1.67]
3/8" C&T	¼" C&T	19.05 [0.75]	42 [1.65]
3/8" C&T	3/8" C&T	30.64 [1.21]	41.5 [1.63]
3/8" C&T	9/16" C&T	30.16 [1.19]	42.4 [1.67]
9/16" C&T	¼" C&T	25.4 [1]	47 [1.85]
9/16" C&T	3/8" C&T	25.4 [1]	50 [1.97]
9/16" C&T	9/16" C&T	30.16 [1.19]	50.4 [1.98]

Side 1 20,000 psi [1,379 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	15.9 [0.62]	34.5 [1.36]
¼" C&T	3/8" C&T	15.9 [0.62]	38.5 [1.52]
¼" C&T	9/16" C&T	22.2 [0.87]	42 [1.65]
3/8" C&T	¼" C&T	19.05 [0.75]	43.5 [1.71]
3/8" C&T	3/8" C&T	19.05 [0.75]	41.5 [1.63]
3/8" C&T	9/16" C&T	22.2 [0.87]	45 [1.78]
9/16" C&T	¼" C&T	25.4 [1]	50.5 [1.99]
9/16" C&T	3/8" C&T	25.4 [1]	54.5 [2.15]
9/16" C&T	9/16" C&T	25.4 [1]	51 [2.01]

Side 1 60,000 psi [1,379 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	19.05 [0.75]	33.5 [1.32]
¼" C&T	3/8" C&T	19.05 [0.75]	37.5 [1.48]
¼" C&T	9/16" C&T	22.2 [0.87]	41 [1.61]
3/8" C&T	¼" C&T	25.4 [1]	39.5 [1.56]
3/8" C&T	3/8" C&T	25.4 [1]	43.5 [1.71]
3/8" C&T	9/16" C&T	25.4 [1]	45 [1.78]
9/16" C&T	¼" C&T	34.93 [1.38]	50 [1.97]
9/16" C&T	3/8" C&T	34.93 [1.38]	49.5 [1.95]
9/16" C&T	9/16" C&T	34.93 [1.38]	51 [2.01]

Side 1 60,000 psi [1,379 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	19.05 [0.75]	32 [1.26]
¼" C&T	3/8" C&T	20.6 [0.81]	37.5 [1.48]
¼" C&T	9/16" C&T	30.16 [1.19]	42.4 [1.67]
3/8" C&T	¼" C&T	25.4 [1]	38 [1.5]
3/8" C&T	3/8" C&T	25.4 [1]	41.5 [1.63]
3/8" C&T	9/16" C&T	30.16 [1.19]	44.4 [1.75]
9/16" C&T	¼" C&T	34.93 [1.38]	47 [1.85]
9/16" C&T	3/8" C&T	34.93 [1.38]	47.5 [1.87]
9/16" C&T	9/16" C&T	34.93 [1.38]	50.4 [1.98]

Side 1 15,000 psi [1,034 bar]	Side 2 15,000 psi [1,034 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼ NPT	15.9 [0.62]	38 [1.5]
¼ NPT	3/8 NPT	19.1 [0.75]	45 [1.78]
¼ NPT	½NPT	23.8 [0.94]	51 [2.01]
3/8 NPT	3/8 NPT	23.8 [0.94]	53 [2.09]
3/8 NPT	½NPT	19.1 [0.75]	48 [1.89]
½NPT	½NPT	23.8 [0.94]	56 [2.2]

Side 1 15,000 psi [1,034 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼" C&T	15.9 [0.62]	44 [1.73]
¼ NPT	3/8" C&T	15.9 [0.62]	46.5 [1.83]
¼ NPT	9/16" C&T	22.2 [0.87]	55 [2.17]
3/8 NPT	¼" C&T	19.1 [0.75]	51.5 [2.03]
3/8 NPT	3/8" C&T	19.1 [0.75]	54.5 [2.15]
3/8 NPT	9/16" C&T	22.2 [0.87]	58 [2.28]
½NPT	¼" C&T	23.8 [0.94]	58 [2.28]
½NPT	3/8" C&T	23.8 [0.94]	61 [2.4]
½NPT	9/16 " C&T	23.8 [0.94]	61 [2.4]

Side 1 15,000 psi [1,034 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼" C&T	15.9 [0.62]	41 [1.61]
¼ NPT	3/8" C&T	20.6 [0.81]	48.5 [1.91]
¼ NPT	9/16" C&T	30.2 [1.19]	61 [2.4]
3/8 NPT	¼" C&T	19.1 [0.75]	47 [1.85]
3/8 NPT	3/8" C&T	20.6 [0.81]	25.5 [1]
3/8 NPT	9/16" C&T	30.2 [1.19]	64 [2.52]
½NPT	¼" C&T	23.8 [0.94]	52 [2.05]
½NPT	3/8" C&T	23.8 [0.94]	57.5 [2.26]
½NPT	9/16 " C&T	30.2 [1.19]	65.5 [2.58]

Side 1 20,000 psi [1,379 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	15.9 [0.62]	45.5 [1.79]
¼" C&T	3/8" C&T	20.6 [0.81]	56.5 [2.22]
¼" C&T	9/16" C&T	30.2 [1.19]	65.5 [2.58]
3/8" C&T	¼" C&T	15.9 [0.62]	49.5 [1.95]
3/8" C&T	3/8" C&T	20.6 [0.81]	59.5 [2.34]
3/8" C&T	9/16" C&T	30.2 [1.19]	69.5 [2.74]
9/16" C&T	¼" C&T	22.2 [0.87]	58 [2.28]
9/16" C&T	3/8" C&T	22.2 [0.87]	60.5 [2.38]
9/16" C&T	9/16" C&T	30.2 [1.19]	67.4 [2.65]

Side 1 20,000 psi [1,379 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	12.7 [0.5]	45 [1.77]
¼" C&T	3/8" C&T	15.9 [0.62]	52.5 [2.07]
¼" C&T	9/16" C&T	22.2 [0.87]	60.5 [2.38]
3/8" C&T	3/8" C&T	18.9 [0.74]	55 [2.17]
3/8" C&T	9/16" C&T	22.2 [0.87]	63.5 [2.5]
9/16" C&T	9/16" C&T	22.2 [0.87]	64 [2.52]

Side 1 60,000 psi [1,379 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	15.9 [0.62]	44 [1.73]
¼" C&T	3/8" C&T	20.6 [0.81]	54 [2.13]
¼" C&T	9/16" C&T	30.2 [1.19]	64 [2.52]
3/8" C&T	¼" C&T	20.6 [0.81]	57 [2.24]
3/8" C&T	3/8" C&T	30.2 [1.19]	68 [2.68]
9/16" C&T	9/16" C&T	30.2 [1.19]	66.8 [2.63]

Side 1 15,000 psi [1,034 bar]	Side 2 15,000 psi [1,034 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼ NPT	19.1 [0.75]	38.1 [1.5]
¼ NPT	3/8 NPT	25.4 [1]	41.3 [1.63]
¼ NPT	½NPT	30.2 [1.19]	50.8 [2]
3/8 NPT	3/8 NPT	25.4 [1]	41.3 [1.63]
3/8 NPT	½NPT	30.2 [1.19]	50.8 [2]
½NPT	½NPT	30.2 [1.19]	50.8 [2]

Side 1 20,000 psi [1,379 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼" C&T	¼" C&T	15.9 [0.63]	41 [1.61]
¼" C&T	3/8" C&T	19.1 [0.75]	41 [1.61]
3/8" C&T	3/8" C&T	19.1 [0.75]	45 [1.78]
3/8" C&T	9/16" C&T	25.4 [1]	50.8 [2]
9/16" C&T	9/16" C&T	25.4 [1]	54 [2.13]

Side 1 15,000 psi [1,034 bar]	Side 2 20,000 psi [1,379 bar]	Dimensions in mm[in]
SW	L
¼ NPT	¼" C&T	19.1 [0.75]	61 [2.4]
¼ NPT	3/8" C&T	19.1 [0.75]	44 [1.73]
¼ NPT	9/16" C&T	25.4 [1]	44 [1.73]
3/8 NPT	¼" C&T	25.4 [1]	44 [1.73]
3/8 NPT	3/8" C&T	25.4 [1]	44 [1.73]
3/8 NPT	9/16" C&T	25.4 [1]	44 [1.73]
½NPT	¼" C&T	30.2 [1.19]	50.8 [2]
½NPT	3/8" C&T	30.2 [1.19]	50.8 [2]
½NPT	9/16 " C&T	30.2 [1.19]	49 [1.93]

Side 1 60,000 psi [1,379 bar]	Side 2 60,000 psi [1,379 bar]	Dimensions in mm[in] SW	L
¼" C&T	¼" C&T	25.4 [1]	44.5 [1.75]
¼" C&T	3/8" C&T	25.4 [1]	49 [1.93]
¼" C&T	9/16" C&T	34.9 [1.37]	45 [1.78]
3/8" C&T	3/8" C&T	25.4 [1]	50.8 [2]
3/8" C&T	9/16" C&T	34.9 [1.37]	49 [1.93]
9/16" C&T	9/16" C&T	34.9 [1.37]	60.3 [2.38]
