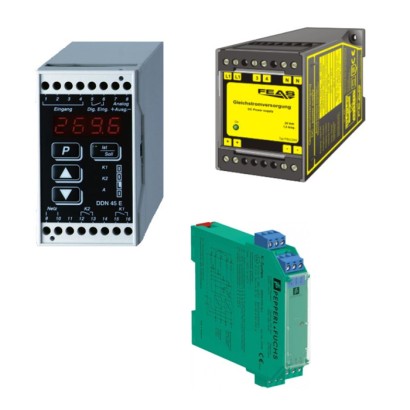

WIKA · قياس المستوى · العائلة ELM
مرسلات الضغط، مرسلات الضغط المثبتة على الرأس، مرحلات نقطة الضبط، مرحلات حماية التلامس
لتحويل إشارات المستشعر إلى إشارات تيار وحماية التلامسات من الأحمال الزائدة
الخرج
4mA...20mA · HART
الدقة
±5%
الحماية
IP20
ATEXIECExEACEx ia IICII 1G Ex ia IICII 1D Ex ia IIICII(1)G [ExiaGa] IICII(1)D [ExiaDa] IIICI(M1) [ExiaMa] I
السعر
حسب الطلب
يعتمد على التكوين
الوصف
تُستخدم هذه المجموعة لتحويل إشارات المستشعرات (دخل المقاومة) إلى إشارات خرج تماثلية أو رقمية متناسبة، ولحماية التلامسات من الأحمال الزائدة. تشمل العائلة مرسلات مثبتة على الرأس، ومضخمات نقطة الضبط، ومضخمات التبديل، ووحدات RC لتخميد التلامسات. تختار هذه الأجهزة عند الحاجة لعزل الدخل والخرج وإمداد الطاقة عن بعضها البعض ضمن أنظمة القياس.
المزايا
- الحماية من الانفجار اختيارية
الأسئلة والأجوبة
ما هو نطاق درجة حرارة التشغيل المحيط؟
تعمل الأجهزة في نطاق من -40 °C حتى +85 °C.
ما هي إشارات الخرج المتاحة؟
إشارات تماثلية مثل 4mA…20mA و0V…10V، وإشارات رقمية عبر HART وPROFIBUS وFOUNDATION Fieldbus، بالإضافة إلى مخارج تلامس مثل 2x SPDT AC250V/4A.
هل تتوفر نسخ للمناطق الخطرة؟
نعم، تتوفر الحماية من الانفجار كخيار مع شهادات ATEX وIECEx وEAC وتصنيفات مثل Ex ia IIC وII 1D Ex ia IIIC.
ما هي خيارات إمداد الطاقة؟
يمكن تغذية الجهاز بجهد DC 8V…35V أو DC 11V…30V أو AC 230V حسب الطراز.
كيف يتم التوصيل الكهربائي؟
عبر أطراف توصيل بمسامير لمقاطع أسلاك من 0.14mm² حتى 2.5mm²، أو عبر أسلاك طائرة.
ما وظيفة مرحلات حماية التلامس في هذه المجموعة؟
تحمي التلامسات من الأحمال الزائدة، وتشمل الوحدات مخارج تلامس مثل 2x SPST AC230V/2A و4x SPST AC230V/2A.
ما هي دقة التحويل؟
الدقة المذكورة هي ±5%.
الخصائص الكهربائية
| إشارة الخرج | 4mA...20mA · HART · PROFIBUS · FOUNDATION Fieldbus · 0V...10V · 2x SPST AC230V/2A · 4x SPST AC230V/2A · 2x SPDT AC250V/4A |
| التغذية | DC 8V...35V, AC 230V, DC 11V...30V |
| وصلة كهربائية | Screw terminal 0.14...2.5mm², flying leads |
بيئة التشغيل
| حرارة المحيط | −40…+85 °C |
| تصنيف IP | IP20 |
| الوزن | 0.2 kg |
الشهادات والموافقات
| الشهادات | ATEXIECExEAC |
| حماية الانفجار | Ex ia IICII 1G Ex ia IICII 1D Ex ia IIICII(1)G [ExiaGa] IICII(1)D [ExiaDa] IIICI(M1) [ExiaMa] I |
تفاصيل إضافية
| لغات ورقة البيانات | EN, DE |
جداول من ورقة البيانات
| Type | T15.R-ZZ-LVL Page 5 | T15.R-AI-LVL Page 5 | T32.3S.000-LVL Page 6 | T32.3S.01S-LVL Page 6 | |
|---|---|---|---|---|---|
| Mounting | Cabinet DIN rail | ||||
| Voltage supply | DC 8 V ... 35 V | DC 30 V | DC 10.5 V …42 V | DC 10.5 V ... 30 V | |
| Input | 1 kOhm…50 kOhm Potentiometer | 10 kOhm…100 kOhm Potentiometer | |||
| Output | 4 mA ... 20 mA | 4 mA ... 20 mA, HART 5 (HART 7 optional) | |||
| Temperature | -40 °C …+85 °C | ||||
| Ex | Ex ia IIC | approval | Ex ia IIC | ||
| Dimensions | 17.5mm x 99mm x 113,6mm | ||||
| additional features | programmable |
| Type | MUL-D21 Page 7 | MUL-D23 Page 7 | MUL-D41 Page 8 | MUL-D43 Page 8 |
|---|---|---|---|---|
| Mounting | Cabinet DIN rail | |||
| Voltage supply | DC 18 V ... 36 V | AC 230 V | DC 18 V ... 36 V | AC 230 V |
| Input | 1 kOhm…100 kOhm Potentiometer | |||
| Output | 4 mA ... 20 mA 2x Contact SPST AC 230 V, 2 A | 4 mA ... 20 mA 4x Contact SPST AC 230 V, 2 A | ||
| Temperature | 0 °C ... +55 °C | |||
| Ex approval | ||||
| Dimensions | 45mm x 75mm x 110 mm | 55mm x 75mm x 110 mm | ||
| additional features | programmable, LED display |
| Type | T15.H-ZZ-LVL Page 9 | T15.H-AI-LVL Page 9 | T32.1S.000-LVL Page 10 | T32.1S.0IS-LVL Page 10 |
|---|---|---|---|---|
| Mounting | Sensor head | |||
| Voltage supply | DC 8 V ... 35 V | DC 30 V | DC 10.5 V …42 V | DC 10.5 V ... 30 V |
| Input | 1 kOhm…50 kOhm Potentiometer | 10 kOhm…100 kOhm Potentiometer | ||
| Output | 4 mA ... 20mA | 4 mA ... 20mA, HART 5 (HART 7 optional) | ||
| Temperature | -40 °C …+85 °C | -40 °C …+85 °C | ||
| Ex approval | Ex ia IIC | Ex ia IIC | ||
| Dimensions | OD 44mm H 22.5mm | OD 49.5mm H 28.5mm | ||
| additional features | programmable |
| Type | T53.10.01S Page 11 | TS Page 12 | TE Page 12 | TLEH Page 13 | ||
|---|---|---|---|---|---|---|
| Mounting | Sensor head | |||||
| Voltage supply | DC 8 V... 32 V AC 8 V ... 28 V | DC 11 V …30 V | DC 11 V …30 V | |||
| Input | 1 kOhm…100 kOhm Potentiometer | 1 kOhm …100 kOhm Potentiometer | 1 kOhm …100 kOhm Potentiometer | |||
| Output | PROFIBUS FOUNDATION Fieldbus | 4 mA ... 20mA | 4 mA ... 20mA, HART- compatible | |||
| Temperature | -40 °C …+85 °C | -20 °C …+65 °C | -20 °C …+130 | °C | -20 °C …+130 | °C |
| Ex approval | Ex ia IIC | Ex ia IIC | Ex ia IIC | |||
| Dimensions | OD 44mm H 25mm | OD 44mm H 20mm | OD 60mm H 28mm | |||
| additional features | programmable, LCD display |
عرض الكل (20)
| Type | Trip amplifier KFD2-GS-1.2W Page 14 |
|---|---|
| Mounting | Cabinet DIN rail |
| Voltage supply | DC 20 V ... 30 V |
| Input | 0 mA ... 20 mA , 4 mA ... 20 mA 0 V …10 V , 2 V …10 V |
| Output | 2x Contact SPDT AC 250 V, 4 A |
| Temperature | 0 °C …+50 °C |
| Ex approval | |
| Dimensions | 20mm x 124mm x 150mm |
| additional features |
| Type | KFA6-ER-1.6 Page 15 | KFD2-ER-1.6 Page 15 | KFA6-SR2-Ex2.W Page 16 | KFD2-SR2-Ex2.W Page 16 |
|---|---|---|---|---|
| Mounting | Cabinet DIN rail | |||
| Voltage supply | AC 207 V ... 253 V | DC 20 V ... 30 V | AC 207 V ... 253 V | DC 20 V ... 30 V |
| Input | 1 channel Max. AC 10 V (approx. 1 Hz) Max 5 mA | 2 channels DC 8 V 8 mA | ||
| Output | 1x Contact SPDT AC 253 V / 2 A | 2x Contact SPDT AC 253 V / 2 A | ||
| Temperature | -20 °C …+60 °C | -20 °C …+60 °C | ||
| Ex approval | Ex ia IIC | |||
| Dimensions | 20mm x 107mm x 115mm | 20mm x 119mm x 115mm | ||
| additional features |
| Type | A3/24 Page 17 | A3/230 Page 17 | B3/115 Page 17 | B3/230 Page 17 |
|---|---|---|---|---|
| Resistance | 100 Ohm | 1000 Ohm | 470 Ohm | 820 Ohm |
| Capacitance | 0,33µF | |||
| Voltage | AC 24V | AC 230V | AC 115 V | AC 230 V |
| Ex approval | ||||
| Dimensions | Ø20 x 42 mm | |||
| additional features | for contacts 10 - 40VA | for contacts 40 - 100 VA |
| Technical data | Type T15.R-ZZ-LVL | Type T15.R-AI-LVL | |
|---|---|---|---|
| Voltage supply | Supply voltage Power consumption | DC 8 V …35 V | DC 30 V ia 800mW ic 750mW |
| Input | Potentiometer resistance | 1 kOhm…50 kOhm | |
| Max values acc. to Declaration of conformity | Approval number Group, category, ignition protection type Max. Voltage U 0 Max. Current I 0 Max. Power P 0 | BVS 15 ATEX E 139 X II 1G Ex ia IIC II 1D Ex ia IIIC DC 30 V 6.1 mA 46W | |
| Output | Available designs | 4 mA ... 20 mA | |
| Galvanic Isolation | Input - Output Input - Mains/ Output - Mains | Available Available | |
| Ambient conditions | Operating temperature | -40 °C …+85 °C | -40 °C …+85 °C (T4) -40 °C …+70 °C (T5) -40 °C …+55 °C (T6) |
| Ingress protection | IP 20 | ||
| Mechanical data | Design Dimensions Mounting Connection terminal Weight | Terminal case in plastic WxHxD 17.5mm x 99mm x 113,6mm 35mm DIN rail Screw terminal 0.14 ... 2.5 mm² approx. 200 g | |
| Article number | 14154577 | 14350799 |
| Technical data | Type T32.3S.000-LVL | Type T32.3S.0IS-LVL | |
|---|---|---|---|
| Voltage supply | Supply voltage | DC 10.5 V …42 V | DC 10.5 V …30 V |
| Input | Potentiometer resistance | 10 kOhm…100 kOhm | |
| Max values acc. to Declaration of conformity | Approval number Group, category, ignition protection type Max. Voltage U 0 Max. Current I 0 Max. Power P 0 | BVS 08 ATEX E 019 X II 1G Ex ia IIC II 1D Ex iaD 20 6.5 V DC 9.3 mA 15.2mW | |
| Output | Available designs | 4 mA ... 20 mA, HART 5 (HART 7 optional) | |
| Galvanic Isolation | Input - Output Input - Mains/ Output - Mains | Available Available | |
| Ambient conditions | Operating temperature | -40 °C …+85 °C | -40 °C …+85 °C (T4) -40 °C …+75 °C (T5) -40 °C …+60 °C (T6) |
| Ingress protection | IP 20 | ||
| Mechanical data | Design Dimensions Mounting Connection terminal Weight | Terminal case in plastic WxHxD 17.5mm x 99mm x 113,6mm 35mm DIN rail Screw terminal 0.14 ... 2.5 mm² approx. 200 g | |
| Additional features | programmable | ||
| Article number | 14350806 | 14350808 |
| Technical data | Type MUL-D21 | Type MUL-D23 | |
|---|---|---|---|
| Voltage supply | Supply voltage Power consumption | DC 18 V... 36 V approx. 2,4W | AC 230 V approx. 3,2 VA |
| Input | Potentiometer resistance | 1 kOhm…100 kOhm | |
| Analogue output | Current output max load Voltage output | 0 mA ... 20 mA , 4 mA ... 20 mA ≤ 400 Ohm 0 V …10 V | |
| Switch output | 2x Contact SPST AC 230 V, 2 A | ||
| Display | 4 digit display 7-segment LED | ||
| Ambient conditions | Operating temperature Ingress protection | 0 °C …+55 °C Casing IP 40 Terminals IP 20 | |
| Mechanical data | Design Dimensions Mounting Weight | Casing ABS, light grey, UL94-HB WxHxD 45mm x 75mm x 110mm 35mm DIN rail approx. 320g | |
| Additional features | programmable | ||
| Attention! | Use shielded circuit only (EMC) | ||
| Article number | 128710 | 130741 |
| Technical data | Type MUL-D41 | Type MUL-D43 | |
|---|---|---|---|
| Voltage supply | Supply voltage Power consumption | DC 18 V... 36 V approx. 2,4W | AC 230 V approx. 3,2 VA |
| Input | Potentiometer resistance | 1 kOhm…100 kOhm | |
| Analogue output | Current output max. load Voltage output | 0 mA ... 20 mA , 4 mA ... 20 mA ≤ 400 Ohm 0 V …10 V | |
| Switch output | 4x Contact SPST AC 230 V, 2 A | ||
| Display | 4 digit display 7-segment LED | ||
| Ambient conditions | Operating temperature Ingress protection | 0 °C …+55 °C Casing IP 40 Terminals IP 20 | |
| Mechanical data | Design Dimensions Mounting Weight | Casing ABS, light grey, UL94-HB WxHxD 55mm x 75mm x 110mm 35mm DIN rail approx. 320g | |
| Additional features | programmable | ||
| Attention! | Use shielded circuit only (EMC) | ||
| Article number | 129049 | 129484 |
| Technical data | Type T15.H-ZZ-LVL | Type T15.H-AI-LVL | |
|---|---|---|---|
| Voltage supply | Supply voltage Power consumption | DC 8 V... 35 V | DC 30 V ia 800mW ic 750mW |
| Input | Potentiometer resistance | 1 kOhm…50 kOhm | |
| Max values acc. to Declaration of conformity | Approval number Group, category, ignition protection type Max. Voltage U 0 Max. Current I 0 Max. Power P 0 | BVS 15 ATEX E 139 X II 1G Ex ia IIC II 1D Ex ia IIIC DC 30 V 6.1 mA 46W | |
| Output | Available designs | 4 mA ... 20 mA | |
| Galvanic Isolation | Input - Output Input - Mains/ Output - Mains | Available Available | |
| Ambient conditions | Operating temperature | -40 °C …+85 °C) | -40 °C …+85 °C (T4) -40 °C …+70 °C (T5) -40 °C …+55 °C (T6) |
| Mechanical data | Design Dimensions Connection terminal Weight | Terminal case in plastic OD 44mm H 22.5mm Screw terminal 0.14 ... 2.5 mm² approx. 45g | |
| Article number | 14350784 (with mounting base for A105) | 14350792 (with mounting base for A105) |
| Technical data | Type T32.1S.000-LVL | Type T32.1S.0IS-LVL | |
|---|---|---|---|
| Voltage supply | Supply voltage | DC 10.5 V …42 V | DC 10.5 V …30 V |
| Input | Potentiometer resistance | 10 kOhm…100 kOhm | |
| Max values acc. to Declaration of conformity | Approval number Group, category, ignition protection type Max. Voltage U 0 Max. Current I 0 Max. Power P 0 | BVS 08 ATEX E 019 X II 1G Ex ia IIC II 1D Ex iaD 20 6.5 V DC 9.3 mA 15.2mW | |
| Output | Available designs | 4 mA ... 20 mA, HART 5 (HART 7 optional) | |
| Galvanic Isolation | Input - Output Input - Mains/ Output - Mains | Available Available | |
| Ambient conditions | Operating temperature | -40 °C …+85 °C | -40 °C …+85 °C (T4) -40 °C …+75 °C (T5) -40 °C …+60 °C (T6) |
| Mechanical data | Design Dimensions Connection terminal Weight | Terminal case in PBT, glass-fibre reinforced OD 49.5mm H 28.5mm Screw terminal 0.14 ... 2.5 mm² approx. 70g | |
| Additional features | programmable | ||
| Article number | 14350804 (with mounting base for A105) | 14350805 (with mounting base for A105) |
| Technical data | Type T53.10.0IS | |
|---|---|---|
| Voltage supply | Supply voltage | DC 8 V... 32 V AC 8 V ... 28 V |
| Input | Potentiometer resistance | 1 kOhm…100 kOhm |
| Max values acc. to Declaration of conformity | Approval number Group, category, ignition protection type Max. Voltage U 0 Max. Current I 0 Max. Power P 0 | KEMA 06 ATEX 0148 See WIKA datasheet TE 53.01 |
| Output | Available designs | FOUNDATION Fieldbus PROFIBUS |
| Galvanic Isolation | Input - Output Input - Mains/ Output - Mains | Available Available |
| Ambient conditions | Operating temperature | See WIKA datasheet TE 53.01 |
| Mechanical data | Design Dimensions Connection terminal Weight | Terminal case in PBT, glass-fibre reinforced OD 44mm H 25mm Screw terminal 0.14 …1.5 mm² approx. 50g |
| Article number | 025727 (without mounting base) |
| Technical data | Type TS | Type TE | ||
|---|---|---|---|---|
| Voltage supply | Supply voltage | DC 11 V …30 V | ||
| Input | Potentiometer resistance | 1 kOhm…100 kOhm | ||
| Output | Output signal max. load Zero point setting Measurement range setting Accuracy | 4 mA …20 mA 1000 Ohm U B DC 30 V 700 Ohm U B DC 24 V 50 Ohm U B 12 V DC ± 5% 75%…100% 0.15% | ||
| Approval | LCIE 05 ATEX 6006 X II 1G Ex ia IIC T6…T4 U i < 30 V I i < 101 mA P i < 758mW or U i < 28.4 V I i < 116 mA P i < 824mW | |||
| Ambient conditions | Ambient temperature | -20 °C …+60 °C | max. 80 °C (T6) max. 95 °C (T5) | |
| Ingress protection | IP 20 | |||
| Mechanical data | Design Dimensions Mounting Weight | Fully potted OD 44mm H 20mm Head-mounted approx. 40 g | ||
| Attention! | Use shielded circuit only (EMC) | |||
| Article number | 005894 (without mounting base) 112971 (with mounting base A105) | 014832 (without mounting base) 112969 (with mounting base A105) |
| Technical data | Type TLEH | |
|---|---|---|
| Voltage supply | Supply voltage | DC 11 V …30 V |
| Input | Potentiometer resistance | 1 kOhm…100 kOhm |
| Output | Output signal max. load Zero point setting Measurement range setting Accuracy | 4 mA …20 mA, HART-compatible 1000 Ohm U B DC 30 V 700 Ohm U B DC 24 V 50 Ohm U B 12 V DC ± 5% 75%…100% 015% |
| Approval | LCIE 05 ATEX 6006 X II 1G Ex ia IIC T6…T4 U i < 30 V I i < 101 mA P i < 758mW or U i < 28,4 V I i < 116 mA P i < 824mW | |
| Ambient conditions | Ambient temperature Ingress protection | -20 °C …+60 °C (T6 …T4) IP 20 |
| Mechanical data | Design Dimensions Mounting Weight | Fully potted OD 60mm H 28mm Head-mounted approx. 70 g |
| Additional features | programmable | |
| Attention! | Use shielded circuit only (EMC) | |
| Article number | 021104 |
| Technical data | Type KFD2-GS-1.2W | |
|---|---|---|
| Voltage supply | Supply voltage Power consumption | DC 20 V …30 V approx. 2,25W |
| Input | Current input Voltage input | 0 mA ... 20 mA , 4 mA ... 20 mA 0 V …10 V , 2 V …10 V |
| Output | Contact rating | 2x Contact SPDT AC 250 V, 4 A |
| Ambient conditions | Operating temperature Storage temperature Ingress protection | 0 °C …+50 °C -30 °C …+70 °C IP 20 |
| Mechanical data | Design Dimensions Mounting Weight | Casing ABS, UL94 HB / 1,6 WxHxD 20mm x 124mm x 150mm 35mm DIN rail or wall-mount with 2 screws approx. 320g |
| Article number | 123805 |
| Technical data | Type KFA6-ER-1.6 | Type KFD2-ER-1.6 | |
|---|---|---|---|
| Voltage supply | Supply voltage Power consumption | AC 207 ... 253 V, 45 Hz ... 65 Hz ≤ 0.8W | DC 20 …30 V ≤ 0.8W |
| Input | Max. Voltage Max. Current | 1 channel (ON/OFF) or dual input (Min-Max) AC 10 V (approx. 1 Hz) 5 mA | |
| Output | Contact rating AC Contact rating DC Time delay | 1x Contact SPDT AC 253 V / 2 A / cosɸ > 0.7 DC 40 V / 2 A approx. 1 s | |
| Transfer properties | Switching frequency | ≤ 10 Hz | |
| Galvanic Isolation | Mains - Output Mains - Input Input - Output | Safe galvanic isolation acc. to DIN 106 Rated insulation voltage 253 V | eff |
| Ambient conditions | Operating temperature Ingress protection | -20 °C …+60 °C IP 20 | |
| Mechanical data | Mounting Dimensions Connection terminal Weight | 35mm DIN rail WxHxD 20mm x 107mm x 115mm max. 2.5 mm² approx. 110g | |
| Article number | 124341 | 123806 |
| Technical data | Type KFA6-SR2-Ex2.W | Type | KFD2-SR2-Ex2.W | |
|---|---|---|---|---|
| Voltage supply | Supply voltage Power consumption | AC 207 …253 V, 45 ... 65 Hz ≤ 1,3W | DC 20 V …30 V ≤ 1,3W | |
| Input | Open circuit voltage Short-circuit current | 2 channels (ON/OFF) approx. DC 8 V approx. 8 mA | ||
| Max values acc. to Declaration of conformity | Approval number Group, category, ignition protection type Max. Voltage U 0 Max. Current I 0 Max. Power P 0 | PTB 00 ATEX 2081 II (1)G [Ex ia Ga] IIC II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I 10.6 V 19.1 mA 51mW | PTB 00 ATEX 2080 II (1)G [Ex ia Ga] IIC II (1)D [Ex ia Da] IIIC I (M1) [Ex ia Ma] I 10.5 V 13 mA 34mW | |
| Output | Contact rating AC Contact rating DC Mechanical life time Time delay | 2x Contact SPDT AC 253 V / 2 A / cosɸ > 0.7 DC 40 V / 2 A/ resistive load 10 7 switch cycles ≥ 20ms | ||
| Ambient conditions | Operating temperature Ingress protection | -20 °C …+60 °C IP 20 | ||
| Mechanical data | Mounting Dimensions Connection terminal Weight | 35mm DIN rail WxHxD 20mm x 119mm x max. 2.5 mm² approx. 150g | 115mm | |
| Article number | 123794 | 124344 |
| Technical data | Type A3/24 | Type A3/230 | Type B3/115 | Type B3/230 |
|---|---|---|---|---|
| Resistance | 100 Ohm | 1000 Ohm | 470 Ohm | 820 Ohm |
| Capacitance | 0,33 µF | |||
| Voltage | AC 24V | AC230V | AC 115 V | AC 230 V |
| Usage | for contacts 10 - 40VA | for contacts 40 - 100 VA | ||
| Dimensions | OD20 x 42 mm Flying leads PVC AWG 18/19, 100/150mm long | |||
| Article number | 124504 | 119814 | 126529 | 126530 |
لم يتم وصف مجالات التطبيق بعد
صف ظروف التشغيل — سيقترح المهندس النموذج وحالة الاستخدام.
لم تجد الإجابة في الوثائق؟ سيرد المهندس خلال يوم عمل.
اسأل المهندس →كل المتغيرات · جدول المواد
1 مادة قياسية من عائلة ELM
إذا كنت تعرف الرمز — اختر مباشرة. إذا لا — استخدم المُهيِّئ في الوضع «01».
المخزون:
SKUالتكوينالسعرالمخزونالإجراء
معروض 1 من 1. السعر حسب الطلب — سيحسب المهندس لتكوينك.
