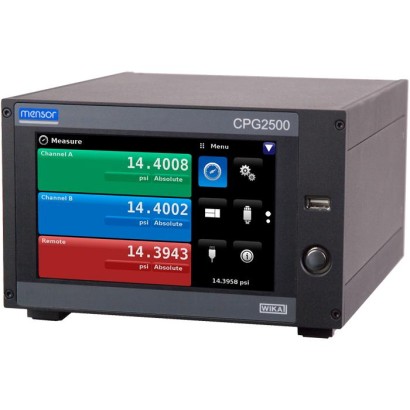

WIKA · تقنية المعايرة · العائلة CPG
أداة قياس ضغط دقيقة
جهاز قياس ضغط دقيق لمختبرات المعايرة ومرافق التصنيع، مع ما يصل إلى ثلاثة مستشعرات ضغط، يُستخدم كمعيار نقل أو كمعيار ضغط مختبري.
النطاق
-1…2890 bar
الحماية
None
CERoHS
السعر
حسب الطلب
يعتمد على التكوين
الوصف
جهاز قياس ضغط رقمي دقيق لمختبرات المعايرة ومرافق التصنيع، يعمل مع ما يصل إلى ثلاثة مستشعرات ضغط، ويُستخدم كمعيار نقل أو كمعيار ضغط مختبري. يوفر دقة تصل إلى 0.008 % من المقياس الكامل (IntelliScale)، مع إمكانية استخدام مستشعرات خارجية قابلة للتبديل. يُختار هذا الجهاز عندما تكون هناك حاجة إلى مرجع ضغط موثوق وقابل للتتبع في بيئات المعايرة والتصنيع.
المزايا
- مدى الضغط: من 0 ... 25 mbar حتى 0 ... 2,890 bar [0 ... 0.36 حتى 0 ... 42,000 psi]
- دقة تصل إلى 0.008 % من IS (IntelliScale)
- نطاقات ضغط خارجية من 25 mbar ... 1,000 bar [0.36 ... 15,015 psi]
- دقة 0.004 % FS
- حساسات قابلة للفك/التبديل
الأسئلة والأجوبة
ما هي مدى قياس الضغط التي يدعمها الجهاز CPG2500؟
يدعم مدى الضغط من 0 ... 25 mbar حتى 0 ... 2,890 bar [0 ... 0.36 حتى 0 ... 42,000 psi] للمستشعرات الداخلية، ومن 25 mbar ... 1,000 bar [0.36 ... 15,015 psi] للمستشعرات الخارجية.
ما هي دقة الجهاز؟
تصل الدقة إلى 0.008 % IS (IntelliScale)، وتوفر المستشعرات الخارجية دقة 0.004 % FS.
هل يمكن استخدام أكثر من مستشعر ضغط واحد في الوقت نفسه؟
نعم، يدعم الجهاز ما يصل إلى ثلاثة مستشعرات ضغط، مما يتيح المراقبة المتزامنة على ثلاث قنوات.
هل المستشعرات قابلة للاستبدال؟
نعم، المستشعرات قابلة للفصل والاستبدال، مما يسمح بتغيير مدى القياس حسب الحاجة.
ما نوع الوسائط المتوافقة مع الجهاز؟
الجهاز مناسب للوسائط الهوائية والوسائط الهيدروليكية غير المسببة للتآكل.
ما هي درجات الحرارة المسموح بها؟
درجة حرارة الوسط من 0 … +70 °C، ودرجة حرارة البيئة المحيطة من +15 … +40 °C.
هل الجهاز مناسب للمناطق الخطرة (Explosion-proof)؟
لا تتضمن بيانات المنتج أي شهادات حماية من الانفجار؛ الشهادات المتوفرة هي CE وRoHS فقط.
كيف يتم تتبع المعايرة؟
قابلية التتبع متوفرة عبر DKD وDAkkS وA2LA.
التعريف
| الطراز | CPG2500 |
| السلسلة | CPG |
| النوع الفرعي | electronic pressure standard |
نطاق القياس
| نطاق الضغط | 0…25 mbar · 0…2890 bar · 0…42000 psi · 0…700 bar · 0…100 bar · 0…400 bar · -1…700 bar · -1…100 bar · -1…400 bar · 0…701 bar · 0…401 bar · 0…101 bar |
| نطاق درجة الحرارة | +0…+70 °C |
دقة القياس
| عدم اليقين | 0.008 % FS |
ظروف العملية
| وسيط التشغيل | pneumatic and non-corrosive hydraulic media |
| نوع المعايرة | electronic |
بيئة التشغيل
| حرارة المحيط | +15…+40 °C |
| الوزن | 5.7 kg |
الشهادات والموافقات
| الشهادات | CERoHS |
| إمكانية التتبع | DKD · DAkkS · A2LA |
تفاصيل إضافية
| محمول | لا |
| لغات ورقة البيانات | EN, DE, ES, FR, IT, PT, PL, RU, ZH, JA, KO |
جداول من ورقة البيانات
Standard reference pressure sensor, model CPR2550
| Pressure range 1) | |||
|---|---|---|---|
| Accuracy 2) | 0.008%FS 3) | 0.008 %IS-50 4) | 0.008 %IS-33 5) |
| Gauge pressure | 0 ... 25 mbar to 0 ... 700 bar 0 ... 0.36 to 0 ... 10,000 psi | 0 ... 1 to 0 ... 400 bar 0 ... 14.5 to 0 ... 6,000 psi | 0 ... 1 to 0 ... 100 bar 0 ... 14.5 to 0 ... 1,500 psi |
| Bidirectional pressure | -12.5 ... +12.5 mbar to -1 ... 700 bar -0.18 ... +0.18 to -14.5 ... 10,000 psi | -1 ... 10 to -1 ... 400 bar -14.5 ...+145 to -14.5 ... 6,000 psi | -1 ... 10 to -1 ... 100 bar -14.5 ...+145 to -14.5 ... 1,500 psi |
| Absolute pressure 6) | 0 ... 0.5 to 0 ... 701 bar abs. 0 ... 7.5 to 0 ... 10,015 psi abs. | 0 ... 1 to 0 ... 401 bar abs. 0 ... 14.5 to 0 ... 6,015 psi abs. | 0 ... 1 to 0 ... 101 bar abs. 0 ... 14.5 to 0 ... 1,515 psi abs. |
| Precision 7) | 0.004%FS | ||
| Calibration interval | 365 days 8) | 365 days | 365 days |
| Media compatibility | |||
| Wetted parts | 6000/7000 series aluminium, 316 stainless steel, brass, PTFE (Teflon ® ), urethane, silicone, RTV, silicone grease, PVC, epoxy, Buna N, fluoroelastomers (Viton ® ) | ||
| Permissible media | Pressure ranges ≤ 1 bar [≤ 15 psi] - only for pneumatic media Pressure ranges > 1 bar [> 15 psi] - pneumatic media and non-corrosive hydraulic media allowed | ||
| Sensor | |||
| Reading rate | 33 readings/second | ||
| Calibration adjustments | Internal zero adder and span multiplier, up to 11-point linearisation for each sensor |
Premium reference pressure sensor, model CPR2580
| Pressure range 1) | |
|---|---|
| Accuracy 2) | 0.014%FS 3) |
| Absolute pressure 6) | 0 ... 827.4 to 0 ... 1,517 bar abs. 0 ... 1,655 to 0 ... 2,172 bar abs. 0 ... 2,207 to 0 ... 2,896 bar abs. 0 ... 12,000 to 0 ... 22,000 psi abs. 0 ... 24,000 to 0 ... 31,500 psi abs. 0 ... 32,000 to 0 ... 42,000 psi abs. |
| Precision 7) | 0.004%FS |
| Calibration interval 8) | 365 days |
| Media compatibility | |
| Wetted parts | 6000/7000 series aluminium, 316 stainless steel, brass, PTFE (Teflon ® ), urethane, silicone, RTV, silicone grease, PVC, epoxy, Buna N, fluoroelastomers (Viton ® ) |
| Permissible media | Pneumatic media and non-corrosive hydraulic media allowed |
| Sensor | |
| Reading rate | 10 readings/second |
| Calibration adjustments | Internal zero adder and span multiplier, up to 11-point linearisation for each sensor |
Base instrument
| Instrument | |
|---|---|
| Instrument version | ■ Desktop case ■ 19" rack mounting kit with side panels incl. rack-mounting kit for single instrument mount ■ 19" rack mounting kit with side panels incl. rack-mounting kit for dual instrument mount |
| Dimensions | See technical drawings |
| Weight | 5.7 kg [12.5 lbs] with all internal options |
| Warm-up time | Approx. 15 minutes |
| Display | |
| Screen | 7" colour LC display touchscreen |
| Resolution | 4 ... 7 digits, depending on range and units |
| Data entry | Touchscreen keypad |
| Pressure units | 39 and two user defined units (multiplier from bar, psi or pascal) Further details see operating instructions |
| Rate units | /sec., /min., /hr., /3-hr |
| Languages | English, German, Spanish, French, Italian, Portuguese, Polish, Russian, Chinese, Japanese, Korean |
| Measurement filters | Off, Low, Normal (default), High |
| Connections | |
| Number of integrateable sensors (selectable) | ■ 1 reference pressure sensor ■ 2nd reference pressure sensor, external pressure sensor and barometric reference |
| Pressure connections | Pressure ranges ≤ 401 bar [≤ 6,015 psi] - up to 4 ports 7/16-20 F SAE and 1 port with 10-32 UNF female Pressure ranges > 401 bar [> 6,015 psi] - up to 2 Autoclave F250C/HIP HF4 |
| Pressure adapters | ■ Without ■ On pressure ranges ≤ 401 bar [≤ 6,015 psi] - 6 mmtube fitting, 1/4" tube fitting, 1/4 female NPT fittings, 1/8 NPT female fittings or 1/8 BSP female fittings |
| Overpressure safety | 110 %FStypical, optional external relief valves are available |
| Voltage supply | |
| Power supply unit | AC 100 ...120V or AC 200 ... 240 V, 50/60 Hz, 24VA max. |
| Power supply output | DC 12 V, 1.67 A (includes 4 region-specific plugs adapters) |
Base instrument
| Permissible ambient conditions | |
|---|---|
| Storage temperature | 0 ... 70 °C [32 ... 158 °F] |
| Humidity | 0 ... 95 %r.h. (non-condensing) |
| Operating temperature | 15 ... 40 °C [59 ... 104 °F] |
| Communication | |
| Interface | Ethernet, IEEE-488, USB, RS-232 |
| Command sets | Mensor,WIKA SCPI |
عرض الكل (10)
| Logo | Description | Country |
|---|---|---|
| EU declaration of conformity | European Union | |
| EMCdirective 1) EN 61326-1 emission (group 1, class A) and interference immunity (industrial application) | ||
| Low voltage directive | ||
| RoHS directive |
| Logo | Description | Country |
|---|---|---|
| EAC EMCdirective | Eurasian Economic Community | |
| GOST Metrology, measurement technology | Russia | |
| BelGIM Metrology, measurement technology | Belarus | |
| KazInMetr Metrology, measurement technology | Kazakhstan | |
| - | MTSCHS Permission for commissioning | Kazakhstan |
| UkrSEPRO (option) Metrology, measurement technology | Ukraine | |
| Uzstandard Metrology, measurement technology | Uzbekistan |
Certificate
| Calibration 2) | ■ Without ■ A2LA calibration certificate (standard on factory) (traceable and accredited in accordance with ISO/IEC 17025) ■ DKD/DAkkS calibration certificate for barometric reference (traceable and accredited in accordance with ISO/IEC 17025) |
|---|---|
| Recommended recalibration interval | 365 days (dependent on conditions of use) |
| Cal-Template (light version) | Cal-Template (full version) | Log-Template (full version) |
|---|---|---|
| ■ Semi-automated calibration | ■ Fully automatic calibration | ■ Live measurement recording for a certain period of time with selectable interval, duration and start time ■ Creation of logger protocols with graphic and/or tabular representation of the measurement results in PDF format ■ Export of measurement results as CSV file |
| possible ■ Creation of calibration certificates 3.1 per DIN EN 10204 ■ Export of calibration reports to Excel ® template or XML file ■ Calibration of gauge pressure measuring instruments with absolute pressure references and vice versa ■ Creation of calibration certificates with no limitations on measuring points Ordering information for your enquiry for a single license | ||
| WIKA-CAL-LZ-Z-Z | WIKA-CAL-CZ-Z-Z | WIKA-CAL-ZZ-L-Z |
| Ordering information for your enquiry for the pair license | ||
| Cal-Template (light version) together with Log-Template (full version) | WIKA-CAL-LZ-L-Z | |
| Cal-Template (full version) together with Log-Template (full version) | WIKA-CAL-CZ-L-Z |
| Accessories for CPG2500 1) | Order code | |
|---|---|---|
| Description | CPX-A-G1 | |
| 19"-rack-mounting kit with side panels For two CPG2500 next to each other | -D- | |
| 19"-rack-mounting kit with side panels For one CPG2500 | -R- | |
| Barometric reference Measuring range 8 ... 17 psi abs. Accuracy to 0.01 %of reading | -3- | |
| Barometric reference Measuring range 552 ... 1,172 mbar abs. Accuracy to 0.01 %of reading | -K- | |
| Barometric reference Measuring range 552 ... 1,172 hPa abs. Accuracy to 0.01 %of reading | -L- | |
| Calibration adapter For reference pressure sensors, voltage supply and software | -4- | |
| Calibration adapter For barometric reference, voltage supply and software | -5- | |
| Transport case | -6- | |
| Interface cable For CPT9000 as external sensor | -7- | |
| Interface cable For CPR2510 as external sensor | -8- | |
| RS-232 interface cable | -9- | |
| Power supply unit | -P- | |
| Adapter set 1/8 NPT female thread incl. safety relief valve for pressure ranges ≤ 70 bar [≤ 1,000 psi] | -1- | |
| Adapter set 1/8 NPT female thread incl. safety relief valve for pressure ranges > 70 bar [> 1,000 psi] | -2- | |
| Adapter set 6 mmSwagelok ® male thread (2 adapters) P max. 137 bar [2,000 psi], mat.: brass | -M- | |
| Adapter set 6 mmSwagelok ® male thread (2 adapters) P max. 400 bar [6,000 psi], mat.: stainless steel | -C- | |
| Adapter set 1/4" tube fitting (2 adapters) P max. 137 bar [2,000 psi], mat.: brass | -I- |
| Accessories for CPG2500 1) | Order code | |
|---|---|---|
| Description | CPX-A-G1 | |
| Adapter set 1/4" tube fitting (2 adapters) P max. 400 bar [6,000 psi], mat.: stainless steel | -E- | |
| Adapter set 1/8" BSPG female thread (2 adapters) P max. 137 bar [2,000 psi], mat.: brass | -B- | |
| Adapter set 1/4 NPT female thread (2 adapters) P max. 137 bar [2,000 psi], mat.: brass | -N- | |
| Adapter set 1/4 NPT female thread (2 adapters) P max. 400 bar [6,000 psi], mat.: stainless steel | -A- | |
| Adapter set 1/8 NPT female thread (2 adapters) P max. 137 bar [2,000 psi], mat.: brass | -S- | |
| Adapter set 1/8 NPT female thread (2 adapters) P max. 400 bar [6,000 psi], mat.: stainless steel | -F- | |
| Ordering information for your enquiry: | ||
| 1. Order code: CPX-A-G1 2. Option: | ⇓ [ ] |
القطاع
الصناعات الميكانيكية
معيار ضغط لمختبرات المعايرة · تصنيع أجهزة قياس الضغط · قياس الضغط التفاضلي
