WIKA · تقنية المعايرة · العائلة CPB

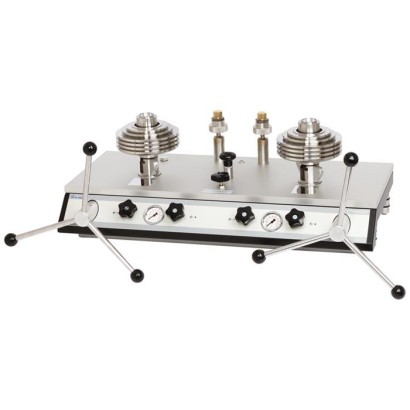

ميزان الضغط
ميزان ضغط لمعايرة فرق الضغط مع توليد ضغط مدمج، مناسب للتطبيقات الهوائية والهيدروليكية حتى 1,600 بار.
النطاق
0.03…2500 bar
الحماية
IP54
السعر
حسب الطلب
يعتمد على التكوين
الوصف
ميزان ضغط تفاضلي (deadweight tester) لمعايرة أجهزة قياس فرق الضغط تحت ضغط ساكن، مع توليد ضغط مدمج. يعمل بالتطبيقات الهوائية والهيدروليكية حتى 1,600 بار، ويُستخدم كمعيار أولي في مصانع ومختبرات المعايرة، كما يصلح للاستخدام الميداني كنظام مستقل متكامل.
المزايا
- مدايا القياس (= الضغط الساكن + ضغط الفرق) حتى 400 bar [5,000 psi] هوائي، وحتى 1,600 bar [23,200 psi] هيدروليكي
- عدم اليقين الكلي للقياس حتى 0.008 % من فرق الضغط زائد 0.0001 % [1 ppm] من الضغط الساكن
- معايرة المصنع مشمولة كمعيار، قابلة للتتبع إلى المعايير الوطنية؛ مع إمكانية معايرة DKD/DAkkS كخيار
- ثبات طويل الأمد عالٍ مع فترة إعادة معايرة موصى بها كل خمس سنوات
- أوزان مصنوعة من الفولاذ المقاوم للصدأ والألومنيوم، يمكن تعديلها حسب الجاذبية المحلية
الأسئلة والأجوبة
ما هي مدى القياس المتاحة للطراز CPB5600DP؟
المدى الكلي = الضغط الساكن + فرق الضغط: حتى 400 bar [5,000 psi] للتطبيقات الهوائية وحتى 1,600 bar [23,200 psi] للتطبيقات الهيدروليكية، مع مدى تفاضلي يبدأ من 0.03 bar.
ما دقة الجهاز؟
عدم اليقين الكلي 0.008 % من قراءة فرق الضغط، بالإضافة إلى 0.0001 % [1 ppm] من قراءة الضغط الساكن.
ما الوسائط التي يعمل بها الجهاز؟
هواء ونيتروجين للتطبيقات الهوائية، وزيت هيدروليكي للتطبيقات الهيدروليكية.
هل يشمل الجهاز شهادة معايرة؟
نعم، تشمل معايرة مصنعية قابلة للتتبع إلى المعايير الوطنية كمعيار، ويمكن طلب معايرة DKD/DAkkS كخيار إضافي.
ما فترة إعادة المعايرة الموصى بها؟
بفضل الثبات طويل الأمد العالي، يوصى بإعادة المعايرة كل خمس سنوات فقط.
هل يمكن استخدامه خارج المختبر؟
نعم، فهو نظام مستقل متكامل بتوليد ضغط مدمج، مناسب أيضاً للاستخدام في الموقع، بوزن 45 kg وحماية IP54.
ما الذي يميز هذا الطراز عن موازين الضغط الأخرى؟
إنه الإصدار الخاص بفرق الضغط من عائلة CPB: يقيس ويعاير فرق الضغط تحت ضغط ساكن، بينما تعاير موازين الضغط التقليدية الضغط المطلق أو النسبي فقط.
في أي نطاق حراري يعمل الجهاز؟
درجة حرارة التشغيل المحيطة المحددة هي 18 … 28 °C، وهو ما يناسب ظروف المختبرات المعايرة.
التعريف
| الطراز | CPB5600DP |
| السلسلة | CPB |
| النوع الفرعي | Differential pressure version |
نطاق القياس
| نطاق الضغط | 0.03…2 bar · 0.2…10 bar · 0.4…100 bar · 0.435…30 psi · 14.5…5000 psi · 25…1600 bar · 350…23200 psi · 2.9…1500 psi · 0.2…1000 bar · 1…2500 bar · 0.03…100 bar · 0.2…1600 bar · 0.435…1500 psi · 2.9…23200 psi · 0.4…50 bar · 0.2…60 bar · 0.2…100 bar · 1…250 bar · 1…400 bar · 2…600 bar · 2…1000 bar · 2.9…150 psi · 5.8…500 psi · 5.8…1000 psi · 5.8…1500 psi · 2.9…1000 psi · 29…10000 psi · 29…14500 psi |
دقة القياس
| عدم اليقين | 0.008 % of reading (differential pressure), 0.0001 % of reading (static pressure) |
ظروف العملية
| وسيط التشغيل | air, nitrogen, hydraulic oil |
| نوع المعايرة | deadweight |
بيئة التشغيل
| حرارة المحيط | +18…+28 °C |
| تصنيف IP | IP54 |
| الوزن | 45 kg |
الشهادات والموافقات
| إمكانية التتبع | DKD · DAkkS · NIST |
تفاصيل إضافية
| محمول | نعم |
| لغات ورقة البيانات | EN, DE |
جداول من ورقة البيانات
| Measuring range [bar] | 0.03 ... 2 | 0.2 ... 10 | 0.4 ... 50 | 0.4 ... 100 | ||||
|---|---|---|---|---|---|---|---|---|
| Quantity | Nominal pressure per piece [bar] | Quantity | Nominal pressure per piece [bar] | Quantity | Nominal pressure per piece [bar] | Quantity | Nominal pressure per piece [bar] | |
| Piston | 1 | 0.03 | 1 | 0.2 | 1 | 0.4 | 1 | 0.4 |
| Mass carrier | 1 | 0.16 | 1 | 0.8 | 1 | 4 | 1 | 4 |
| Piston plate | 1 | 0.01 | 1 | 0.05 | 1 | 0.25 | 1 | 0.25 |
| Masses 2 kg | - | - | - | - | - | - | 5 | 10 |
| Masses 1 kg | 9 | 0.2 | 9 | 1 | 9 | 5 | 9 | 5 |
| Masses 0.5 kg | 1 | 0.1 | 1 | 0.5 | 1 | 2.5 | 1 | 2.5 |
| Masses 0.2 kg | 1 | 0.04 | 1 | 0.2 | 1 | 1 | 1 | 1 |
| Masses 0.12 kg | 1 | 0.024 | 1 | 0.12 | 1 | 0.6 | 1 | 0.6 |
| Masses 0.1 kg | 1 | 0.02 | 1 | 0.1 | 1 | 0.5 | 1 | 0.5 |
| Masses 0.07 kg | 1 | 0.014 | 1 | 0.07 | 1 | 0.35 | 1 | 0.35 |
| Masses 0.05 kg | 1 | 0.01 | 1 | 0.05 | 1 | 0.25 | 1 | 0.25 |
| Measuring range [psi] | 0.435... 30 | 2.9 ... 150 | 5.8 ... 500 | 5.8 ... 1,000 | 5.8 ... 1,500 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Quantity | Nominal pressure per piece [psi] | Quantity | Nominal pressure per piece [psi] | Quantity | Nominal pressure per piece [psi] | Quantity | Nominal pressure per piece [psi] | Quantity | Nominal pressure per piece [psi] | |
| Piston | 1 | 0.435 | 1 | 2.9 | 1 | 5.8 | 1 | 5.8 | 1 | 5.8 |
| Mass carrier | 1 | 2.22 | 1 | 11.1 | 1 | 55.5 | 1 | 55.5 | 1 | 55.5 |
| Piston plate | 1 | 0.22 | 1 | 1.1 | 1 | 5.5 | 1 | 5.5 | 1 | 5.5 |
| Masses 1.4 kg | 5 | 4 | 5 | 20 | - | - | 5 | 100 | 8 | 100 |
| Masses 1 kg | 2 | 3 | 2 | 15 | 2 | 75 | 2 | 75 | 2 | 75 |
| Masses 0.7 kg | 4 | 2 | 4 | 10 | 4 | 50 | 4 | 50 | 9 | 50 |
| Masses 0.35 kg | 3 | 1 | 3 | 5 | 3 | 25 | 3 | 25 | 3 | 25 |
| Masses 0.19 kg | 1 | 0.548 | 1 | 2.74 | 1 | 13.7 | 1 | 13.7 | 1 | 13.7 |
| Masses 0.14 kg | 1 | 0.4 | 1 | 2 | 1 | 10 | 1 | 10 | 1 | 10 |
| Masses 0.12 kg | 1 | 0.345 | 1 | 1.725 | 1 | 8.625 | 1 | 8.625 | 1 | 8.625 |
| Masses 0.07 kg | 1 | 0.2 | 1 | 1 | 1 | 5 | 1 | 5 | 1 | 5 |
| Measuring range [bar] | 0.2 ... 60 | 0.2 ... 100 | 1 ... 250 | 1 ... 400 | 2 …600 | 2 …1,000 | 25 …1,600 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Quantity | Nominal pres- sure per piece [bar] | Quantity | Nominal pres- sure per piece [bar] | Quantity | Nominal pres- sure per piece [bar] | Quantity | Nominal pres- sure per piece [bar] | Quantity | Nominal pres- sure per piece [bar] | Quantity | Nominal pres- sure per piece [bar] | Quantity | Nominal pres- sure per piece [bar] | |
| Piston | 1 | 0.2 | 1 | 0.2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 25 |
| Mass carrier | 1 | 1.6 | 1 | 1.6 | 1 | 8 | 1 | 8 | 1 | 16 | 1 | 16 | - | - |
| Piston plate | 1 | 0.1 | 1 | 0.1 | 1 | 0.5 | 1 | 0.5 | 1 | 1 | 1 | 1 | - | - |
| Masses 4 kg | 6 | 8 | 11 | 8 | 5 | 40 | 11 | 40 | 6 | 80 | 11 | 80 | 4 | 200 |
| Masses 2 kg | 2 | 4 | 2 | 4 | 2 | 20 | 2 | 20 | 2 | 40 | 2 | 40 | 8 | 100 |
| Masses 1 kg | 1 | 2 | 1 | 2 | 1 | 10 | 1 | 10 | 1 | 20 | 1 | 20 | 1 | 50 |
| Masses 0.5 kg | 1 | 1 | 1 | 1 | 1 | 5 | 1 | 5 | 1 | 10 | 1 | 10 | 2 | 25 |
| Masses 0.2 kg | 1 | 0.4 | 1 | 0.4 | 1 | 2 | 1 | 2 | 1 | 4 | 1 | 4 | 1 | 10 |
| Masses 0.1 kg | 1 | 0.2 | 1 | 0.2 | 1 | 1 | 1 | 1 | 1 | 2 | 1 | 2 | 1 | 5 |
| Masses 0.05 kg | 1 | 0.1 | 1 | 0.1 | 1 | 0.5 | 1 | 0.5 | 1 | 1 | 1 | 1 | 1 | 2.5 |
| Measuring range [psi] | 2.9 ... 1,000 | 14.5 ... 5,000 | 29 ... 10,000 | 29 ... 14,500 | 350 | ... 23,200 | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| Quantity | Nominal pres- sure per piece [psi] | Quantity | Nominal pres- sure per piece [psi] | Quantity | Nominal pres- sure per piece [psi] | Quantity | Nominal pres- sure per piece [psi] | Quantity | Nominal pres- sure per piece [psi] | |
| Piston | 1 | 2.9 | 1 | 14.5 | 1 | 29 | 1 | 29 | 1 | 350 |
| Mass carrier | 1 | 23.1 | 1 | 115.5 | 1 | 231 | 1 | 231 | - | - |
| Piston plate | 1 | 1.1 | 1 | 5.5 | 1 | 11 | 1 | 11 | - | - |
| Masses 7 kg | - | - | - | - | - | - | - | - | 2 | 5,000 |
| Masses 3.5 kg | 9 | 100 | 9 | 500 | 9 | 1,000 | 14 | 1,000 | 3 | 2,500 |
| Masses 1.4 kg | 1 | 40 | 1 | 200 | 1 | 400 | 1 | 400 | 6 | 1,000 |
| Masses 1 kg | 1 | 30 | 1 | 150 | 1 | 300 | 1 | 300 | 1 | 750 |
| Masses 0.7 kg | 2 | 20 | 2 | 100 | 2 | 200 | 2 | 200 | 2 | 500 |
| Masses 0.35 kg | 1 | 10 | 1 | 50 | 1 | 100 | 1 | 100 | 1 | 250 |
| Masses 0.175 kg | 1 | 5 | 1 | 25 | 1 | 50 | 1 | 50 | - | - |
| Masses 0.14 kg | 1 | 4 | 1 | 20 | 1 | 40 | 1 | 40 | 1 | 100 |
| Masses 0.07 kg | 1 | 2 | 1 | 10 | 1 | 20 | 1 | 20 | 1 | 50 |
عرض الكل (16)
Piston-cylinder systems
| Version | pneumatic | |||||
|---|---|---|---|---|---|---|
| Measuring range 1) | bar 2) | 0.03…2 | 0.2…10 | 0.4…50 | 0.4 …100 | |
| Required masses | kg | 10 | 10 | 10 | 20 | |
| Smallest step | bar 3) | 0.01 | 0.05 | 0.25 | 0.25 | |
| Sensitivity 4) | mbar | 0.002 | 0.01 | 0.05 | 0.05 | |
| Nominal effective area of the piston | cm² | 5 | 1 | 0.2 | 0.2 | |
| Version | pneumatic | |||||
| Measuring range 1) | psi 2) | 0.435…30 | 2.9 …150 | 5.8 …500 | 5.8 …1,000 | 5.8 …1,500 |
| Required masses | kg | 10 | 10 | 7 | 13 | 20 |
| Smallest step | psi 3) | 0.2 | 1 | 5 | 5 | 5 |
| Sensitivity 4) | psi | 0.00003 | 0.00015 | 0.00075 | 0.00075 | 0.00075 |
| Nominal effective area of the piston | cm² | 5 | 1 | 0.2 | 0.2 | 0.2 |
| Version | hydraulic | |||||
| Measuring range 1) | bar 2) | 0.2…60 | 0.2 …100 | 1 …250 | 1 …400 | 2 …600 |
| Required masses | kg | 30 | 50 | 25 | 40 | 30 |
| Smallest step | bar 3) | 0.1 | 0.1 | 0.5 | 0.5 | 1 |
| Sensitivity 4) | mbar | 0.04 | 0.04 | 0.2 | 0.2 | 0.4 |
| Nominal effective area of the piston | cm² | 0.5 | 0.5 | 0.1 | 0.1 | 0.05 |
| Version | hydraulic | hydraulic high pressure | ||||
| Measuring range 1) | bar 2) | 2 …1,000 | 25 …1,600 | |||
| Required masses | kg | 50 | 32 | |||
| Smallest step | bar 3) | 1 | 2.5 | |||
| Sensitivity 4) | mbar | 0.4 | 5 | |||
| Nominal effective area of the piston | cm² | 0.05 | 0.02 | |||
| Version | hydraulic | hydraulic high pressure | ||||
| Measuring range 1) | psi 2) | 2.9 …1,000 | 14.5 …5,000 | 29 …10,000 | 29 …14,500 | 350 …23,200 |
| Required masses | kg | 34 | 34 | 34 | 50 | 33 |
| Smallest step | psi 3) | 2 | 10 | 20 | 20 | 50 |
| Sensitivity 4) | psi | 0.006 | 0.003 | 0.006 | 0.006 | 5 |
| Nominal effective area of the piston | cm² | 0.5 | 0.1 | 0.05 | 0.05 | 0.02 |
| Accuracies | ||||||
| Proportion of static pressure | 0.0001 %of reading | |||||
| Proportion of differential pressure standard 5) 6) | 0.015 %of reading 0.025 %of reading at hydraulic high pressure | |||||
| Proportion of differential pressure premium 5) 6) | 0.008 %of reading 0.02 %of reading at hydraulic high pressure | |||||
| Lower limiting value of the measurement uncertainty | depending on the measuring range; corresponds to the sensitivity of the piston |
| Piston-cylinder systems | |
|---|---|
| Material | |
| Piston | Tungsten carbide hardened steel at hydraulic high pressure |
| Cylinder | Tungsten carbide |
| Mass set | 1.4305 stainless steel and aluminium, non-magnetic |
| Weight | |
| Piston-cylinder system, pneumatic or hydraulic | 1.5 kg / 5.7 kg / (3.3 lbs / 12.6 lbs) (incl.mass carrier and piston plate in optional storage case); 2 systems required |
| Piston-cylinder system, hydraulic high pressure | 2.7 kg / 5.0 kg / (6.0 lbs / 11.0 lbs) (in optional storage case); 2 systems required |
| bar basic mass set, pneumatic (incl. 2 carrying cases) | 32.4 kg (71.4 lbs) |
| bar extension mass set, pneumatic (incl. 2 carrying cases) | 28.0 kg (61.7 lbs) |
| bar basic mass set, hydraulic (incl. 2 carrying cases) | 72.0 kg (158.8 lbs) |
| bar extension mass set, hydraulic (incl. 2 carrying cases) | 48.0 kg (105.8 lbs) |
| bar basic mass set, hydraulic high pressure (incl. 2 carrying cases) | 48.0 kg (105.8 lbs) |
| bar extension mass set, hydraulic high pressure (incl. 2 carrying cases) | 39.0 kg (86.0 lbs) |
| psi basic mass set, pneumatic (incl. 2 carrying cases) | 25.0 kg (55.1 lbs) |
| psi extension mass set 1, pneumatic (incl. 2 carrying cases) | 22.0 kg (48.5 lbs) |
| psi extension mass set 2, pneumatic (only for 1,500 psi) (incl. 2 carrying cases) | 37.0 kg (81.6 lbs) |
| psi basic mass set, hydraulic (incl. 2 carrying cases) | 84.0 kg (185.2 lbs) |
| psi extension mass set, hydraulic (incl. 2 carrying cases) | 43.0 kg (94.8 lbs) |
| psi basic mass set, hydraulic high pressure (incl. 2 carrying cases) | 96.5 kg (212.8 lbs) |
| psi extension mass set, hydraulic high pressure (incl. 2 carrying cases) | 16.0 kg (35.3 lbs) |
| Dimensions (W x D x H) | |
| Carrying case for basic mass set | 400 x 310 x 310 mm(15.8 x 12.2 x 12.2 in) |
| Carrying case for extension mass set | 215 x 310 x 310 mm(8.5 x 12.2 x 12.2 in) |
| Storage case for the piston-cylinder system (optional) | 300 x 265 x 205 mm(11.8 x 10.4 x 8.1 in) |
Base
| Base version | |
|---|---|
| Pneumatic | up to max. 100 bar (1,500 psi); with priming pump, spindle pump and connection for external supply |
| Pneumatic, with separator | up to max. 400 bar (5,000 psi); for external supply with integrated gas to oil separator for use with hydraulic pistons with M30 x 2 connection |
| Hydraulic | up to max. 1,000 bar (14,500 psi); with internal pressure generation up to max. 1,200 bar (17,400 psi) on request |
| Hydraulic, high pressure | up to max. 1,600 bar (23,200 psi); with internal pressure generation |
Base
| Pressure transmission medium | |
|---|---|
| Pneumatic | Clean, dry, non-corrosive gases (e.g. air or nitrogen) |
| Hydraulic | Operating fluid (1 litre is included in delivery), other media on request |
| Reservoir | 250 cm³ |
| Connections | |
| Connection for piston-cylinder system | ConTect quick connector on pneumatic and hydraulic base versions M30 x 2 female thread on pneumatic base version with separator M30 x 2 female thread with sealing cone on hydraulic high-pressure base version |
| Test item connection | 2 pieces quick connector G½Bfemale thread as standard, freely rotating, changeable; for further threaded inserts, see accessories |
| External pressure connection | 6mmSWAGELOK ® threaded pipe connection; max. 110 %of the assigned measuring range; only with pneumatic base version and pneumatic version with separator |
| Material | |
| Piping in base | pneumatic: 1.4571 stainless steel,3x1mm hydraulic: 1.4404 stainless steel,6x2mm |
| Weight | |
| Pneumatic base | 34.0 kg (75.0 lbs) |
| Pneumatic base with separator | 32.0 kg (70.6 lbs) |
| Hydraulic base | 38.5 kg (84.9 lbs) |
| Hydraulic high-pressure base | 37.0 kg (81.6 lbs) |
| Permissible ambient conditions | |
| Operating temperature | 18 ... 28 °C (64 ... 82 °F) |
| Dimensions (W x D x H) | |
| Base | 800 x 375 x 265 mm(31.5 x 14.8 x 10.4 in), for details, see technical drawings |
| Logo | Description | Country |
|---|---|---|
| GOST Metrology/measurement technology | Russia | |
| - | MTSCHS Permission for commissioning | Kazakhstan |
Certificate
| Calibration | Standard: factory calibration certificate Option:DKD/DAkkS calibration certificate |
|---|---|
| Recommended recalibration interval | 2 to 5 years (dependent on conditions of use) |
| Weight | ||
|---|---|---|
| Wooden box | net | gross |
| Pneumatic base | 34.0 kg (75.0 lbs) | 43.5 kg (95.9 lbs) |
| Pneumatic base with separator | 32.0 kg (70.6 lbs) | 41.5 kg (91.5 lbs) |
| Hydraulic base | 38.5 kg (84.9 lbs) | 48.0 kg (105.8 lbs) |
| Hydraulic high-pressure base | 37.0 kg (81.6 lbs) | 46.5 kg (102.5 lbs) |
| Pallet | Weight | |
|---|---|---|
| Version in bar | net | gross |
| Pneumatic | ||
| 2 bar / 10 bar / 50 bar | 35.5 kg (78.3 lbs) | 50.5 kg (111.4 lbs) |
| 100 bar | 63.5 kg (104.0 lbs) | 78.5 kg (173.1 lbs) |
| Hydraulic | ||
| 60 bar / 250 bar / 600 bar | 75.0 kg (165.4 lbs) | 90.0 kg (198.5 lbs) |
| 100 bar / 400 bar / 1,000 bar | 123.0 kg (271.2 lbs) | 138.0 kg (304.3 lbs) |
| 1,600 bar | 92.5 kg (204.0 lbs) | 107.5 kg (237.0 lbs) |
| Pallet | Weight | |
|---|---|---|
| Version in psi | net | gross |
| Pneumatic | ||
| 30 psi / 150 psi / 1,000 psi | 50.0 kg (110.3 lbs) | 65.0 kg (143.3 lbs) |
| 500 psi | 28.0 kg (61.7 lbs) | 43.0 kg (94.8 lbs) |
| 1,500 psi | 87.0 kg (191.8 lbs) | 102.0 kg (224.9 lbs) |
| Hydraulic | ||
| 1,000 psi / 5,000 psi / 10,000 psi | 87.0 kg (191.8 lbs) | 102.0 kg (224.9 lbs) |
| 14,500 psi | 130.0 kg (286.7 lbs) | 145.0 kg (326.3 lbs) |
| 23,200 psi | 118.0 kg (260.2 lbs) | 133.0 kg (293.3 lbs) |
| Measurement uncertainty | Lower limiting value of the measurement uncertainty | |
|---|---|---|
| Proportion of static pressure | 0.0001 %of 5 bar = 0.005 mbar | 0.01 mbar |
| Proportion of differential pressure | 0.015 %of 100 mbar = 0.015 mbar | 0.01 mbar |
| Overall accuracy | ±2 * √ (0.01 mbar/2)² + (0.015 mbar/2)² = 0.018 mbar which corresponds to ±0.018% of reading |
| Measurement uncertainty | Lower limiting value of the measurement uncertainty | |
|---|---|---|
| Proportion of static pressure | 0.0001 %of 200 bar = 0.2 mbar | 0.2 mbar |
| Proportion of differential pressure | 0.008 %of 2 bar = 0.16 mbar | 0.2 mbar |
| Overall accuracy | ±2 * √ (0.2 mbar/2)² + (0.2 mbar/2)² = 0.283 mbar which corresponds to ±0.014% of reading |
| Designation/Version | Order no. |
|---|---|
| Set of fine increment masses (1 mg up to 50 g), class F1 | 7093874 |
| Set of fine increment masses (1 mg up to 50 g), class M1 | 14025325 |
| Adapter set for quick-release connector in case with G¼, G⅜, ½NPT, ¼NPTand M20 x 1.5 threaded inserts for insertion in the knurled nut on the test item connector | 2036941 |
| Adapter set 'NPT' for quick-release connector in case with ⅛NPT, ¼NPT, ⅜NPTand ½NPTthreaded inserts for insertion in the knurled nut on the test item connector | 12563626 |
| 90° angled connection piece, for test items with back mounting connection | 1564838 |
| Separator, max. 1,000 bar (14,500 psi) | 1565389 |
| Dirt trap, -1 ... +1,000 bar (14,500 psi), volume 0.2 litre | 2015820 |
| Dirt trap, -1 ... +1,000 bar (14,500 psi), volume 0.03 litre | 2015714 |
| O-ring set consisting of 5 pcs. 8 x 2 and 5 pcs. 4 x 2.2 | 12328562 |
| Operating fluid for CPB5000 up to max. 4,000 bar (60,000 psi), 1 litre | 2099882 |
| Cleaning set for ConTect systems, pneumatic | 12485943 |
| Cleaning set for ConTect systems, hydraulic | 12481425 |
القطاع
الصناعات الميكانيكية
معيار أساسي لمعايرة أجهزة قياس ضغط الفرق تحت الضغط الساكن · جهاز مرجعي لمصانع ومعامل المعايرة لاختبار وضبط ومعايرة أجهزة قياس الضغط
لم تجد الإجابة في الوثائق؟ سيرد المهندس خلال يوم عمل.
اسأل المهندس →
