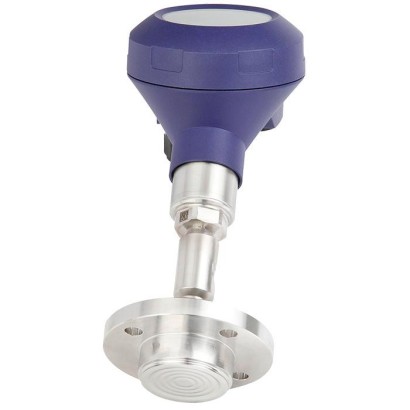

حاجز غشائي مع وصلة معقمة

Name: حاجز غشائي مع وصلة معقمة
Brand: WIKA

للاستخدامات الصحية، NEUMO BioConnect ®

النطاق

0…70 bar

3-AEHEDGCRNEACFDACE

السعر

حسب الطلب

يعتمد على التكوين

طلب عرض سعر

+38 (067) 285-77-70·info@avigan.com.uaViberTelegram

الوصف

تُستخدم فواصل/حواجز الغشاء (Diaphragm seals) لحماية جهاز قياس الضغط من الوسائط العدوانية واللاصقة والمتبلورة والمسببة للتآكل وكذلك من الوسائط شديدة اللزوجة أو الخطرة بيئيًا أو السامة. يوفّر غشاء مصنوع من المادة المناسبة الفصل عن الوسط. وبذلك يمكن تلبية حتى أكثر متطلبات القياس صعوبة من خلال الجمع بين أجهزة القياس وفواصل/حواجز الغشاء.

ينقل سائل داخل النظام، يمكن اختياره بشكل صريح بما يتناسب مع متطلبات القياس المعينة، الضغط بشكل هيدروليكي إلى جهاز القياس.

توجد إمكانيات تطبيق شبه غير محدودة بسبب العدد الكبير من النماذج المتاحة، مثل تصاميم فواصل/حواجز الغشاء أو المواد. تُعد طريقة نوع وصلة العملية (وصلة شفة، ووصلة ملولبة ووصلة معقمة) وطريقة التصنيع الأساسية معايير تمييز تصميم مهمة.

للمزيد من المعلومات التقنية حول فواصل/حواجز الغشاء وأنظمة فواصل/حواجز الغشاء، راجع IN 00.06 "Application, operating principle, designs".

للمزيد من الموافقات، راجع الصفحة 4

المزايا

تنظيف سريع لنقطة القياس دون بقايا
تصميم صحي معتمد
مناسب لعمليات SIP وCIP
معتمد من EHEDG ومتوافق مع 3-A

الأسئلة والأجوبة

ما هو نطاق ضغط التشغيل لموديل 990.50؟

يتوفر الموديل بنطاقات ضغط تتراوح بين 0 … 0.6 bar و0 … 70 bar، حسب اختيار الطلب.

هل هذا الحاجز الغشائي مناسب للتطبيقات الصحية والصيدلانية؟

نعم، فقد صُمم خصيصًا للتطبيقات الصحية بوصلات NEUMO BioConnect® المعقمة، وهو معتمد من EHEDG ومتوافق مع 3-A ومعتمد من FDA.

هل يمكن تنظيف نقطة القياس دون تفكيكها؟

نعم، يدعم التصميم التنظيف السريع لنقطة القياس دون بقايا، وهو مناسب لعمليات SIP (التعقيم بالبخار) وCIP (التنظيف في المكان).

ما هي المواد المتوفرة للأجزاء الملامسة للوسط؟

تتوفر عدة خيارات: Stainless steel 1.4435 (316L)، وStainless steel 1.4539 (904L)، وHastelloy C22 (2.4602)، وHastelloy C276 (2.4819)، وكذلك Stainless steel 1.4435 (316L) المصقول كهربائيًا.

ما هي وصلات العملية المتاحة؟

تشمل الوصلات: Flange form R وform V، ووصلة ملولبة ذكرية، ووصلة Clamp form R وform V، وNEUMO BioConnect®، ووصلة ملولبة بجوزة محززة.

كيف يعمل حاجز الغشاء؟

ينقل سائل داخل النظام، يُختار بشكل صريح بما يتناسب مع متطلبات القياس المعينة، الضغط بشكل هيدروليكي إلى جهاز القياس، مما يوفر فصلًا كاملًا عن الوسط.

ما الذي يميز موديل 990.50 عن غيره من حواجز الغشاء؟

يتميز بوصلته المعقمة NEUMO BioConnect® المصممة خصيصًا لتلبية المتطلبات العالية المستوى للتطبيقات الصحية، مع شهادات صحية مثل EHEDG و3-A وFDA. ---

التعريف

الطراز	990.50
السلسلة	990
النوع الفرعي	Diaphragm seal

نطاق القياس

نطاق الضغط

0…16 bar · 0…70 bar · 0…10 bar · 0…0.6 bar

ظروف العملية

وصلة العملية

Flange, form RFlange, form VThreaded coupling, male threadClamp connection, form RClamp connection, form VNEUMO BioConnect®NEUMO BioConnectThread with grooved union nut

المواد

مادة العلبة	Stainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Stainless steel 1.4435 (316L), electropolished
مادة الأجزاء الملامسة	Stainless steel 1.4435 (316L), Stainless steel 1.4539 (904L), Hastelloy C22 (2.4602), Hastelloy C276 (2.4819), Stainless steel 1.4435 (316L), electropolished

الشهادات والموافقات

الشهادات

3-AEHEDGCRNEACFDACE

تفاصيل إضافية

لغات ورقة البيانات

جداول من ورقة البيانات

Model 990.50	Standard	Option
Pressure range ¹⁾
Threaded connection	0 …0.6 bar to 0 …16bar [0 …8.7 psi to 0 …232 psi]
Flange connection	0 …0.6 bar to 0 …70bar [0 …8.7 psi to 0 …1,015 psi]
Clamp connection	■ 0 …0.6 bar to 0 …16bar [0 …8.7 psi to 0 …232 psi] (to DN 50) ■ 0 …0.6 bar to 0 …10bar [0 …8.7 psi to 0 …145 psi] (from DN 65)
Nominal pressure
Threaded connection	PN 16 bar [232 psi]
Flange connection	PN 16 bar [232 psi]
Clamp connection	■ PN 16 bar [232 psi] (to DN 50) ■ PN 10 bar [145 psi] (from DN 65)
Level of cleanliness of wetted parts	Oil and grease free per ASTM G93-03 level E (WIKA-Standard) and ISO 15001 (< 550 mg/m 2 )	Oil and grease free per ASTM G93-03 level C and ISO 15001 (< 66 mg/m 2 )
Origin of wetted parts	International	EU, CH, USA
Surface roughness of wetted parts	Ra ≤ 0.76 μm [30 μin] per ASME BPE SF3 (except for weld seam)	Ra ≤ 0.38 μm [15 μin] per ASME BPE SF4, only with electropolished surface (except for weld seam)
Connection to the measuring instrument	Axial weld-in connection	Female thread: ■ G1/2 ■ G1/4 ■ 1/2 NPT ■ 1/4 NPT
Type of mounting	Direct mounting	■ Capillary ■ Cooling element
Vacuum service (see IN 00.25)	Basic service	■ Premium service ■ Advanced service
Process connection	NEUMOBioConnect ® connection ■ Flange, form R ■ Threaded coupling, male thread ■ Clamp connection, form R For pipes per DIN 11866 row A and row B (or DIN 11850 and DIN EN ISO 1127) For exact designs and nominal widths see tables from page 5	■ Flange, formV ■ Threaded coupling, male thread ■ Clamp connection, formV
Instrument mounting bracket (only for capillary option)	■ Form H per DIN 16281, 100 mm[3.94 in], aluminium, black ■ Form H per DIN 16281, 100 mm[3.94 in], stainless steel ■ Bracket for pipe mounting, for pipe Ø20 …80mm[0.787 …3.15 in], steel (see data sheet

Upper body of diaphragm seal	Wetted parts 3)
Stainless steel 1.4435 (316L)	Stainless steel 1.4435 (316L)
Stainless steel 1.4435 (316L), electropolished 4)	Stainless steel 1.4435 (316L), electropolished 4)
Stainless steel 1.4539 (904L)	Stainless steel 1.4539 (904L)
Hastelloy C22 (2.4602)	Hastelloy C22 (2.4602)
Hastelloy C276 (2.4819)	Hastelloy C276 (2.4819)

Logo	Description	Country
	EU declaration of conformity Pressure equipment directive	European Union
	EAC Pressure equipment directive	Eurasian Economic Community
®	3-A Sanitary Standard	USA
FEBRUARY 2021 TYPE EL CLASS I	EHEDG Hygienic Equipment Design	European Union
-	MTSCHS Permission for commissioning	Kazakhstan
-	CRN Safety (e.g. electr. safety, overpressure, ...)	Canada

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
Mb	D	B R	K	d k	d 2
25	16 [232]	22 [0.87]	85 [3.35]	12 [0.47]	65 [2.56]	4 x Ø9[Ø 0.35]	32.3 [1.27]	0.5 [1.1]
32	16 [232]	25 [0.98]	95 [3.74]	12 [0.47]	75 [2.95]	4 x Ø9[Ø 0.35]	38.3 [1.5]	0.6 [1.32]
40	16 [232]	32 [1.26]	100 [3.94]	12 [0.47]	80 [3.15]	4 x Ø9[Ø 0.35]	44.3 [1.74]	0.7 [1.54]
50	16 [232]	45 [1.77]	110 [4.33]	14 [0.55]	90 [3.54]	4 x Ø9[Ø 0.35]	56.3 [2.22]	0.9 [1.98]
65	16 [232]	60 [2.36]	140 [5.51]	16 [0.63]	115 [4.53]	4 x Ø11 [Ø 0.43]	72.3 [2.85]	1.8 [3.97]
80	16 [232]	72 [2.83]	150 [5.9]	16 [0.63]	125 [4.92]	4 x Ø11 [Ø 0.43]	87.3 [3.44]	2.0 [4.4]
100	16 [232]	90 [3.54]	175 [6.89]	18 [0.7]	150 [5.9]	4 x Ø11 [Ø 0.43]	106.3 [4.19]	3.1 [6.83]

عرض الكل (18)

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
Mb	D	B R	K	d k	d 2
33.7	16 [232]	25 [0.98]	85 [3.35]	12 [0.47]	65 [2.56]	4 x Ø9[Ø 0.35]	36.0 [1.42]	0.5 [1.1]
42.4	16 [232]	32 [1.26]	95 [3.74]	12 [0.47]	75 [2.95]	4 x Ø9[Ø 0.35]	44.7 [1.76]	0.6 [1.32]
48.3	16 [232]	40 [1.57]	100 [3.93]	12 [0.47]	80 [3.15]	4 x Ø9[Ø 0.35]	50.6 [1.99]	0.7 [1.54]
60.3	16 [232]	52 [2.05]	110 [4.33]	14 [0.55]	90 [3.54]	4 x Ø9[Ø 0.35]	62.6 [2.46]	0.9 [1.98]
76.1	16 [232]	60 [2.36]	140 [5.51]	16 [0.63]	115 [4.53]	4 x Ø11 [Ø 0.43]	77.8 [3.06]	1.8 [3.97]
88.9	16 [232]	72 [2.83]	150 [5.9]	16 [0.63]	125 [4.92]	8 x Ø11 [Ø 0.43]	90.6 [3.57]	2.0 [4.41]
114.3	16 [232]	90 [3.54]	175 [6.89]	16 [0.63]	150 [5.9]	8 x Ø11 [Ø 0.43]	115.4 [4.54]	3.1 [6.83]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
Mb	D	B R	K	d k	d 2
25	16 [232]	22 [0.87]	85 [3.35]	10 [0.39]	65 [2.56]	4 x Ø9[Ø 0.35]	32.2 [1.27]	0.4 [0.88]
32	16 [232]	25 [0.98]	95 [3.74]	10 [0.39]	75 [2.95]	4 x Ø9[Ø 0.35]	38.2 [1.5]	0.6 [1.32]
40	16 [232]	32 [1.26]	100 [3.94]	10 [0.39]	80 [3.15]	4 x Ø9[Ø 0.35]	44.2 [1.74]	0.6 [1.32]
50	16 [232]	45 [1.77]	110 [4.33]	12 [0.47]	90 [3.54]	4 x Ø9[Ø 0.35]	56.2 [2.21]	0.9 [1.98]
65	16 [232]	60 [2.36]	140 [5.51]	14 [0.55]	115 [4.53]	4 x Ø11 [Ø 0.43]	72.2 [2.84]	1.7 [3.75]
80	16 [232]	72 [2.83]	150 [5.9]	14 [0.55]	125 [4.92]	8 x Ø11 [Ø 0.43]	87.2 [3.43]	1.9 [4.19]
100	16 [232]	90 [3.54]	175 [6.89]	16 [0.63]	150 [5.9]	8 x Ø11 [Ø 0.43]	106.2 [4.18]	3.1 [6.83]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
Mb	D	B R	K	d k	d 2
33.7	16 [232]	25 [0.98]	85 [3.35]	10 [0.39]	65 [2.56]	4 x Ø9[Ø 0.35]	35.9 [1.41]	0.4 [0.88]
42.4	16 [232]	32 [1.26]	95 [3.74]	10 [0.39]	75 [2.95]	4 x Ø9[Ø 0.35]	44.6 [1.76]	0.5 [1.1]
48.3	16 [232]	40 [1.57]	100 [3.93]	10 [0.39]	80 [3.15]	4 x Ø9[Ø 0.35]	50.5 [1.99]	0.6 [1.32]
60.3	16 [232]	52 [2.05]	110 [4.33]	12 [0.47]	90 [3.54]	4 x Ø9[Ø 0.35]	62.5 [2.46]	0.9 [1.98]
76.1	16 [232]	60 [2.36]	140 [5.51]	14 [0.55]	115 [4.53]	4 x Ø11 [Ø 0.43]	77.7 [3.06]	1.7 [3.75]
88.9	16 [232]	72 [2.83]	150 [5.9]	14 [0.55]	125 [4.92]	8 x Ø11 [Ø 0.43]	90.5 [3.56]	2.0 [4.41]
114.3	16 [232]	90 [3.54]	175 [6.89]	16 [0.63]	150 [5.9]	8 x Ø11 [Ø 0.43]	115.3 [4.54]	3.2 [7.05]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	G 1	D	k	h
25	16 [232]	29 [1.14]	26 [1.02]	22 [0.87]	M42 x 2	55 [2.17]	18 [0.71]	20 [0.79]	0.3 [0.66]
32	16 [232]	35 [1.38]	32 [1.26]	25 [0.98]	M52 x 2	65 [2.56]	19 [0.75]	20 [0.79]	0.4 [0.88]
40	16 [232]	41 [1.61]	38 [1.496]	32 [1.26]	M56 x 2	70 [2.76]	21 [0.83]	20 [0.79]	0.5 [1.1]
50	16 [232]	53 [2.09]	50 [1.97]	45 [1.77]	M68 x 2	82 [3.23]	21 [0.83]	20 [0.79]	0.7 [1.54]
65	16 [232]	70 [2.76]	66 [2.598]	60 [2.36]	M90 x 3	105 [4.13]	27 [1.06]	20 [0.79]	1.3 [2.87]
80	16 [232]	85 [3.35]	81 [3.19]	72 [2.83]	M100 x 3	115 [4.53]	27 [1.06]	20 [0.79]	1.6 [3.53]
100	16 [232]	104 [4.09]	100 [3.94]	90 [3.54]	M130 x 4	145 [5.71]	29 [1.14]	20 [0.79]	2.6 [5.73]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	G 1	D	k	h
33.7	16 [232]	33.7 [1.33]	29.7 [1.17]	25 [0.98]	M42 x 2	55 [2.17]	18 [0.71]	20 [0.79]	0.3 [0.66]
42.4	16 [232]	42.4 [1.67]	38.4 [1.51]	32 [1.26]	M52 x 2	65 [2.56]	19 [0.75]	20 [0.79]	0.4 [0.88]
48.3	16 [232]	48.3 [1.9]	44.3 [1.74]	40 [1.57]	M56 x 2	70 [2.76]	21 [0.83]	20 [0.79]	0.5 [1.1]
60.3	16 [232]	60.3 [2.37]	56.3 [2.22]	52 [2.05]	M68 x 2	82 [3.23]	21 [0.83]	20 [0.79]	0.7 [1.54]
76.1	16 [232]	76.1 [2.996]	72.1 [2.84]	60 [2.36]	M90 x 3	105 [4.13]	27 [1.06]	20 [0.79]	1.3 [2.87]
88.9	16 [232]	88.9 [3.5]	84.3 [3.32]	72 [2.83]	M100 x 3	115 [4.53]	27 [1.06]	20 [0.79]	1.6 [3.53]
114.3	16 [232]	114.3 [4.5]	109.7 [4.32]	90 [3.54]	M130 x 4	145 [5.71]	29 [1.14]	20 [0.79]	2.6 [5.73]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	G 1	D	k	h
25	16 [232]	29 [1.14]	26 [1.02]	22 [0.87]	M42 x 2	55 [2.17]	18 [0.71]	20 [0.79]	0.2 [0.44]
32	16 [232]	35 [1.38]	32 [1.26]	25 [0.98]	M52 x 2	65 [2.56]	19 [0.75]	20 [0.79]	0.25 [0.55]
40	16 [232]	41 [1.61]	38 [1.496]	32 [1.26]	M56 x 2	70 [2.76]	21 [0.83]	20 [0.79]	0.3 [0.66]
50	16 [232]	53 [2.09]	50 [1.97]	45 [1.77]	M68 x 2	82 [3.23]	21 [0.83]	20 [0.79]	0.5 [1.1]
65	16 [232]	70 [2.76]	66 [2.598]	59 [2.32]	M90 x 3	105 [4.13]	27 [1.06]	28 [1.1]	0.9 [1.98]
80	16 [232]	85 [3.35]	81 [3.19]	72 [2.83]	M100 x 3	115 [4.53]	27 [1.06]	28 [1.1]	1.1 [2.43]
100	16 [232]	104 [4.09]	100 [3.94]	89 [3.5]	M130 x 4	145 [5.71]	29 [1.14]	30 [1.18]	1.9 [4.19]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	G 1	D	k	h
33.7	16 [232]	33.7 [1.33]	29.7 [1.17]	25 [0.98]	M42 x 2	55 [2.17]	18 [0.71]	20 [0.79]	0.2 [0.44]
42.4	16 [232]	42.4 [1.67]	38.4 [1.51]	32 [1.26]	M52 x 2	65 [2.56]	19 [0.75]	20 [0.79]	0.25 [0.55]
48.3	16 [232]	48.3 [1.9]	44.3 [1.74]	40 [1.57]	M56 x 2	70 [2.76]	21 [0.83]	20 [0.79]	0.3 [0.66]
60.3	16 [232]	60.3 [2.37]	56.3 [2.22]	52 [2.05]	M68 x 2	82 [3.23]	21 [0.83]	20 [0.79]	0.5 [1.1]
76.1	16 [232]	76.1 [2.996]	71.5 [2.81]	59 [2.32]	M90 x 3	105 [4.13]	27 [1.06]	28 [1.1]	0.9 [1.98]
88.9	16 [232]	88.9 [3.5]	84.3 [3.32]	72 [2.83]	M100 x 3	115 [4.53]	27 [1.06]	28 [1.1]	1.1 [2.43]
114.3	16 [232]	114.3 [4.5]	109.1 [4.29]	89 [3.5]	M130 x 4	145 [5.71]	29 [1.14]	30 [1.18]	1.9 [4.19]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	D	k	h
25	16 [232]	29 [1.14]	26 [1.02]	22 [0.87]	50.5 [1.99]	16.5 [0.65]	20 [0.79]	0.3 [0.66]
32	16 [232]	35 [1.38]	32 [1.26]	25 [0.98]	50.5 [1.99]	16.5 [0.65]	20 [0.79]	0.3 [0.66]
40	16 [232]	41 [1.61]	38 [1.496]	32 [1.26]	64 [2.52]	16.5 [0.65]	20 [0.79]	0.4 [0.88]
50	16 [232]	53 [2.09]	50 [1.97]	45 [1.77]	77.5 [3.05]	16.5 [0.65]	20 [0.79]	0.6 [1.32]
65	10 [145]	70 [2.76]	66 [2.598]	60 [2.36]	91 [3.58]	16.5 [0.65]	20 [0.79]	0.8 [1.76]
80	10 [145]	85 [3.35]	81 [3.19]	72 [2.83]	106 [4.17]	16.5 [0.65]	20 [0.79]	1.1 [2.43]
100	10 [145]	104 [4.09]	100 [3.94]	90 [3.54]	119 [4.69]	16.5 [0.65]	20 [0.79]	1.4 [3.09]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	D	k	h
33.7	16 [232]	33.7 [1.33]	29.7 [1.17]	25 [0.98]	50.5 [1.99]	16.5 [0.65]	20 [0.79]	0.2 [0.44]
42.4	16 [232]	42.4 [1.67]	38.4 [1.51]	32 [1.26]	50.5 [1.99]	16.5 [0.65]	20 [0.79]	0.2 [0.44]
48.3	16 [232]	48.3 [1.9]	44.3 [1.74]	40 [1.57]	64 [2.52]	16.5 [0.65]	20 [0.79]	0.3 [0.66]
60.3	16 [232]	60.3 [2.37]	56.3 [2.22]	52 [2.05]	77.5 [3.05]	16.5 [0.65]	20 [0.79]	0.6 [1.32]
76.1	10 [145]	76.1 [2.996]	72.1 [2.84]	60 [2.36]	91 [3.58]	16.5 [0.65]	20 [0.79]	0.8 [1.76]
88.9	10 [145]	88.9 [3.5]	84.3 [3.32]	72 [2.83]	106 [4.17]	16.5 [0.65]	20 [0.79]	1.0 [2.2]
114.3	10 [145]	114.3 [4.5]	109.7 [4.32]	90 [3.54]	130 [5.12]	16.5 [0.65]	20 [0.79]	1.3 [2.87]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	D	k	h
25	16 [232]	29 [1.14]	26 [1.02]	22 [0.87]	50.5 [1.99]	20 [0.79]	17.5 [0.69]	0.3 [0.66]
32	16 [232]	35 [1.38]	32 [1.26]	25 [0.98]	50.5 [1.99]	20 [0.79]	17.5 [0.69]	0.3 [0.66]
40	16 [232]	41 [1.61]	38 [1.496]	32 [1.26]	64 [2.52]	20 [0.79]	17.5 [0.69]	0.4 [0.88]
50	16 [232]	53 [2.09]	50 [1.97]	45 [1.77]	77.5 [3.05]	20 [0.79]	17.5 [0.69]	0.6 [1.32]
65	10 [145]	70 [2.76]	66 [2.598]	60 [2.36]	91 [3.58]	20 [0.79]	17.5 [0.69]	0.8 [1.76]
80	10 [145]	85 [3.35]	81 [3.19]	72 [2.83]	106 [4.17]	20 [0.79]	17.5 [0.69]	1.1 [2.43]
100	10 [145]	104 [4.09]	100 [3.94]	90 [3.54]	119 [4.69]	20 [0.79]	17.5 [0.69]	1.4 [3.09]

DN	PN in bar [psi]	Dimensions in mm[in]	Weight in kg [lbs]
d 1	d 2	Mb	D	k	h
33.7	16 [232]	33.7 [1.33]	29.7 [1.17]	25 [0.98]	50.5 [1.99]	20 [0.79]	17.5 [0.69]	0.2 [0.44]
42.4	16 [232]	42.4 [1.67]	38.4 [1.51]	32 [1.26]	50.5 [1.99]	20 [0.79]	17.5 [0.69]	0.2 [0.44]
48.3	16 [232]	48.3 [1.9]	44.3 [1.74]	40 [1.57]	64 [2.52]	20 [0.79]	17.5 [0.69]	0.3 [0.66]
60.3	16 [232]	60.3 [2.37]	56.3 [2.22]	52 [2.05]	77.5 [3.05]	20 [0.79]	17.5 [0.69]	0.6 [1.32]
76.1	10 [145]	76.1 [2.996]	72.1 [2.84]	60 [2.36]	91 [3.58]	20 [0.79]	17.5 [0.69]	0.8 [1.76]
88.9	10 [145]	88.9 [3.5]	84.3 [3.32]	72 [2.83]	106 [4.17]	20 [0.79]	17.5 [0.69]	1.0 [2.2]
114.3	10 [145]	114.3 [4.5]	109.7 [4.32]	90 [3.54]	130 [5.12]	20 [0.79]	17.5 [0.69]	1.3 [2.87]

Material	Unified numbering system (UNS)
Stainless steel 316L (1.4404 or 1.4435)	S31603
Stainless steel 904L (1.4539)	N08904
Stainless steel 321 (1.4541)	S32100
Stainless steel 316Ti (1.4571)	S31635
Stainless steel 1.4466 (urea grade)	S31050
Duplex 2205 (1.4462)	S31803
Superduplex 1.4410	S32750
Tantalum (also lining)	R05200
Hastelloy C276 (2.4819)	N01276
Hastelloy C22 (2.4602)	N06022
Inconel 600 (2.4816)	N06600
Incoloy 825 (2.4858)	N08825
Inconel 625 (2.485)	N06625
Monel 400 (2.4360)	N04400
Nickel 200 (2.4066)	N02200
Nickel 201 (2.4068)	N02201
Titanium 3.7035 (class 2)	R50400
Titanium 3.7235 (class 7)	R52400
Zirconium GR702	R60702

Designation	Identi- fication number	Solidi- fication point	Boiling/ degradation point	Density at 25 °C	Kin.Viscosity at 25 °C	Remark
KN	°C	°C	g/cm³	cSt
Silicone oil	2	-45	+300	0.96	54.5	Universal application
Glycerine	7	-35	+240	1.26	759.6	FDA 21 CFR 182.1320
Silicone oil	17	-90	+200	0.92	4.4	Low temperatures
Halocarbon	21	-60	+175	1.89	10.6	Oxygen 1) and chlorine
Methylcyclopentane	30	-130	+60	0.74	0.7	For very low temperatures
High-temperature silicone oil	32	-25	+400	1.06	47.1	For high temperatures
Neobee® M-20	59	-35	+260	0.92	10.0	FDA 21 CFR 172.856, 21 CFR 174.5
DI water	64	+4	+85	1.00	0.9	For ultrapure media
Silicone oil	68	-75	+250	0.93	10.3
DI water/propanol mixture	75	-30	+60	0.92	3.6	For ultrapure media
Medicinal white mineral oil	92	-15	+260	0.85	45.3	FDA 21 CFR 172.878, 21 CFR 178.3620(a); USP, EP, SP

Maximum temperature	Maximum oxygen pressure
to 60 °C	50 bar
> 60 °C to 100 °C	30 bar
> 100 °C to 175 °C	25 bar
