Drum meter for industrial liquids The drum meter is used for measuring - Benzene in gas works and iron and steel works
- Solvents and other liquids during operational and production checks
- Condensation in district heating works
The drum meter can also be used for measuring components used for mixing in the chemical industry and the synthetic fibers industry. |
ДизайнThe two-part housing is made of cast iron and pressure-tight up to max. 0.4 bar. On the bottom part are inlet and outlet connections. The pipe connections are designed as oval flanges with female thread. The housing also available with lining and lid. The drum is made of welded chromium-nickel steel sheet. Values are indicated (in liters) by a single-pointer dial with a non-resettable 5-digit drum type counter. Individual quantities are determined from the difference between the two values on the non-resettable drum-type counter or on the resettable pulse counter in the case of a remote display. |
Технические данные | Meter size (drum capacity) | Required inlet height (IH) | Max. flow rate qmax1) | | Liters (USg) | mm (inch) | l/h (USgpm) | | 3 (0.8) | 200 | 800 (3.5) | | 6 (1.6) | 250 | 1500 (6.6) | | 15 (4.0) | 300 | 4000 (17.6) | | Error limits with a flow rate range of | | | 0.5% of the correct value | | | 0.2% of the correct value | | Permissible liquid temperature | Max. 95 ° C (203 °F) | | Permissible viscosity of liquid | Max. 2 mPa·s | | Pipe connections | | Meter size | Inlet | Outlet | | 3 liters (0.8 USg) | G ¾ | G1¼ | | 6 liters (1.6 USg) | G1¼ | G1½ | | 15 liters (4.0 USg) | G2 | G2½ | | Oval flanges to DIN 2558, drilled | | Certificate and approvals | | The meter is not subject to the pressure equipment directive (DGRL 97/23/EC). |
The values quoted here for qmax apply only for liquids with a density ρ ≥ 1 and a dynamic viscosity ŋ ≤ 2 mPa · s. With ρ < 1, a max. flow rate of ρ · qmax is permitted. |

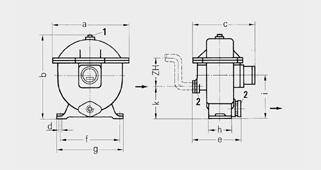

Чертеж  Drum meter for industrial liquids, dimensions in mm (inch) | c1 | Without pulser | | c2 | With pulser | | IH | With an inlet open the atmospheric pressure, IH is the minimum height at which the inlet line must lie above the inlet connection in order for the maximum flow through the drum meter to be reached.. | | 1 | Screw plug G½ x 10 DIN 910 (only available for pressure-tight designs) | | 2 | Mating flanges (included in delivery) |
| Meter size | a | b | c1 | c2 | Ø d | e | | l (USg) | mm (inch) | | 3 (0.8) | 375 (14.8) | 420 (16.5) | 368 (14.5) | 460 (17.7) | 11.5 (0.45) | 238 (9.4) | | 6 (1.6) | 386 (15.2) | 418 (16.5) | 517 (20.4) | 599 (23.6) | 11.5 (0.45) | 350 (13.8) | | 15 (4.0) | 585 (23.0) | 620 (24.4) | 561 (22.1) | 643 (25.3) | 15 (0.59) | 431 (17.0) | | Meter size | f | g | h | i | k | IH | | l (USg) | mm (inch) | | 3 (0.8) | 300 (11.8) | 330 (13.0) | 125 (4.9) | 220 (8.7) | 155 (6.1) | 200 (7.9) | | 6 (1.6) | 300 (11.8) | 330 (13.0) | 212 (8.4) | 228 (9.0) | 163 (6.4) | 250 (9.8) | | 15 (4.0) | 490 (19.3) | 530 (20.9) | 240 (9.5) | 340 (13.4) | 265 (10.4) | 300 (11.8) |
|
Заказные данные | Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) | | 7MS1221-1..00 | БАРАБАННЫЙ СЧЕТЧИК ЖИДКОСТИ ОБЪЕМ КАМЕРЫ 3 ЛИТРОВ | 38 | по запросу (X) | 1 | | 7MS1221-2..00 | БАРАБАННЫЙ СЧЕТЧИК ЖИДКОСТИ ОБЪЕМ КАМЕРЫ 6 ЛИТРОВ | 48 | по запросу (X) | 1 | | 7MS1221-3..00 | БАРАБАННЫЙ СЧЕТЧИК ЖИДКОСТИ ОБЪЕМ КАМЕРЫ 15 ЛИТРОВ | 105 | по запросу (X) | 1 | | 7MS9004-1AA00 | НАБОР ДЛЯ НАДСТРОЙКИ ИНДИКАТОРА В 3-Л ИЗМЕРИТЕЛЕ | 3 | по запросу (D) | 1 | | 7MS9004-1AB00 | НАБОР ДЛЯ НАДСТРОЙКИ ИНДИКАТОРА В 6-Л ИЗМЕРИТЕЛЕ | 3 | по запросу (D) | 1 | | 7MS9004-1AC00 | НАБОР ДЛЯ НАДСТРОЙКИ ИНДИКАТОРА В 15-Л ИЗМЕРИТЕЛЕ | 3 | по запросу (D) | 1 |
|
Заказные данные [PDF] |
Аксессуары | Заказной № | Описание | Вес (кг) | Доставка | Мин. зак. (шт) | | C71000-B5174-B100 | РУКОВОДСТВО GERMAN/ENGLISH FOR DRUM METERS | 2 | по запросу (D) | 1 |
|
|
